CLUTCH & RELEASE FORK

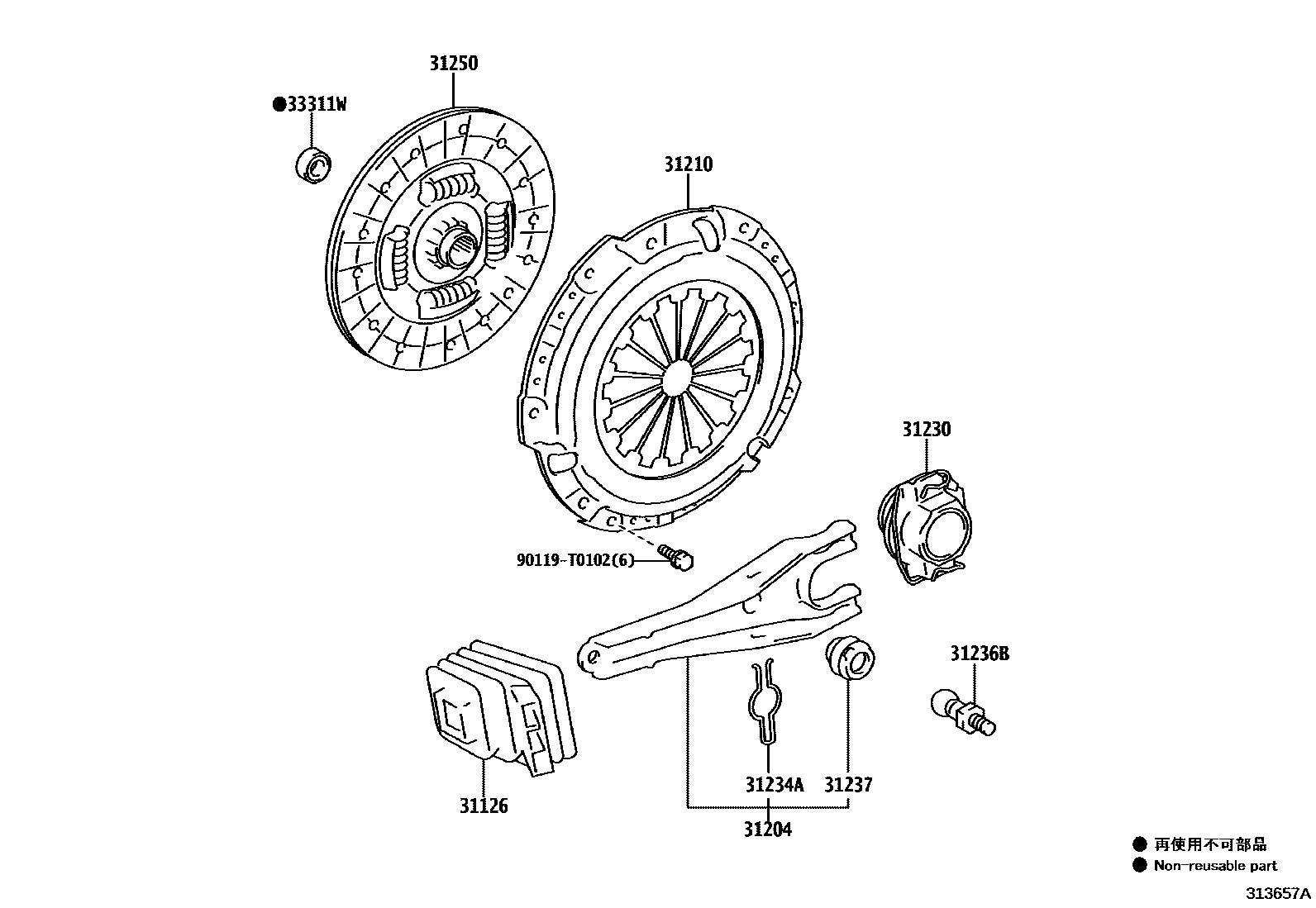

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-0K080i202108-202303
main31126-0K090i202108-202301
TYPE B:REFER 33-01
main31126-0K090i202108-202210
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31126-0K090i202108-202305
TYPE A:REFER 33-01
main31126-0K100i202108-202301
TYPE B:REFER 33-01
main31126-0K100i202108-202207
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31126-0K100i202108-202305
TYPE A:REFER 33-01
main31126-0K110i202109-202301
TYPE B:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-0K110i202108-202207
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01
main31204-0K110i202108-202305
TYPE A:REFER 33-01
main31204-0K110i202108-202303
TYPE B:REFER 33-01
main31204-0K110i202108-202210
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31204-0K120i202108-202208
TYPE B:REFER 33-01
main31204-0K120i202108-202207
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31204-0K120i202108-202303
TYPE A:REFER 33-01
main31204-0K190i202208-202301
TYPE B:REFER 33-01
main31204-0K190i202208-202305
TYPE A:REFER 33-01
main31204-0K190i202208-202210
31210COVER ASSY, CLUTCH
main31210-0K260i202108-202301
main31210-0K281i202111-202210
TYPE B:REFER ILLUST.
main31210-0K281i202108-202301
main31210-0K300i202108-202207
main31210-0K310i202108-202301
main31210-0K420i202109-202301
main31210-0K430i202109-202301
31230BEARING ASSY, CLUTCH RELEASE
main31230-71052i202108-202305
TYPE A:REFER 33-01
main31230-71052i202108-202303
TYPE B:REFER 33-01
main31230-71052i202108-202207
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01
main31230-71052i202108-202210
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31230-71061i202108-202303
TYPE A:REFER 33-01
main31230-71061i202108-202207
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31230-71061i202108-202208
TYPE B:REFER 33-01
main31230-71080i202208-202301
TYPE B:REFER 33-01
main31230-71080i202208-202210
main31230-71080i202208-202305
TYPE A:REFER 33-01
31234ASPRING, RELEASE FORK SUPPORT
main31234-71020i202108-202301
TYPE B:REFER 33-01
main31234-71020i202108-202305
TYPE A:REFER 33-01
main31234-71020i202208-202301
31236BSUPPORT, RELEASE FORK
main31236-0K010i202108-202303
TYPE B:REFER 33-01
main31236-0K010i202108-202303
TYPE A:REFER 33-01
main31236-0K010i202108-202207
ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01
main31236-0K010i202108-202301
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31236-0K020i202108-202208
TYPE B:REFER 33-01
main31236-0K020i202108-202303
TYPE A:REFER 33-01
main31236-0K020i202108-202207
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31236-0K030i202108-202207
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31236-0K030i202108-202305
TYPE A:REFER 33-01
main31236-0K030i202108-202301
TYPE B:REFER 33-01
main31236-0K060i202208-202301
TYPE B:REFER 33-01
main31236-0K060i202208-202305
TYPE A:REFER 33-01
main31236-0K060i202208-202210
31237BOOT, CLUTCH RELEASE FORK SUPPORT
main31237-0K020i202108-202305
TYPE A:REFER 33-01
main31237-0K020i202108-202301
TYPE B:REFER 33-01
main31237-0K020i202208-202301
31250DISC ASSY, CLUTCH
main31250-0K261i202108-202301
sub31250-0K262
main31250-0K281i202111-202210
TYPE B:REFER ILLUST.
main31250-0K281i202108-202301
main31250-0K301i202108-202207
sub31250-0K302
main31250-0K311i202108-202301
main31250-0K430i202109-202301
main31250-0K440i202109-202301
33311WBEARING (FOR INPUT SHAFT)
main90363-12024i202109-202301
main90363-T0006i202108-202303
main90363-T0019i202108-202301
90119T0102
main90119-T0102

10 parts on this diagram · 6 diagrams in section
