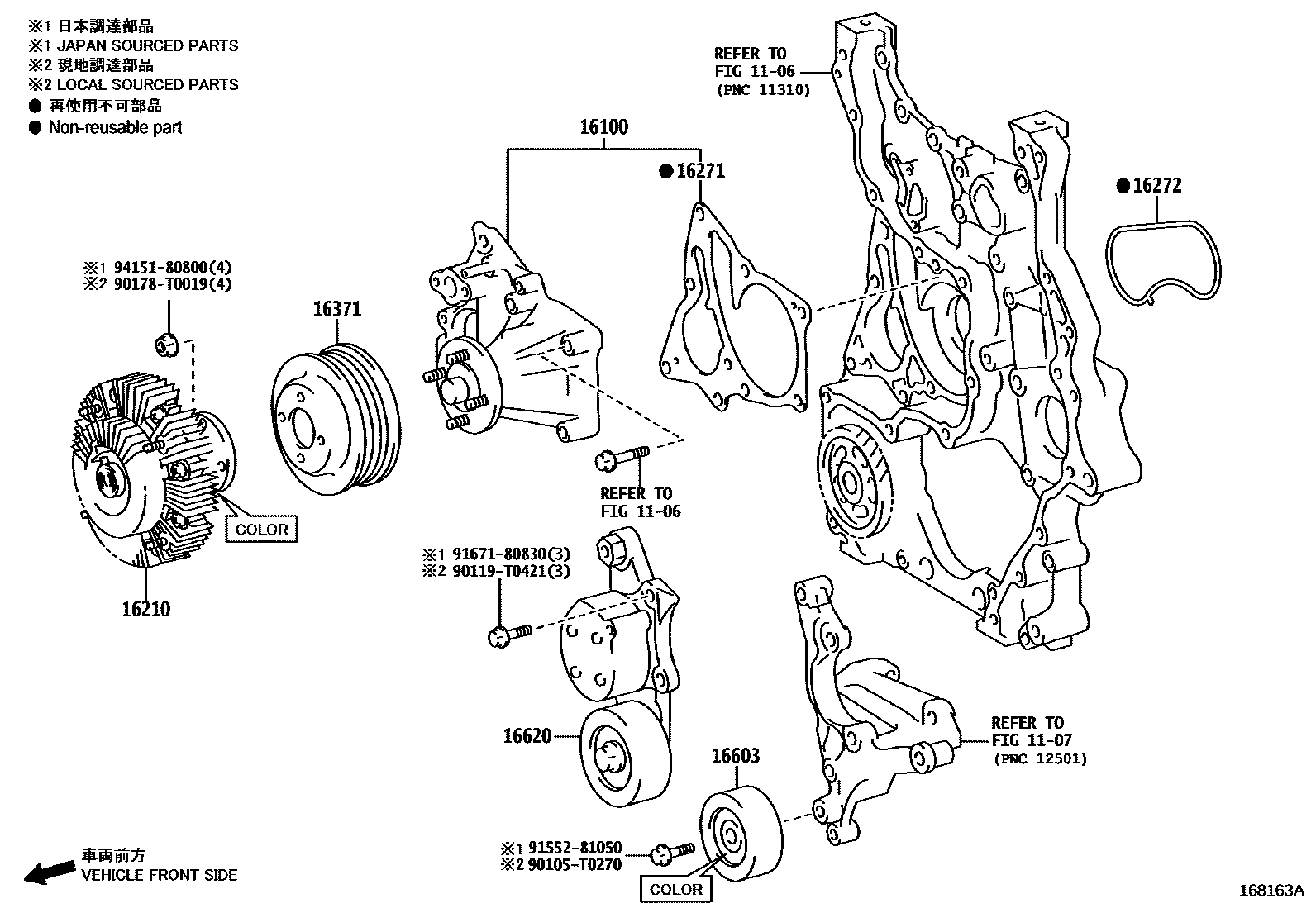

WATER PUMP
1106
1107
16100PUMP ASSY, ENGINE WATER
(L)
(J)
16210COUPLING ASSY, FLUID
SYRIA SPEC,GRAY
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,GRAY
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,GRAY
GRAY
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,GRAY
SUDAN SPEC,GRAY
CENTRAL AND SOUTH AMERICA SPEC,GRAY
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,GRAY
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,GRAY
IRAQ SPEC,GRAY
EXPORT FROM SA,GRAY
BOLIVIA URUGUAY SPEC,GREEN
LIGHT BLUE
GREEN
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),GREEN
CENTRAL AND SOUTH AMERICA SPEC,LIGHT BLUE
BOLIVIA URUGUAY SPEC,LIGHT BLUE
ALGERIA SPEC (EURO 3 REGULATION),GREEN
COSTA RICA SPEC,GREEN
CENTRAL AND SOUTH AMERICA SPEC,GREEN
YELLOW
CENTRAL AND SOUTH AMERICA SPEC,YELLOW
CENTRAL AND SOUTH AMERICA SPEC,MOSS GREEN
LIGHT GRAY
MOSS GREEN
EXPORT FROM SA,MOSS GREEN
16271GASKET, WATER PUMP
THA SOURCED PARTS
main16271-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
IND SOURCED PARTS
JAPAN SOURCED PARTS
16272GASKET, WATER PUMP, NO.2
THA SOURCED PARTS
main16272-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
IND SOURCED PARTS
JAPAN SOURCED PARTS
16371PULLEY, FAN
(L)
THA SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
main16371-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
IND SOURCED PARTS
BOLIVIA URUGUAY SPEC,JAPAN SOURCED PARTS
CENTRAL AND SOUTH AMERICA SPEC,JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
(J)
16603PULLEY SUB-ASSY, IDLER, NO.1
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L),BLACK
BOLIVIA URUGUAY SPEC,(L),BLACK
(L),BLACK
main16603-0C013i2GDFTV..GUN122..LHD..L..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,TH);1GDFTV,2GDFTV..GUN11#,120,121,122,126,135..GCC,IDN,PH,TH202108-202207
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L),BLACK
CENTRAL AND SOUTH AMERICA SPEC,(L),BLACK
COSTA RICA SPEC,(L),BLACK
ALGERIA SPEC (EURO 3 REGULATION),(L),BLACK
SYRIA SPEC,RED
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,RED
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,RED
(L)
RED
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,RED
SUDAN SPEC,RED
CENTRAL AND SOUTH AMERICA SPEC,RED
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,RED
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,RED
IRAQ SPEC,RED
main16603-0E010i2GDFTV..GUN125..RHD..6F..S..SA;1GDFTV,2GDFTV..GUN122,126..RHD..MTM..(H,L)..SA202109-202301
EXPORT FROM SA,RED
CENTRAL AND SOUTH AMERICA SPEC,(J),BLACK
BOLIVIA URUGUAY SPEC,(J),BLACK
(J),BLACK
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J),BLACK
(J)
16620TENSIONER ASSY, V-RIBBED BELT
(L)
BOLIVIA URUGUAY SPEC,(L)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)
ALGERIA SPEC (EURO 3 REGULATION),(L)
COSTA RICA SPEC,(L)
CENTRAL AND SOUTH AMERICA SPEC,(L)
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
IRAQ SPEC,WATER PROOF SPEC
SYRIA SPEC,WATER PROOF SPEC
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
WATER PROOF SPEC
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
SUDAN SPEC,WATER PROOF SPEC
CENTRAL AND SOUTH AMERICA SPEC,WATER PROOF SPEC
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
main16620-0E020i2GDFTV..GUN125..RHD..6F..S..SA;1GDFTV,2GDFTV..GUN122,126..RHD..MTM..(H,L)..SA202109-202301
EXPORT FROM SA,WATER PROOF SPEC
(J)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
BOLIVIA URUGUAY SPEC,(J)
CENTRAL AND SOUTH AMERICA SPEC,(J)
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
main91552-81050
9167180830
main91671-80830
9415180800
main94151-80800
15 parts on this diagram · 3 diagrams in section
