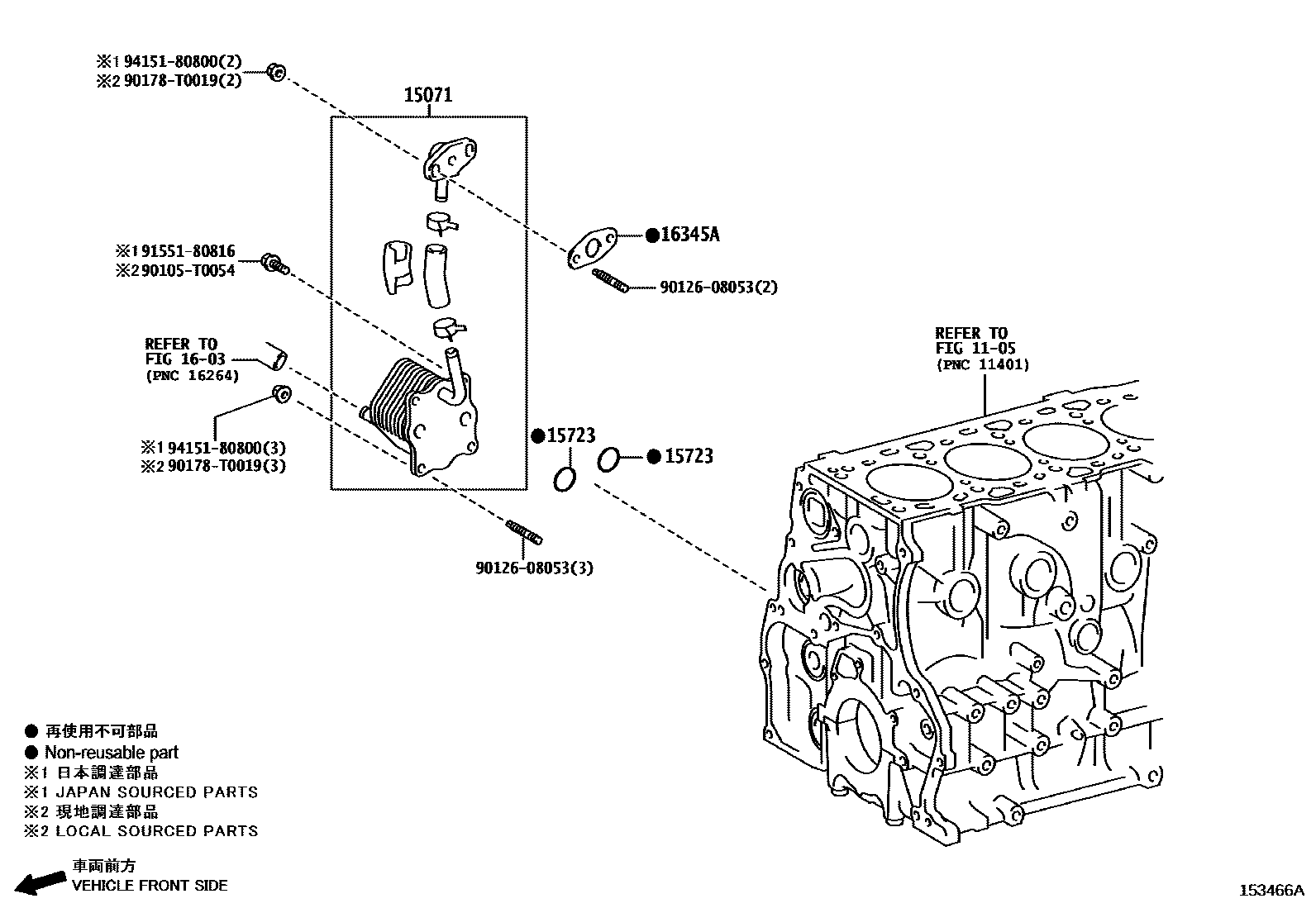

ENGINE OIL COOLER

0001 1 0002 1 0003 1

1105

15071COOLER SET, ENGINE OIL

main15071-08010i1GDFTV,2GDFTV..GUN12#,13#..KEN,SA202210-202303

(L)

main15071-0E010i2GDFTV..GUN135..(AGTP,KENP,SAP)..(KEN,LA,SA);1GDFTV,2GDFTV..GUN122,125,126,136..KEN,PKN,SA202108-202210

(L)

sub15071-08010

main15071-11010i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)202108-202207

(J)

sub15071-08010

15723RING, O

main90301-22007i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)202108-202207

(J)

main90301-T0010i1GDFTV,2GDFTV..GUN11#,12#,13#..THP202108-202303

(L)

1603

16345AGASKET, WATER OUTLET PIPE

main16345-0E010i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202108-202303

THA SOURCED PARTS

main16345-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207

IND SOURCED PARTS

main16345-11010i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)202108-202207

JAPAN SOURCED PARTS

90105T0054

main90105-T0054

9012608053

main90126-08053

90178T0019

main90178-T0019

9155180816

main91551-80816

9415180800

main94151-80800

10 parts on this diagram · 3 diagrams in section
