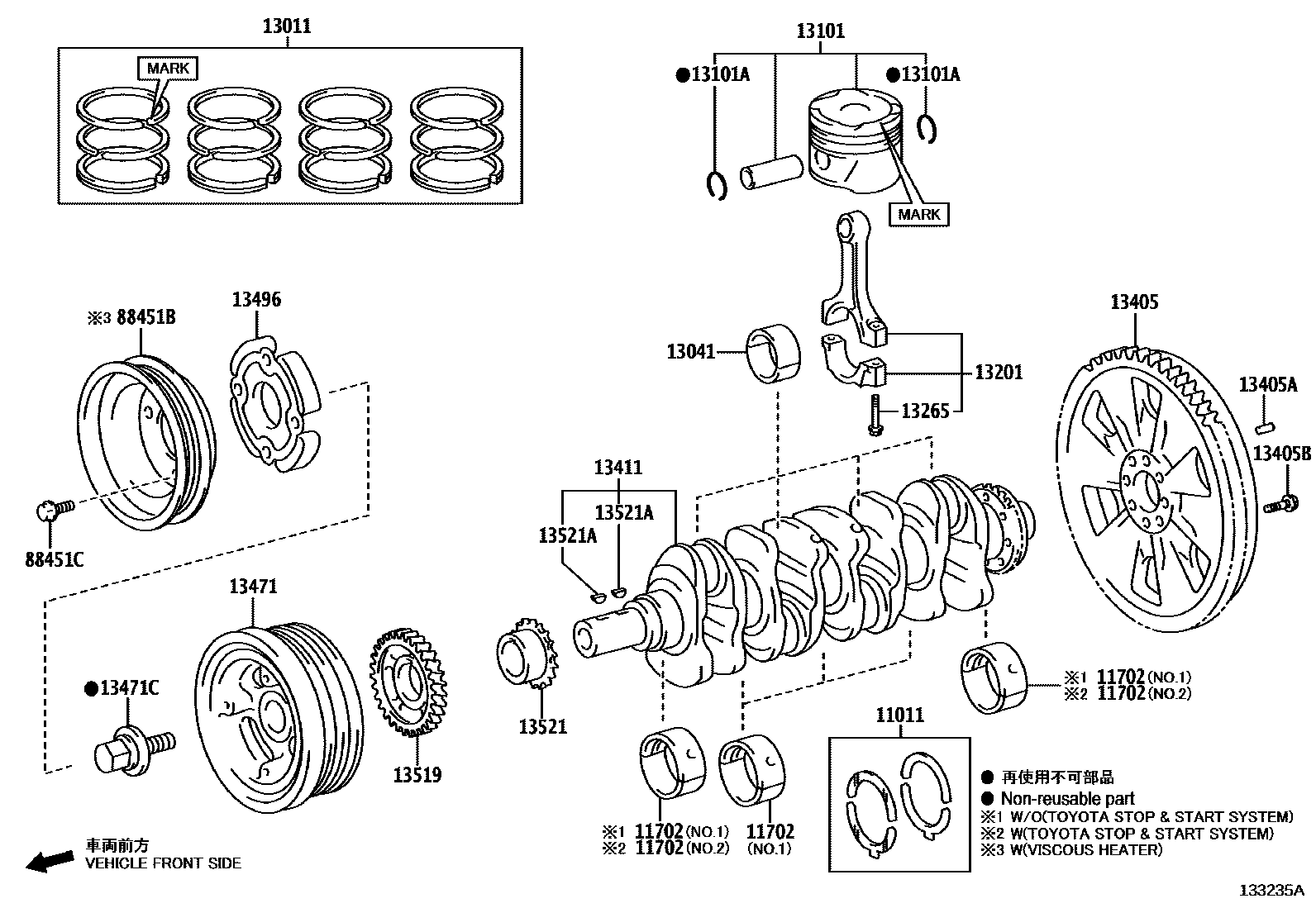

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD,(L)
STD,(J)
STD
O/S 0.125
O/S 0.250
11702BEARING SET, CRANKSHAFT
main11701-0E010-02i2GDFTV..GUN135..SCB..THP;1GDFTV,2GDFTV..GUN112,122,136..THP;1GDFTV,2GDFTV..GUN125,126..ARL,GEN,IDN202108-202303
MARK 2,NO.1,REFER R/M,*652
BOLIVIA URUGUAY SPEC,MARK 2,NO.1,REFER R/M,*652
CENTRAL AND SOUTH AMERICA SPEC,MARK 2,NO.1,REFER R/M,*652
main11701-0E010-03i2GDFTV..GUN135..SCB..THP;1GDFTV,2GDFTV..GUN112,122,136..THP;1GDFTV,2GDFTV..GUN125,126..ARL,GEN,IDN202108-202207
CENTRAL AND SOUTH AMERICA SPEC,MARK 3,NO.1,REFER R/M,*652
main11701-0E010-03i2GDFTV..GUN135..SCB..THP;1GDFTV,2GDFTV..GUN112,122,136..THP;1GDFTV,2GDFTV..GUN125,126..ARL,GEN,IDN202108-202210
BOLIVIA URUGUAY SPEC,MARK 3,NO.1,REFER R/M,*652
MARK 3,NO.1,REFER R/M,*652
MARK 4,NO.1,REFER R/M,*652
main11701-0E010-04i2GDFTV..GUN125..THP..(GCC,LA,TH);1GDFTV,2GDFTV..GUN111,120,121,126,135..GCC,TH202108-202207
CENTRAL AND SOUTH AMERICA SPEC,MARK 4,NO.1,REFER R/M,*652
main11701-0E010-04i2GDFTV..GUN125..THP..(GCC,LA,TH);1GDFTV,2GDFTV..GUN111,120,121,126,135..GCC,TH202108-202210
BOLIVIA URUGUAY SPEC,MARK 4,NO.1,REFER R/M,*652
MARK 5,NO.1,REFER R/M,*652
main11701-0E010-05i2GDFTV..GUN125..THP..(GCC,LA,TH);1GDFTV,2GDFTV..GUN111,120,121,126,135..GCC,TH202108-202207
CENTRAL AND SOUTH AMERICA SPEC,MARK 5,NO.1,REFER R/M,*652
main11701-0E010-05i2GDFTV..GUN125..THP..(GCC,LA,TH);1GDFTV,2GDFTV..GUN111,120,121,126,135..GCC,TH202108-202210
BOLIVIA URUGUAY SPEC,MARK 5,NO.1,REFER R/M,*652
MARK 6,NO.1,REFER R/M,*652
CENTRAL AND SOUTH AMERICA SPEC,MARK 6,NO.1,REFER R/M,*652
BOLIVIA URUGUAY SPEC,MARK 6,NO.1,REFER R/M,*652
main11701-0E020-02i2GDFTV..GUN125..THP..(GCC,LA,TH);1GDFTV,2GDFTV..GUN111,120,121,126,135..GCC,TH202108-202207
MARK 2,NO.2,REFER R/M,*652
main11701-0E020-03i2GDFTV..GUN125..THP..(GCC,LA,TH);1GDFTV,2GDFTV..GUN111,120,121,126,135..GCC,TH202108-202207
MARK 3,NO.2,REFER R/M,*652
main11701-0E020-04i2GDFTV..GUN125..THP..(GCC,LA,TH);1GDFTV,2GDFTV..GUN111,120,121,126,135..GCC,TH202108-202207
MARK 4,NO.2,REFER R/M,*652
main11701-0E020-05i2GDFTV..GUN125..THP..(GCC,LA,TH);1GDFTV,2GDFTV..GUN111,120,121,126,135..GCC,TH202108-202207
MARK 5,NO.2,REFER R/M,*652
main11701-0E020-06i2GDFTV..GUN125..THP..(GCC,LA,TH);1GDFTV,2GDFTV..GUN111,120,121,126,135..GCC,TH202108-202207
MARK 6,NO.2,REFER R/M,*652
main11701-0E030-02i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MARK 2,NO.1,REFER R/M,*650
main11701-0E030-03i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MARK 3,NO.1,REFER R/M,*650
main11701-0E030-04i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MARK 4,NO.1,REFER R/M,*650
main11701-0E030-05i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MARK 5,NO.1,REFER R/M,*650
main11701-0E030-06i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MARK 6,NO.1,REFER R/M,*650
MARK 2,NO.1,(J):REFER R/M
MARK 3,NO.1,(J):REFER R/M
MARK 4,NO.1,(J):REFER R/M
MARK 5,NO.1,(J):REFER R/M
MARK 6,NO.1,(J):REFER R/M
MARK 2,NO.2,(J):REFER R/M
sub11701-35040
MARK 3,NO.2,(J):REFER R/M
sub11701-35040
MARK 4,NO.2,(J):REFER R/M
sub11701-35040
MARK 5,NO.2,(J):REFER R/M
sub11701-35040
MARK 6,NO.2,(J):REFER R/M
sub11701-35040
U/S 0.25
U/S 0.50
13011RING SET, PISTON
STD,(L)
STD,(L)
main13011-0E022i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202207
STD,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK=1G
main13011-0E022i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202207
STD,JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK=1G
main13011-0E022i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202207
STD,IRAQ SPEC,MARK=1G
main13011-0E022i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202207
STD,SYRIA SPEC,MARK=1G
main13011-0E022i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202207
STD,SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK=1G
main13011-0E022i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202207
STD,ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK=1G
main13011-0E022i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202207
STD,CAMBODIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),MARK=1G
STD,MARK=1G
STD,EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK=1G
STD,SUDAN SPEC,MARK=1G
STD,CENTRAL AND SOUTH AMERICA SPEC,MARK=1G
main13011-0E042i2GDFTV..GUN125..6FC..GEN;2GDFTV..GUN122..LHD..L..GEN;2GDFTV..GUN125..THP..(ARL,GCC,LA,TH);1GDFTV,2GDFTV..GUN11#,120,121,122,126,13#..ARL,GCC,PH,TH202108-202301
STD,MARK=1H,*652
STD,BOLIVIA URUGUAY SPEC,MARK=1H,*652
STD,EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK=1H,*652
STD,OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK=1H,*652
main13011-0E051i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202202
STD,MARK=1H,*650
sub13011-0E052
main13011-0E052i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202202-202207
STD,MARK=1H,*650
STD,MARK=1H,(J)
STD
STD,(J)
STD,(J)
O/S 0.50
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK 2,THA SOURCED, *RRM
MARK 3,THA SOURCED, *RRM
MARK 4,THA SOURCED, *RRM
MARK 5,THA SOURCED, *RRM
MARK 6,THA SOURCED, *RRM
MARK 2,THA SOURCED, *RRM
MARK 3,THA SOURCED, *RRM
MARK 4,THA SOURCED, *RRM
MARK 5,THA SOURCED, *RRM
MARK 6,THA SOURCED, *RRM
MARK 2,IND SOURCED, *RRM
MARK 3,IND SOURCED, *RRM
MARK 4,IND SOURCED, *RRM
MARK 5,IND SOURCED, *RRM
MARK 6,IND SOURCED, *RRM
MARK 2,IND SOURCED, *RRM
MARK 3,IND SOURCED, *RRM
MARK 4,IND SOURCED, *RRM
MARK 5,IND SOURCED, *RRM
MARK 6,IND SOURCED, *RRM
CENTRAL AND SOUTH AMERICA SPEC,MARK 2,JAPAN SOURCED, *RRM
sub13041-11051
BOLIVIA URUGUAY SPEC,MARK 2,JAPAN SOURCED, *RRM
sub13041-11051
CENTRAL AND SOUTH AMERICA SPEC,MARK 3,JAPAN SOURCED, *RRM
sub13041-11051
BOLIVIA URUGUAY SPEC,MARK 3,JAPAN SOURCED, *RRM
sub13041-11051
BOLIVIA URUGUAY SPEC,MARK 4,JAPAN SOURCED, *RRM
sub13041-11051
CENTRAL AND SOUTH AMERICA SPEC,MARK 4,JAPAN SOURCED, *RRM
sub13041-11051
MARK 5,JAPAN SOURCED, *RRM
sub13041-11051
CENTRAL AND SOUTH AMERICA SPEC,MARK 5,JAPAN SOURCED, *RRM
sub13041-11051
BOLIVIA URUGUAY SPEC,MARK 5,JAPAN SOURCED, *RRM
sub13041-11051
BOLIVIA URUGUAY SPEC,MARK 6,JAPAN SOURCED, *RRM
sub13041-11051
CENTRAL AND SOUTH AMERICA SPEC,MARK 6,JAPAN SOURCED, *RRM
sub13041-11051
MARK 2,JAPAN SOURCED, *RRM
MARK 3,JAPAN SOURCED, *RRM
MARK 4,JAPAN SOURCED, *RRM
MARK 5,JAPAN SOURCED, *RRM
MARK 6,JAPAN SOURCED, *RRM
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,IDN SOURCED PARTS
STD,IDN SOURCED PARTS
STD,THA SOURCED PARTS
STD,THA SOURCED PARTS
STD,MARK 1,MARK=2GD50, *RRM
sub13101-0E051
STD,MARK 2,MARK=2GD50, *RRM
sub13101-0E051
STD,MARK 1,MARK=2GD51, *RRM
STD,COSTA RICA SPEC,MARK 1,MARK=2GD51, *RRM
STD,BOLIVIA URUGUAY SPEC,MARK 1,MARK=2GD51, *RRM
STD,COSTA RICA SPEC,MARK 2,MARK=2GD51, *RRM
STD,MARK 2,MARK=2GD51, *RRM
STD,BOLIVIA URUGUAY SPEC,MARK 2,MARK=2GD51, *RRM
STD,MARK 1,MARK=2GD60, *RRM
STD,MARK 2,MARK=2GD60, *RRM
STD,MARK 1,MARK=1GD71, *RRM
STD,MARK 2,MARK=1GD71, *RRM
STD,MARK 1,MARK=1GD81, *RRM
STD,MARK 2,MARK=1GD81, *RRM
STD,MARK 1,MARK=2GD21, *RRM
STD,MARK 2,MARK=2GD21, *RRM
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50,JAPAN SOURCED PARTS
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
IDN SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
MARK A,THA SOURCED, *RRM
MARK B,THA SOURCED, *RRM
MARK C,THA SOURCED, *RRM
MARK A,THA SOURCED, *RRM
MARK B,THA SOURCED, *RRM
MARK C,THA SOURCED, *RRM
MARK A,IND SOURCED, *RRM
MARK B,IND SOURCED, *RRM
MARK C,IND SOURCED, *RRM
MARK A,IND SOURCED, *RRM
MARK B,IND SOURCED, *RRM
MARK C,IND SOURCED, *RRM
MARK A,JAPAN SOURCED, *RRM
MARK B,JAPAN SOURCED, *RRM
MARK C,JAPAN SOURCED, *RRM
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
13265BOLT, CONNECTING ROD
IDN SOURCED PARTS
THA SOURCED PARTS
13405FLYWHEEL SUB-ASSY
IDN SOURCED PARTS
THA SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
COSTA RICA SPEC,ARG SOURCED PARTS
ARG SOURCED PARTS
BOLIVIA URUGUAY SPEC,ARG SOURCED PARTS
IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5,(J)
L=23,OD=8
L=23,OD=8,(J)
L=22,OD=10,(J)
L=22,OD=10,(L)
L=23,OD=8,(L)
L=23,OD=8
L=15,OD=5,(L)
13405BBOLT, FLYWHEEL SETTING
(J)
(L)
(J)
(L)
13411CRANKSHAFT
(L)
(L)
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
13471PULLEY, CRANKSHAFT
IDN SOURCED PARTS
main13408-0E010i2GDFTV..GUN135..ARL,KEN,LA,SA,TH;1GDFTV,2GDFTV..GUN11#,12#,136..KENP,MAP,PKNP,SAP,THP202108-202207
THA SOURCED PARTS
sub13408-0E011
THA SOURCED PARTS
main13408-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
IND SOURCED PARTS
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
sub13408-11061
JAPAN SOURCED PARTS
sub13408-11061
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(L)
(J)
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(L)
13496COVER, CRANKSHAFT PULLY
THA SOURCED PARTS
13519GEAR, OIL PUMP DRIVE
THA SOURCED PARTS
main13519-0E030i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
IND SOURCED PARTS
JAPAN SOURCED PARTS
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
THA SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
main13521-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
IND SOURCED PARTS
JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
(L)
(J)
88451BPULLEY, CRANKSHAFT(FOR VISCOUS HEATER)
88451CBOLT, FLANGE W/WASHER
20 parts on this diagram · 5 diagrams in section
