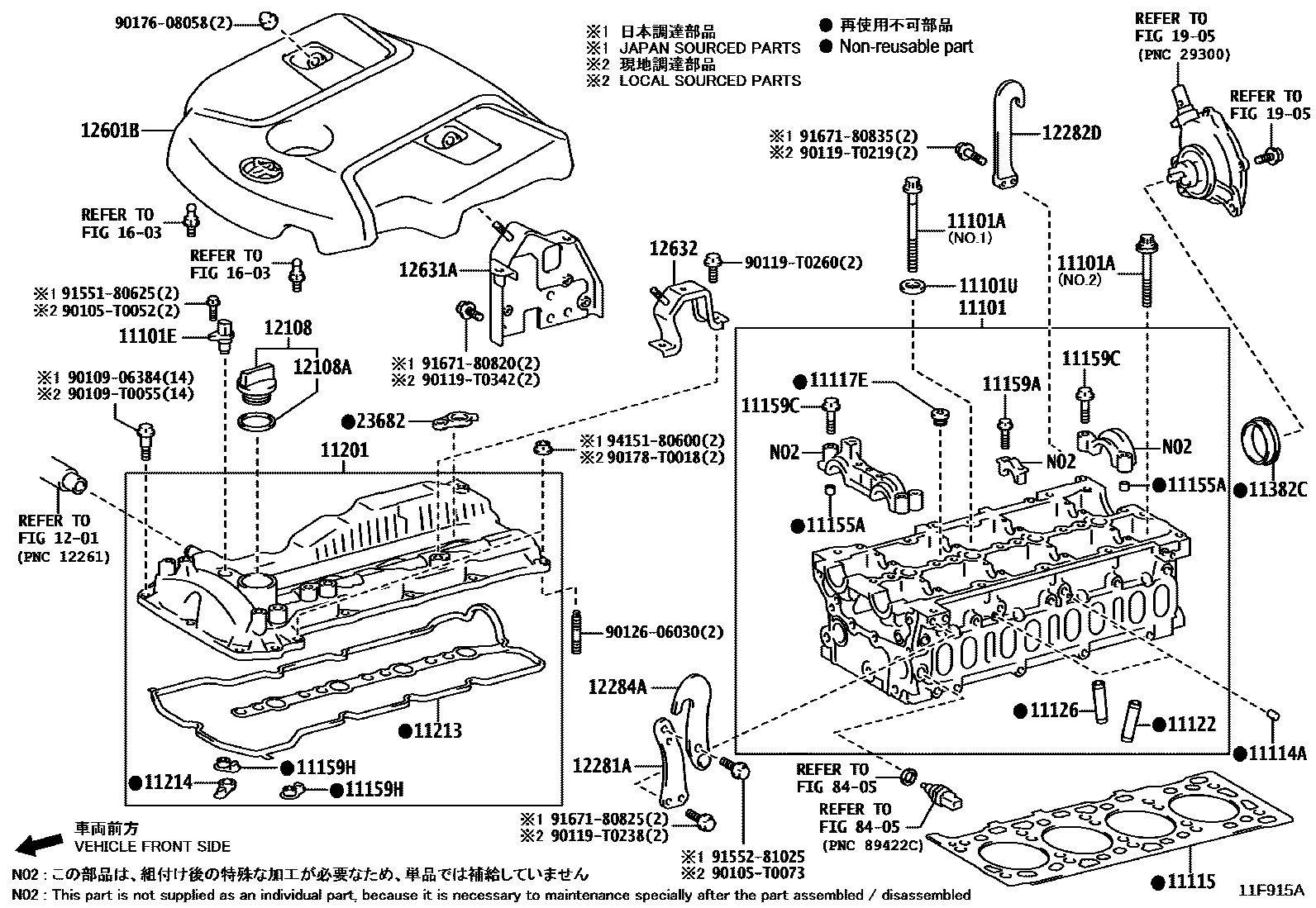

11101HEAD SUB-ASSY, CYLINDER
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER 13-02
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0,TYPE A:REFER 13-02
main11101-0C110i2TRFE..TGN111,121,126..LHD..THP202108-202207 (L),TYPE A:REF.13-02,TYPE A:REFER 13-02
main11101-0E011i1GDFTV,2GDFTV..GUN122,126..PKN¥120,000202108-202303 THA SOURCED PARTS
main11101-0E021i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207 IND SOURCED PARTS
main11101-11161i2GDFTV..GUN135..BZAG;1GDFTV,2GDFTV..GUN125,126..AGTP¥90,900202108-202210 JAPAN SOURCED PARTS
main11101-75310i2TRFE..TGN111,121,126..LHD..THP202108-202207 (J),TYPE A:REF.13-02
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02187i2TRFE..TGN126,136..AGTP¥240202108-202301 main90910-02192i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥310202108-202207 (J),NO.2
main90910-02193i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥430202108-202207 (J),NO.1
main90910-T2010i1GDFTV,2GDFTV..GUN122,126..PKN202108-202303 (L),NO.1
main90910-T2011i1GDFTV,2GDFTV..GUN125,126,135..AGTP202108-202303 (L),NO.2
11101ESENSOR, CAM POSITION
11101USPACER(FOR CYLINDER HEAD SET BOLT)
main90560-15022i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥120202108-202207 (J)
main90560-T0026i1GDFTV,2GDFTV..GUN11#,12#,13#..THP202108-202303 (L)
11114APIN, STRAIGHT
main90250-05027i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥80202108-202207 L=8,OD=5,(J)
main90250-T0011i1GDFTV,2GDFTV..GUN125,126,135..AGTP202108-202303 L=8,OD=5,(L)
11115GASKET, CYLINDER HEAD
main11115-0E020-B0i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202108-202303 MARK B,(L),REFER R/M
MARK B,REFER REPAIR MANUAL
MARK D,REFER REPAIR MANUAL
MARK F,REFER REPAIR MANUAL
main11115-75090i2TRFE..TGN121,136..PKN,SA¥6,200202108-202301 (J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90341-14015i2GDFTV..GUN135..BZAG;1GDFTV,2GDFTV..GUN125,126..AGTP¥120202111-202210 COSTA RICA SPEC
main90341-14015i2GDFTV..GUN135..AGTP..LA¥120202111-202210 BOLIVIA URUGUAY SPEC
main90341-14015i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥120202108-202207 (J)
main90341-20002i2TRFE..TGN126,136..AGTP¥180202108-202301 main90341-T0005i1GDFTV,2GDFTV..GUN125,126,135..AGTP202108-202303 *582
11122BUSH, INTAKE VALVE GUIDE
main11122-30020i1GDFTV,2GDFTV..GUN11#,12#,13#..THP¥550202108-202303 O/S 0.05
main11122-75020i1TRFE,2TRFE..TGN120,121,136..PKN,SA¥550202108-202301 STD
main11123-30020i1GDFTV,2GDFTV..GUN122,126..PKN¥550202108-202303 STD
main11123-75020i1TRFE,2TRFE..TGN11#,12#..THP¥550202108-202301 O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
main11122-30020i1GDFTV,2GDFTV..GUN122,126..PKN¥550202108-202303 O/S 0.05
main11122-75020i1TRFE,2TRFE..TGN11#,12#..THP¥550202108-202301 STD
main11123-30020i1GDFTV,2GDFTV..GUN122,126..PKN¥550202108-202303 STD
main11123-75020i2TRFE..TGN126,136..AGTP¥550202108-202301 O/S 0.05
11155APIN, RING W/HEAD
main90253-11021i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥120202108-202207 (J)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90109-06080i1GDFTV,2GDFTV..GUN11#,12#,13#..THP¥140202108-202303 (J)
main90109-06080i2GDFTV..GUN135..AGTP..LA¥140202111-202210 NO.1
main90109-06080i2GDFTV..GUN135..AGTP..LA¥140202111-202210 BOLIVIA URUGUAY SPEC,NO.1
main90109-06080i2GDFTV..GUN135..AGTP..LA¥140202111-202210 COSTA RICA SPEC,NO.1
main90119-07013i2TRFE..TGN111,121,126..LHD..THP¥100202108-202207 (J)
main90119-T0551i1GDFTV,2GDFTV..GUN122,126..PKN202108-202303 (L)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90105-T0130i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202108-202303 (L)
main91551-80840i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥120202108-202210 (J)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
main11159-0C020i1TRFE,2TRFE..TGN11#,12#..THP202108-202207 NO.1,*652
main11159-11010i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥340202108-202207 *272
main11159-75010i2TRFE..TGN126,136..AGTP¥340202108-202301 NO.1,*657
main1115A-0C020i1TRFE,2TRFE..TGN11#,12#..THP202108-202207 NO.2,*652
main1115A-75010i2TRFE..TGN126,136..AGTP¥340202108-202301 NO.2,*657
main1115B-0C010i1TRFE,2TRFE..TGN120,121,136..PKN,SA202108-202301 NO.3,*651
main1115B-0C020i1TRFE,2TRFE..TGN11#,12#..THP202108-202207 NO.3,*652
main1115B-75010i1TRFE,2TRFE..TGN11#,12#..THP¥340202108-202301 NO.3,*657
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-0C050i1TRFE,2TRFE..TGN11#,12#..THP..(GCC,GEN,LA,TH)202108-202301 IDN SOURCED PARTS
main11201-0C060i1TRFE,2TRFE..TGN11#,12#..THP202108-202207 THA SOURCED PARTS
main11201-0E011i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA¥15,200202108-202303 (L)
main11201-11082i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥13,800202108-202207 (J)
main11201-75080i2TRFE..TGN126,136..AGTP¥10,800202108-202301 JAPAN SOURCED PARTS
11213GASKET, CYLINDER HEAD COVER
main11213-0C020i1TRFE,2TRFE..TGN120,121,136..PKN,SA202108-202301 IDN SOURCED PARTS
main11213-0C030i1TRFE,2TRFE..TGN11#,12#..THP202108-202207 THA SOURCED PARTS
main11213-0E010i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202108-202303 (L)
main11213-11070i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥1,010202108-202207 *272
main11213-75050i1TRFE,2TRFE..TGN120,121,136..PKN,SA¥1,010202108-202301 JAPAN SOURCED PARTS
11214GASKET, CYLINDER HEAD COVER, NO.2
main11214-0E010i1GDFTV,2GDFTV..GUN122,126..PKN202108-202303 (L)
main11214-11010i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥370202108-202207 *272
11382CRETAINER, CAMSHAFT OIL SEAL
main11382-0E010i1GDFTV,2GDFTV..GUN11#,12#,13#..THP202108-202303 (L)
main11382-11020i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥860202108-202207 (J)
12108CAP SUB-ASSY, OIL FILLER
main12180-0H020i1GDFTV,2GDFTV..GUN125,126,135..AGTP202108-202303 (L)
main12180-38010i2TRFE..TGN126,136..AGTP¥640202108-202301 (J)
12108AGASKET(FOR OIL FILLER CAP)
main90430-35001i1TRFE,2TRFE..TGN11#,12#..THP¥120202108-202301 (J)
12281AHANGER, ENGINE, NO.1
main12281-0C010i1TRFE,2TRFE..TGN11#,12#..THP..(GCC,GEN,LA,TH)202108-202301 IDN SOURCED PARTS
main12281-0C030i1TRFE,2TRFE..TGN11#,12#..THP202108-202207 THA SOURCED PARTS
main12281-0E010i1GDFTV,2GDFTV..GUN125,126,135..AGTP202108-202303 THA SOURCED PARTS
main12281-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207 IND SOURCED PARTS
BOLIVIA URUGUAY SPEC,ARG SOURCED PARTS
main12281-0E030i2GDFTV..GUN135..BZAG;1GDFTV,2GDFTV..GUN125,126..AGTP202111-202210 ARG SOURCED PARTS
main12281-0E030i2GDFTV..GUN135..BZAG;1GDFTV,2GDFTV..GUN125,126..AGTP202111-202210 COSTA RICA SPEC,ARG SOURCED PARTS
main12281-11050i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥950202108-202207 JAPAN SOURCED PARTS
12282DHANGER, ENGINE, NO.2
main12281-0C010i1TRFE,2TRFE..TGN120,121,136..PKN,SA202108-202301 IDN SOURCED PARTS
main12281-0C030i1TRFE,2TRFE..TGN11#,12#..THP202108-202207 THA SOURCED PARTS
main12282-0E010i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA202108-202303 (L)
main12282-11080i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥3,040202108-202207 (J)
12284AHANGER, ENGINE, NO.1 UPPER
main12284-11010i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥1,170202108-202207 (J)
12601BCOVER SUB-ASSY, ENGINE, NO.1
main12601-0E010i1GDFTV,2GDFTV..GUN125,126,135..AGTP¥16,100202108-202303 12631ABRACKET, ENGINE COVER
main12631-0E020i2GDFTV..GUN125..6FC..L;2GDFTV..GUN125..6F..ARL;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207 IND SOURCED PARTS
main12631-11010i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥2,560202108-202207 JAPAN SOURCED PARTS
12632BRACKET, ENGINE COVER, NO.2
main12632-0E010i1GDFTV..GUN126..THP..(H,S);1GDFTV,2GDFTV..GUN11#,120,122,125,13#..THP¥1,200202108-202303 MARK=1
23682GASKET, NOZZLE HOLDER
main23682-0E010i1GDFTV,2GDFTV..GUN122,126..PKN202108-202303 (L)
main23682-11020i2GDFTV..GUN120,135..TH;2GDFTV..GUN125..THP..(GCC,LA,TH)¥510202108-202207 (J)
