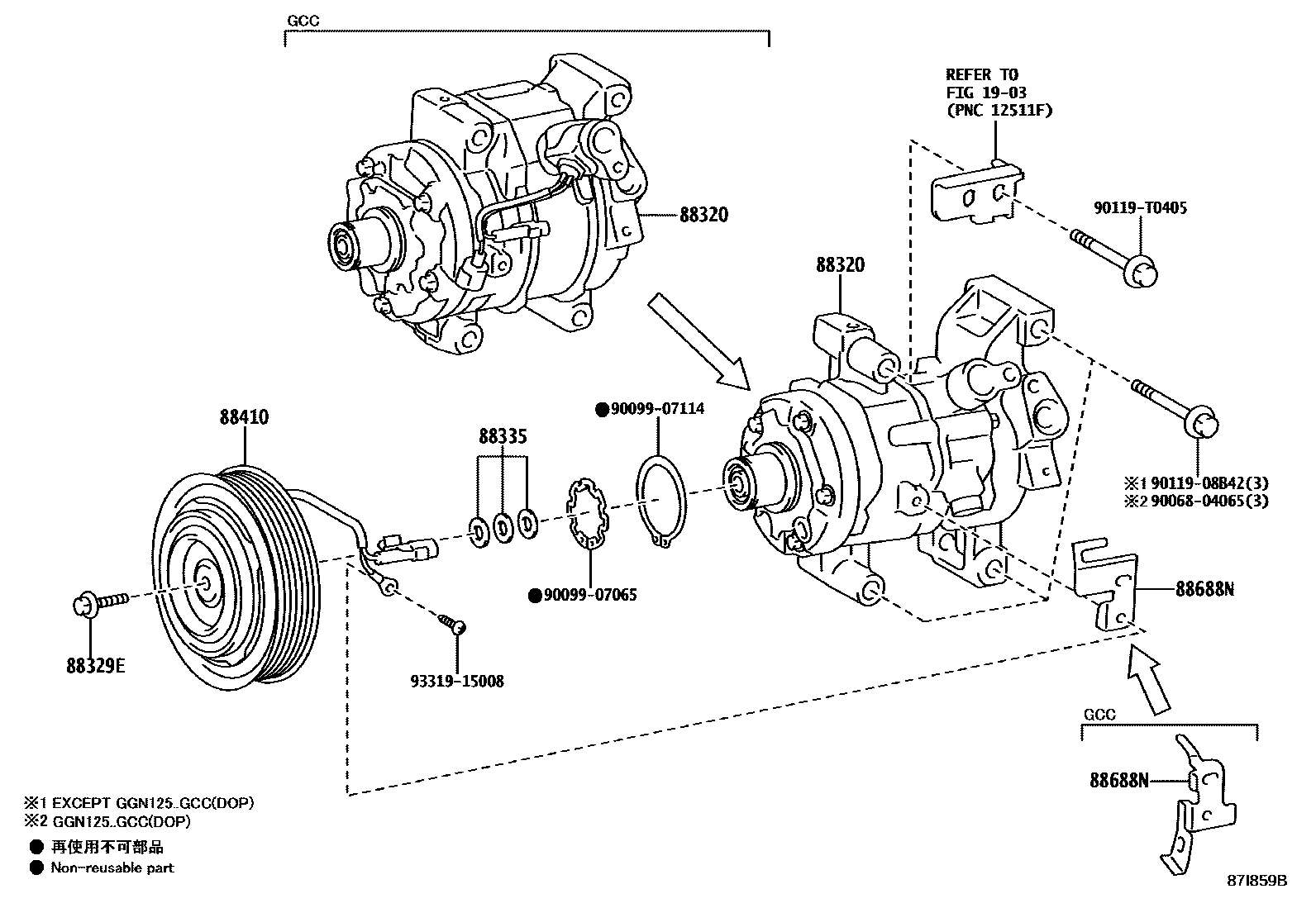

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1903

88320COMPRESSOR ASSY, COOLER

main88320-0K520iGUN122..PH;GUN122..S..GEN;GUN122..RHD..(GEN,TH);GUN122..LHD..TD..L..GEN;TGN121,126,136..(SD,SS,TD,TS)..(ARL,GEN,LA,SA,TH);GUN125..(MD,MS,TD,TS,TX)..(ARL,GEN,IDN,LA,202006-202301

main88320-0K530iGUN112,122,125,126..GCC202006-202108

main88320-0K550iTGN11#,120,121,126..GCC202006-202108

main88320-0K590iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main88320-0K760iGGN125..GCC202006-202108

88329EBOLT, COMPRESSOR, NO.1

main90099-04349iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202301

88335GASKET KIT, OVERHAUL

main88335-14020iGUN122..TD..GEN;GUN122..GCC,PH,TH;GUN122..TS..S..GEN;GUN122..RHD..TS..GEN;GUN125..MD,MS,TD,TS,TX;TGN121,126,136..SD,SS,TD,TS;GGN125,GUN112,120,123,126,13#,TGN11#,12202006-202301

88410CLUTCH ASSY, MAGNET

main88410-0K580iTGN121,126,136..(SD,SS,TD,TS)..(ARL,GEN,LA,SA,TH)202006-202109

main88410-0K600iGUN122..TD..GEN;GUN122..GCC,PH,TH;GUN122..TS..S..GEN;GUN122..RHD..TS..GEN;GUN125..MD,MS,TD,TS,TX;GUN112,120,123,126,13#..(MD,MMD,TD,TS,TX)..(ARL,GCC,GEN,LA,MA,MMR,P202006-202301

main88410-0K620iGGN125..AD202011-202110

main88410-0K630iGGN125..GCC202006-202108

sub88410-0K631

main88410-0K690iTGN11#,120,121,126..GCC202006-202108

main88410-0K760iGUN125,126,13#..AD,AS202011-202110

main88410-0K770iTGN126,128,13#..AD,AS202011-202110

88688NBRACKET, COOLER

main88688-0K280iTGN11#,120,126,128,138..LHD;TGN121,136..AD,AS,SD,SS,TD,TS202006-202110

main88849-0K010iGUN125,126,13#..AD,AS202006-202301

NO.1

main88849-0K010iGGN125..AD202011-202110

main88849-0K020iGUN122..TD..GEN;GUN122..GCC,PH,TH;GUN122..TS..S..GEN;GUN122..RHD..TS..GEN;GUN125..MD,MS,TD,TS,TX;GUN112,120,123,126,13#..(MD,MMD,TD,TS,TX)..(ARL,GCC,GEN,LA,MA,MMR,P202006-202301

NO.2

main88849-0K030iGUN112,122,125,126..GCC202006-202108

NO.1

9006804065

main90068-04065

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

90119T0405

main90119-T0405

9331915008

main93319-15008

12 parts on this diagram · 6 diagrams in section
