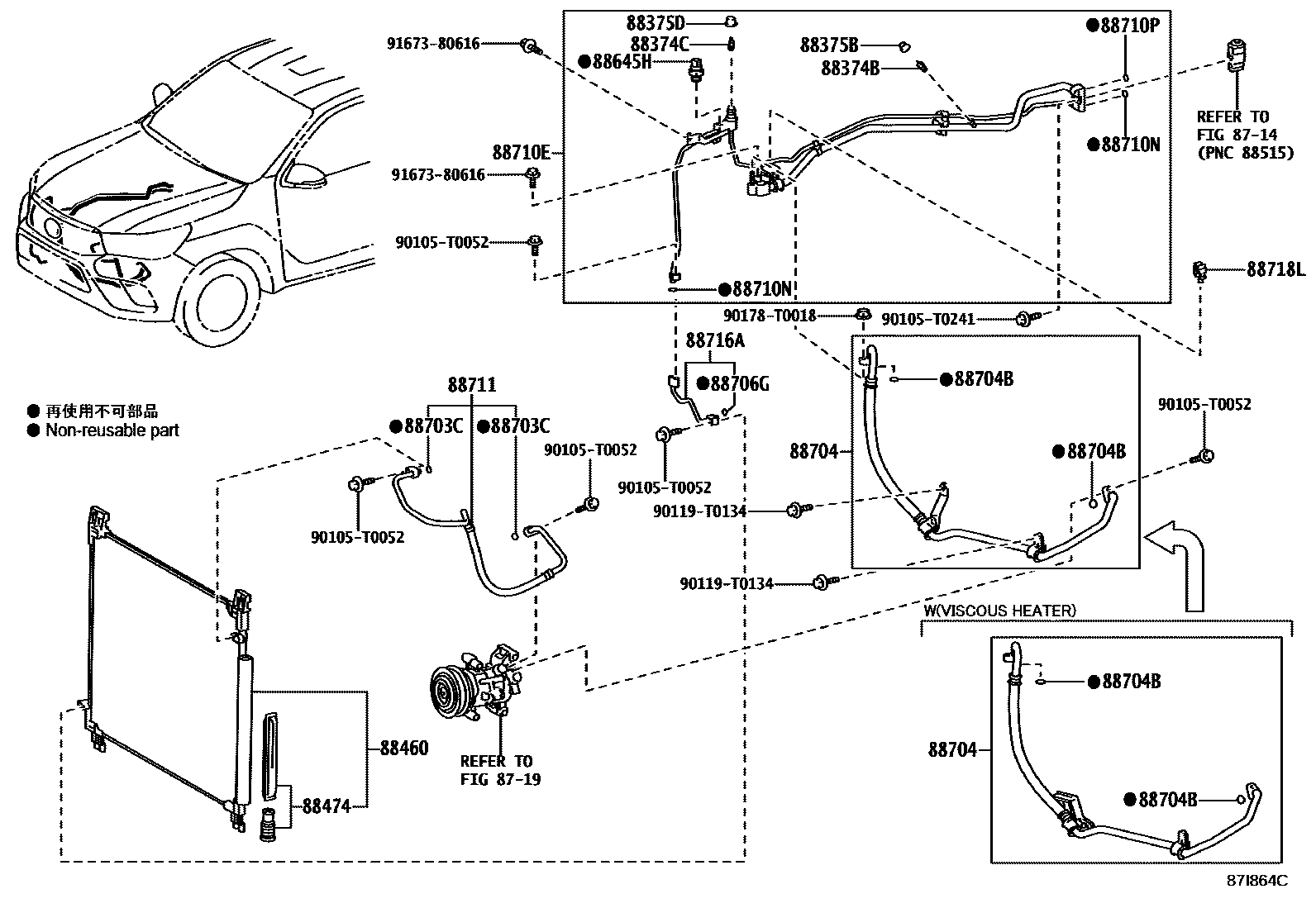

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1W/O(SUB-COOL ACCELERATOR) 0002 1W(SUB-COOL ACCELERATOR) 0003 1EURO 6C OR EURO 6D-TEMP 0004 1MAKER OPTION 0005 1MAKER OPTION 0006 1DEALER OPTION 0007 1DEALER OPTION 0008 1DEALER OPTION 0009 1DEALER OPTION 0010 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-02010iGUN125,126,13#..AD,AS202011-202110

main88374-02020iGUN125,135..GHA,KEN;GUN125,135..(H,S)..SA;GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,LAN125,TGN121,126,136..GHA,KEN,SA202009-202111

main88374-30010iGGN125,TGN126,128,13#..AD,AS202006-202110

88374CVALVE, SERVICE, NO.2

main88374-02010iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main88374-02020iGUN125,135..GHA,KEN;GUN125,135..(H,S)..SA;GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,LAN125,TGN121,126,136..GHA,KEN,SA202009-202111

main88374-30010iGUN122..TD..GEN;GUN122..GCC,PH,TH;GUN122..TS..S..GEN;GUN122..RHD..TS..GEN;GUN125..MD,MS,TD,TS,TX;GGN125,GUN112,120,123,126,13#,TGN11#,120,121,126,136..(MD,MMD,TD,TS202006-202301

88375BCAP, SERVICE VALVE, NO.1

main88375-02130iGUN125,126,13#..AD,AS202011-202110

main88375-02140iGUN125,135..GHA,KEN;GUN125,135..(H,S)..SA;GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,TGN121,126,136..GHA,KEN,SA202009-202111

main88375-02150iLAN125202009-202109

main88375-30290iGGN125,TGN126,128,13#..AD,AS202006-202110

88375DCAP, SERVICE VALVE, NO.2

main88375-02120iGGN125,TGN126,128,13#..AD,AS202011-202110

main88375-02140iLAN125202009-202109

main88375-02150iGUN125,135..GHA,KEN;GUN125,135..(H,S)..SA;GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,TGN121,126,136..GHA,KEN,SA202009-202111

main88375-30280iGUN122..TD..GEN;GUN122..GCC,PH,TH;GUN122..TS..S..GEN;GUN122..RHD..TS..GEN;GUN125..MD,MS,TD,TS,TX;GGN125,GUN112,120,123,126,13#,TGN11#,120,121,126,136..(MD,MMD,TD,TS202006-202301

88460CONDENSER ASSY, COOLER

main88460-0K350iGUN135..H..GEN;GUN122..TD..GEN;GUN125..TD,TS,TX;GUN122..TS..S..GEN;GUN122..RHD..TS..GEN;GUN122,135..(TD,TS,TX)..(ARL,GCC,LA,PH,TH,VN);GGN125,GUN112,120,123,126,136,202006-202301

main88460-0K390iGUN125..AD;GUN125..AS..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD,AS202011-202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

main88460-0K430iGUN125,135..GHA,KEN;GUN125,135..(H,S)..SA;GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,TGN121,126,136..GHA,KEN,SA202009-202111

main88460-0K460iLAN125202009-202109

main88460-0K550iGUN125,126..MA202009-202110

main88460-0K780iGUN126..PKN202106-202201

main88460-0K800iGUN126..TWN;GUN135..L..GEN202006-202108

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

88474DRYER, COOLER

main88474-0K020iGUN125..AD;GUN125..AS..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD,AS202011-202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

main88474-0K030iGUN125,135..GHA,KEN;GUN125,135..(H,S)..SA;GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,LAN125,TGN121,126,136..GHA,KEN,SA202009-202111

main88474-12010iGUN126..MA,TWN;GUN135..L..GEN;GUN125..(AS,MD,MS)..(LA,MA)202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main88474-12020iGUN135..H..GEN;GUN122..TD..GEN;GUN125..TD,TS,TX;GUN122..TS..S..GEN;GUN122..RHD..TS..GEN;GUN122,135..(TD,TS,TX)..(ARL,GCC,LA,PH,TH,VN);GGN125,GUN112,120,123,126,136,202006-202301

88645HSWITCH, PRESSURE NO.1

main88645-0K030iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

main88645-0K050iGUN125..IDN202006-202108

88703CRING, O(FOR DISCHARGE HOSE)

main90068-14022×2iLAN125202009-202109

ID=10.8,OD=15.6

main90068-14044×2iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA)202006-202110

ID=10.2,OD=15.0,EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main90099-14120×2iGUN125..AD;GUN125..AS..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD,AS202006-202110

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-0K550iGUN126..PKN202106-202201

main88704-0KC30iTGN126,128,13#..AD,AS202011-202110

main88704-0KC50iGGN125..AD202011-202110

main88704-0KD10iGUN125,126,13#..AD,AS202011-202110

main88704-0KD30iTGN121,126,136..SA202009-202109

FRONT AIR CONDITIONER-MANUAL

main88704-0KD50iGGN125..SA202009-202109

main88704-0KD90iGUN125..(H,S)..SA;GUN125,135..GHA,KEN;GUN122,125,135..LHD..L..SA;GUN126,13#..(H,S)..(GHA,KEN,SA)202009-202111

main88704-0KE10iLAN125202009-202109

main88704-0KE90iGUN125,126..MA202009-202110

main88704-0KF50iGUN125..TS..6FC202006-202108

ASIA COLD COUNTRY SPEC

main88704-0KG10iTGN11#,120,121,126,136..(TD,TS)..(ARL,GCC,GEN,LA,TH)202006-202108

main88704-0KG20iGUN122..TD..GEN;GUN122..GCC,PH,TH;GUN122..TS..S..GEN;GUN122..RHD..TS..GEN;GUN125..(TD,TX)..6FC;GUN125..(TD,TS,TX)..6F;GUN112,120,123,126,13#..(MMD,TD,TS,TX)..(ARL,G202006-202301

88704BRING, O(FOR SUCTION HOSE)

main90068-14024×2iGUN125,135..GHA,KEN;GUN125,135..(H,S)..SA;GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,LAN125,TGN121,126,136..GHA,KEN,SA202009-202111

ID=13.4,OD=18.2

main90099-14121×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

ID=13.4,OD=18.2

88706GRING, O(FOR LIQUID TUBE)

main90068-14023iGUN125,135..GHA,KEN;GUN125,135..(H,S)..SA;GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,LAN125,TGN121,126,136..GHA,KEN,SA202009-202111

ID=6.7,OD=10.3

main90068-14042iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA)202006-202110

ID=6.7,OD=10.3,EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main90099-14119iGUN125..AD;GUN125..AS..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD,AS202006-202110

ID=6.7,OD=10.3

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0KD20iGUN126..PKN202106-202201

main88710-0KE50iGGN125,TGN11#,120,121,126,136..(TD,TS)..(ARL,GCC,GEN,LA,TH)202006-202108

main88710-0KE70supersedes 88710-0KQ30iGUN122..TD..GEN;GUN122..GCC,PH,TH;GUN126..MMD,TS,TX;GUN122..TS..S..GEN;GUN126..TD..6F..TH;GUN122..RHD..TS..GEN;GUN126..TD..(ARL,GCC,GEN,LA,PH,TWN,VN);GUN112,120,123202006-202301

main88710-0KF10iGGN125,TGN126,128,13#..AD,AS202011-202110

main88710-0KF30iGUN125,126,13#..AD,AS202011-202110

main88710-0KF60iGGN125,LAN125,TGN121,126,136..SA202009-202109

FRONT AIR CONDITIONER-MANUAL

main88710-0KF80iGUN125..(H,S)..SA;GUN125,135..GHA,KEN;GUN122,125,135..LHD..L..SA;GUN126,13#..(H,S)..(GHA,KEN,SA)202009-202111

main88710-0KL30iGUN125,126..MA202009-202110

main88710-0KS40iGUN125..IDN202006-202108

main88710-0KR30iTGN11#,120,121,126..GCC202006-202108

FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

main88710-0KR40iGUN125..TX..S..GEN;GUN125..6FC..H..GCC;GUN126..TD..6FC..H..LA;GUN122..LHD..TD..L..GEN;GUN126..TD..6F..(L,S)..LA;GUN125..(TD,TS)..(L,S)..(GCC,LA);GUN112,122,135..(TD202006-202108

CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90068-14023×2iGUN125,135..GHA,KEN;GUN125,135..(H,S)..SA;GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,LAN125,TGN121,126,136..GHA,KEN,SA202009-202111

ID=6.7,OD=10.3

main90099-14119×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

ID=6.7,OD=10.3

main90099-14120iGUN122,125,126..H..GCC202006-202108

ID=10.8,OD=15.6,FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90068-14024iGUN125..(H,S)..SA;GUN125,135..GHA,KEN;GUN122,125,135..LHD..L..SA;GUN126,13#..(H,S)..(GHA,KEN,SA)202009-202111

ID=13.4,OD=18.2

main90099-14121supersedes 90099-14119iGUN125,126,13#..AD,AS202006-202110

ID=13.4,OD=18.2

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0K830iLAN125202009-202109

main88711-0KA20iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA)202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main88711-0KB50iGUN122..PH;GUN122..RHD..(GEN,TH);GUN122,135..(H,S)..GEN;GUN122..LHD..TD..L..GEN;GUN135..(TD,TS,TX)..(ARL,LA,PH,TH,VN);GUN125..(TD,TS,TX)..(ARL,GEN,IDN,LA,PH,TH,VN);202006-202301

main88711-0KB60iGUN112,122,125,126..GCC202006-202108

main88711-0KC10iGUN125..AD;GUN125..AS..BZAG;GUN126,13#..AD,AS202011-202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

main88711-0KC20iGUN125..(H,S)..SA;GUN125,135..GHA,KEN;GUN122,125,135..LHD..L..SA;GUN126,13#..(H,S)..(GHA,KEN,SA)202009-202111

main88711-0KC40iGUN125,126..MA202009-202110

main88711-0KC50iTGN121,126,136..(TD,TS)..(ARL,GEN,LA,TH)202006-202108

main88711-0KC90iTGN126,128,13#..AD,AS202011-202110

main88711-0KD00iTGN121,126,136..SA202009-202109

FRONT AIR CONDITIONER-MANUAL

main88711-0KD90iGGN125..AD202011-202110

main88711-0KE00iGGN125..SA202009-202109

main88711-0KE20iGUN126..PKN202106-202201

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0KL40iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA)202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main88716-0KQ80iGUN135..H..GEN;GUN122..TD..GEN;GUN125..TD,TS,TX;GUN122..TS..S..GEN;GUN122..RHD..TS..GEN;GUN122,135..(TD,TS,TX)..(ARL,GCC,LA,PH,TH,VN);GGN125,GUN112,120,123,126,136,202006-202301

main88716-0KR10iGUN125..AD;GUN125..AS..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD,AS202011-202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

main88716-0KR20iGUN125,135..GHA,KEN;GUN125,135..(H,S)..SA;GUN122,125,135..LHD..L..SA;GGN125,GUN126,136,LAN125,TGN121,126,136..GHA,KEN,SA202009-202111

main88716-0KR30iGUN125,126..MA202009-202110

main88716-0KR40iGUN126..PKN202106-202201

88718LCLAMP, PIPING

main88718-0KF20×2iGUN122..LHD..TS..L..GEN202006-202108

FRONT AIR CONDITIONER-MANUAL

main88718-0KG90iGUN126..PKN202106-202201

main88718-0KW80iGUN125..(H,S)..SA;GUN125,135..GHA,KEN;GUN122,125,135..LHD..L..SA;GUN126,13#..(H,S)..(GHA,KEN,SA)202009-202111

main88718-0KW90iGUN125,126..MA202009-202110

main88718-0KX00iGGN125,TGN126,128,13#..AD,AS202011-202110

90105T0052

main90105-T0052

90105T0241

main90105-T0241

90119T0134

main90119-T0134

90178T0018

main90178-T0018

9167380616

main91673-80616

24 parts on this diagram · 10 diagrams in section
