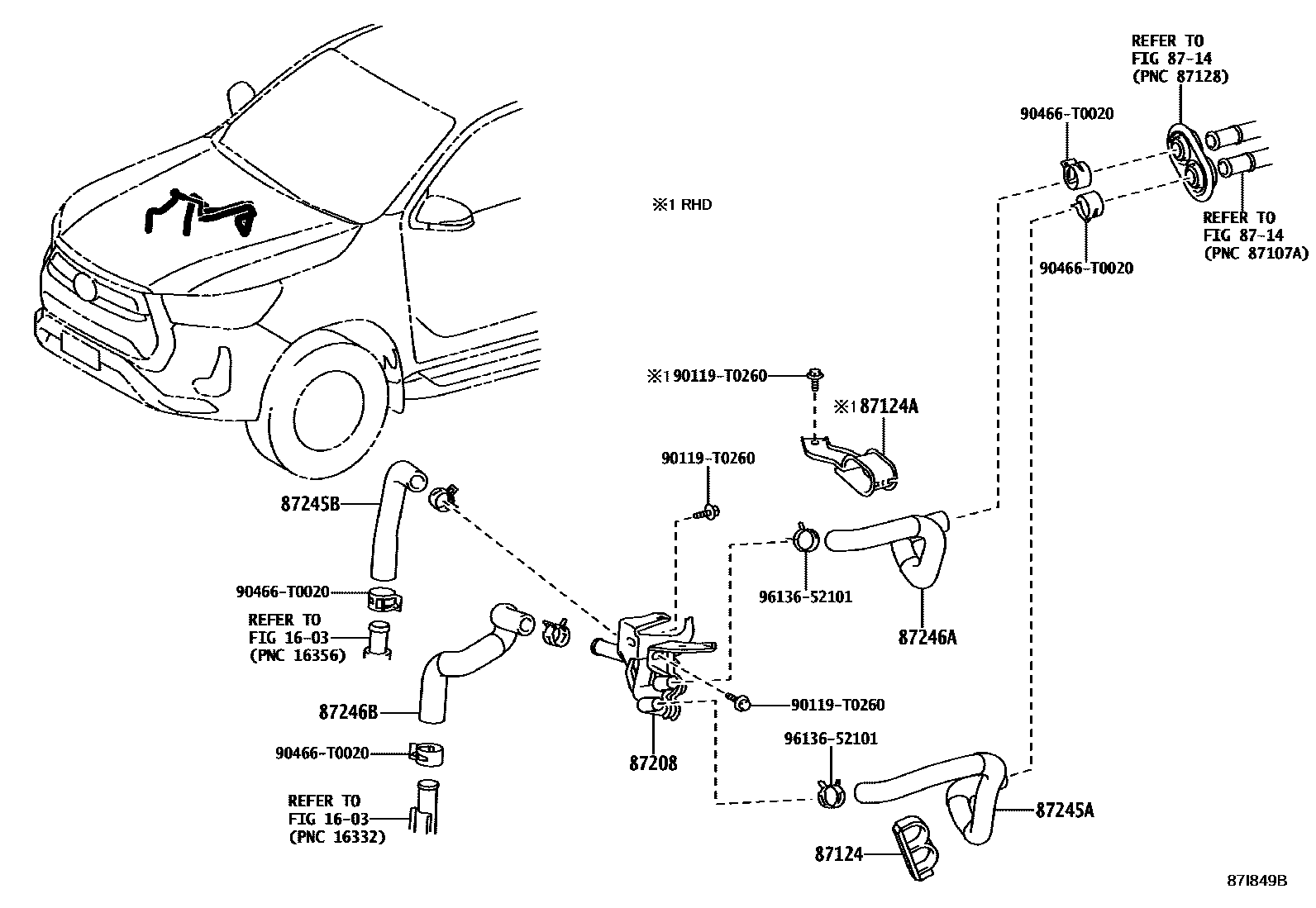

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

87124CLAMP, HEATER

main87124-0K070iGGN125..GCC,SA202006-202109

main87124-0K130iGGN125..AD202011-202110

main87124-0K150iGUN135..H;GUN126..TD..L;GUN125..H..IDN;GUN135..(SD,SX,TD)..6FC..(ARL,LA,SA,VN);GUN126..(KD,MMD,SD,SS,SX,TD,TS,TX)..(H,S);GUN135..(KS,SD,SS,SX,TD,TS)..6F..(L,S)..(AR202006-202301

main87124-0K160iGUN125..AS..LA202011-202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

main87124-0K160iGUN125..AS..LA202011-202110

EXHAUST EMISSION CONTROL-WITHOUT

main87124-0K160iGUN125..AS..LA202011-202110

EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS)

main87124-0K170iGUN125,126..H..MA202009-202110

main87124-42030iLAN125202009-202109

87124ACLAMP, HEATER

main87124-0K060iLAN125202009-202109

main87124-0K200iGUN125..LHD..TD..GEN202006-202108

ASIA COLD COUNTRY SPEC

main87124-0K210iGGN125..SA202009-202109

8714

87208PIPE SUB-ASSY, HEATER WATER

main87208-0K240iTGN120,121,136..RHD..(ARL,SA)202006-202109

main87208-0K270iTGN121..PKN202106-202201

main87208-0K280iTGN11#,120,121,126,136..LHD..(SD,SS,TD,TS)202006-202109

main87208-0K300iTGN126,128,13#..AD,AS202011-202110

main87208-0K320iGGN125..GCC,SA202006-202109

main87208-0K340iGGN125..AD202011-202110

87245AHOSE, HEATER WATER, INLET A

main87245-0KB20iTGN11#,120,121,126,136..LHD..(SD,SS,TD,TS)202006-202109

main87245-0KB40iTGN120,121,136..RHD..(ARL,SA)202006-202109

main87245-0KB82iGUN125,126..H..MA202009-202110

main87245-0KC20iTGN126,128,13#..AD,AS202011-202110

main87245-0KD10iGUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main87245-0KD30iTGN121..PKN202106-202201

main87245-0KE02iGUN125,126..GHA202006-202301

main87245-0KE62iGUN125..AD;GUN125..AS..BZAG;GUN126,13#..AD,AS202011-202110

EXHAUST EMISSION CONTROL-WITHOUT

main87245-0KE62iGUN125..AD;GUN125..AS..BZAG;GUN126,13#..AD,AS202011-202110

EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS)

main87245-0KE62iGUN125..AD;GUN125..AS..BZAG;GUN126,13#..AD,AS202011-202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

main87245-0KG60iGGN125..GCC202006-202108

main87245-0KJ00iGGN125..AD202011-202110

main87245-0KJ30iGGN125..SA202009-202109

main87245-0KK30iLAN125202009-202109

87245BHOSE, HEATER WATER, INLET B

main87245-0K480iGGN125..AD202011-202110

main87245-0K590iGGN125..GCC,SA202006-202109

main87245-0KE80iGUN125..TS..6FC202006-202108

ASIA COLD COUNTRY SPEC

main87245-0KF30iTGN11#,120,121,126,136..(SD,SS,TD,TS)..(ARL,GCC,GEN,LA,SA)202006-202109

main87245-0KF70iTGN121..PKN202106-202201

main87245-0KG10iTGN126,128,13#..AD,AS202011-202110

87246AHOSE, HEATER WATER, OUTLET A

main87245-0K850iTGN120,121,136..RHD..(ARL,SA)202006-202109

main87245-0KB30iTGN11#,120,121,126,136..LHD..(SD,SS,TD,TS)202006-202109

main87245-0KB91iGUN125,126..H..MA202009-202110

main87245-0KC30iTGN126,128,13#..AD,AS202011-202110

main87245-0KD20iTGN121..PKN202106-202201

main87245-0KE11iGUN125,126..GHA202006-202301

main87245-0KE71iGUN125..AS..LA202011-202110

EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS)

main87245-0KE71iGUN125..AD;GUN125..AS..BZAG;GUN126,13#..AD,AS202011-202110

EXHAUST EMISSION CONTROL-WITHOUT

main87245-0KE71iGUN125..AD;GUN125..AS..BZAG;GUN126,13#..AD,AS202011-202110

EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)

main87245-0KF00iGUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

main87245-0KG70iGGN125..GCC202006-202108

main87245-0KJ10iGGN125..AD202011-202110

main87245-0KJ40iGGN125..SA202009-202109

main87245-0KK40iLAN125202009-202109

87246BHOSE, HEATER WATER, OUTLET B

main87245-0K490iGGN125..AD202011-202110

main87245-0K600iGGN125..GCC,SA202006-202109

main87245-0KE90iGUN125..TS..6FC202006-202108

ASIA COLD COUNTRY SPEC

main87245-0KF20iTGN11#,120,121,126,136..(SD,SS,TD,TS)..(ARL,GCC,GEN,LA,SA)202006-202109

main87245-0KF60iTGN121..PKN202106-202201

main87245-0KG00iTGN126,128,13#..AD,AS202011-202110

90119T0260

main90119-T0260

90466T0020

main90466-T0020

9613652101

main96136-52101

12 parts on this diagram · 6 diagrams in section
