ANTENNA
86101CORD SUB-ASSY, ANTENNA
main86101-0K760iGGN125,GUN135..6FC..BZAG;GUN126,TGN138..6FC..S..BZAG;GUN126,135..AD..6F..(H,S)..LA;GUN126,TGN126..AD..(5F,6FC)..H;GUN125,136,TGN136..AD..(H,S)..LA202011-202110
AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB
main86101-0K851iGUN135..S..(PH,VN);GUN135..TD..6F..S..LA;TGN126..6FC..(H,L)..GCC;TGN126..(TD,TS)..5F..(H,L);GUN126,TGN126..(TD,TS)..S..(GCC,LA);GUN126..LHD..TD..(H,L)..(GCC,GEN,LA,202006-202108
ASIA COLD COUNTRY SPEC
main86101-0K851iGUN135..S..(PH,VN);GUN135..TD..6F..S..LA;TGN126..6FC..(H,L)..GCC;TGN126..(TD,TS)..5F..(H,L);GUN126,TGN126..(TD,TS)..S..(GCC,LA);GUN126..LHD..TD..(H,L)..(GCC,GEN,LA,202006-202108
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0K861iGUN126..AD..LA;TGN126,136..AD,AS;GUN125..(AD,AS)..L;GUN126,135..L..BZAG;GUN135..(AD,AS)..6F..LA;GUN125,136..AD..(H,S)..LA;GUN126,135,TGN138..6FC..S..BZAG202011-202110
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-*DA(FOR EMERGING MARKET) & DAB
main86101-0KF31iGUN126..RHD..H..GEN;GUN126,135..RHD..(L,S)..(GEN,TH);GUN112,120,122,123,125,TGN110,121..RHD..(GEN,IDN,TH)202006-202108
AUDIO-*DA(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT
ASIA COLD COUNTRY SPEC&AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(8INCH) & *BT
main86101-0KG81iGUN135..S..TH;GUN125..TD..TH;GUN125..6FC..S..GEN;GUN125,126..RHD..TD..H..GEN;GUN125..RHD..(TS,TX)..(H,S)202006-202108
AUDIO-*DA(8INCH) & *BT & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0KJ91iGUN126..MA,PKN;GUN126,136..S..SA;GUN135..RHD..L..(KEN,SA);GUN125..RHD..(KD,KS,MD,MS,SX);GUN122,125,TGN120,121..RHD..(PS,SD,SS)..L202009-202201
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(FOR EMERGING MARKET) & DAB
86101JCORD SUB-ASSY, ANTENNA, NO.2
ASIA COLD COUNTRY SPEC
main86101-0KA21iGUN126,136..S..ARL;TGN126..6FC..(H,L)..GCC;TGN126..(TD,TS)..5F..(H,L);TGN126..(TD,TS)..S..(GCC,LA);GUN126,136..(TD,TS,TX)..(GCC,GEN,LA,PH,TH,TWN,VN);GGN125,GUN112,1202006-202108
AUDIO-*DA(8INCH) & *BT & ENTUNE
main86101-0KA31iGUN126,136..(L,S)..BZAG;GUN125,135,TGN128,13#..AD,AS;GGN125,GUN126,136,TGN126..(AD,AS)..LA202011-202110
AUDIO-*DA(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
UAE SPEC&AUDIO-AVN(8INCH) & *BT & DAB
UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
EXPORT FROM SOUTH AFRICA&AUDIO-*DA(8INCH) & *BT
EXPORT FROM SOUTH AFRICA&AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-*DA(FOR EMERGING MARKET) & DAB
8620AANTENNA SUB-ASSY, DIGITAL TELEVISION, NO.1
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-*DA(8INCH) & *BT
86300BANTENNA ASSY, AMPLIFIER, NO.1
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
main86300-0K200iGUN135..TD..LA;TGN126..TS..L..GCC;TGN126..TD..5F..(H,L);TGN126..6FC..(H,L)..GCC;GUN135..ARL,GEN,PH,TH,VN;GUN122,TGN121..ARL,GCC,TH;GUN125..TD..6F..L..(GEN,LA);GUN12202006-202108
ASIA COLD COUNTRY SPEC
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
FRONT PERSONAL LAMP-WITH(BULB TYPE)
main86300-0K270iGUN122..PKN;GUN122..SA..IV3;GUN122..LHD..SS;GUN125,126,135,LAN125,TGN121..(KS,PS,SS)..L202009-202201
86309EPOLE SUB-ASSY, ROOF ANTENNA
main86309-0K080iTGN126..6FC..(H,L)..GCC;TGN126..(TD,TS)..5F..(H,L);TGN126..(TD,TS)..S..(GCC,LA);GGN125,GUN112,12#,13#,TGN11#,120,121,136..TD,TS,TX202006-202108
ASIA COLD COUNTRY SPEC
86396NUT, ANTENNA
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-*DA(8INCH) & *BT & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(FOR EMERGING MARKET) & DAB
9011906915
main90119-06915
9011906A06
main90119-06A06
90119T0130
main90119-T0130

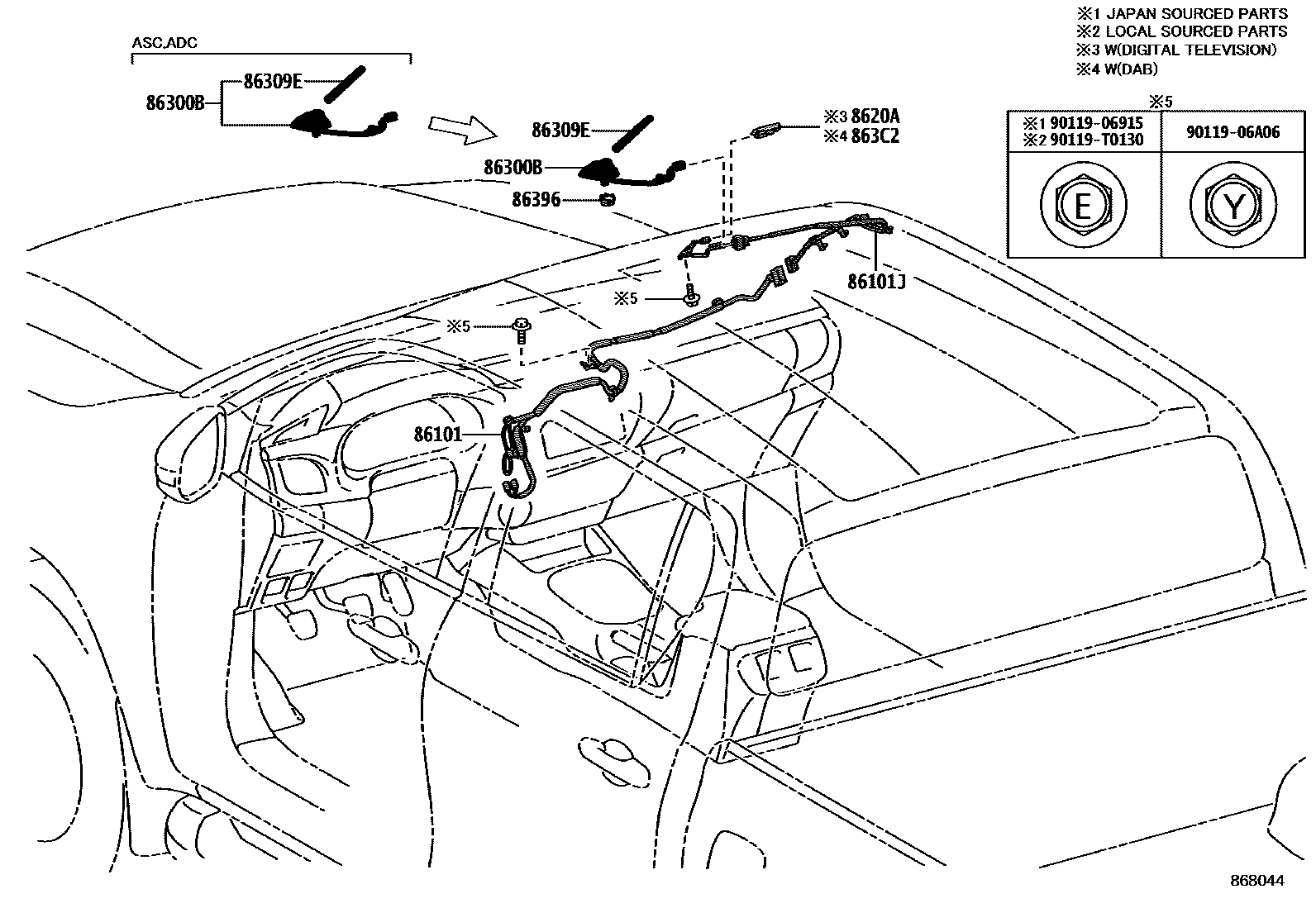

10 parts on this diagram · 1 diagram in section
