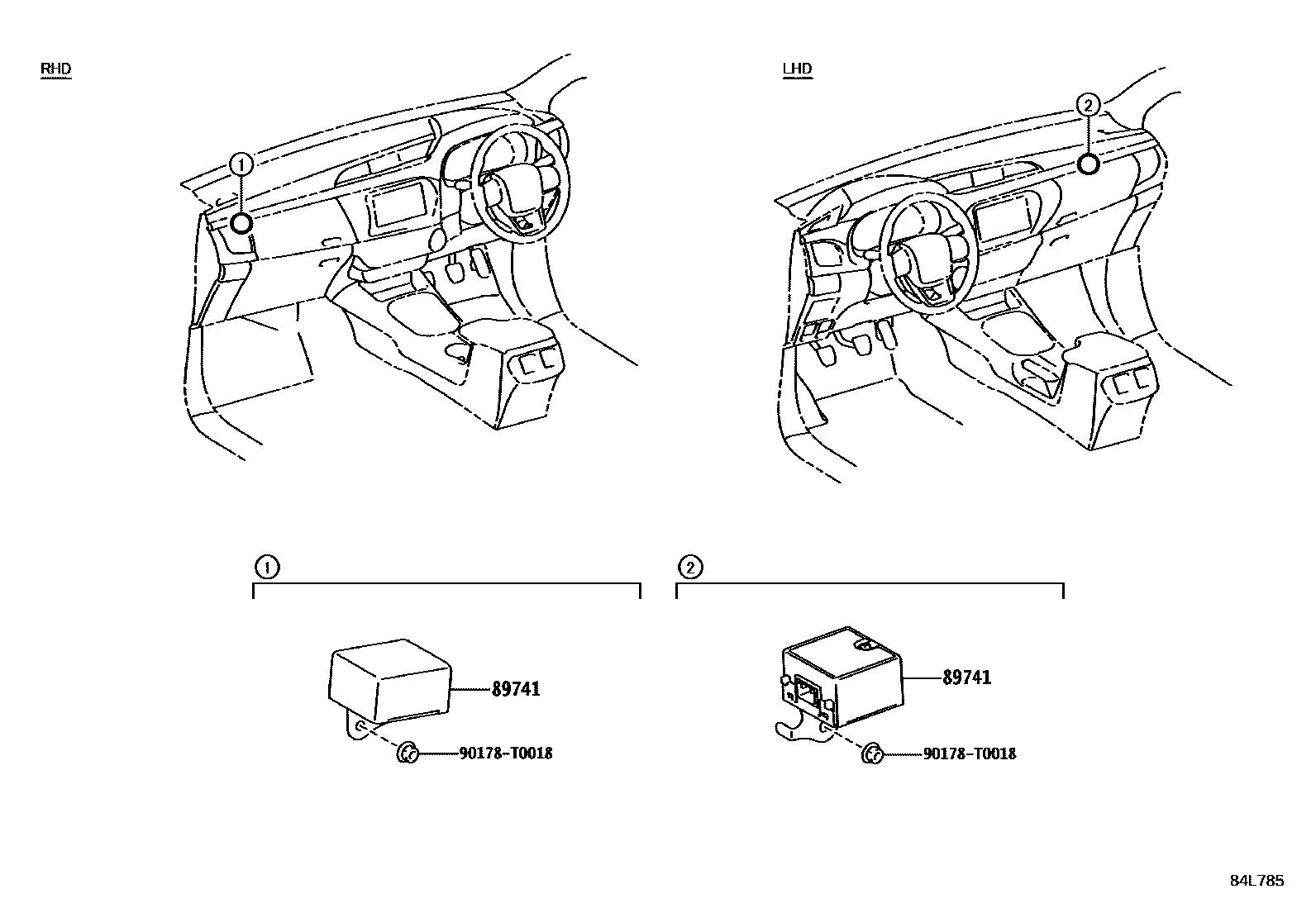

WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0002 1W(SMART ENTRY) 0003 1W(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89741-0K280iTGN138..S;GUN125,13#..(H,S)..BZAG;GUN126..(H,S)..(BZAG,VN)202006-202110

WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main89741-0K280iTGN126..L..GEN;GUN126..TD..6FC..L;GUN125..H..(GCC,SA);GUN125,135..L..(GHA,VN);GUN125,135..LHD..(GD,SD,SS,SX,TD,TX)..S;GUN126..LHD..(GD,SD,TD)..(H,S)..(GCC,GHA,LA,SA202006-202111

main89741-0K290iGUN125..6FC..S..MA;GUN135..(SD,SS)..S;GUN125..RHD..TD..6F..S;GUN126..RHD..S..(GEN,PKN);GUN125..RHD..6FC..(GEN,IDN,SA);GUN126..RHD..(SD,SS,SX,TS)..CBU;GUN125..RHD..(202006-202201

main89741-0K300iTGN136..GEN202006-202108

MEXICO SPEC&WIRELESS DOOR LOCK-WITH

main89741-0K310iGUN125,126,13#,TGN121..(L,S)..ARL202006-202108

90178T0018

main90178-T0018

2 parts on this diagram · 3 diagrams in section
