REAR BODY GUARD FRAME & TAIL GATE

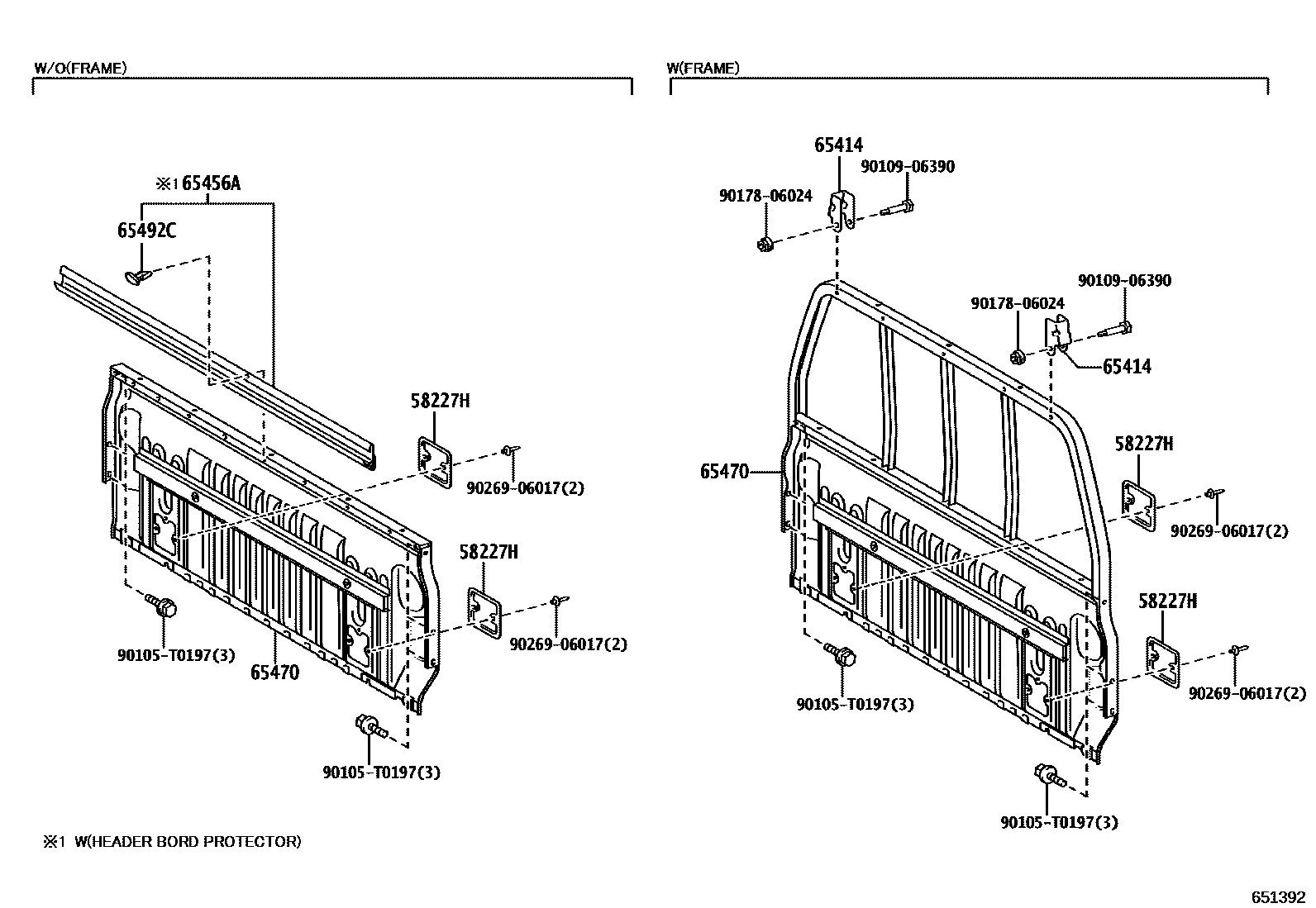

0001 1HEADER BOARD & GUARD FRAME 0002 1TAIL GATE(LATCH TYPE) 0003 1TAIL GATE(LOCK TYPE)

58227HCOVER, HEADER PANEL, NO.1

main58227-0K031iGUN122,126,TGN121..PKN..CBU¥680202006-202301

65414STOPPER, GUARD FRAME

main65414-KK010iGUN126..PD..L;GUN120,122..(PS,TS)..(PKN,TH)..CBU;GUN112,125,126,135,TGN110..(KD,KS,MS,PS,TD,TS)..(IDN,KEN,MA,PKN)202006-202201

65456APROTECTOR, HEADER BORD

main65496-0K010iTGN136..S..LA¥8,500202011-202110

CENTRAL AND SOUTH AMERICA SPEC

main65496-0K010iTGN136..S..LA¥8,500202011-202110

BOLIVIA, URUGUAY SPEC

65470BOARD ASSY, HEADER

main65470-KK010iGUN136..TX;TGN126..5F..SA;GUN136..6F..H..ARL;GUN125..LHD..SD..S;TGN136..LHD..(SD,TD);GUN136..(SD,SX,TD)..6FC..H;GUN126..TD..6FC..S..(GEN,LA);GUN125,135,TGN121..SD..¥29,300202006-202301

main65470-KK020iGUN125,126,135,TGN126,136..AS..CBU202006-202201

main65470-KK030iGUN125..L..GHA202006-202201

main65470-KK050iGUN125,126..(H,S)..GHA202006-202201

main65470-KK070iGGN125,GUN125,126,13#,TGN126,128,13#..AD202011-202110

sub65470-KK120

65492CRETAINER, FRONT GUARD CUSHION

main65492-0K010iTGN136..AD..L;GGN125,GUN125,126,13#,TGN126,128,138..AD202011-202110

CENTRAL AND SOUTH AMERICA SPEC

main65492-0K010iTGN136..S..LA202011-202110

BOLIVIA, URUGUAY SPEC

90105T0197

main90105-T0197

9010906390

main90109-06390¥120

9017806024

main90178-06024

9026906017

main90269-06017¥140

9 parts on this diagram · 3 diagrams in section
