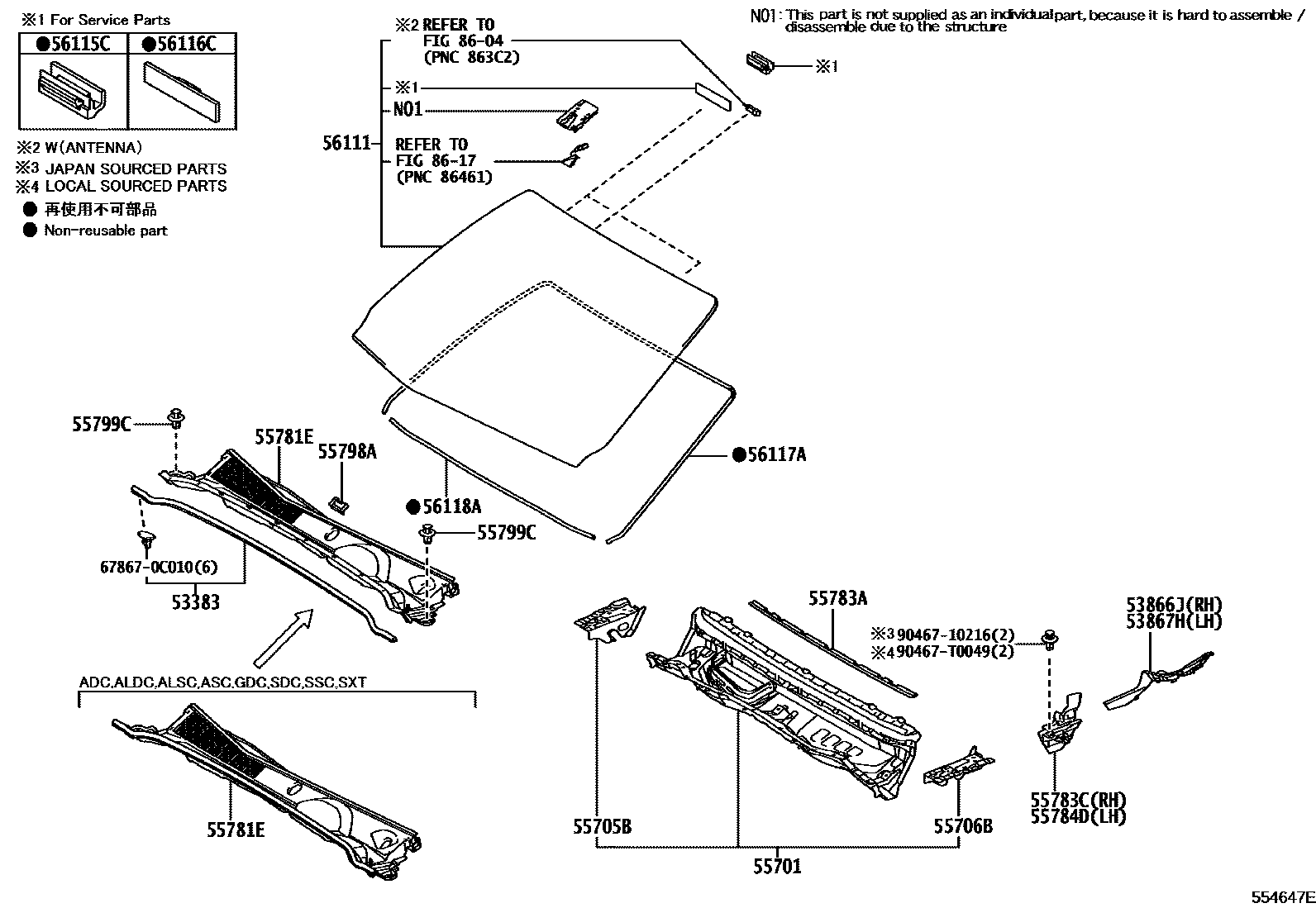

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
main53867-0K050iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MMD,SD,SS,SX,TD,TS,TX202006-202301
55701PANEL SUB-ASSY, COWL
main55700-KK020iTGN126..GEN,SA;TGN126..(TD,TS)..(H,L)..LA;TGN136..LHD..(SD,TD)..(LA,SA);GUN122,125,126,13#,LAN125,TGN121..LHD..(MMD,SD,SS,SX,TD,TS,TX)..(GEN,LA,MMR,PH,SA,TWN,VN)202006-202301
main55700-KK030iTGN136..GEN;TGN126..TD..S..LA;GGN125,GUN112,122,125,126,TGN11#,120,121,126..GCC202006-202108
WINDSHIELD DEICER-WITH
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
ASIA COLD COUNTRY SPEC
sub55708-0K181
main55708-0K200iTGN126..6FC..(H,L)..GCC;TGN126..(TD,TS)..5F..(H,L);TGN126..(TD,TS)..S..(GCC,LA);GGN125,GUN112,122,125,126,13#,TGN11#,120,121,136..LHD..(MMD,TD,TS,TX)202006-202301
ASIA COLD COUNTRY SPEC&WINDSHIELD DEICER-WITH
sub55708-0K351
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
main55798-0K010iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
55799CCLIP, COWL TOP VENTILATOR LOUVER
main90467-07215iGGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,KD,KS,MMD,SD,SS,SX,TD,TS,TX202006-202106
main90467-07215iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MMD,SD,SS,SX,TD,TS,TX202104-202301
(J)
(L)
56111GLASS, WINDSHIELD
main56101-0K301iGUN126..PD..L;GUN125..TD..TH;GUN125..(TS,TX)..(IDN,TH);GUN112,120,122,123,126,135,TGN110,121..(PS,TD,TS,TX)..(IDN,PKN,TH)202006-202201
main56101-0K342iGUN126..LHD..(GEN,MMR,PH);GUN135..(H,S)..(GEN,PH,VN);TGN126..(TD,TS)..(H,L)..LA;GUN135,TGN136..TD..(5F,6FC)..LA;GUN122,125,TGN121,126..LHD..(GEN,VN)202006-202301
main56101-0K361iTGN136..GEN;TGN126..TD..S..LA;GGN125,GUN112,122,125,126,TGN11#,120,121,126..GCC202006-202108
MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)
AUDIO-*DA(8INCH) & *BT
ACTIVE SAFETY PACKAGE-WITH
main56101-0KP40iGUN126..KEN;GUN126,136..S..SA;GUN125..RHD..(KD,KS,SX);GUN135..RHD..L..(KEN,SA);GUN122,125,TGN120..RHD..(SD,SS)..L202009-202111
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
AUDIO-*DA(8INCH) & *BT & DAB
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH&AUDIO-*DA(8INCH) & *BT & DAB
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
BACK GLASS-SLIDING TYPE(GREEN, *HSEA)
main56101-0KB80iTGN126..H..GCC;GUN122..TD..S..GCC;TGN121..TD..5F..(H,S);GUN125,TGN121..(6F,6FC)..H..GCC202006-202108
UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
ACTIVE SAFETY PACKAGE-WITH&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT & ENTUNE
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
UAE SPEC&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
MEXICO SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
AUDIO-*DA(8INCH) & *BT & ENTUNE
MEXICO SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
MEXICO SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY,SILVER)
ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT & DAB
UAE SPEC&ACTIVE SAFETY PACKAGE-WITH&BACK GLASS-SLIDING TYPE(GREEN, *HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
56115CSTOPPER, WINDSHIELD GLASS
STEERING SWITCH-WITH(AUDIO & TELEPHONE)
56116CSTOPPER, WINDSHIELD GLASS, NO.2
STEERING SWITCH-WITH(AUDIO & TELEPHONE)
56117ADAM, WINDOW GLASS ADHESIVE
L=2620
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248
8604
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 2 diagrams in section
