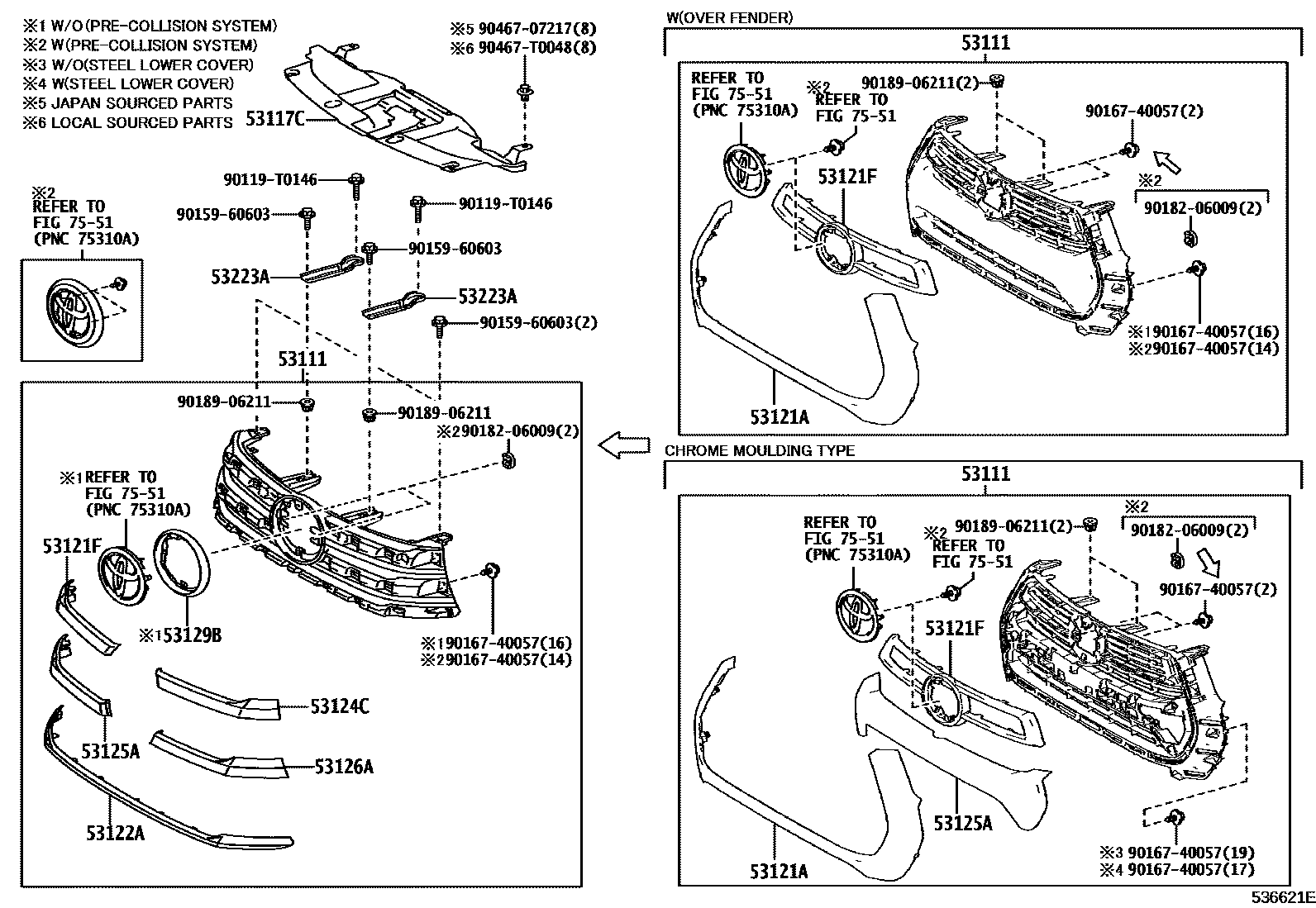

RADIATOR GRILLE
53111GRILLE, RADIATOR
NO PAINT REQ.,STEERING SWITCH-WITHOUT
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE)
PLATED
main53100-0K906iGUN125,135..TD..L..LA;GUN125,135..TS..(ARL,LA);GUN126,TGN121..(TD,TS)..L..(ARL,LA)202006-202108
NO PAINT REQ.
NO PAINT REQ.
main53100-0KA80iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&RADIATOR GRILLE-PAINTING
main53100-0KB50supersedes 53100-0KF71iGUN135..AS;GUN125,126,TGN136..AS..BZAG;GUN125,126,135,TGN126,136..AD..L..LA202011-202110
NO PAINT REQ.,STEERING SWITCH-WITHOUT
NO PAINT REQ.
NO PAINT REQ.
main53100-0KF90iGUN125..6FC..S..MA;GUN126..RHD..S..GEN;GUN125..S..(GEN,TH,VN);GUN125..TD..6FC..L..GEN;GUN135..(L,S)..(GEN,PH,TH,VN);GUN135,TGN126..TD..(5F,6FC)..S..LA202006-202110
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED)
sub53100-0KG01
sub90182-06009
NO PAINT REQ.
main53100-0KG60supersedes 53100-0KJ40iGUN126..LHD..S..GEN;GUN125,TGN126..TD..(H,S)..(GCC,IDN);GUN125,TGN126..(TD,TX)..MTM..H..(GEN,LA);GGN125,GUN126,135..H..(GCC,GEN,MMR,PH,TH,VN)202006-202301
PLATED
NO PAINT REQ.
main53100-0KK00iGGN125,TGN136..RHD;GUN135..(SS,SX)..S;GUN125,135..RHD..SD..6FC;GUN125,126,136..H..(GHA,KEN,SA)202009-202111
NO PAINT REQ.
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED)
PLATED
PLATED
PLATED
NO PAINT REQ.
PLATED
NO PAINT REQ.
NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PLATED)
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE& DISPLAY & *LDA)
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITH
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
PLATED,ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
sub53100-0KS91
sub90182-06009
PLATED,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
PLATED,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP- LED(MLM)
PLATED,MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
PLATED,MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH
NO PAINT REQ.,RUGGED X PACKAGE&FRONT BUMPER-MATERIAL COLOR(MLM) & WITH(WIDE FENDER)
sub53100-YP311
sub90182-06009
53117CRETAINER, RADIATOR GRILLE, NO.1
main53117-0K040iTGN126..TS..S;GUN125,126,13#..MS,PS,TS;GUN126,135..(PD,TD)..L..(LA,PKN);GUN125..TD..6F..L..(GCC,GEN,LA,PH);GUN125,TGN126..LHD..(TD,TS)..(5F,6FC)..L;GUN112,120,122,1202006-202201
main53117-0K050iGUN135..SS..L;GUN125..L..GHA;TGN136..LHD..SA;GUN135..(KS,SD)..6F;GUN125..SD..6F..(L,S);GUN125,126..(KD,KS,SS)..(L,S);GUN122,LAN125,TGN120,121,126..SA202009-202111
FRONT BUMPER-MATERIAL COLOR
main53117-0K120iGUN135..TD..S..LA;GUN125..TD..6FC..L..GEN;GUN126..(MD,MMD,TD,TX)..(H,S);GUN135..(ARL,GEN,PH,TH,VN)..CBU;GUN125..(MD,TD,TX)..(ARL,IDN,MA,TH,VN);GGN125,GUN125,136,TGN202006-202301
main53117-0K130iGUN125..SX;GUN125..H..SA;GUN126..SS..H;GUN125..S..GHA;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN126..GD,KD,SD,SX;GGN125,GUN136,TGN136..RHD..SA202009-202111
TIRE & DISC WHEEL-265/65R17, ALUMINUM&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
53121AMOULDING, RADIATOR GRILLE
main53121-0K870supersedes 53121-0K890iGUN126..LHD..S..GEN;GGN125,GUN126,13#..(MMD,TD,TX)..H;GUN125,TGN126..TD..(H,S)..(GCC,IDN);GUN125,TGN126..(TD,TX)..MTM..H..(GEN,LA)202006-202301
main53121-0KA00iGGN125,TGN136..RHD;GUN135..(SS,SX)..S;GUN125,135..RHD..SD..6FC;GUN125,126,136..H..(GHA,KEN,SA)202009-202111
main53121-0KA50iGUN125..6FC..S..MA;GUN126,135..TD..S..LA;GUN126..RHD..(TD,TX)..S;GUN125..TD..6FC..L..GEN;GUN135..(L,S)..(GEN,PH,TH,VN);GUN125,136,TGN126..(TD,TX)..S..(ARL,GEN,LA,TH202006-202110
REAR BUMPER-WITH(*RUPD(PAINTED))
TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
TIRE & DISC WHEEL-265/65R17, ALUMINUM&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
main53121-YP160iGUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU;GUN125..RHD..TD..H..GEN;GUN126..LHD..6FC..H..GEN;GUN126,135..6FC..H..(TH,VN)202006-202012
MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH&TIRE & DISC WHEEL-265/60R18, ALUMINUM
MLM ADVENTURE PACKAGE&ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
RUGGED X PACKAGE
53121FMOULDING, RADIATOR GRILLE, UPPER RH
REAR BUMPER-STEP TYPE(PLATED)
REAR BUMPER-WITH(*RUPD(PLATED))
FRONT BUMPER-PAINTED
main53125-0K210iGUN135..TD..L..LA;GUN122..RHD..(GEN,TH);GUN122..LHD..L..(GEN,PH);GUN126,TGN136..(TD,TS)..L..(LA,TH);GUN125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN112,120,123,TGN110,121202006-202110
main53125-0K220iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
RADIATOR GRILLE-MOLDING
main53125-0K490iGUN126..LHD..S..GEN;GGN125,GUN126,13#..(MMD,TD,TX)..H;GUN125,TGN126..(TD,TX)..H..(GEN,LA);GUN125,TGN126..TD..(H,S)..(GCC,IDN)202006-202301
main53125-0K520iGGN125,TGN136..RHD;GUN135..(SS,SX)..S;GUN125,135..RHD..SD..6FC;GUN125,126,136..H..(GHA,KEN,SA)202009-202111
main53125-0K570iGUN125..6FC..S..MA;GUN126,135..TD..S..LA;GUN126..RHD..(TD,TX)..S;GUN125..TD..6FC..L..GEN;GUN125..(MD,TD,TX)..L..(ARL,IDN,MA);GUN135..(L,S)..(ARL,GEN,PH,TH,VN)..CBU;202006-202110
main53125-0K580supersedes 53125-0K050iGUN125..SX;GUN125..S..GHA;GUN126,136..SD..S;GUN125..LHD..6FC..SA202009-202111
TIRE & DISC WHEEL-265/65R17, ALUMINUM&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
REAR BUMPER-STEP TYPE(PLATED)
53122AMOULDING, RADIATOR GRILLE, LOWER
REAR BUMPER-STEP TYPE(PLATED)
REAR BUMPER-WITH(*RUPD(PLATED))
FRONT BUMPER-PAINTED
main53122-0K410iGUN135..TD..L..LA;GUN122..RHD..(GEN,TH);GUN122..LHD..L..(GEN,PH);GUN126,TGN136..(TD,TS)..L..(LA,TH);GUN125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN112,120,123,TGN110,121202006-202110
main53122-0K420supersedes 53122-0K240iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
RADIATOR GRILLE-MOLDING
REAR BUMPER-STEP TYPE(PLATED)
53124CMOULDING, RADIATOR GRILLE, UPPER LH
REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE)
REAR BUMPER-WITH(*RUPD(PLATED))
FRONT BUMPER-PAINTED
main53126-0K210iGUN135..TD..L..LA;GUN122..RHD..(GEN,TH);GUN122..LHD..L..(GEN,PH);GUN126,TGN136..(TD,TS)..L..(LA,TH);GUN125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN112,120,123,TGN110,121202006-202110
main53126-0K220supersedes 53126-0K050iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
RADIATOR GRILLE-MOLDING
REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
53125AMOULDING, RADIATOR GRILLE, CENTER RH
REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE)
REAR BUMPER-WITH(*RUPD(PLATED))
FRONT BUMPER-PAINTED
main53123-0K240iGUN135..TD..L..LA;GUN122..RHD..(GEN,TH);GUN122..LHD..L..(GEN,PH);GUN126,TGN136..(TD,TS)..L..(LA,TH);GUN125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN112,120,123,TGN110,121202006-202110
main53123-0K250supersedes 53123-0K070iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
RADIATOR GRILLE-MOLDING
main53123-0K560iGUN126..LHD..S..GEN;GGN125,GUN126,13#..(MMD,TD,TX)..H;GUN125,TGN126..(TD,TX)..H..(GEN,LA);GUN125,TGN126..TD..(H,S)..(GCC,IDN)202006-202301
main53123-0K590iGGN125,TGN136..RHD;GUN135..(SS,SX)..S;GUN125,135..RHD..SD..6FC;GUN125,126,136..H..(GHA,KEN,SA)202009-202111
REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
ACTIVE SAFETY PACKAGE-WITH&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
53126AMOULDING, RADIATOR GRILLE, CENTER LH
REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE)
REAR BUMPER-WITH(*RUPD(PLATED))
FRONT BUMPER-PAINTED
main53124-0K240iGUN135..TD..L..LA;GUN122..RHD..(GEN,TH);GUN122..LHD..L..(GEN,PH);GUN126,TGN136..(TD,TS)..L..(LA,TH);GUN125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN112,120,123,TGN110,121202006-202110
main53124-0K250supersedes 53124-0K070iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
RADIATOR GRILLE-MOLDING
REAR BUMPER-STEP TYPE(PLATED)
53129BMOULDING, RADIATOR GRILLE, NO.9
REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE)
REAR BUMPER-WITH(*RUPD(PLATED))
FRONT BUMPER-PAINTED
main53127-0K110iTGN136..TD..LA;GUN122..RHD..(GEN,TH);TGN126..TD..L..(GEN,LA);GUN122..LHD..L..(GEN,PH);GUN125..TD..6F..L..(GEN,PH);GUN125,126..RHD..(MS,TS)..L..CBU;GUN112,120,123,TG202006-202110
main53127-0K120supersedes 53127-0K050iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
main53127-0K130supersedes 53127-0K360iGUN135..AS;GUN125,126,TGN136..AS..BZAG;GUN125,126,135,TGN126,136..AD..L..LA202011-202110
RADIATOR GRILLE-MOLDING
REAR BUMPER-STEP TYPE(PLATED)
REAR BUMPER-STEP TYPE(PLATED)&STEERING SWITCH-WITH(AUDIO & TELEPHONE & DISPLAY & *LDA)
53223ABRACKET, RADIATOR GRILLE MOUNTING
7551
90119T0146
main90119-T0146
9015960603
main90159-60603
9016740057
main90167-40057
9018206009
main90182-06009
9018906211
main90189-06211
9046707217
main90467-07217
90467T0048
main90467-T0048
18 parts on this diagram · 2 diagrams in section
