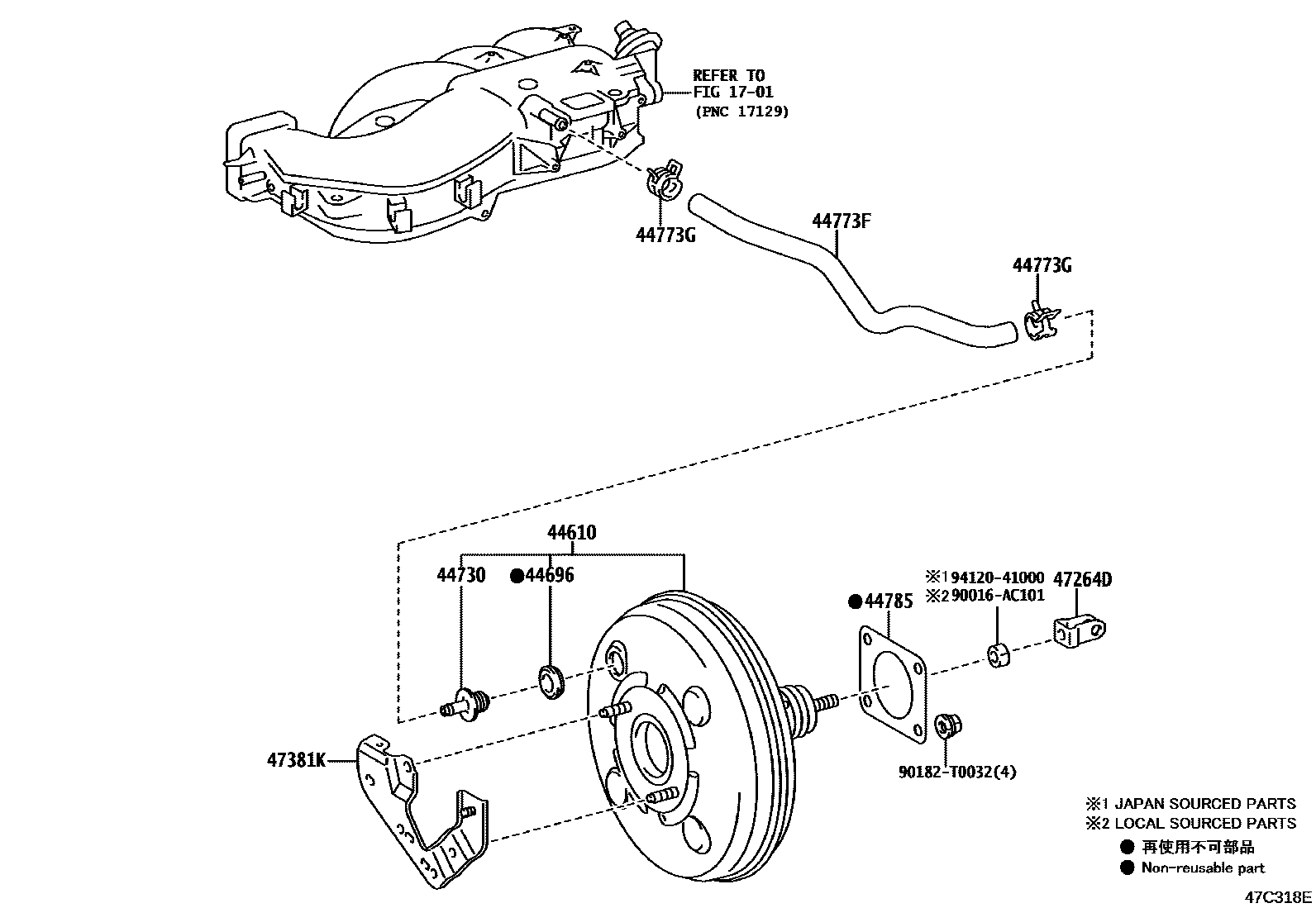

BRAKE BOOSTER & VACUUM TUBE
1701
44610BOOSTER ASSY, BRAKE
main44610-0K560iTGN136..RHD..SD;TGN126,136..SS,TD,TS;TGN11#,120,121..ARL,GCC,IDN,PKN,SA,TH202006-202201
main44610-0K580iGUN126..TD..6F..TH;GUN126..RHD..TD..(ARL,GEN);GUN112,120,122,123,125,13#..RHD;GUN126..RHD..(KD,MD,PD,PS,SD,SS,SX,TS,TX)202006-202201
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44773FHOSE, UNION TO CHECK VALVE
44773GCLIP(FOR UNION TO CHECK VALVE HOSE)
NO.1
NO.2
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
main47264-04010iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
47381KBRACKET, BRAKE BOOSTER TUBE CLAMP
main47381-0K070iGGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,MD,MS,SD,SS,SX,TD,TS,TX202006-202102
90016AC101
main90016-AC101
90182T0032
main90182-T0032
9412041000
main94120-41000
12 parts on this diagram · 7 diagrams in section
