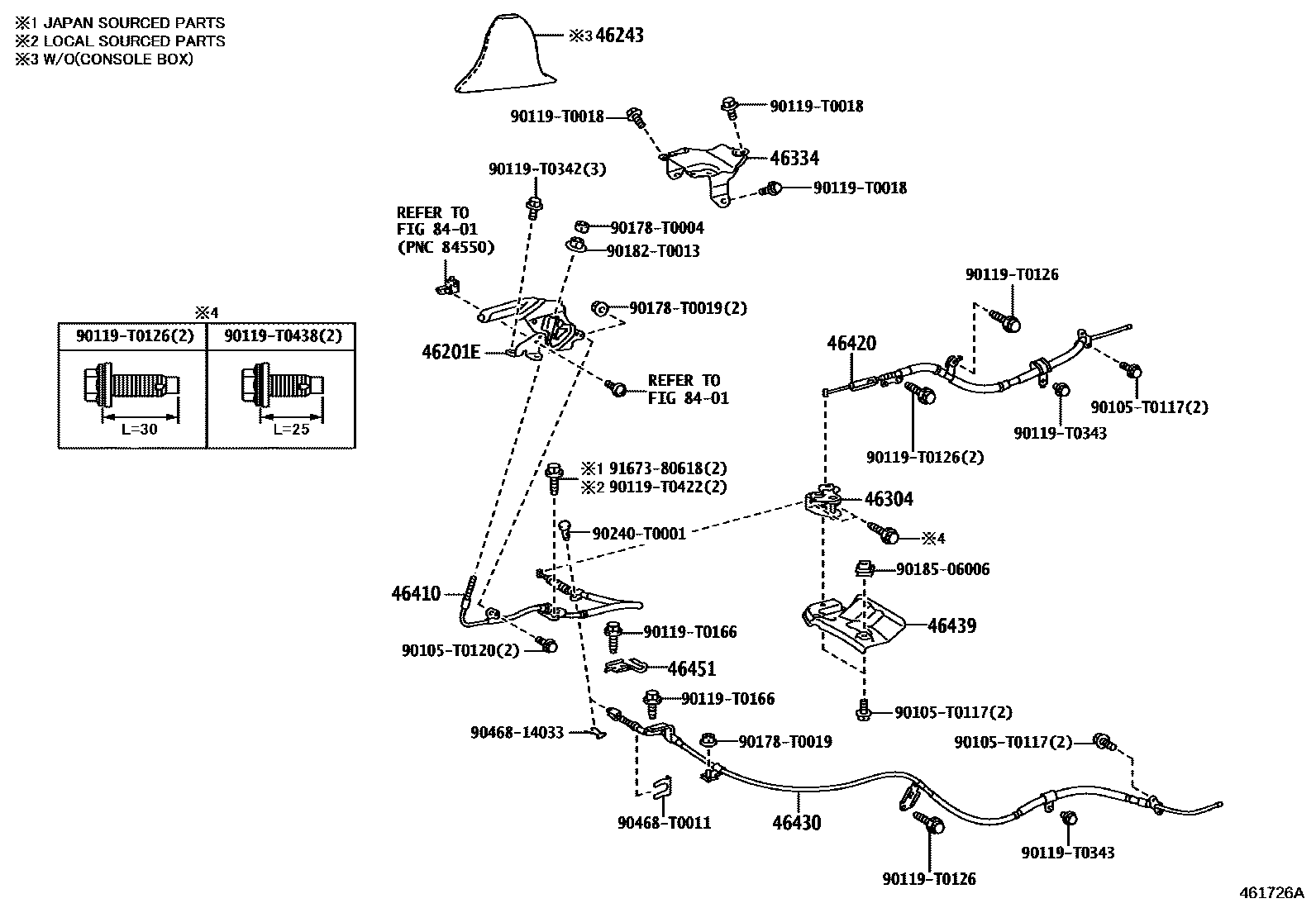

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K190-C0iGGN125,GUN125,126,13#,TGN126,128,13#..AD..(H,S)202011-202110

BLACK,TRIM2#

main46201-0K210-C0iGGN125,GUN125,126,136..H..(GHA,KEN,SA)202009-202111

BLACK,TRIM2#

main46201-0K230-C0iGUN135..PH,TH;GUN126..LHD..TD..S;GUN125..TD..S..(LA,TH);GUN135..TD..(H,S)..(GEN,LA);GUN120,122,TGN126..(TD,TX)..(H,S)..(LA,TH);GUN126..(MD,MMD,TD,TX)..H..(ARL,GEN,L202006-202301

BLACK,TRIM2#

main46201-0K250-C0iGUN125..H..MA;TGN126..(TD,TS)..L..LA;GUN122,13#..S..(ARL,GEN,VN);GUN125,126..(PD,TD)..L..(LA,PKN);GUN126..RHD..(PS,TD,TS,TX)..(L,S);GUN135..(TD,TS)..L..(ARL,GEN,LA,202006-202201

BLACK,TRIM2#

main46201-0K250-C0iGGN125,GUN112,122,125,126,TGN11#,120,121,126..GCC202006-202108

BLACK,TRIM2#,3#

main46201-0K260-C0iGUN125,126,135,TGN126,136..(AD,AS)..L202011-202110

BLACK,TRIM2#

main46201-0K280-C0iGUN122,125,126,13#,LAN125,TGN120,121,126,136..(L,S)..(GHA,KEN,SA)202009-202111

BLACK,TRIM2#

46243COVER, PARKING BRAKE LEVER

main46243-0K020-C0iGUN125,135,TGN126..TS..LA;GUN126,TGN121..TD..MTM..L..(GEN,LA)202006-202108

FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#

main46243-0K020-C0iGUN122..RHD..TD..GEN;GUN122..LHD..TS..L..GEN;GUN112,122,123,126,TGN110..TS..(IDN,PH,TH);GUN125,TGN121..(MS,TS)..MTM..L..(GEN,MA,TH)202006-202110

BLACK,TRIM2#

main46243-0K020-C0iGUN125,135,TGN126..TS..LA;GUN126,TGN121..TD..MTM..L..(GEN,LA)202006-202108

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#

main46243-0K020-C0iTGN126..TS..S;GUN125,TGN126..MTM..L..GCC;GUN112,122,TGN11#,120,121..5F..(L,S)..GCC202006-202108

BLACK,TRIM2#,3#

main46243-0K030-C0iGUN122,TGN120..SS;GUN125,135,LAN125,TGN121,126..(KD,KS,SD,SS)..L202009-202111

BLACK,TRIM2#

main46243-0K030-C0iGUN122,TGN120..SS;GUN125,135,LAN125,TGN121,126..(KD,KS,SD,SS)..L202009-202111

FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#

main46243-0K050-C0iGUN122,126,TGN121..L..PKN202106-202201

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGUN125,126,135..KEN202006-202301

main46304-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,SA202009-202111

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGGN125,GUN125,126,13#,TGN126,128,13#..AD202006-202301

main46334-0K020iGUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KS,MS,PS,SS,TS202006-202201

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K100iGUN112,TGN11#202006-202108

main46410-0K120iGUN125,126..GHA202006-202301

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K150iGUN112,TGN11#202006-202108

main46420-0K160iGUN120,122,123,TGN120,121..PS,SD,SS,TD,TS,TX202006-202201

main46420-0K210iTGN126..6FC..(H,L)..GCC;TGN126..(TD,TS)..5F..(H,L);TGN126..(TD,TS)..S..(GCC,LA);GUN125,126,13#,TGN136..MD,MMD,MS,TD,TS,TX202006-202301

main46420-0K220iGUN125,126,13#,LAN125,TGN126,136..GHA,KEN,SA202009-202111

main46420-0K280iGGN125..LHD202006-202110

main46420-0K290iTGN126..L..GEN;GUN125..LHD..TD..GEN202006-202108

ASIA COLD COUNTRY SPEC

main46420-0K300iGGN125..SA202009-202109

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K120iTGN126..L..GEN;GUN125..LHD..TD..GEN202006-202108

ASIA COLD COUNTRY SPEC

main46430-0K150iGUN112,TGN11#202006-202108

main46430-0K160iGUN120,122,123,TGN120,121..PS,SD,SS,TD,TS,TX202006-202201

main46430-0K210iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202301

main46430-0K220iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,SA202009-202111

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iGUN125,126..GHA202006-202301

46451BRACKET, CABLE SUPPORT

main46451-0K040iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202301

main46451-0K050iGUN112,TGN11#202006-202108

sub46451-0K051

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

27 parts on this diagram · 3 diagrams in section
