STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,STEERING WHEEL-URETHANE,BLACK,TRIM2#
main45100-0K641-C0iGUN135..H..PH;GUN125..TD..TH;GUN126..LHD..S..GEN;GUN125..(MD,TS)..6F..(H,S);GUN120,122,135..(6F,6FC)..(H,S)..(GEN,TH);GUN125,126,136,TGN126..(MD,MMD,TD,TX)..H..(ARL202006-202301
3-SPOKE,LEATHER,BLACK & GRAY NO.205,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#
main45100-0KF00-C0iGUN125..AD..S..LA;GUN125..(AD,AS)..L;GUN126,135..L..BZAG;TGN126,136..(AD,AS)..(L,S);GUN126,135..(AD,AS)..(L,S)..LA202011-202110
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK & GRAY,TRIM2#
3-SPOKE,LEATHER,MLM ADVENTURE PACKAGE&STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#
45107WIRE SUB-ASSY, HORN BUTTON
main45107-0K030supersedes 45107-0K030iGUN135..L..(KEN,VN);GUN122,125..LHD..SS..L;GUN112,120,123,126,LAN125,TGN110,126,136..L..(GCC,GEN,IDN,PKN,SA,TH);GUN122,125,TGN120,121..(KS,MD,MS,PS,TD,TS,TX)..L..(G202006-202201
45116ORNAMENT, STEERING WHEEL, NO.1
ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-WITHOUT,BLACK,TRIM2#
ACTIVE SAFETY PACKAGE-WITHOUT&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS)&STEERING SWITCH-WITHOUT,BLACK,TRIM2#
45130BUTTON ASSY, HORN
BLACK,TRIM2#
BLACK,TRIM2#
main45130-0K270-C0iGUN112,12#,13#,TGN110,121,126,136..(MD,MMD,MS,TD,TS,TX)..(GEN,IDN,LA,MA,MMR,PH,TH,VN)202006-202301
BLACK,TRIM2#
BLACK,TRIM2#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
MLM ADVENTURE PACKAGE&STEERING WHEEL-LEATHER & WITH(STEERING HEATER),BLACK,TRIM2#
45186COVER, STEERING WHEEL, LOWER NO.2
CRUISE CONTROL-WITH,BLACK,TRIM2#
main45186-0K130-C0iGUN135..L..VN;GUN125..H..IDN;GUN135..TD..6FC..LA;GUN135..(L,S)..(GEN,PH,TH);GUN125,126..(L,S)..(GEN,IDN,MA,PH,PKN,TH,VN);GUN112,120,122,123,TGN110,121,126,136..(PS,202006-202201
BLACK,TRIM2#
main45186-0K140-C0iGGN125,GUN122..SD;GUN125..LHD..SS..S;GUN125,135..LHD..SD..(H,L);GUN126,136,TGN121..(H,L)..(GHA,KEN,SA)202009-202111
BLACK,TRIM2#
main45186-0K150-C0iGUN122,TGN120..SS;GUN125..LHD..(GD,SS)..L;GUN125,135..RHD..(KEN,SA);GUN125..LHD..(GD,SD,SX)..S;GUN126,136,LAN125,TGN126,136..(L,S)..SA202009-202111
BLACK,TRIM2#
main45186-0K160-C0iGUN125..AD..LA;GUN126,135..6FC..S..BZAG;GUN126,135..AD..6F..(L,S)..LA202011-202110
BLACK,TRIM2#
BLACK,TRIM2#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM2#,3#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401
8408
9015950199
main90159-50199

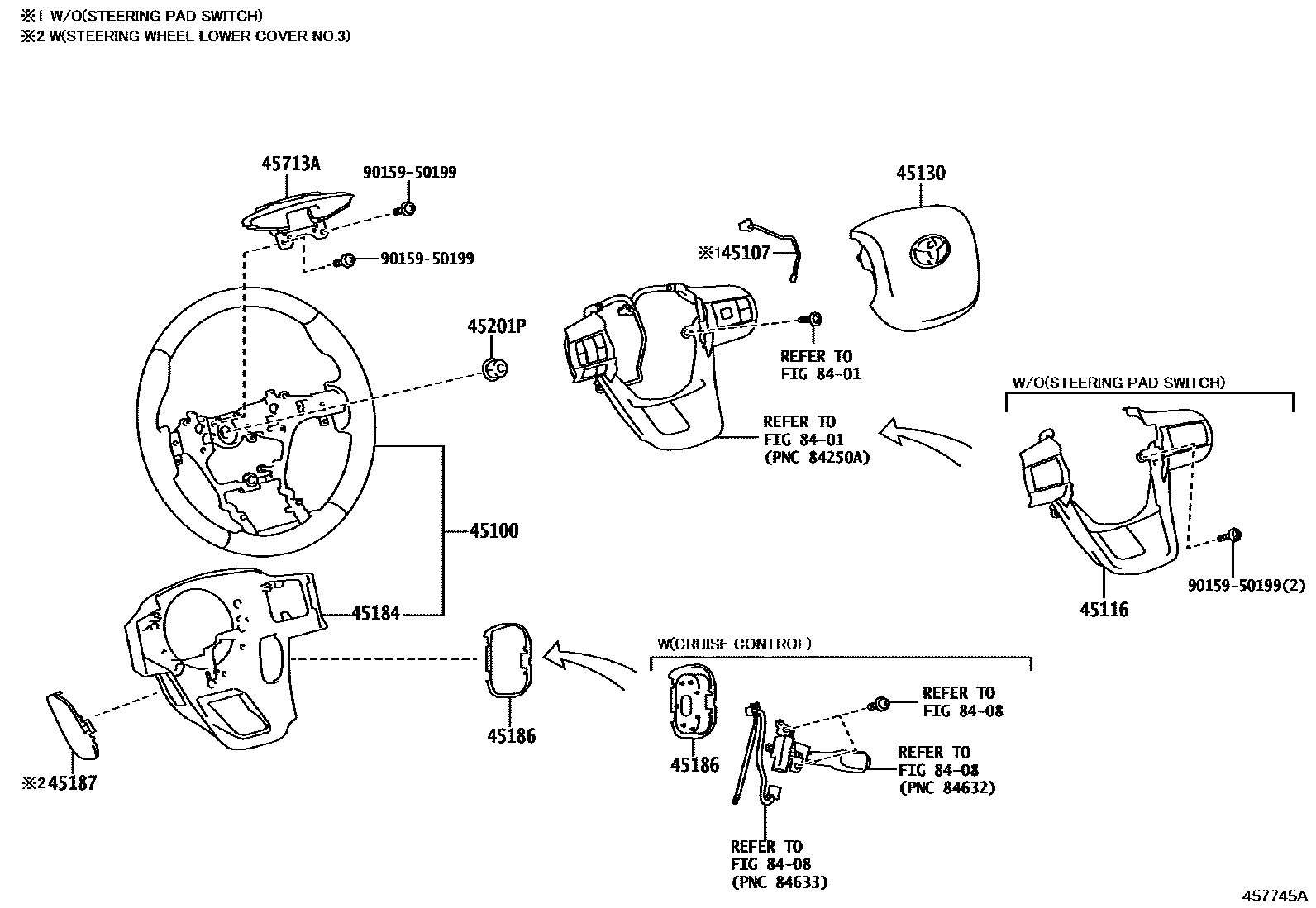

12 parts on this diagram · 1 diagram in section
