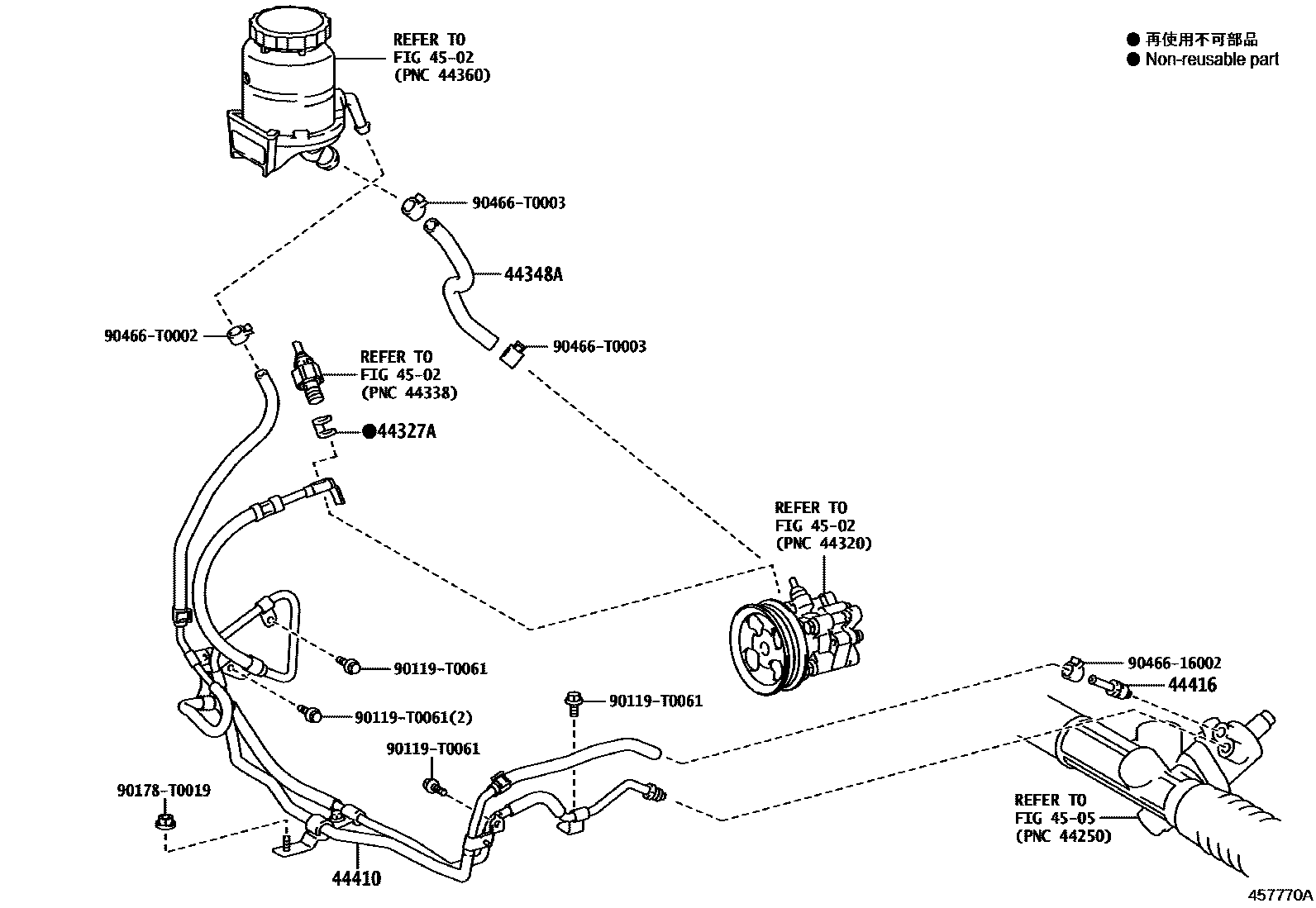

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGUN125,126..GHA202006-202301

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K070iLAN125202009-202109

main44348-0K080iGGN125202006-202110

main44348-0K110iGUN122,126..PKN202006-202301

44410TUBE ASSY, PRESSURE FEED

main44410-0K180iTGN110,120,121..RHD202006-202201

main44410-0K200iGUN112,120,122,123..RHD202006-202201

main44410-0K210iTGN136..RHD202009-202109

main44410-0K240iGGN125..GCC202006-202108

main44410-0K250iGGN125..AD202011-202110

main44410-0K271iGUN135..RHD..L..SA;GUN125..TD..6FC..L..GEN;GUN125..RHD..(KD,SD,SS,SX,TD,TS)..6F..L..(GEN,KEN,SA)202006-202111

VEHICLE STABILITY CONT-WITHOUT

main44410-0K271iGUN125,126,135..(KS,MD,MS,PD,PS,TD,TS,TX)..L..(IDN,KEN,MA,PKN,TH)202006-202201

main44410-0K290iGUN126,135..RHD..(H,S);GUN125..(H,S)..(IDN,KEN,MA);GUN135..RHD..L..(ARL,GEN,SA);GUN125,136..RHD..(KD,SD,SS,SX,TD,TS,TX)..(ARL,GEN,KEN,SA,TH)202006-202201

main44410-0K290iGUN126,135..L..TH202006-202108

VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K040iGUN122,126,TGN121..PKN202006-202301

4502

4505

90119T0061

main90119-T0061

90178T0019

main90178-T0019

9046616002

main90466-16002

90466T0002

main90466-T0002

90466T0003

main90466-T0003

11 parts on this diagram · 9 diagrams in section
