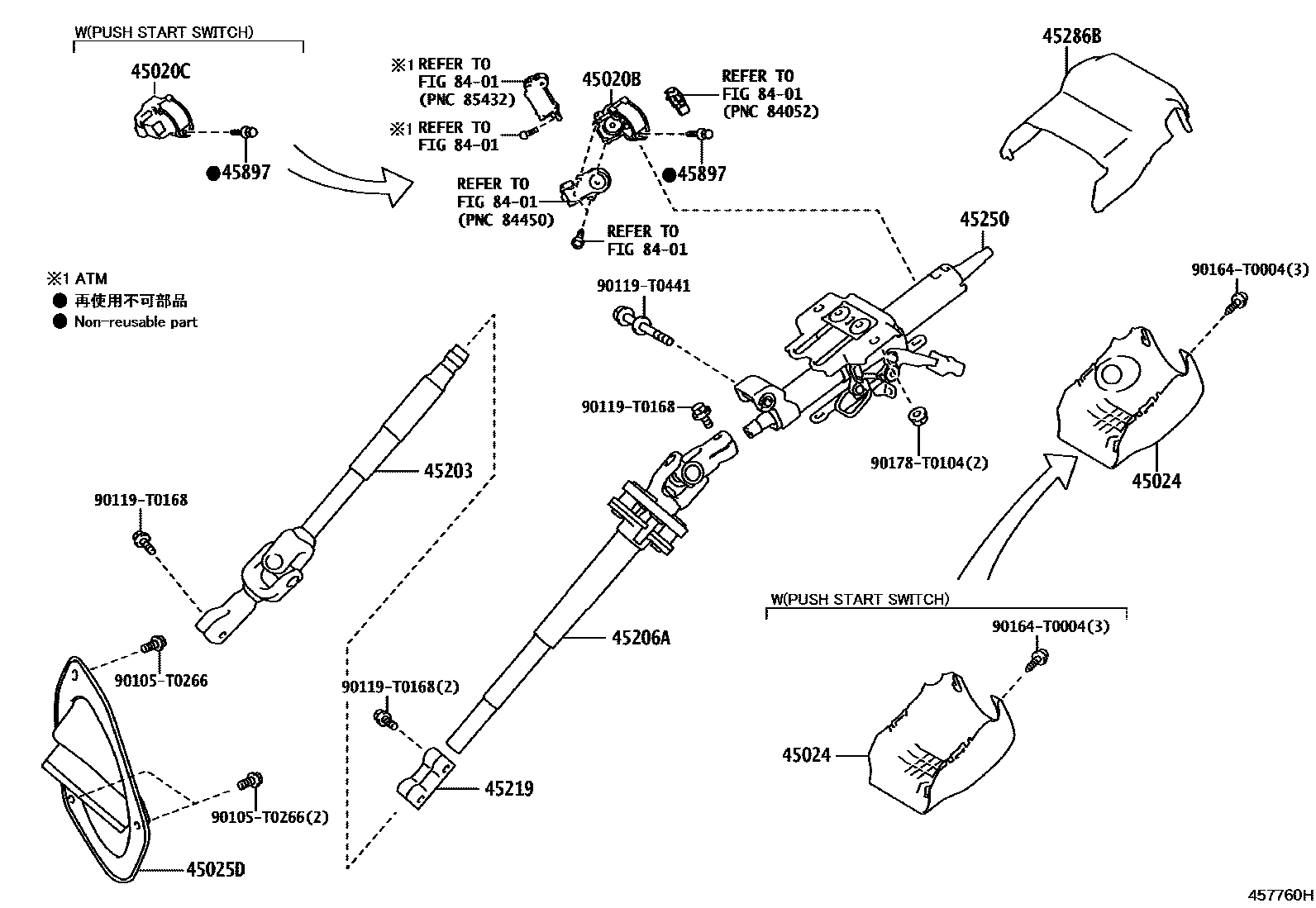

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main45280-0K180iTGN126,136..AD,AS;GUN125..(AD,AS)..L;GUN126,135..L..BZAG;GUN126,135..(AD,AS)..6F..LA;GUN125,136..AD..6F..(H,S)..LA202006-202201
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
main45020-0K190iTGN128,138..H;TGN126..(H,S)..LA;GUN125,TGN136..AD..(5F,6FC)..S;GUN125,126,136..LHD..H..(LA,SA)202006-202110
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main45020-0K190iGUN125..6F..S..MA;GUN126..LHD..S..GEN;GUN125,126,13#..(KD,MD,MMD,TD,TX)..H..(ARL,GEN,KEN,MA,MMR,PH,TH,TWN,VN)202006-202301
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
BLACK,TRIM2#,3#
sub45024-0K011
WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
sub45024-0K011
main45024-0K010-C0iGUN126..TD..LA;GUN125..TX..S..GEN;GUN125..6FC..S..MA;TGN126..(TD,TS)..(GEN,LA);GUN125..RHD..(TS,TX)..(H,S);GUN125,136..TD..H..(IDN,LA);GUN125..TD..S..(GEN,IDN,LA,TH202006-202201
BLACK,TRIM2#
sub45024-0K011
WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
BLACK,TRIM2#
main45024-0K070-C0iGUN126..GHA,SA;GGN125,GUN122,125,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111
BLACK,TRIM2#
sub45024-0K071
main45024-0K090-C0iTGN128,138..H;GUN126,136..AD..H..LA;GUN125,TGN126,136..AD..(5F,6FC)..(H,S)202011-202110
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
BLACK,TRIM2#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-KK020iGUN112,122,125,126,13#,LAN125,TGN11#,120,121,126,136..LHD..(GD,SD,SS,SX,TD,TS,TX)..MTM202006-202111
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING
sub45206-0K140
main45206-0K090iGGN125,GUN112,122,125,126,13#,LAN125,TGN11#,12#,13#..LHD..(BZAG,GCC,GEN,LA,MMR,PH,SA,TWN,VN)202006-202103
sub45206-0K120
45219YOKE, STEERING SLIDING
45250COLUMN ASSY, STEERING
main45250-0K060iTGN126..5F..S..GCC;GUN125..6FC..L..GCC;GUN122,126..TD..GCC;GUN122..RHD..TD..GEN;TGN126..5F..(H,L)..(GCC,GEN);GUN125..TD..6F..L..(GCC,GEN);GUN135,TGN126..(6F,6FC)..(202006-202201
main45250-0K070iGUN126,135..L..BZAG;TGN126,128,136..AD,AS;GUN126,135..(AD,AS)..LA;GUN125,136..AD..(H,S)..LA;GUN125,TGN138..(AD,AS)..(H,L)202006-202201
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main45250-0K080iGUN125..6F..S..MA;GUN126..LHD..S..GEN;GUN125,126,13#..(KD,MD,MMD,TD,TX)..H..(ARL,GEN,KEN,MA,MMR,PH,TH,TWN,VN)202006-202301
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
8401
90105T0266
main90105-T0266
90119T0168
main90119-T0168
90119T0441
main90119-T0441
90164T0004
main90164-T0004
90178T0104
main90178-T0104
16 parts on this diagram · 1 diagram in section
