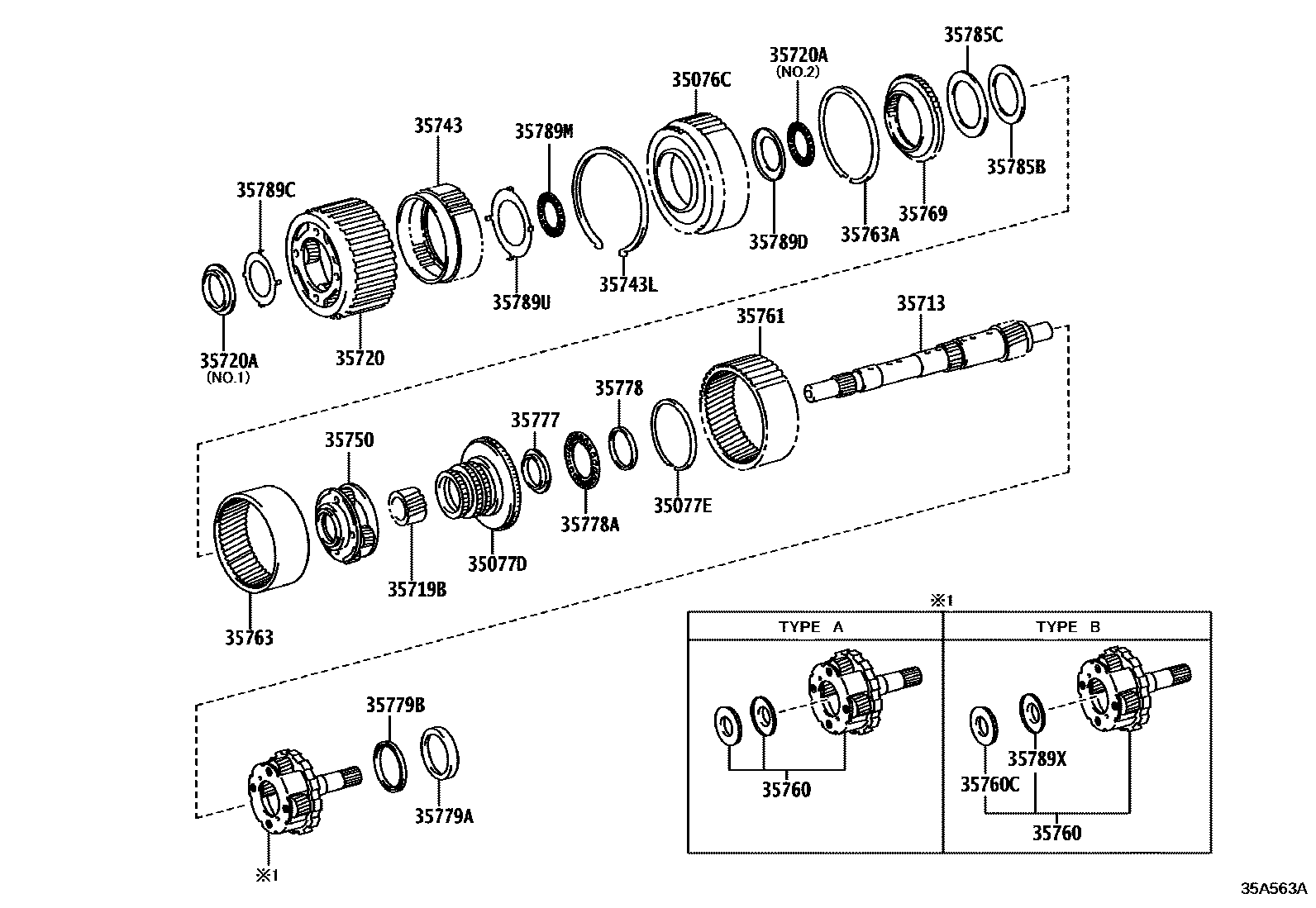

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1AC60F 0002 1AC60E

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR

main35077-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35077-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202201

main35077-71010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(J)

35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90520-99073iGGN125,GUN125,126,13#,TGN126..6FC..(KEN,PKN,SA)202009-202201

main90520-99073iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202006-202108

(J)

main90520-T0293iGUN126..(MD,MMD,TD)..6FC..(MA,MMR,TH);GGN125,GUN125,136,TGN121,126..(MD,TD,TS,TX)..6FC202006-202301

main90520-T0293iGUN126..(TS,TX)..6FC;GUN120,135..(TD,TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202006-202108

(L)

35713SHAFT, INTERMEDIATE

main35713-0K010iGGN125,GUN120,125,135,TGN121,126..(MD,TD,TS,TX)..6FC202006-202110

(L)

main35713-0K020iGUN126,136..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35713-60100iGUN126,136..6FC..(KEN,PKN,SA)202009-202201

main35713-60100iGUN126,136..(MD,MMD,TD,TS,TX)..6FC202006-202301

(J)

main35713-71010iGGN125,GUN125,135,TGN126,128,138..(AD,SD,SS,SX)..6FC202009-202110

main35713-71010iGGN125,GUN120,125,135,TGN121,126..(MD,TD,TS,TX)..6FC202006-202110

(J)

35719BGEAR, PLANETARY SUN

main35719-71010iGUN126..GHA202006-202301

35720GEAR ASSY, FRONT PLANETARY

main35720-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-37009iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

NO.1:REFER ILLUST.

main90374-63002iGUN126..GHA202006-202301

NO.2:REFER ILLUST.

35743GEAR, FRONT PLANETARY RING

main35743-71010iGUN126..GHA202006-202301

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99160iGGN125,GUN120,125,126,13#,TGN121,126..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

35750GEAR ASSY, CENTER PLANETARY

main35750-71010iGUN126..6FC..PKN202006-202301

main35750-71020iTGN121,126,128,138..6FC202006-202110

35760GEAR ASSY, REAR PLANETARY

main35760-0K060iGGN125,GUN125..(MD,TD,TS,TX)..6FC202006-202110

TYPE A:REFER ILLUST.

main35760-0K070iTGN126..TD..6FC202006-202108

TYPE A:REFER ILLUST.

main35760-0K090iGUN120,135..(TD,TS,TX)..6FC202006-202108

(L)

main35760-0K100iTGN121..6FC202006-202108

main35760-0K120iGUN136..6FC..ARL202006-202108

main35760-0K140iGUN126..(MD,MMD,TD,TS,TX)..6FC202006-202301

TYPE B:REFER ILLUST.

main35760-71030iGGN125,GUN125..(AD,SD,SS)..6FC202009-202110

TYPE A:REFER ILLUST.

main35760-71040iGUN120,135..(TD,TS,TX)..6FC202006-202108

(J)

main35760-71040iGUN135..(AD,SD,SS,SX)..6FC202009-202110

main35760-71060iTGN126,128..6FC..(BZAG,SA)202009-202110

main35760-71070iTGN138202011-202110

main35760-71090iGUN136..6FC..(BZAG,SA)202009-202110

main35760-71100iGUN126..AD..6FC202006-202201

TYPE A:REFER ILLUST.

35760CBEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETARY GEAR)

main90374-21013iGUN126..(MD,MMD,TD,TS,TX)..6FC202006-202301

TYPE B:REFER ILLUST.

35761GEAR, REAR PLANETARY RING

main35761-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35763GEAR, CENTER PLANETARY RING

main35763-71010iGGN125,GUN120,125,126,13#,TGN121,126..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)

main90520-99161iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35769FLANGE, PLANETARY RING GEAR, CTR

main35769-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35777RACE, THRUST BEARING, NO.7

main35777-60010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35778RACE, THRUST BEARING, NO.8

main35778-60010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35778ABEARING, THRUST NEEDLE ROLLER

main90374-32010iGGN125,GUN120,125,135,TGN121,126,128,138..6FC202006-202110

main90374-32012iGUN126,136..AD..6FC202006-202301

35779ARACE, THRUST BEARING, NO.9

main35779-60011iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35779BBEARING, THRUST NEEDLE ROLLER

main90374-43007iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35785BRACE, THRUST BEARING, NO.4

main35785-60010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35785CBEARING, THRUST NEEDLE ROLLER

main90374-55004iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-71030iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-71050iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35789MBEARING, THRUST NEEDLE ROLLER

main90374-63002iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35789URACE, THRUST BEARING

main35789-71040iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35789XRACE, THRUST BEARING

main35789-71060iGUN126..(MD,MMD,TD,TS,TX)..6FC202006-202301

TYPE B:REFER ILLUST.
