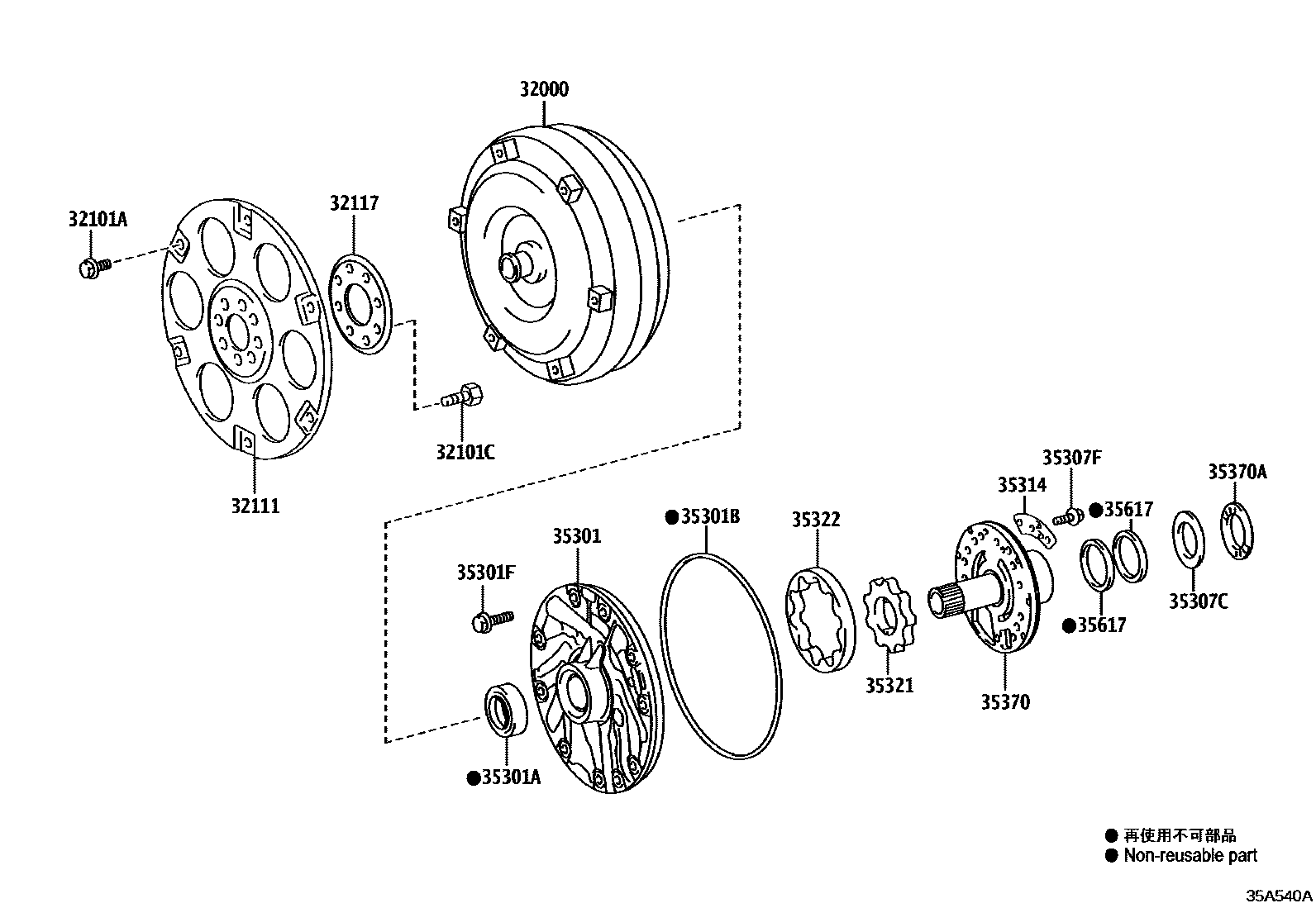

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AC60E,AC60F 0002 1AC60E,AC60F

32000CONVERTER ASSY, TORQUE

main32000-0K020iGUN120,125,135..(MD,TD,TS,TX)..6FC202006-202110

(L)

main32000-0K030iTGN121,126..(TD,TS)..6FC202006-202108

(L)

main32000-0K040iGGN125..GCC202006-202108

(L)

main32000-0K060iGUN126,136..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main32000-71040iGUN120,125,135..(MD,TD,TS,TX)..6FC202006-202110

(J)

main32000-71040iGUN125,135..(AD,SD,SS,SX)..6FC202009-202110

main32000-71050iTGN121,126..(TD,TS)..6FC202006-202108

(J)

main32000-71050iTGN126,128,138..6FC..(BZAG,SA)202009-202110

main32000-71060iGGN125..AD,SD202009-202110

main32000-71060iGGN125..GCC202006-202108

(J)

main32000-71100iGUN126..GHA202009-202201

main32000-71100iGUN126,136..(MD,MMD,TD,TS,TX)..6FC202006-202301

(J)

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTGN121,126..6FC202006-202110

main32101-60060iGGN125202006-202110

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iGUN120,125,126,13#..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

*10-1.5PX11-8,(J),SILVER WHITE

main90105-10546iGUN126..6FC..PKN202006-202301

*10-1.5PX11-8,BLACK

main90105-T0237iGUN126..6FC..PKN202006-202301

*10-1.5PX11-8,(L),SILVER WHITE

main90119-09026iGGN125,TGN128,138202006-202110

*9-1.25PX12.8-9,BLACK

main90119-09027iTGN121,126..6FC202006-202110

*9-1.25PX12.8-8.8,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTGN128,138202006-202110

*10-1.25PX30-17.5

main90105-10543iGGN125202006-202110

*10-1.25PX22-15

main90105-13015iGUN120,125,126,13#..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202104-202301

*13-1.5PX43.5-23.5,(J)

main90105-13015iGUN120,125,135..(TD,TS,TX)..6FC..(GCC,LA,PH,TH,VN)202104-202108

*13-1.5PX43.5-23.5

main90105-T0203iGUN126,136..6FC..ARL;GUN125,135..6FC..L..(ARL,GEN)202006-202108

*13-1.5PX43.5-23.5

main90105-T0203iGUN126..GHA202104-202301

*13-1.5PX43.5-23.5,(L)

32111PLATE, PUMP IMPELLER DRIVE

main32111-0K030iGUN126..GHA202006-202301

(L)

main32111-71010iGUN126..GHA202006-202301

(J)

main32111-71010iGUN120,125,135..(TD,TS,TX)..6FC..(GCC,LA,PH,TH,VN)202104-202108

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTGN128,138202006-202110

main32117-60050iGUN125,126,13#..AD..6FC202006-202301

main32117-60060iGGN125202006-202110

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35301-71010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(J)

main35301-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202201

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38101iGGN125,GUN120,125,126,13#,TGN121,126..(KD,MD,MMD,SD,SS,SX,TD,TS,TX)..6FC202006-202301

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

*8-1.25PX35-35

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-71070iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35307FBOLT (FOR STATOR SHAFT)

main90148-60079iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(J)

main90148-60079iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202201

main90148-T0024iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

35314PLATE, FRONT OIL PUMP

main35314-0K020iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35314-71020iGUN126..GHA202009-202201

main35314-71020iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(J)

35321GEAR, FRONT OIL PUMP DRIVE

main35321-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35321-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202201

T=9.977-9.983

main35321-71010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

T=9.977-9.983,(J)

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

T=9.977-9.983,(L)

main35322-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202201

T=9.977-9.983

main35322-71010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

T=9.977-9.983,(J)

35370SHAFT ASSY, STATOR

main35370-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(L)

main35370-71010iGGN125,GUN120,125,126,13#,TGN121,126..(MD,MMD,TD,TS,TX)..6FC202006-202301

(J)

main35370-71010iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202009-202201

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-71002iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030iGGN125,GUN125,126,13#,TGN128,138..AD..6FC202006-202301

18 parts on this diagram · 2 diagrams in section
