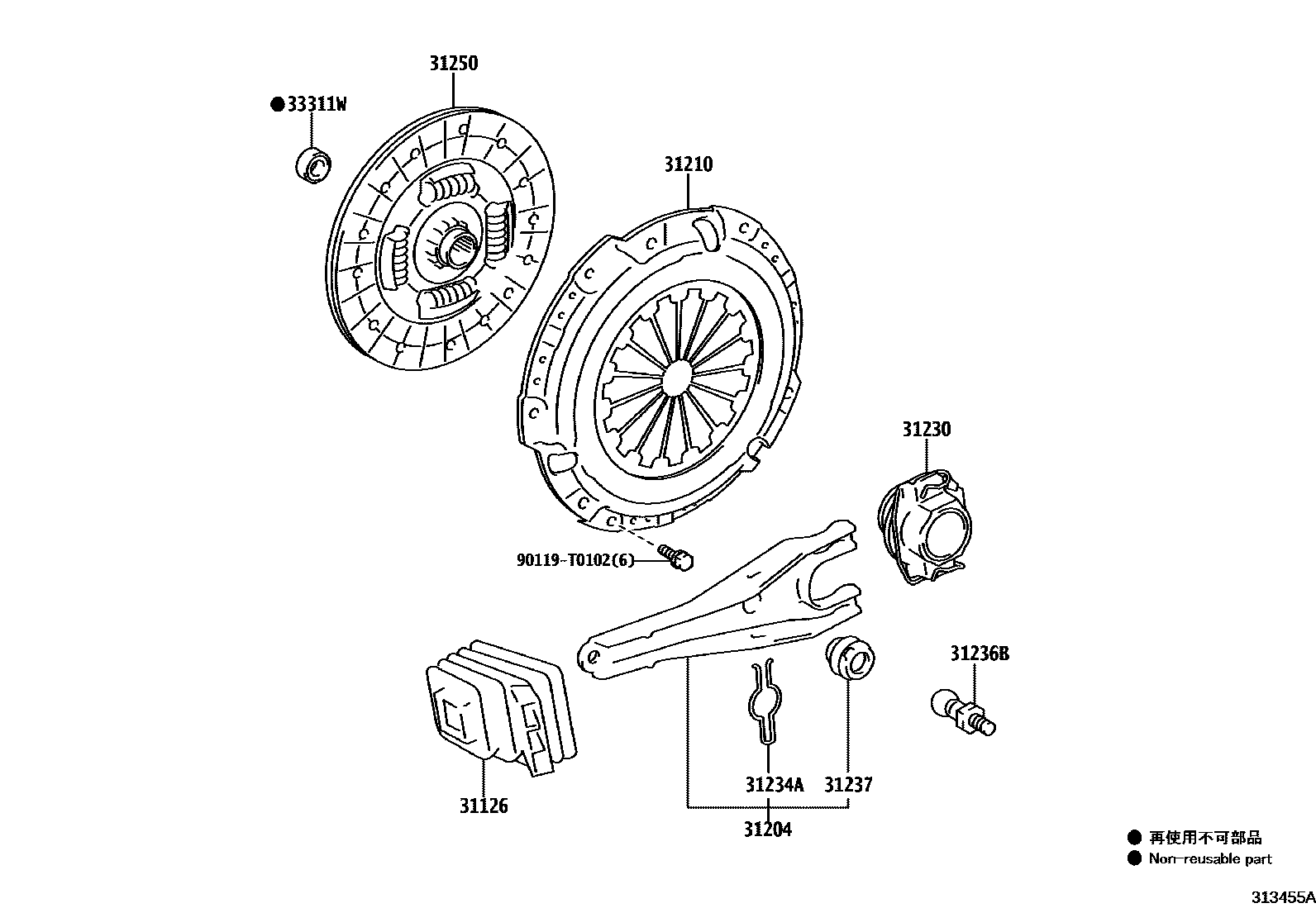

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0K080iGUN125,126,13#..(AD,AS)..6F202006-202110

main31126-0K090iTGN126,136..AD,AS202006-202110

TYPE A:REFER 33-01,TYPE C:REFER 33-01

main31126-0K100iGUN112,122,123..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01,TYPE C:REFER 33-01

main31126-0K110iLAN125202009-202109

TYPE C:REFER 33-01

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K110iGUN13#..6F..(GEN,KEN,PH,SA,TH,VN);GUN122,125,126..(KD,KS,MD,MS,PD,PS,SD,SS,SX,TD,TS,TX)..6F202006-202201

TYPE A:REFER 33-01

main31204-0K120iTGN136..S..LA;TGN136..SD,SS,TD;LAN125,TGN11#,126..5F;TGN120,121..(TD,TS)..5F202006-202110

TYPE A:REFER 33-01

31210COVER ASSY, CLUTCH

main31210-0K260iTGN126,136..AD,AS202006-202110

main31210-0K281iGUN125,126,13#..(AD,AS)..6F202011-202110

TYPE B:REFER ILLUST.

main31210-0K300iTGN110,120..GCC,IDN202006-202108

main31210-0K310iGUN112,122,123..PS,SD,SS,TD,TS,TX202006-202201

main31210-0K420iLAN125202009-202109

main31210-0K430iTGN120..SA202009-202109

31230BEARING ASSY, CLUTCH RELEASE

main31230-71052iGUN122..H;GUN122..S..GEN202006-202107

TYPE B:REFER 33-01

main31230-71061iTGN136..S..LA;TGN136..SD,SS,TD;LAN125,TGN11#,126..5F;TGN120,121..(TD,TS)..5F202006-202110

TYPE A:REFER 33-01

31234ASPRING, RELEASE FORK SUPPORT

main31234-71020iTGN136..S202006-202108

TYPE A:REFER 33-01

31236BSUPPORT, RELEASE FORK

main31236-0K010iGUN13#..6F..(GEN,KEN,PH,SA,TH,VN);GUN122,125,126..(KD,KS,MD,MS,PD,PS,SD,SS,SX,TD,TS,TX)..6F202006-202201

TYPE A:REFER 33-01

main31236-0K020iTGN136..S202006-202108

TYPE A:REFER 33-01

main31236-0K030iGUN112,122,123..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01,TYPE C:REFER 33-01

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-0K020iTGN136..S..LA;TGN136..SD,SS,TD;LAN125,TGN11#,126..5F;TGN120,121..(TD,TS)..5F202006-202110

TYPE A:REFER 33-01

31250DISC ASSY, CLUTCH

main31250-0K261iTGN126,136..AD,AS202006-202110

sub31250-0K262

main31250-0K281iGUN125,126,13#..(AD,AS)..6F202011-202110

TYPE B:REFER ILLUST.

main31250-0K301iTGN110,120..GCC,IDN202006-202108

sub31250-0K302

main31250-0K311iGUN112,122,123..(PS,SD,SS,TD,TS)..5F202006-202201

main31250-0K430iTGN120..SA202009-202109

main31250-0K440iLAN125202009-202109

33311WBEARING (FOR INPUT SHAFT)

main90363-12024iLAN125202009-202109

main90363-T0006iGUN125..GHA202006-202111

main90363-T0019iTGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

90119T0102

main90119-T0102

10 parts on this diagram · 6 diagrams in section
