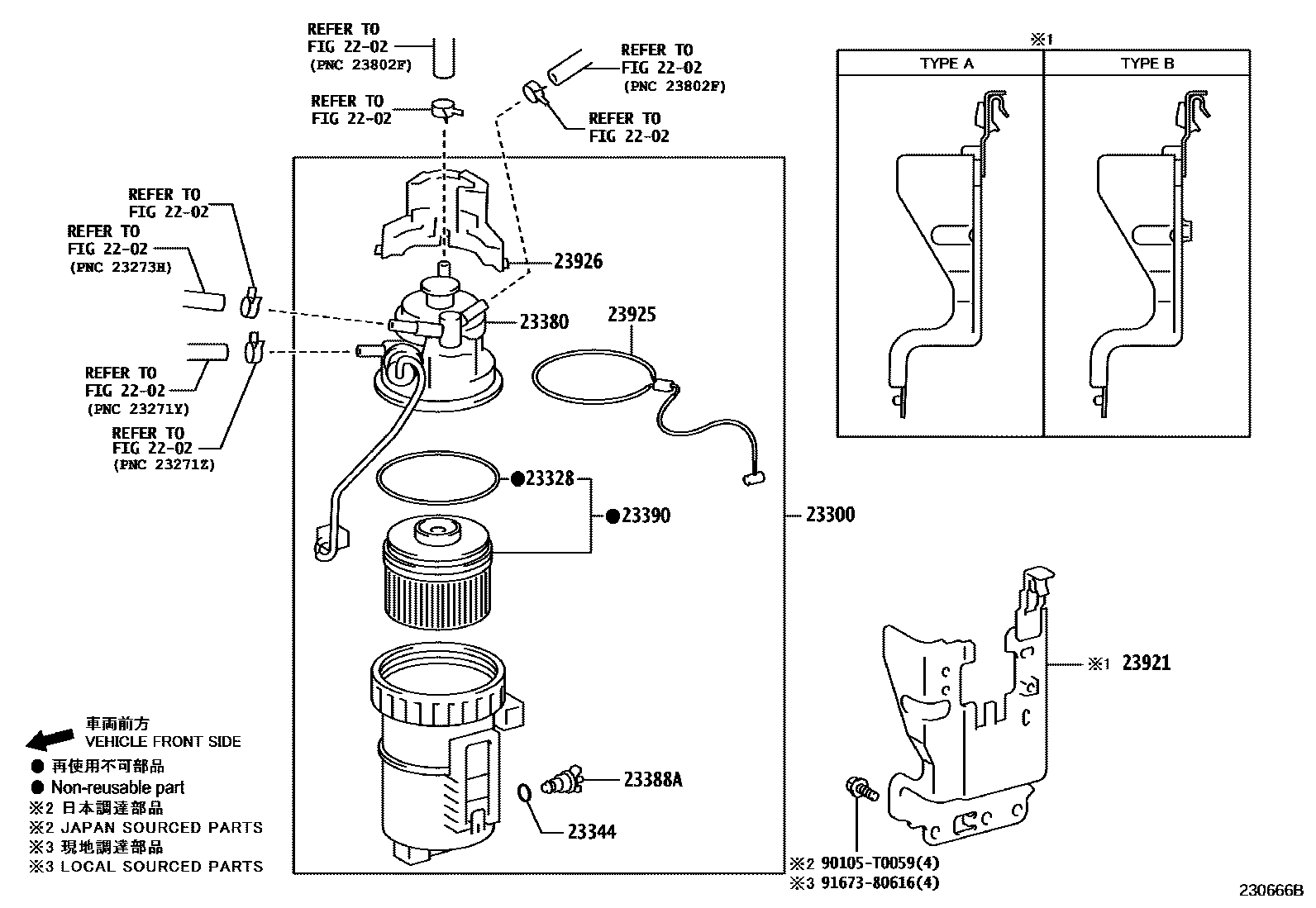

FUEL FILTER
2202
23300FILTER ASSY, FUEL
main23300-0L101i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..ARL,SA,TH;1GDFTV..GUN126..6F..S..BZAG;1GDFTV,2GDFTV..GUN112,120,122,123,125,13#..ARL,BZAG,SA,TH202006-202110
23328GASKET(FOR FUEL FILTER)
23344GASKET, CLAMPING NUT(FOR FUEL FILTER)
23380CAP ASSY, FUEL FILTER
main23380-0L091i1GDFTV..GUN126..H..BZAG;1GDFTV..GUN126..ARL,SA,TH;1GDFTV..GUN126..6F..S..BZAG;1GDFTV,2GDFTV..GUN112,120,122,123,125,13#..ARL,BZAG,SA,TH¥4,560202006-202110
23388APLUG, FUEL FILTER DRAIN
23390ELEMENT ASSY, FUEL FILTER
23921SUPPORT, FUEL FILTER
main23921-0L130i2GDFTV..GUN125..AD;2GDFTV..GUN125..AS..BZAG;1GDFTV,2GDFTV..GUN126,13#..AD,AS202006-202301
TYPE A:REFER ILLUST.
main23921-0L210i1GDFTV..GUN126..TWN;2GDFTV..GUN125..AS..LA;2GDFTV..GUN135..L..GEN¥2,590202006-202110
TYPE B:REFER ILLUST.
main23921-0L210i1GDFTV..GUN126..TWN;2GDFTV..GUN125..AS..LA;2GDFTV..GUN135..L..GEN¥2,590202006-202110
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,TYPE B:REFER ILLUST.
23925STAY, FUEL FILTER SUPPORT
23926STAY, FUEL FILTER SUPPORT, NO.2
90105T0059
main90105-T0059
9167380616
12 parts on this diagram · 3 diagrams in section
