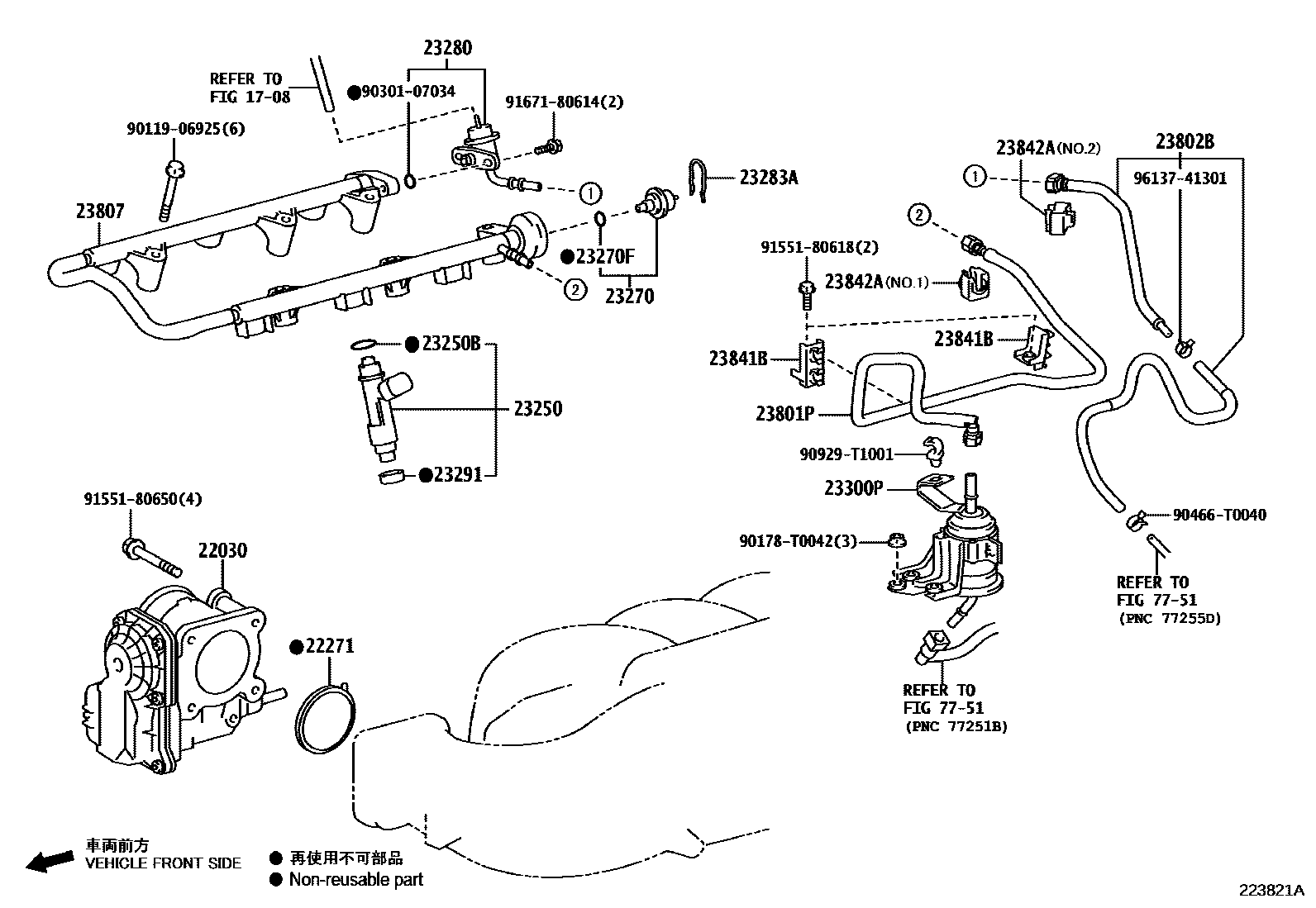

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C030i2TRFE..TGN111,121,126,136..(PS,SD,SS,TD,TS)..(ARL,GCC,GEN,LA,PKN,SA)202006-202201

(L)

main22030-0C050i1TRFE..TGN110..IDN202006-202108

main22030-0C060i2TRFE..TGN121..TH202006-202108

main22030-0T120i1TRFE..TGN110,120..GCC,SA202006-202109

(L)

main22030-31010i1GRFE..GGN125202006-202110

main22030-37050i1TRFE..TGN110,120..GCC,SA202006-202109

(J)

main22030-75040i2TRFE..TGN111,121,126,136..(PS,SD,SS,TD,TS)..(ARL,GCC,GEN,LA,PKN,SA)202006-202201

(J)

22271GASKET, THROTTLE BODY

main22271-0C021i2TRFE..TGN111,121,126,136..PS,SD,SS,TD,TS202006-202201

main22271-31012i1GRFE..GGN125202006-202110

main22271-37010i1TRFE..TGN110,120202006-202109

main22271-75060i2TRFE..TGN128,138202011-202110

23250INJECTOR ASSY, FUEL

main23209-09180i2TRFE..TGN128,138202011-202110

main23209-09300i1TRFE..TGN110,120..GCC,SA202006-202109

IDN SOURCED PARTS

main23209-09310i1TRFE..TGN110,120..GCC,IDN202006-202108

THA SOURCED PARTS

main23209-09320i2TRFE..TGN126,136..AD,AS202006-202201

(L)

main23209-39075i1GRFE..GGN125202006-202110

sub23209-39015

main23209-79215i2TRFE..TGN126,136..AD,AS202006-202201

(J)

main23209-79225i1TRFE..TGN110,120202006-202109

JAPAN SOURCED PARTS

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i1GRFE..GGN125202006-202110

main90301-07037i2TRFE..TGN126,128,13#..AD,AS202006-202201

(J)

main90301-07042i1TRFE..TGN110,120202006-202109

main90301-T0051i2TRFE..TGN126..6FC..(H,L)..GCC;2TRFE..TGN126..(TD,TS)..S..(GCC,LA);2TRFE..TGN111,121,128,138..AD,TD,TS;2TRFE..TGN126,136..(TD,TS)..5F..(H,L)202006-202110

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31140i1GRFE..GGN125202006-202110

main23270-75050i2TRFE..TGN126,136..AD,AS202006-202201

main23270-75080i2TRFE..TGN128,138202011-202110

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i1GRFE..GGN125202006-202110

main90301-07037i2TRFE..TGN126,128,13#..AD,AS202006-202201

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31041i1GRFE..GGN125202006-202110

main23280-75100i2TRFE..TGN126,136..AD,AS202006-202201

main23280-75120i2TRFE..TGN128,138202011-202110

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GGN125202006-202110

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010i1TRFE,2TRFE..TGN11#,120,121,126,136..PS,SD,SS,TD,TS202006-202201

THA SOURCED PARTS

main23291-0C020i2TRFE..TGN126..6FC..(GEN,SA);2TRFE..TGN136..(SD,SS,TD)..(LA,SA);1TRFE,2TRFE..TGN11#,120,121,126..(PS,SD,SS,TD,TS)..5F..(GCC,GEN,LA,PKN,SA,TH)202006-202201

IDN SOURCED PARTS

main23291-23010i1GRFE..GGN125202006-202110

main23291-73010i2TRFE..TGN126..6FC..(H,L)..GCC;2TRFE..TGN126..(TD,TS)..5F..(H,L);2TRFE..TGN126..(TD,TS)..S..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TD,TS202006-202108

JAPAN SOURCED PARTS

23300PFILTER, FUEL(FOR EFI)

main23300-0D100i2TRFE..TGN128,138202011-202110

main23300-31120i1GRFE..GGN125202006-202110

main23300-75140i2TRFE..TGN126,136..AD,AS202006-202201

main23300-75160i1TRFE..TGN110..IDN202006-202108

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31250i1GRFE..GGN125202006-202110

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31190i1GRFE..GGN125202006-202110

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31010i1GRFE..GGN125202006-202110

main23807-75120i2TRFE..TGN128,138202011-202110

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31030i1GRFE..GGN125202006-202110

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i1GRFE..GGN125202006-202110

NO.1

main23842-31030i1GRFE..GGN125202006-202110

NO.2

7751

9011906925

main90119-06925

90178T0042

main90178-T0042

9030107034

main90301-07034

90466T0040

main90466-T0040

90929T1001

main90929-T1001

9155180618

main91551-80618

9155180650

main91551-80650

9167180614

main91671-80614

9613741301

main96137-41301

26 parts on this diagram · 3 diagrams in section
