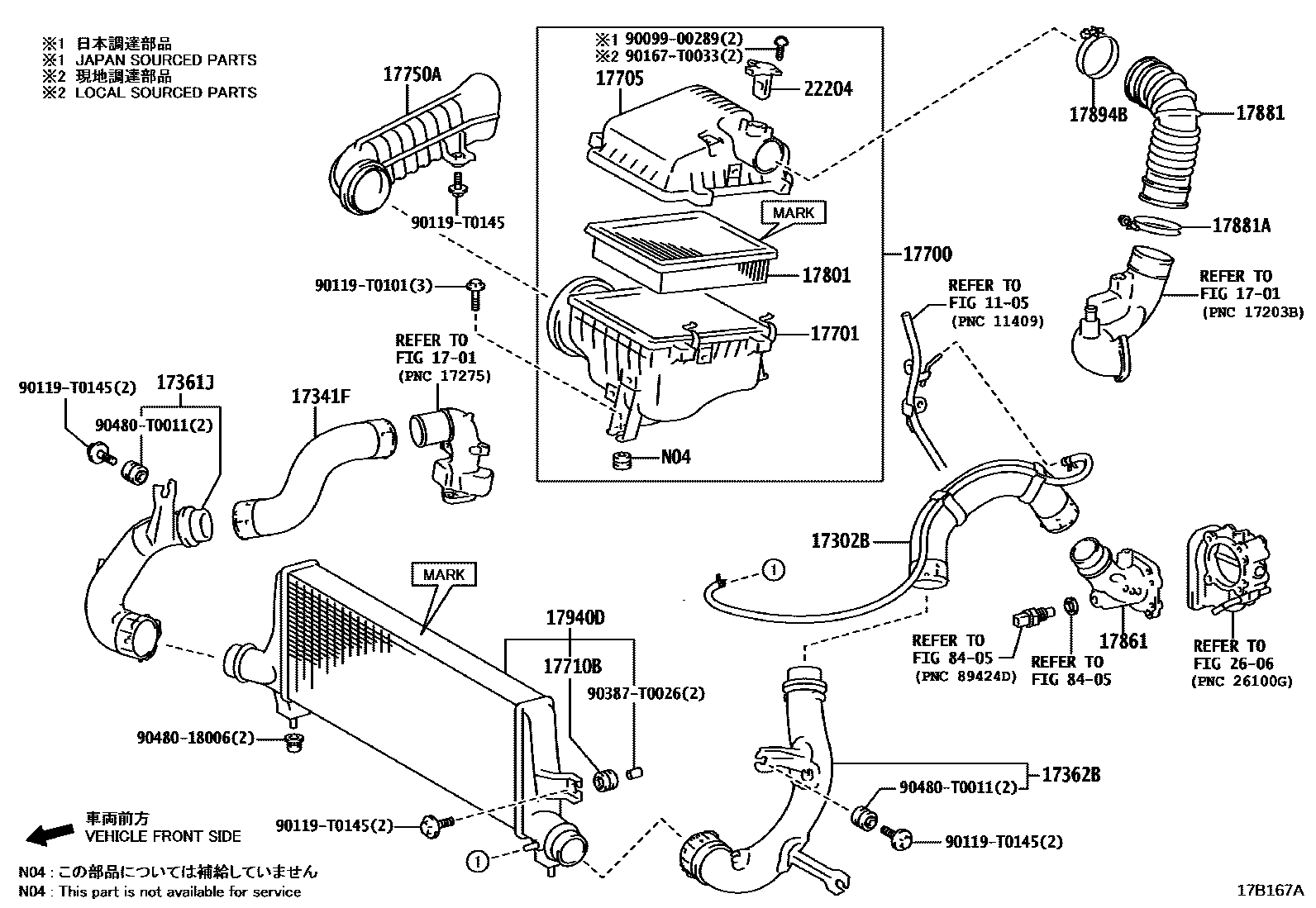

AIR CLEANER
1105
1701
17341FHOSE, AIR, NO.1
main17341-0E021i2GDFTV..GUN125..AD;2GDFTV..GUN125..AS..BZAG;1GDFTV,2GDFTV..GUN126,13#..AD,AS202006-202207
sub17341-0E022
17361JTUBE, AIR, NO.1
main17361-0E010i2GDFTV..GUN135..H..GEN;2GDFTV..GUN135..(KS,SD,SS,SX,TD,TS,TX)..(ARL,KEN,LA,PH,SA,TH,VN);1GDFTV,2GDFTV..GUN112,12#,136..(KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..(ARL,GCC202006-202301
17362BTUBE, AIR, NO.2
17700CLEANER ASSY, AIR
THA SOURCED PARTS
ZAF SOURCED PARTS
ARG SOURCED PARTS
THA SOURCED PARTS
ZAF SOURCED PARTS
ARG SOURCED PARTS
17701CASE SUB-ASSY, AIR CLEANER
THA SOURCED PARTS
IDN SOURCED PARTS
ARG SOURCED PARTS
THA SOURCED PARTS
ZAF SOURCED PARTS
ARG SOURCED PARTS
17705CAP SUB-ASSY, AIR CLEANER
THA SOURCED PARTS
ZAF SOURCED PARTS
ARG SOURCED PARTS
THA SOURCED PARTS
ZAF SOURCED PARTS
ARG SOURCED PARTS
17710BGROMMET
(L)
17750AINLET ASSY, AIR CLEANER
THA SOURCED PARTS
IDN SOURCED PARTS
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
MARK 17801-0L040
17861CONNECTOR, INTAKE AIR
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS)
main17861-0C130i2TRFE..TGN126..6FC..SA;2TRFE..TGN136..(SD,SS,TD)..(LA,SA);2TRFE..TGN126..(SD,TD,TS)..5F..(H,L);2TRFE..TGN111,121..5F..(GCC,GEN,PKN,SA,TH);2TRFE..TGN126..(SD,TD,TS).202006-202201
main17861-0C150i2TRFE..TGN136..S..LA;2TRFE..TGN121..5F..ARL;2TRFE..TGN136..BZAG,GEN;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202006-202110
EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS)
main17861-0E010i2GDFTV..GUN125..AD;2GDFTV..GUN125..AS..BZAG;1GDFTV,2GDFTV..GUN126,13#..AD,AS202006-202301
THA SOURCED PARTS
sub17861-08020
main17861-0E020i1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)202006-202110
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
sub17861-08010
IND SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(J)
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17940DINTERCOOLER ASSY
main17940-0E010i2GDFTV..GUN135..H..GEN;2GDFTV..GUN135..(TD,TS,TX)..(ARL,LA,PH,TH,VN);1GDFTV,2GDFTV..GUN112,12#,136..(MD,MMD,MS,TD,TS,TX)..(ARL,GCC,GEN,IDN,LA,MA,MMR,PH,TH,VN)202006-202301
MARK=0E010
MARK=0E030
EXHAUST EMISSION CONTROL-WITHOUT,MARK=0E040
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
22204METER SUB-ASSY, INTAKE AIR FLOW
2606
8405
9009900289
main90099-00289
90119T0101
main90119-T0101
90119T0145
main90119-T0145
90167T0033
main90167-T0033
90387T0026
main90387-T0026
9048018006
main90480-18006
90480T0011
main90480-T0011
27 parts on this diagram · 5 diagrams in section
