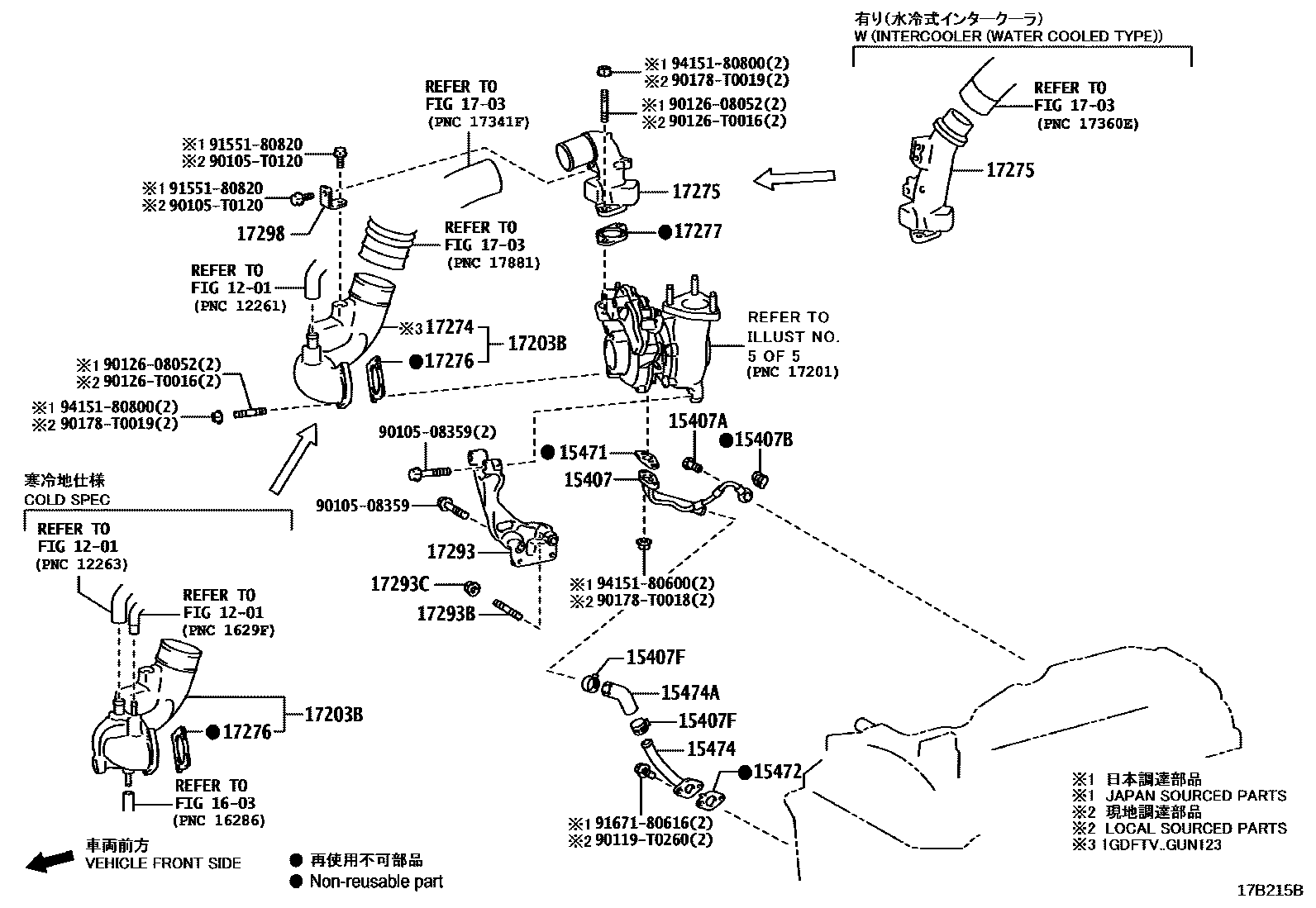

MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
(L)
(J)
15407BGASKET(FOR TURBO OIL INLET PIPE)
(L)
(J)
15407FCLAMP OR CLIP, OIL HOSE
15471GASKET, TURBO OIL INLET
THA SOURCED PARTS
main15471-0E020i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV,2GDFTV..GUN125,126..RHD..TD..H..GEN202008-202108
IND SOURCED PARTS
JAPAN SOURCED PARTS
15472GASKET, TURBO OIL OUTLET, NO.1
THA SOURCED PARTS
main15472-0E020i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV,2GDFTV..GUN125,126..RHD..TD..H..GEN202008-202108
IND SOURCED PARTS
JAPAN SOURCED PARTS
15474PIPE, TURBO OIL OUTLET
THA SOURCED PARTS
main15474-0E020i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV,2GDFTV..GUN125,126..RHD..TD..H..GEN202008-202108
IND SOURCED PARTS
15474AHOSE, TURBO OIL OUTLET
THA SOURCED PARTS
main15491-0E020i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV,2GDFTV..GUN125,126..RHD..TD..H..GEN202008-202108
IND SOURCED PARTS
JAPAN SOURCED PARTS
1703
17203BELBOW SUB-ASSY, COMPRESSOR INLET
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
IND SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
17274ELBOW, COMPRESSOR INLET
17275ELBOW, COMPRESSOR OUTLET
main17275-0E040i2GDFTV..GUN135..H..GEN;2GDFTV..GUN135..(KS,SD,SS,SX,TD,TS,TX)..(ARL,KEN,LA,PH,SA,TH,VN);1GDFTV,2GDFTV..GUN112,12#,136..(KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX)..(ARL,GCC202006-202301
THA SOURCED PARTS
main17275-0E050i1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)202006-202110
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
main17275-0E060i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV,2GDFTV..GUN125,126..RHD..TD..H..GEN202008-202108
IND SOURCED PARTS
JAPAN SOURCED PARTS
17276GASKET, COMPRESSOR INLET
(L)
(J)
17277GASKET, COMPRESSOR OUTLET
THA SOURCED PARTS
main17277-0E020i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV,2GDFTV..GUN125,126..RHD..TD..H..GEN202008-202108
IND SOURCED PARTS
main17277-0E030i1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)202006-202110
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
JAPAN SOURCED PARTS
17293STAY, TURBOCHARGER
THA SOURCED PARTS
main17293-0E050i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV,2GDFTV..GUN125,126..RHD..TD..H..GEN202008-202108
IND SOURCED PARTS
main17293-0E060i2GDFTV..GUN135..AS..LA;1GDFTV..GUN136..AD..LA;1GDFTV..GUN126..AD..6F..L..LA;1GDFTV..GUN126..AD..6FC..(L,S)..LA202011-202110
ARG SOURCED PARTS
JAPAN SOURCED PARTS
17293BBOLT(FOR TURBOCHARGER STAY)
17293CNUT(FOR TURBOCHARGER STAY)
(L)
main94151-80800i1GDFTV,2GDFTV..GUN112,12#,13#..ARL,BZAG,GCC,GEN,GHA,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN202006-202110
17298STAY, COMPRESSOR ELBOW
THA SOURCED PARTS
main17298-0E020i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV,2GDFTV..GUN125,126..RHD..TD..H..GEN202008-202108
IND SOURCED PARTS
JAPAN SOURCED PARTS
9010508359
main90105-08359
90105T0120
main90105-T0120
90119T0260
main90119-T0260
9012608052
main90126-08052
90126T0016
main90126-T0016
90178T0018
main90178-T0018
90178T0019
main90178-T0019
9155180820
main91551-80820
9167180616
main91671-80616
9415180600
main94151-80600
9415180800
main94151-80800
29 parts on this diagram · 9 diagrams in section
