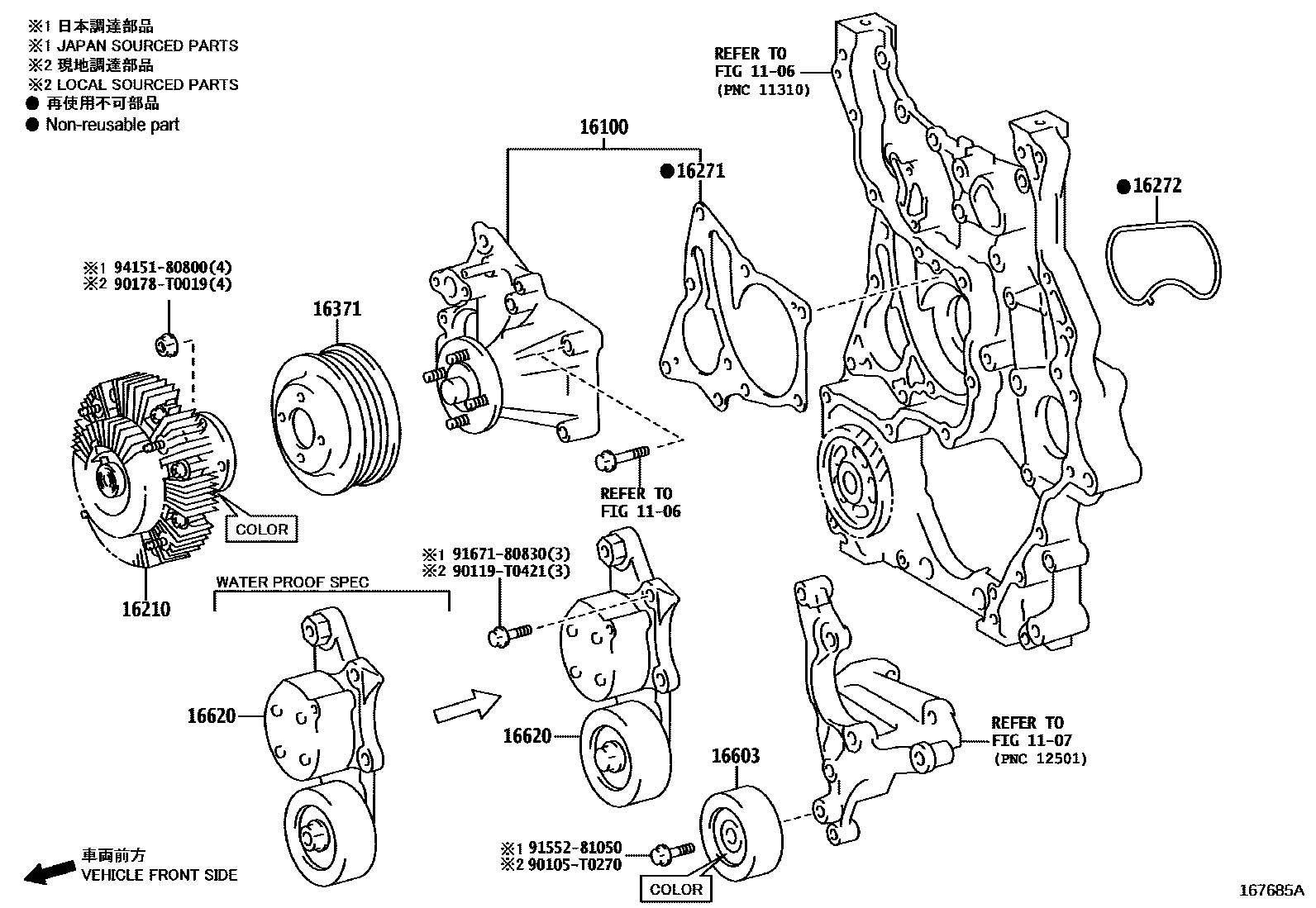

WATER PUMP
1106
1107
16100PUMP ASSY, ENGINE WATER
(L)
main16100-19365i2GDFTV..GUN125..LHD..TD..S..GEN;2GDFTV..GUN135..(TD,TX)..(LA,PH,TH,VN);2GDFTV..GUN120,125..(TD,TS,TX)..(GCC,LA,PH,TH,VN)202006-202108
(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(J)
16210COUPLING ASSY, FLUID
GRAY
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,GRAY
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS),GRAY
main16210-0E020i2GDFTV..GUN122..LHD..L..GEN;2GDFTV..GUN125..LHD..TD..6FC..S;2GDFTV..GUN122..RHD..(PKN,SA,TH);2GDFTV..GUN125,135..RHD..6F..S..SA;2GDFTV..GUN125,135..LHD..SD..(H,L);2202006-202201
GREEN
main16210-0E030i2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)202006-202110
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,LIGHT PURPLE
LIGHT PURPLE
main16210-0E040i1GDFTV..GUN136..LA;1GDFTV..GUN126..AD..6F..L..LA;1GDFTV..GUN126..6FC..(L,S)..LA202006-202201
YELLOW
main16210-0E040i1GDFTV..GUN136..LA;1GDFTV..GUN126..AD..6F..L..LA;1GDFTV..GUN126..6FC..(L,S)..LA202006-202110
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),YELLOW
main16210-0E040i1GDFTV..GUN136..LA;1GDFTV..GUN126..AD..6F..L..LA;1GDFTV..GUN126..6FC..(L,S)..LA202006-202110
BOLIVIA, URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),YELLOW
LIGHT GRAY
BRAZIL SPEC,MOSS GREEN,LIGHT GRAY
MOSS GREEN
main16210-0E050i1GDFTV..GUN136..AD..LA;1GDFTV..GUN126..(AD,AS)..6F..L;1GDFTV..GUN126..AD..6FC..(L,S)202006-202110
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MOSS GREEN
main16210-0E050i1GDFTV..GUN136..AD..LA;1GDFTV..GUN126..(AD,AS)..6F..L;1GDFTV..GUN126..AD..6FC..(L,S)202006-202110
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS),MOSS GREEN
LIGHT GRAY
16271GASKET, WATER PUMP
THA SOURCED PARTS
main16271-0E020i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV,2GDFTV..GUN125,126..RHD..TD..H..GEN202008-202108
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main16271-11010i2GDFTV..GUN125..LHD..TD..S..GEN;2GDFTV..GUN135..(TD,TX)..(LA,PH,TH,VN);2GDFTV..GUN120,125..(TD,TS,TX)..(GCC,LA,PH,TH,VN)202006-202108
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
16272GASKET, WATER PUMP, NO.2
THA SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
main16272-11010i2GDFTV..GUN125..LHD..TD..S..GEN;2GDFTV..GUN135..(TD,TX)..(LA,PH,TH,VN);2GDFTV..GUN120,125..(TD,TS,TX)..(GCC,LA,PH,TH,VN)202006-202108
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main16272-11010i2GDFTV..GUN125..LHD..TD..S..GEN;2GDFTV..GUN135..(TD,TX)..(LA,PH,TH,VN);2GDFTV..GUN120,125..(TD,TS,TX)..(GCC,LA,PH,TH,VN)202006-202108
JAPAN SOURCED PARTS
16371PULLEY, FAN
(L)
THA SOURCED PARTS
main16371-0C020i2TRFE..TGN126..6FC..(GEN,SA);2TRFE..TGN136..(SD,SS,TD)..(LA,SA);1TRFE,2TRFE..TGN11#,120,121,126..(PS,SD,SS,TD,TS)..5F..(GCC,GEN,LA,PKN,SA,TH)202006-202201
IDN SOURCED PARTS
THA SOURCED PARTS
main16371-0E020i2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV,2GDFTV..GUN125,126..RHD..TD..H..GEN202008-202108
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
(J)
16603PULLEY SUB-ASSY, IDLER, NO.1
main16603-0C013i1GDFTV..GUN136..LA;2GDFTV..GUN135..AS..LA;2GDFTV..GUN125..TX..S..GEN;1GDFTV..GUN126..AD..6F..L..LA;1GDFTV..GUN126..6FC..(L,S)..LA202006-202110
BOLIVIA, URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(L),BLACK
main16603-0C013i1GDFTV..GUN136..LA;2GDFTV..GUN135..AS..LA;2GDFTV..GUN125..TX..S..GEN;1GDFTV..GUN126..AD..6F..L..LA;1GDFTV..GUN126..6FC..(L,S)..LA202006-202110
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,(L),BLACK
main16603-0C013i1GDFTV..GUN136..LA;2GDFTV..GUN135..AS..LA;2GDFTV..GUN125..TX..S..GEN;1GDFTV..GUN126..AD..6F..L..LA;1GDFTV..GUN126..6FC..(L,S)..LA202006-202110
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(L),BLACK
main16603-0C013i1GDFTV..GUN136..LA;2GDFTV..GUN135..AS..LA;1GDFTV..GUN126..AD..6F..L..LA;1GDFTV..GUN126..6FC..(L,S)..LA202006-202201
(L),BLACK
(L)
RED
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,RED
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS),RED
main16603-31040i2GDFTV..GUN125..LHD..TD..S..GEN;2GDFTV..GUN135..(TD,TX)..(LA,PH,TH,VN);2GDFTV..GUN120,125..(TD,TS,TX)..(GCC,LA,PH,TH,VN)202006-202108
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(J),BLACK
(J),BLACK
(J)
16620TENSIONER ASSY, V-RIBBED BELT
(L)
main16620-0E010i2GDFTV..GUN135..AD;1GDFTV..GUN136..BZAG;1GDFTV..GUN126..AD..H;2GDFTV..GUN125..AD,AS;2GDFTV..GUN135..AS..BZAG;1GDFTV..GUN126..AD..6F..S202006-202110
BOLIVIA, URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(L)
main16620-0E010i2GDFTV..GUN135..AD;1GDFTV..GUN136..BZAG;1GDFTV..GUN126..AD..H;2GDFTV..GUN125..AD,AS;2GDFTV..GUN135..AS..BZAG;1GDFTV..GUN126..AD..6F..S202006-202110
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,(L)
main16620-0E010i2GDFTV..GUN135..AD;1GDFTV..GUN136..BZAG;1GDFTV..GUN126..AD..H;2GDFTV..GUN125..AD,AS;2GDFTV..GUN135..AS..BZAG;1GDFTV..GUN126..AD..6F..S202006-202110
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(L)
main16620-0E020i2GDFTV..GUN135..TS..CBU;1GDFTV..GUN136..TD..6F..H;1GDFTV..GUN136..RHD..6FC..H;1GDFTV..GUN126..S..(GEN,SA);2GDFTV..GUN125..LHD..SD..6F..S;1GDFTV..GUN126..ARL,KEN,MA,202006-202301
WATER PROOF SPEC
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS),WATER PROOF SPEC
main16620-0E020i1GDFTV..GUN126..H..LA;1GDFTV..GUN126..6F..S..LA;1GDFTV..GUN126..TD..6F..L;2GDFTV..GUN125..(AD,AS,TD)..LA;2GDFTV..GUN135..(AD,TD)..6F..LA202006-202110
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
(J)
main16620-11010i2GDFTV..GUN125..LHD..TD..S..GEN;2GDFTV..GUN135..(TD,TX)..(LA,PH,TH,VN);2GDFTV..GUN120,125..(TD,TS,TX)..(GCC,LA,PH,TH,VN)202006-202108
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(J)
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
main91552-81050
9167180830
main91671-80830
9415180800
main94151-80800
15 parts on this diagram · 4 diagrams in section
