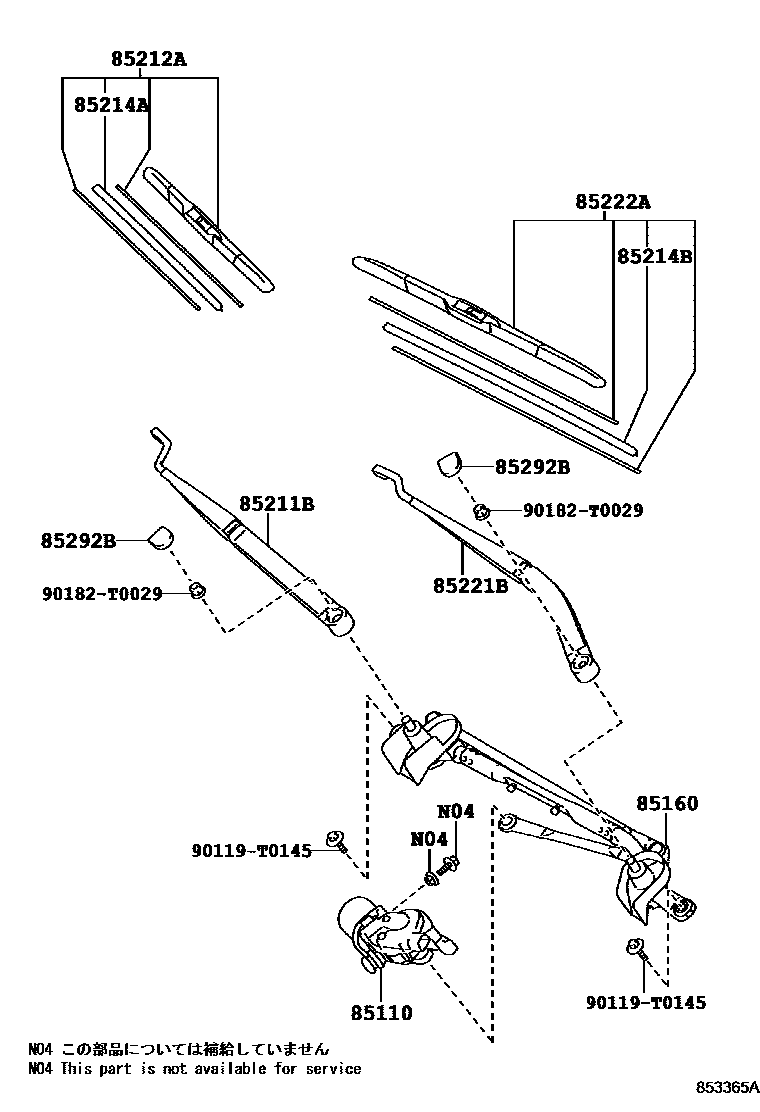

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0K171iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT)201505-202009

main85110-0K201iTGN136..SSC201505-202105

main85110-0K222iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

85160LINK ASSY, WINDSHIELD WIPER

main85150-0K140iGGN12#,GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(TDC,TSC,TXT)201505-202005

main85150-0K150iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,TGN11#,120,121,126,136..LHD..(TDC,TSC,TXT)201505-202005

main85150-0K180iTGN136..SSC201601-202102

main85150-0K190iGUN122,125,126,135,KUN12#,LAN125,TGN121,126..LHD..SA201601-202009

main85150-0K220iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

main85150-0K230iGUN122,125,126,135,KUN122,126..MA,PKN201604-202105

85211BARM, FRONT WIPER, RH

main85211-0K131iTGN136..SSC201505-202105

main85211-0K140iTGN126..S..GEN201505-202010

main85211-0K230iTGN126..S..GEN201708-202005

85212ABLADE, FR WIPER, RH

main85212-42130iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD¥1,810201505-202010

main85212-71010iTGN136..SSC¥3,190201505-202105

85214ARUBBER, WIPER, RH

main85214-28090iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD¥750201505-202010

main85214-53080iTGN136..RHD..(SDC,TDC,TXT);GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,TGN110,120,121,126..RHD¥850201505-202105

85214BRUBBER, WIPER, LH

main85214-28090iTGN136..SSC¥750201505-202105

main85214-53080iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD¥850201505-202010

85221BARM, FRONT WIPER, LH

main85221-0K130iTGN136..RHD..(SDC,TDC,TXT);GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,TGN110,120,121,126..RHD¥3,180201505-202105

main85221-0K141iTGN126..S..GEN201505-202010

main85221-0K150iTGN126..M..GEN201708-202005

85222ABLADE, FR WIPER, LH

main85222-42130iTGN136..SSC¥1,800201505-202105

main85222-71010iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iTGN136..SSC¥200201505-202105

90119T0145

main90119-T0145

90182T0029

main90182-T0029

11 parts on this diagram · 2 diagrams in section
