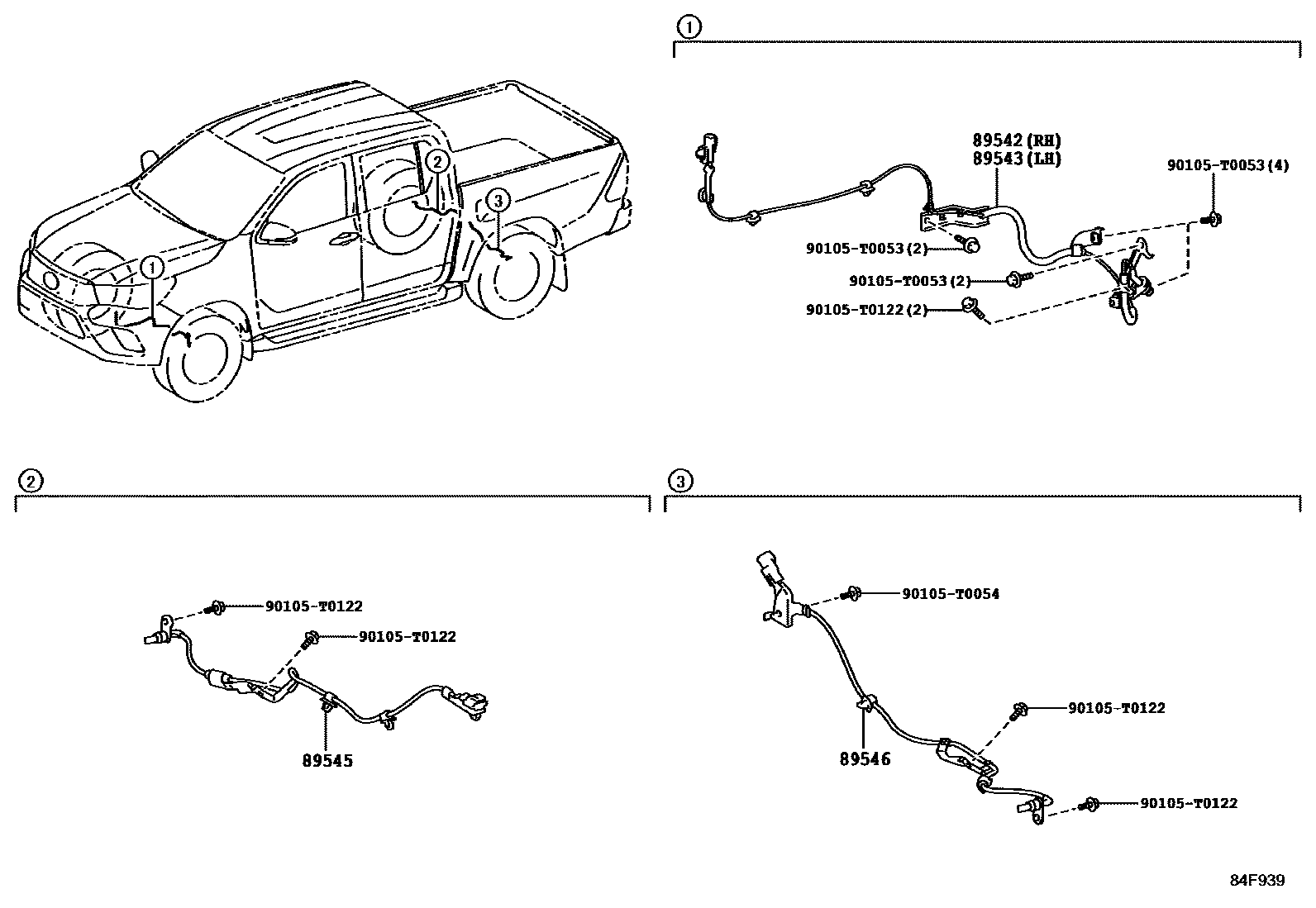

ABS & VSC

0001 1 0002 1

89542SENSOR, SPEED, FRONT RH

main89542-0K050iTGN121..GEN..IV3;TGN121..TDC..L..GCC;KUN122..TSC..L..GCC..CBU;TGN121..LHD..(SSC,TSC)..(L,X)..CBU;KUN112,TGN11#,120..(L,X)..(GCC,SA)..CBU;KUN122..(PSC,SSC,TDC)..(L,X201505-202009

SRS AIR BAG-WITHOUT

main89542-0K050iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main89542-0K060iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC,PDC,PSC,TDC,TSC,TXT201505-202105

main89542-0K080iTGN136..SSC201601-202102

89543SENSOR, SPEED, FRONT LH

main89543-0K050iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main89543-0K050iTGN121..GEN..IV3;TGN121..TDC..L..GCC;KUN122..TSC..L..GCC..CBU;TGN121..LHD..(SSC,TSC)..(L,X)..CBU;KUN112,TGN11#,120..(L,X)..(GCC,SA)..CBU;KUN122..(PSC,SSC,TDC)..(L,X201505-202009

SRS AIR BAG-WITHOUT

main89543-0K060iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,136201505-201510

sub89543-0K061

main89543-0K061iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC,PDC,PSC,TDC,TSC,TXT201511-202105

main89543-0K081iTGN136..SDC;GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126..KEN,MA,SA201601-202102

89545SENSOR, SPEED, REAR RH

main89545-0K220iTGN121..GEN..IV3;KUN112,TGN11#,120..L;KUN122..TSC..L..GCC..CBU;TGN121..LHD..TSC..(L,X)..CBU;KUN122,TGN121..(PSC,TDC)..L..(GCC,PKN)201505-202006

SRS AIR BAG-WITHOUT

main89545-0K220iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,TDC,TSC,TXT201505-202105

main89545-0K240iKUN126..6F..M..PKN201505-202105

main89545-0K280iKUN122,TGN120,121..SSC..CBU201602-202009

SRS AIR BAG-WITHOUT

main89545-0K280iGUN122,KUN122,TGN120,121..SA201601-202009

main89545-0K290iTGN136..SSC201601-202102

89546SENSOR, SPEED, REAR LH

main89546-0K220iTGN121..GEN..IV3;KUN112,TGN11#,120..L;KUN122..TSC..L..GCC..CBU;TGN121..LHD..TSC..(L,X)..CBU;KUN122,TGN121..(PSC,TDC)..L..(GCC,PKN)201505-202006

SRS AIR BAG-WITHOUT

main89546-0K220iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,TDC,TSC,TXT201505-202105

main89546-0K240iKUN126..6F..M..PKN201505-202105

main89546-0K280iKUN122,TGN120,121..SSC..CBU201602-202009

SRS AIR BAG-WITHOUT

main89546-0K280iGUN122,KUN122,TGN120,121..SA201601-202009

main89546-0K290iTGN136..SDC;GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126..KEN,MA,SA201601-202102

90105T0053

main90105-T0053

90105T0054

main90105-T0054

90105T0122

main90105-T0122

7 parts on this diagram · 2 diagrams in section
