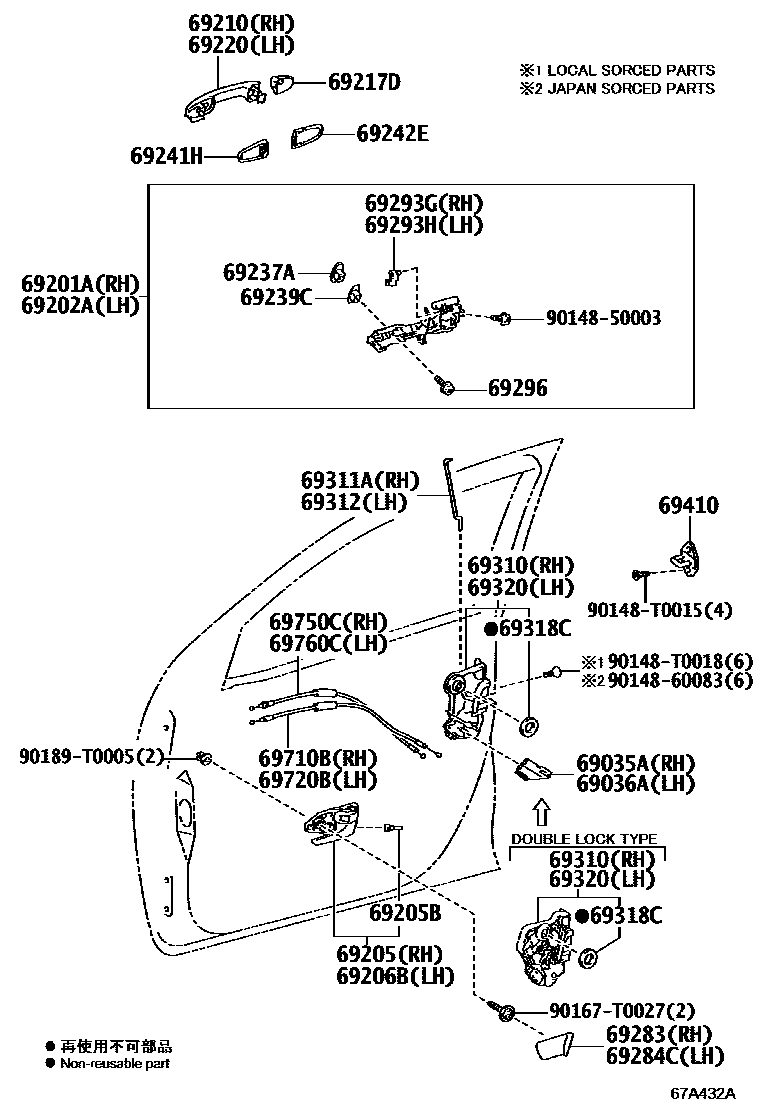

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-02010iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010
main69035-02040iGUN126..S..SA;GUN135..SSC..X;GUN122..LHD..SSC;GUN125..LHD..S..SA;GUN126,135..LHD..SA;GUN122..PSC,SDC,TDC,TSC,TXT;GUN125..(MDC,SDC,SSC)..(M,X);KUN12#,135,LAN125,TGN1201505-202105
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-0K100-C1iKUN125..TXT..S;GUN125..LHD..(TSC,TXT)..(L,S);GUN122,TGN121,126..(L,S)..GCC..CBU;GUN125..(MSC,TDC)..(L,S,X)..(GCC,MA);GUN112,126,KUN112,12#,TGN11#,120..(PSC,TDC,TSC)201505-202105
BLACK,TRIM2#,3#
main69205-0K100-C1iKUN125..TXT..S;GUN125..LHD..(TSC,TXT)..(L,S);GUN122,TGN121,126..(L,S)..GCC..CBU;GUN125..(MSC,TDC)..(L,S,X)..(GCC,MA);GUN112,126,KUN112,12#,TGN11#,120..(PSC,TDC,TSC)201505-202105
BLACK,TRIM2#
main69205-0K100-C1iGUN122..5F..S..TH;KUN125..LHD..TDC..S..GEN;GUN125..RHD..TDC..6F..L..GEN;GUN122..(TDC,TXT)..(L,X)..TH;GUN125,KUN125..S..(IDN,TH,VN);GUN120,135,KUN135,TGN121,136..(L,201505-202005
BLACK,TRIM2#,4#
main69205-0K100-C1iGUN122..5F..S..TH;KUN125..LHD..TDC..S..GEN;GUN125..RHD..TDC..6F..L..GEN;GUN122..(TDC,TXT)..(L,X)..TH;GUN125,KUN125..S..(IDN,TH,VN);GUN120,135,KUN135,TGN121,136..(L,201505-202005
DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#,4#
CS AMERICA SPEC,BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#
main69205-0K110-C0iKUN122..TDC..M;KUN126..6F..S..GEN;GUN126..6F..(M,S)..GEN;GUN126..LHD..6F..H..GEN;KUN125..LHD..TDC..M..GEN;GUN125..TDC..(H,M,S)..GEN;KUN125..RHD..TDC..(H,M,S)..GEN;G201505-202104
BLACK,TRIM2#,4#
DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main69205-0K150-C0iGUN136..6FC..M..BZAGT;GUN125,126,13#,TGN138..ADC..S;GGN125,KUN125,126,135,TGN126,136..ADC..(H,S)..LA201511-202010
BLACK,TRIM2#,4#
main69205-0K150-C0iGUN136..H..BZAGT;GUN136..ADC..6F..M;GUN126,KUN126,136,TGN126,128,13#..ADC..(H,M)201511-202010
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
main69206-0K090-C1iKUN125..TXT..S;GUN125..LHD..(TSC,TXT)..(L,S);GUN122,TGN121,126..(L,S)..GCC..CBU;GUN125..(MSC,TDC)..(L,S,X)..(GCC,MA);GUN112,126,KUN112,12#,TGN11#,120..(PSC,TDC,TSC)201505-202105
BLACK,TRIM2#
main69206-0K090-C1iGUN122..5F..S..TH;KUN125..LHD..TDC..S..GEN;GUN125..RHD..TDC..6F..L..GEN;GUN122..(TDC,TXT)..(L,X)..TH;GUN125,KUN125..S..(IDN,TH,VN);GUN120,135,KUN135,TGN121,136..(L,201505-202005
BLACK,TRIM2#,4#
CS AMERICA SPEC,BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#,4#
main69206-0K100-C0iKUN122..TDC..M;KUN126..6F..S..GEN;GUN126..6F..(M,S)..GEN;GUN126..LHD..6F..H..GEN;KUN125..LHD..TDC..M..GEN;GUN125..TDC..(H,M,S)..GEN;KUN125..RHD..TDC..(H,M,S)..GEN;G201505-202104
BLACK,TRIM2#,4#
main69206-0K110-C1iGUN135..SSC..6F;GUN135,TGN136..KSC,SDC,SXT;GUN122,125,126,136,KUN122,125,135,LAN125,TGN120,121,126..(S,X)..(KEN,SA)201601-202102
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main69206-0K140-C0iGUN136..6FC..M..BZAGT;GUN125,126,13#,TGN138..ADC..S;GGN125,KUN125,126,135,TGN126,136..ADC..(H,S)..LA201511-202010
BLACK,TRIM2#,4#
main69206-0K140-C0iGUN136..H..BZAGT;GUN136..ADC..6F..M;GUN126,KUN126,136,TGN126,128,13#..ADC..(H,M)201511-202010
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
main69210-0K200iGUN125,135..M..VN;KUN126..TDC..M..LA;GUN125,KUN122..L..GCC;GGN125,KUN125..(L,S)..(ARL,GCC);GUN135..(TDC,TXT)..(L,M,S)..(LA,PH,TH);GUN125,KUN122..(M,S)..(GCC,GEN,IDN201505-202005
PLATED
main69210-0K200iGUN125,135..M..VN;KUN126..TDC..M..LA;GUN125,KUN122..L..GCC;GGN125,KUN125..(L,S)..(ARL,GCC);GUN135..(TDC,TXT)..(L,M,S)..(LA,PH,TH);GUN125,KUN122..(M,S)..(GCC,GEN,IDN201505-202005
PLATED,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
main69210-0K200iGUN125,135..M..VN;KUN126..TDC..M..LA;GUN125,KUN122..L..GCC;GGN125,KUN125..(L,S)..(ARL,GCC);GUN135..(TDC,TXT)..(L,M,S)..(LA,PH,TH);GUN125,KUN122..(M,S)..(GCC,GEN,IDN201505-202005
PLATED,DOOR OUTSIDE HANDLE-*CR
NO PAINT REQ.
PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP)
PLATED
main69210-0K250iGUN125..SXT..S;GUN135,TGN136..SDC..(5F,6FC);GUN135,KUN125..6F..(S,X)..(KEN,SA);GUN122,125,126,136,KUN122,135,LAN125,TGN120,121,126..(KDC,KSC,SDC,SSC)..(S,X)201601-202102
NO PAINT REQ.
NO PAINT REQ.
PLATED
PAINT REQ.,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PAINT REQ.
PAINT REQ.,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDEHANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY)
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE
*CR,DRIVER SIDE
*CR,DRIVER & PASSENGER
*CR,DOOR OUTSIDE HANDLE-*CR,DRIVER & PASSENGER
*CR,PASSENGER SIDE
main69217-0K430iGUN122..6F..X;GUN120,136..TSC;GUN135..6FC..S..VN;GUN125,KUN125..L..IDN;GUN126,KUN126..TDC..ATM..X;GUN135..(L,X)..(ARL,GEN,MA,VN);GUN122,125,TGN121..(S,X)..(ARL,VN);201505-202005
BLACK MATERIAL,DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE
main69217-0K430iGUN122..6F..X;GUN120,136..TSC;GUN135..6FC..S..VN;GUN125,KUN125..L..IDN;GUN126,KUN126..TDC..ATM..X;GUN135..(L,X)..(ARL,GEN,MA,VN);GUN122,125,TGN121..(S,X)..(ARL,VN);201505-202005
BLACK MATERIAL,DOOR OUTSIDE HANDLE-PIGMENT,DRIVER & PASSENGER
main69217-0K430iKUN126..L..GEN;GUN125..LHD..L..GEN;TGN126..TDC..(L,X)..(GEN,LA);GUN122,126..TDC..(L,X)..HDCR..GEN;GUN125,135..TSC..6F..(L,X)..(GEN,LA);GUN126,TGN136..(TDC,TSC)..MTM201505-202005
BLACK MATERIAL,DRIVER SIDE
main69217-0K430iKUN126..L..GEN;GUN125..LHD..L..GEN;TGN126..TDC..(L,X)..(GEN,LA);GUN122,126..TDC..(L,X)..HDCR..GEN;GUN125,135..TSC..6F..(L,X)..(GEN,LA);GUN126,TGN136..(TDC,TSC)..MTM201505-202005
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K430iKUN126..L..GEN;GUN125..LHD..L..GEN;TGN126..TDC..(L,X)..(GEN,LA);GUN122,126..TDC..(L,X)..HDCR..GEN;GUN125,135..TSC..6F..(L,X)..(GEN,LA);GUN126,TGN136..(TDC,TSC)..MTM201505-202005
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE
main69217-0K430iKUN126..L..GEN;TGN126..TDC..(L,X)..(GEN,LA);GUN125,126..TDC..6F..(L,X)..(GEN,LA);KUN125..(TDC,TSC,TXT)..(L,X)..(GEN,LA);GUN125..(MDC,MSC,TSC)..6F..(L,X)..(GEN,IDN,L201505-202105
BLACK MATERIAL,DRIVER & PASSENGER
main69217-0K440iGUN126,KUN126..ATM..S..GEN;GUN125,KUN125,TGN126..LHD..TDC..S..GEN;GUN122,125..LHD..TDC..(5F,6FC)..S..(GEN,LA)201505-202005
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY),PASSENGER SIDE
main69217-0K440iGUN126,KUN126..ATM..S..GEN;GUN125,KUN125,TGN126..LHD..TDC..S..GEN;GUN122,125..LHD..TDC..(5F,6FC)..S..(GEN,LA)201505-202005
BLACK MATERIAL,DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY),PASSENGER SIDE
BLACK MATERIAL,PASSENGER SIDE
main69217-0K440iGUN122..6F..X;GUN120,136..TSC;GUN135..6FC..S..VN;GUN125,KUN125..L..IDN;GUN126,KUN126..TDC..ATM..X;GUN135..(L,X)..(ARL,GEN,MA,VN);GUN122,125,TGN121..(S,X)..(ARL,VN);201505-202005
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
BLACK MATERIAL,DRIVER & PASSENGER
BLACK MATERIAL,DRIVER SIDE
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),DRIVER SIDE
main69217-0K460iGUN122..LHD..SA;GUN125,135,KUN122,125,LAN125,TGN121,126..(KDC,SDC,SSC)..X201601-202102
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PASSENGER SIDE
BLACK MATERIAL,PASSENGER SIDE
main69217-0K470iGUN126..(L,X)..BZAGT;GUN126,KUN126..ADC..ATM..X;GUN125,135,KUN125,135,TGN126,13#..(ADC,ASC)..(L,X)201511-202010
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K470iGUN126..(L,X)..BZAGT;GUN126,KUN126..ADC..ATM..X;GUN125,135,KUN125,135,TGN126,13#..(ADC,ASC)..(L,X)201511-202010
BLACK MATERIAL,DRIVER & PASSENGER
*CR,DRIVER SIDE
*CR,PASSENGER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDEHANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE
LESS COLOR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),DRIVER SIDE
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
main69210-0K200iGUN125,135..M..VN;KUN126..TDC..M..LA;GUN125,KUN122..L..GCC;GGN125,KUN125..(L,S)..(ARL,GCC);GUN135..(TDC,TXT)..(L,M,S)..(LA,PH,TH);GUN125,KUN122..(M,S)..(GCC,GEN,IDN201505-202005
PLATED,DOOR OUTSIDE HANDLE-*CR
PLATED
main69210-0K200iGUN125,135..M..VN;KUN126..TDC..M..LA;GUN125,KUN122..L..GCC;GGN125,KUN125..(L,S)..(ARL,GCC);GUN135..(TDC,TXT)..(L,M,S)..(LA,PH,TH);GUN125,KUN122..(M,S)..(GCC,GEN,IDN201505-202005
PLATED,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
NO PAINT REQ.
PLATED
PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP)
NO PAINT REQ.
NO PAINT REQ.
PLATED
PAINT REQ.
PAINT REQ.,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDEHANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY)
PAINT REQ.,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
69237ANUT, FRONT DOOR HANDLE
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR(KEY CYLINDER DRIVER SIDE ONLY)
main69237-0K040iGUN126,136..H..BZAGT;GUN126..KDC,MDC,PDC,PSC,TDC,TSC,TXT;GUN125,13#,TGN126,136..MDC,MSC,TDC,TSC,TXT;GGN125,GUN112,120,122,123,KUN122,TGN11#,120,121..ADC,PSC,TDC,TSC201907-202105
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY)
69239CBUSH, FRONT DOOR HANDLE
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY)
main69239-0K080iGUN126,136..H..BZAGT;GUN135..(SSC,SXT)..6F;GUN135,TGN136..KSC,MDC,SDC,TDC,TSC,TXT;GUN125..LHD..(SXT,TDC,TSC)..6F..(LA,SA);GUN126,136,KUN125,126,13#,TGN126..KDC,MDC,201505-202105
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY)
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY)
main69242-0K050iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-0K050-C0iKUN125..TXT..S;GUN125..(MSC,TDC)..(GCC,MA);GUN125..LHD..(TSC,TXT)..(L,S);GUN126,KUN122,126..(PSC,TDC,TSC)..(GCC,PKN);GGN125,GUN112,122,KUN112,125,TGN11#,120,121,126201505-202105
BLACK,TRIM2#,3#
main69283-0K050-C0iGUN126,136..ARL,MA,TAIW;GUN125..LHD..(L,X)..GEN;GUN126..RHD..6F..H..GEN;KUN125..TXT..(L,M)..GEN;GUN125..TDC..6FC..L..GEN;KUN125..TDC..L..(GEN,IDN);GUN126..TDC..6FC.201505-202105
BLACK,TRIM2#
main69283-0K050-C0iKUN122..TDC..M;KUN126..6F..S..GEN;GUN126..6F..(M,S)..GEN;GUN126..LHD..6F..H..GEN;KUN126..(PDC,TDC)..(H,M);GUN125..RHD..TDC..6F..L..GEN;GUN125..RHD..(TDC,TXT)..(H,M,201505-202104
BLACK,TRIM2#,4#
main69283-0K060-C0iGUN135..SSC..6F;GUN135,TGN136..KSC,SDC,SXT;GGN125,135,GUN122,125,126,136,KUN12#,135,LAN125,TGN120,121,126..KEN,SA201601-202102
BLACK,TRIM2#
main69283-0K070-C0iGUN136..H..BZAGT;GUN136..ADC..6F..M;GUN126,KUN126,136,TGN126,128,13#..ADC..(H,M)201511-202010
BLACK,TRIM2#
main69283-0K070-C0iGUN136..H..BZAGT;GUN136..ADC..6F..M;GUN126,KUN126,136,TGN126,128,13#..ADC..(H,M)201511-202010
BLACK,TRIM2#,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#,3#
main69284-0K030-C0iKUN122..TDC..M;KUN126..6F..S..GEN;GUN126..6F..(M,S)..GEN;GUN126..LHD..6F..H..GEN;KUN126..(PDC,TDC)..(H,M);GUN125..RHD..TDC..6F..L..GEN;GUN125..RHD..(TDC,TXT)..(H,M,201505-202104
BLACK,TRIM2#,4#
main69284-0K030-C0iGUN126,136..ARL,MA,TAIW;GUN125..LHD..(L,X)..GEN;GUN126..RHD..6F..H..GEN;KUN125..TXT..(L,M)..GEN;GUN125..TDC..6FC..L..GEN;KUN125..TDC..L..(GEN,IDN);GUN126..TDC..6FC.201505-202105
BLACK,TRIM2#
BLACK,TRIM2#
main69284-0K050-C0iGUN136..6FC..M..BZAGT;GUN125,126,13#,TGN13#..(ADC,ASC)..(L,S,X);GGN125,KUN125,126,135,TGN126..(ADC,ASC)..(H,S,X)..LA201511-202010
BLACK,TRIM2#
main69284-0K050-C0iGUN136..H..BZAGT;GUN136..ADC..6F..M;GUN126,KUN126,136,TGN126,128,13#..ADC..(H,M)201511-202010
BLACK,TRIM2#,4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY)
69296SCREW, DOOR INSIDE HANDLE
main69296-0M010iGUN126,136..H..BZAGT;GUN125..(TDC,TSC)..6F..LA;GUN125..ARL,GCC,GEN,IDN,MA,PH,TH,VN;GUN126,13#,KUN125,126,13#,TGN126,136..KDC,MDC,PDC,PSC,TDC,TSC,TXT;GGN12#,GUN112,1201505-202105
69310LOCK ASSY, FRONT DOOR, RH
main69030-02480iGUN125,TGN126..M..GCC;GGN125,GUN122,126,KUN12#,TGN121..LHD..TDC..M..(GCC,GEN)201505-202005
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main69030-02480iGUN135..S..PH;KUN126..LHD..H;GUN125,126..6F..PH;GUN135..LHD..(H,M);GUN126..6FC..(PH,TAIW,VN);GUN126,KUN135..LHD..H..GEN201505-202005
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main69030-02480iGUN135..S..PH;KUN126..LHD..H;GUN125,126..6F..PH;GUN135..LHD..(H,M);GUN126..6FC..(PH,TAIW,VN);GUN126,KUN135..LHD..H..GEN201505-202005
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
main69030-02600iGUN126,KUN126..TDC..ATM..X;GUN135..TDC..(L,S)..(LA,VN);GGN125,GUN112,TGN136..(M,S,X)..(GCC,GEN);GUN122,125,126,KUN112,12#,13#,LAN125,TGN111,121,126,136..LHD..(SDC,S201505-202009
WIRELESS DOOR LOCK-WITH
main69310-0K100iGUN126,KUN112,LAN125,TGN11#,136..(SDC,SSC,TDC,TSC)..MTM..(L,X)..(GCC,LA,SA);GUN112,122,125,135,KUN12#,135,TGN120,121,126..LHD..(SDC,SSC,TDC,TSC,TXT)..(5F,6F,6FC)..(201505-202009
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-0K120iGUN136..TDC..S;GUN135..LHD..SA;GUN136..(SDC,TDC)..(H,M);GUN135..(SDC,TDC)..6FC..S;GUN135..(MDC,TDC)..(H,L,M,X);GUN135..(MDC,SDC,TDC)..6F..S;GGN12#,135,GUN12#,KUN12#201505-202105
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-0K120iGUN136..TDC..S;GUN135..LHD..SA;GUN136..(SDC,TDC)..(H,M);GUN135..(SDC,TDC)..6FC..S;GUN135..(MDC,TDC)..(H,L,M,X);GUN135..(MDC,SDC,TDC)..6F..S;GGN12#,135,GUN12#,KUN12#201505-202105
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
main69040-02450iTGN136..GEN;GUN126,KUN126..TDC..ATM..X;GUN135..LHD..TDC..(H,L,M,S);GGN125,GUN112,122,125,126,136,KUN112,12#,13#,LAN125,TGN111,121,126,136..LHD..(SDC,SSC,SXT,TDC,TSC201505-202009
main69040-02510iGGN125,KUN125,126,13#..ADC..(H,M,S)..LA;GUN125,126,13#,TGN126,128,13#..ADC..(H,M,S)201511-202010
WIRELESS DOOR LOCK-WITH
main69320-0K090iGUN126,KUN112,LAN125,TGN11#,136..(SDC,SSC,TDC,TSC)..MTM..(L,X)..(GCC,LA,SA);GUN112,122,125,135,KUN12#,135,TGN120,121,126..LHD..(SDC,SSC,TDC,TSC,TXT)..(5F,6F,6FC)..(201505-202009
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-02090iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-0K160iGUN125..TDC..S;GUN125..LHD..SDC..S;GUN126,135..LHD..SA;GUN126..(KDC,PDC,TDC)..M;GUN126..(PDC,SDC,TDC)..(H,L,S,X);GUN125..(KDC,MDC,SDC,TDC)..(H,L,M,X);GGN12#,GUN120,201505-202105
main69710-0K200iGUN125..RHD..SSC..S;GUN135..(SSC,SXT)..6F..S;GUN122,126,136,TGN120..RHD..(SSC,SXT)..(M,X)201602-202009
main69710-0K210iGUN135..SDC..6FC;GUN135..(MDC,SDC)..6F..S;GUN126,13#..RHD..(MDC,SDC)..(H,L,M);GGN125,135,GUN125,TGN136..RHD..(MDC,SDC)..(M,S)201601-202012
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0K210iGUN135..SDC..6FC;GUN135..(MDC,SDC)..6F..S;GUN126,13#..RHD..(MDC,SDC)..(H,L,M);GGN125,135,GUN125,TGN136..RHD..(MDC,SDC)..(M,S)201601-202012
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-0K140iGUN126..SSC..S;GUN122..LHD..SSC;GUN125,135..SSC..X;GUN125..LHD..(SSC,SXT)..S;KUN12#,LAN125,TGN121..PSC,SSC,SXT,TSC,TXT;GUN112,12#,13#,KUN112,135,TGN11#,120,126,136.201505-202105
main69750-0K210iGUN135..SDC..6FC;GUN135..(MDC,SDC)..6F..S;GUN126,13#..RHD..(MDC,SDC)..(H,L,M);GGN125,135,GUN125,TGN136..RHD..(MDC,SDC)..(M,S)201601-202012
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-0K140iGUN126..SSC..S;GUN122..LHD..SSC;GUN125,135..SSC..X;GUN125..LHD..(SSC,SXT)..S;KUN12#,LAN125,TGN121..PSC,SSC,SXT,TSC,TXT;GUN112,12#,13#,KUN112,135,TGN11#,120,126,136.201505-202105
main69750-0K210iGUN135..SDC..6FC;GUN135..(MDC,SDC)..6F..S;GUN126,13#..RHD..(MDC,SDC)..(H,L,M);GGN125,135,GUN125,TGN136..RHD..(MDC,SDC)..(M,S)201601-202012
9014850003
main90148-50003
9014860083
main90148-60083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
35 parts on this diagram · 1 diagram in section
