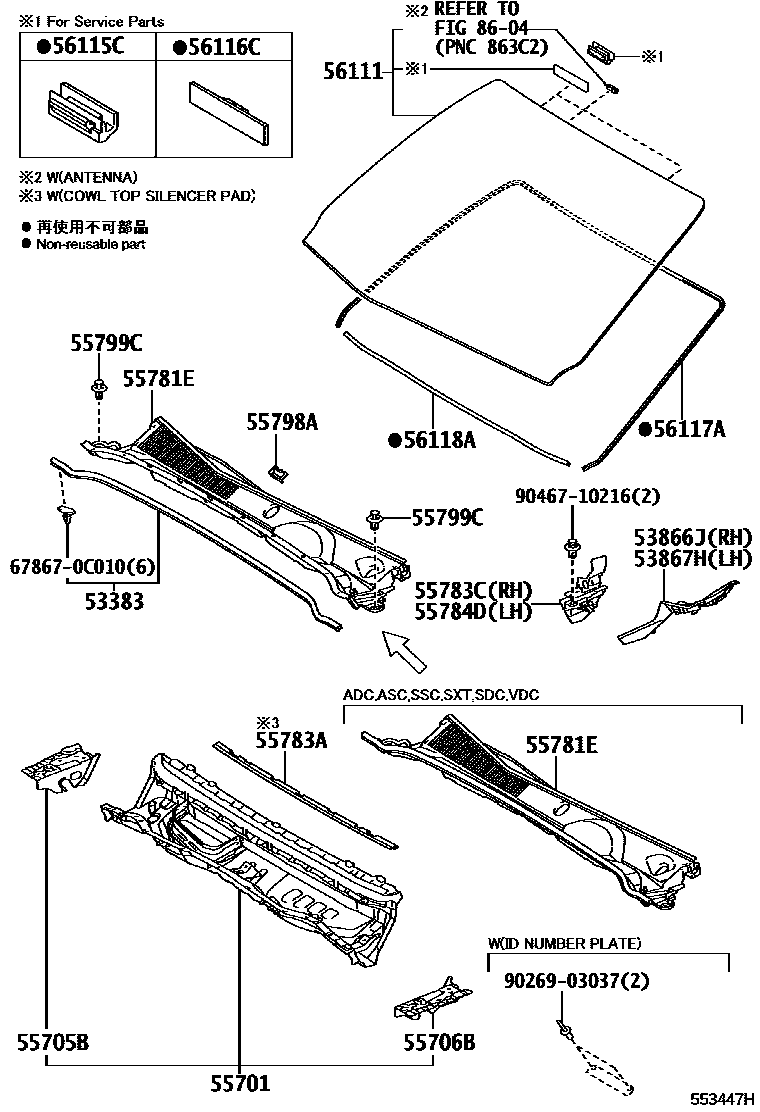

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
main53383-0K120iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT201505-202105
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
ASIA COLD COUNTRY SPEC&STEERING WHEEL-LEATHER
STEERING WHEEL-LEATHER
ASIA COLD COUNTRY SPEC
main55700-KK020iTGN126..ADC..S;TGN136..BZAGT,LA;TGN126..(M,X)..(BZAGT,LA);TGN126..LHD..(L,S,X)..(GEN,SA);GGN125,GUN122,125,126,13#,KUN12#,13#,LAN125,TGN121,128,138..LHD..(BZAGT,GEN201505-202010
MEXICO SPEC
main55700-KK030iTGN136..GEN;TGN126..M..GCC;TGN126..(TDC,TSC)..(L,S)..(GCC,LA);GGN125,GUN112,122,125,126,KUN112,122,125,TGN11#,120,121..GCC201505-202005
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
ASIA COLD COUNTRY SPEC
sub55708-0K181
main55708-0K190iGGN12#,GUN112,12#,13#,KUN112,12#,136,TGN110,121,126,136..RHD..(ARL,GEN,IDN,MA,PKN,TH)201505-202105
AZERBAIJAN SPEC(EURO 4 REGULATION)
MEXICO SPEC
main55708-0K200iTGN126..5F..L..GEN;GUN125..M..(GCC,VN);GUN125..LHD..(TSC,TXT);GUN125..LHD..TDC..(L,S,X);TGN126..(TDC,TSC)..(GCC,LA);GGN125,GUN112,122,126,13#,KUN112,12#,13#,TGN11#,201505-202005
OCEANIA GENERAL SPEC
sub55708-0K351
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
main55783-0K100iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
main55783-0K110iTGN136..SDC;GGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN120,121,126..KEN,SA201601-202102
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
main55784-0K030iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
55798ASUPPORT, COWL WATER EXTRACT SEAL
main55798-0K010iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105
55799CCLIP, COWL TOP VENTILATOR LOUVER
main90467-07215iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105
56111GLASS, WINDSHIELD
main56101-0K300iKUN125..TXT..IDN;GGN12#,GUN12#,136,KUN112,122,126,TGN110,121..(L,S,X)..(ARL,IDN,PKN)201505-201707
sub56101-0K301
main56101-0K301iGUN125..X..IDN;GUN125..TSC..6FC..IV3;GUN125..TXT..6F..(ARL,IDN);GUN126..(PDC,PSC,TXT)..6F..(L,S)..CBU;GGN12#,GUN112,122,123,KUN112,122,126,TGN110..(L,S,X)..(ARL,IDN201708-202105
AUDIO-*DA & CD & *BT & ENTUNE
sub56101-0K311
main56101-0K311iGUN125..TDC..IDN;GUN126,KUN126..(H,M)..PKN;GUN112,12#,13#,KUN122,TGN121,126,136..RHD..(GEN,TH)201708-202105
AUDIO-*DA & CD & *BT & ENTUNE
sub56101-0K321
AUDIO-AVN & CD & *BT & DAB & ENTUNE
sub56101-0K322
AUDIO-AVN & CD & *BT & DAB & ENTUNE
sub56101-0K331
AZERBAIJAN SPEC(EURO 4 REGULATION)&AUDIO-AM/FM & CD & *BT & 4SPEAKER
sub56101-0K341
main56101-0K340iTGN126..5F..GEN;GUN135..TDC..S..LA;TGN136..(TDC,TSC)..LA;GUN135,TGN126..(TDC,TSC)..(M,X)..(LA,PH);GUN126,KUN12#,136..LHD..(TDC,TSC,TXT)..(GEN,LA,PH,VN);GUN122,125,K201505-201707
AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER
sub56101-0K341
ASIA COLD COUNTRY SPEC&AUDIO-AM/FM & CD & *BT & 4SPEAKER
sub56101-0K341
ASIA COLD COUNTRY SPEC&AUDIO-AM/FM & CD & *BT & 4SPEAKER
sub56101-0K342
ASIA COLD COUNTRY SPEC&AUDIO-AM/FM & CD & *BT & 4SPEAKER
STEERING WHEEL-LEATHER&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
STEERING WHEEL-LEATHER&AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER
ASIA COLD COUNTRY SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ASIA COLD COUNTRY SPEC&STEERING WHEEL-LEATHER&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ASIA COLD COUNTRY SPEC&STEERING WHEEL-LEATHER&AUDIO-AM/FM & CD & *BT & 4SPEAKER
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER
main56101-0K342iTGN126..5F..GEN;TGN136..(TDC,TSC)..LA;GUN135..TDC..S..(LA,VN);TGN126..(TDC,TSC)..(M,X)..LA;GUN135..LHD..(TDC,TSC)..(H,M,X);GUN126..LHD..TDC..(GEN,LA,PH,VN);GUN122,1201801-202005
MEXICO SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
sub56101-0K361
main56101-0K360iTGN136..GEN;TGN126..M..GCC;TGN126..(TDC,TSC)..(L,S)..(GCC,LA);GUN112,122,125,KUN112,122,125,TGN11#,120,121..GCC201505-201707
MEXICO SPEC
sub56101-0K361
MEXICO SPEC
main56101-0K361iTGN136..GEN;TGN126..M..GCC;TGN126..(TDC,TSC)..(L,S)..(GCC,LA);GGN125,GUN112,122,125,126,KUN112,122,TGN11#,120,121..GCC201708-202005
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main56101-0K380iTGN136..SDC;KUN126..RHD..SA;GUN122,125,126,13#,KUN122,125,135,TGN120..RHD..(S,X)..SA201601-201906
AUDIO-*DA & DVD & *BT
main56101-0K410iGUN126..ADC..M..HDCR;GUN136..ADC..6F..(M,S);GUN126,TGN138..(ADC,ASC)..(L,S,X);GUN126,TGN138..MTM..M..(HTWCF,IART);GUN125,135,KUN125,126,13#,TGN126,136..ADC,ASC201511-202010
AUDIO-AVN & DVD & *BT & DIGITAL TV
main56101-0K420iGUN126..M..HDCR..BZAGT;GUN136..6F..(M,S)..BZAGT;GUN125,126,135,TGN138..S..BZAGT201907-202010
AUDIO-8INCH AVN & *BT & DIGITAL TV
AUDIO-AVN & DVD & *BT & DIGITAL TV
AUDIO-8INCH AVN & *BT & DIGITAL TV
sub56101-0K561
AUDIO-*DA & DVD & *BT & RDS & DAB
sub56101-0K561
AUDIO-*DA & DVD & *BT & RDS & DAB
sub56101-0K631
sub56101-0K632
STEERING WHEEL-LEATHER,W/O(DEICER)
W/O(DEICER)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER
W(DEICER)
BACK GLASS-SLIDING TYPE(GREEN,*HSEA)
AUDIO-AVN & CD & *BT & DAB & ENTUNE
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA & DVD & *BT
AUDIO-8INCH *DA & *BT & RDS & DAB
56115CSTOPPER, WINDSHIELD GLASS
main56115-30100iGUN126..H,L,S,X;GUN136..TDC..LA;GUN136..TDC..(H,S);GGN125,GUN135..6FC..S..(ARL,VN);GUN136..ADC,SDC,SSC,SXT,TSC,TXT;GUN135..ARL,BZAGT,GEN,KEN,LA,MA,SA,TH;GGN125,GUN1201505-202105
AUDIO-*DA & CD & *BT & ENTUNE
56116CSTOPPER, WINDSHIELD GLASS, NO.2
AUDIO-*DA & CD & *BT & ENTUNE
56117ADAM, WINDOW GLASS ADHESIVE
L=2620,ASIA COLD COUNTRY SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=2620,ASIA COLD COUNTRY SPEC
L=2620,AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER
L=2620,MEXICO SPEC
L=2620,AZERBAIJAN SPEC(EURO 4 REGULATION)&AUDIO-AM/FM & CD & *BT & 4SPEAKER
L=2620,MEXICO SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=2620,MEXICO SPEC&AUDIO-*DA(10KHZ) & DVD & *BT
L=2620,NIGERIA SPEC
L=2620,ALGERIA SPEC
L=2620
L=2620,AUDIO-*DA & CD & *BT & ENTUNE
L=2620,ASIA COLD COUNTRY SPEC&AUDIO-AM/FM & CD & *BT & 4SPEAKER
L=2620,AUDIO-*DA & DVD & *BT & RDS & DAB
L=2620,AUDIO-AVN & DVD & *BT & DIGITAL TV
L=2620,AUDIO-AVN & CD & *BT & DAB & ENTUNE
L=2620,BACK GLASS-SLIDING TYPE(GREEN,*HSEA)
L=2620,STEERING WHEEL-LEATHER
L=2620,ASIA COLD COUNTRY SPEC&STEERING WHEEL-LEATHER&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=2620,ASIA COLD COUNTRY SPEC&STEERING WHEEL-LEATHER&AUDIO-AM/FM & CD & *BT & 4SPEAKER
L=2620,STEERING WHEEL-LEATHER&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=2620,STEERING WHEEL-LEATHER&AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER
L=2620,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=2620,AUDIO-*DA & DVD & *BT
L=2620,EXPORT FROM SOUTH AFRICA
L=2620,AUDIO-8INCH *DA & *BT & RDS & DAB
L=2620,AUDIO-8INCH AVN & *BT & DIGITAL TV
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248,ASIA COLD COUNTRY SPEC
L=1248,AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER
L=1248,MEXICO SPEC
L=1248,AZERBAIJAN SPEC(EURO 4 REGULATION)&AUDIO-AM/FM & CD & *BT & 4SPEAKER
L=1248,MEXICO SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=1248,MEXICO SPEC&AUDIO-*DA(10KHZ) & DVD & *BT
L=1248,NIGERIA SPEC
L=1248,ALGERIA SPEC
L=1248
L=1248,AUDIO-*DA & CD & *BT & ENTUNE
L=1248,ASIA COLD COUNTRY SPEC&AUDIO-AM/FM & CD & *BT & 4SPEAKER
L=1248,AUDIO-*DA & DVD & *BT & RDS & DAB
L=1248,AUDIO-AVN & DVD & *BT & DIGITAL TV
L=1248,AUDIO-AVN & CD & *BT & DAB & ENTUNE
L=1248,BACK GLASS-SLIDING TYPE(GREEN,*HSEA)
L=1248,STEERING WHEEL-LEATHER
L=1248,ASIA COLD COUNTRY SPEC&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=1248,ASIA COLD COUNTRY SPEC&STEERING WHEEL-LEATHER&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=1248,ASIA COLD COUNTRY SPEC&STEERING WHEEL-LEATHER&AUDIO-AM/FM & CD & *BT & 4SPEAKER
L=1248,STEERING WHEEL-LEATHER&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=1248,STEERING WHEEL-LEATHER&AUDIO-AM/FM & CD & *BT & RDS & 4SPEAKER
L=1248,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=1248,AUDIO-*DA & DVD & *BT
L=1248,EXPORT FROM SOUTH AFRICA
L=1248,AUDIO-8INCH *DA & *BT & RDS & DAB
L=1248,AUDIO-8INCH AVN & *BT & DIGITAL TV
8604
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9026903037
main90269-03037
9046710216
main90467-10216
21 parts on this diagram · 2 diagrams in section
