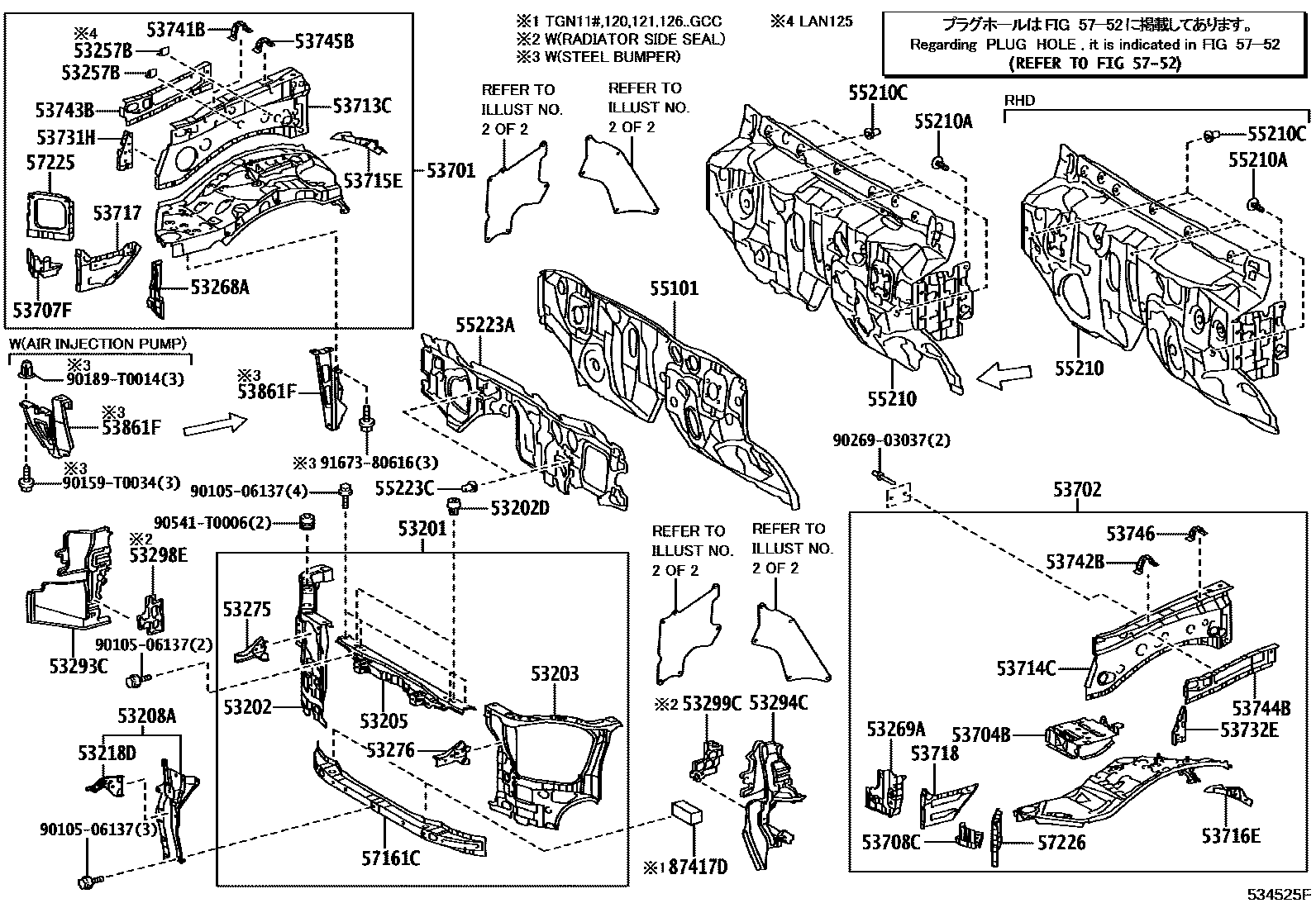

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-KK020iGUN135..(L,M)..VN;GUN135..6FC..S..VN;KUN122..LHD..TSC..S;KUN122..TSC..(L,M,X);KUN122..(TDC,TXT)..(L,M,S,X);GUN126,KUN112..(H,L,X)..(GCC,IDN,VN);GUN126,135..(TDC,TSC201505-202012
main53205-KK050iKUN122..SA;TGN136..ADC,ASC,SDC;GGN125,135,GUN122,125,126,13#,LAN125,TGN12#,138..ADC,ASC,KDC,KSC,PDC,PSC,SDC,SSC,SXT201710-202105
53208ASUPPORT SUB-ASSY, HOOD LOCK
53218DEXTENSION, HOOD LOCK BRACE
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH
53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH
main53276-KK010iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105
53293CDEFLECTOR, RADIATOR SIDE, RH
KAZAKHSTAN SPEC(EURO 4 REGULATION)
KAZAKHSTAN SPEC(EURO 2 REGULATION)
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
FRONT BUMPER-WITH(STEEL LOWER COVER)
53294CDEFLECTOR, RADIATOR SIDE, LH
KAZAKHSTAN SPEC(EURO 2 REGULATION)
KAZAKHSTAN SPEC(EURO 4 REGULATION)
FRONT BUMPER-WITH(STEEL LOWER COVER)
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
53298ESEAL, RADIATOR SIDE, RH
53299CSEAL, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-KK040iTGN138..M,S;TGN136..ADC..S;TGN136..ASC..BZAGT;TGN136..(ADC,TDC)..X;TGN126..LHD..(GCC,GEN,LA);GUN112,122,TGN11#,120,121,128..(DCR,HTWC,HTWCF)..(BZAGT,GCC,GEN)201505-201811
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
sub53701-KK350
main53701-KK040iTGN138..M,S;TGN136..ADC..S;TGN136..ASC..BZAGT;TGN136..(ADC,TDC)..X;TGN126..LHD..(GCC,GEN,LA);GUN112,122,TGN11#,120,121,128..(DCR,HTWC,HTWCF)..(BZAGT,GCC,GEN)201505-201811
FRONT BUMPER-WITH(STEEL LOWER COVER)
sub53701-KK350
main53701-KK040iTGN138..L;TGN136..ADC..M;TGN121,126..BZAGT,SA;TGN136..(ASC,TSC)..LA;KUN112,122,TGN136..(TDC,TSC)..(L,M,S)..(GCC,LA)201505-202009
sub53701-KK350
sub53701-KK360
main53701-KK070iGUN125..M..VN;GUN122,125..LHD..SA;GUN125,135..BZAGT..IV3;GUN126..6F..(M,S)..IART;GUN126..LHD..M..(SA,VN);KUN122,135..LHD..(GEN,LA,SA,VN);GUN136,KUN125,126,136..LHD.201505-202009
sub53701-KK370
main53701-KK080iGUN126..L..GEN;GUN122..RHD..(ARL,SA);GUN135..6FC..S..(MA,SA);GUN126,136..RHD..(KEN,SA);GUN126..TXT..6F..ARL..CBU;GUN135..RHD..6F..(KEN,MA,SA);GUN125..RHD..(SDC,SSC,201505-202102
sub53701-KK380
main53701-KK350iTGN121,126,136..BZAGT,GCC,GEN,LA;GUN112,122,TGN11#,120,128,138..BZAGT,GCC201811-202010
sub53701-KK780
main53701-KK370iGUN125..S..VN;GUN122..LHD..DCR..(GEN,PH);GUN126,135..LHD..(ADC,ASC,TDC,TSC);GGN125,GUN125,136..LHD..(BZAGT,GCC,GEN,LA,PH)201811-202010
main53701-KK380iGUN125..(TDC,TSC)..IDN;GUN125,126,13#..RHD..(ARL,GEN,MA,PKN,TH);GUN112,120,122,123..RHD..(GEN,IDN,PKN,TH)201811-202105
sub53701-KK760
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-KK030iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010
sub53702-KK310
main53702-KK040iTGN136..RHD..(SDC,TDC,TXT);GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,TGN110,120,121,126..RHD201505-202105
sub53702-KK290
53704BSUPPORT SUB-ASSY, BATTERY, LH
sub53704-KK020
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
main53707-KK010iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105
53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
main53708-KK010iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
main53713-KK020iGUN135..L..VN;TGN136..ADC..S;GUN126..6F..IV3;TGN126..LHD..(GCC,GEN,LA);GUN135..6FC..(L,M)..(MA,VN);GUN125..(TDC,TXT)..6FC..IV3;TGN121..(TDC,TSC,TXT)..(L,M,X);GUN135201505-202105
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
main53714-KK020iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,12#,13#..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731HPATCH, FRONT FENDER APRON, RH
main53731-KK010iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105
53732EREINFORCEMENT, FRONT FENDER APRON, LH
53741BPLATE, FENDER APRON REINFORCE, RH
main53741-KK020iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105
53742BPLATE, FENDER APRON REINFORCE, LH
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
main53746-KK020iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105
53861FBRACKET, FRONT WHEEL OPENING, NO.1
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)&FRONT BUMPER-PAINTED
EGYPT SPEC&FRONT BUMPER-PAINTED
SUDAN SPEC&FRONT BUMPER-PAINTED
QATAR SPEC(EURO 4 REGULATION)&FRONT BUMPER-PAINTED
SAUDI ARABIA SPEC(EURO4 REGULATION)&FRONT BUMPER-PAINTED
GCC SPEC(EURO 4 REGULATION)&FRONT BUMPER-PAINTED
AFRICA SPEC&FRONT BUMPER-PAINTED
FRONT BUMPER-PAINTED
FRONT BUMPER-WITH(STEEL LOWER COVER)
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)&FRONT BUMPER-PAINTED
GCC SPEC(EURO 4 REGULATION)&FRONT BUMPER-PAINTED
QATAR SPEC(EURO 4 REGULATION)&FRONT BUMPER-PAINTED
EGYPT SPEC&FRONT BUMPER-PAINTED
SAUDI ARABIA SPEC(EURO4 REGULATION)&FRONT BUMPER-PAINTED
AFRICA SPEC&FRONT BUMPER-PAINTED
FRONT BUMPER-WITH(STEEL LOWER COVER)
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)&FRONT BUMPER-PAINTED
SUDAN SPEC&FRONT BUMPER-PAINTED
55101PANEL SUB-ASSY, DASH
main55101-KK050iGUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,13#..LHD..MTM201505-202010
sub55101-KK220
sub55101-KK240
sub55101-KK260
sub55101-KK280
55210INSULATOR ASSY, DASH PANEL
main55210-0K150iKUN125..TXT..L..GEN;GUN125,126,135,KUN125,126,TGN126,136..LHD..(TDC,TSC)..(L,S,X);GUN112,122,KUN112,122,135,TGN11#,120,121..LHD..(TDC,TSC,TXT)..(L,M,S,X)201505-202005
main55210-0K160iGUN125,KUN125..TXT..(M,S)..GEN;GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,136..LHD..TDC..(H,M)201505-202005
main55210-0K170iGUN135..TDC..S..TH;GUN135..(L,X)..(ARL,GEN,TH);GUN122,KUN122..RHD..(ARL,GEN,TH);GUN126,136..RHD..(TDC,TSC)..(L,S,X);GUN125,KUN125,TGN136..RHD..TDC..(L,S,X);GUN125,K201505-202005
main55210-0K180iKUN126..RHD..(H,M)..(GEN,PKN);GGN125,GUN125,126,13#,KUN125..RHD..TDC..(H,M);GUN125,126,13#,TGN136..RHD..(PDC,TXT)..(H,M,S)201505-202105
sub55210-KK051
55210ACLIP
IVORY
55210CCLIP
main90467-T0032iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202105
55223AINSULATOR, DASH PANEL, OUTER
main55223-KK030iTGN126..ADC,ASC;GGN125,GUN122,125,126,13#,KUN12#,13#,LAN125,TGN121,128,13#..LHD..(ADC,ASC,SDC,SSC,SXT)201511-202010
EGYPT SPEC
IRAN SPEC
main55223-KK060iGGN12#,GUN112,12#,13#,KUN112,12#,136,TGN121,136..RHD..(ARL,GEN,IDN,MA,PKN,TH)201505-201707
sub55223-KK061
main55223-KK061iGGN12#,GUN112,12#,13#,KUN112,122,126,TGN121,136..RHD..(ARL,GEN,IDN,MA,PKN,TH)201708-202105
55223CCLIP
57161CMEMBER, FRONT CROSS
main57161-KK010iGUN136..TDC..S;GUN125..6FC..S..GCC;KUN122..TSC..(L,M,X);GUN126..TDC..6FC..M..LA;GUN125..TDC..6F..L..GCC;GUN126..RHD..6F..H..GEN;GUN125..LHD..TDC..S..GEN;GUN125..TSC201505-202105
57225BRACE, FRONT MOUNTING BRACKET, RH
57226BRACE, FRONT MOUNTING BRACKET, LH
5752
87417DPACKING, AIR DUCT
9010506137
main90105-06137
90159T0034
main90159-T0034
90189T0014
main90189-T0014
9026903037
main90269-03037
90541T0006
main90541-T0006
9167380616
main91673-80616
53 parts on this diagram · 2 diagrams in section
