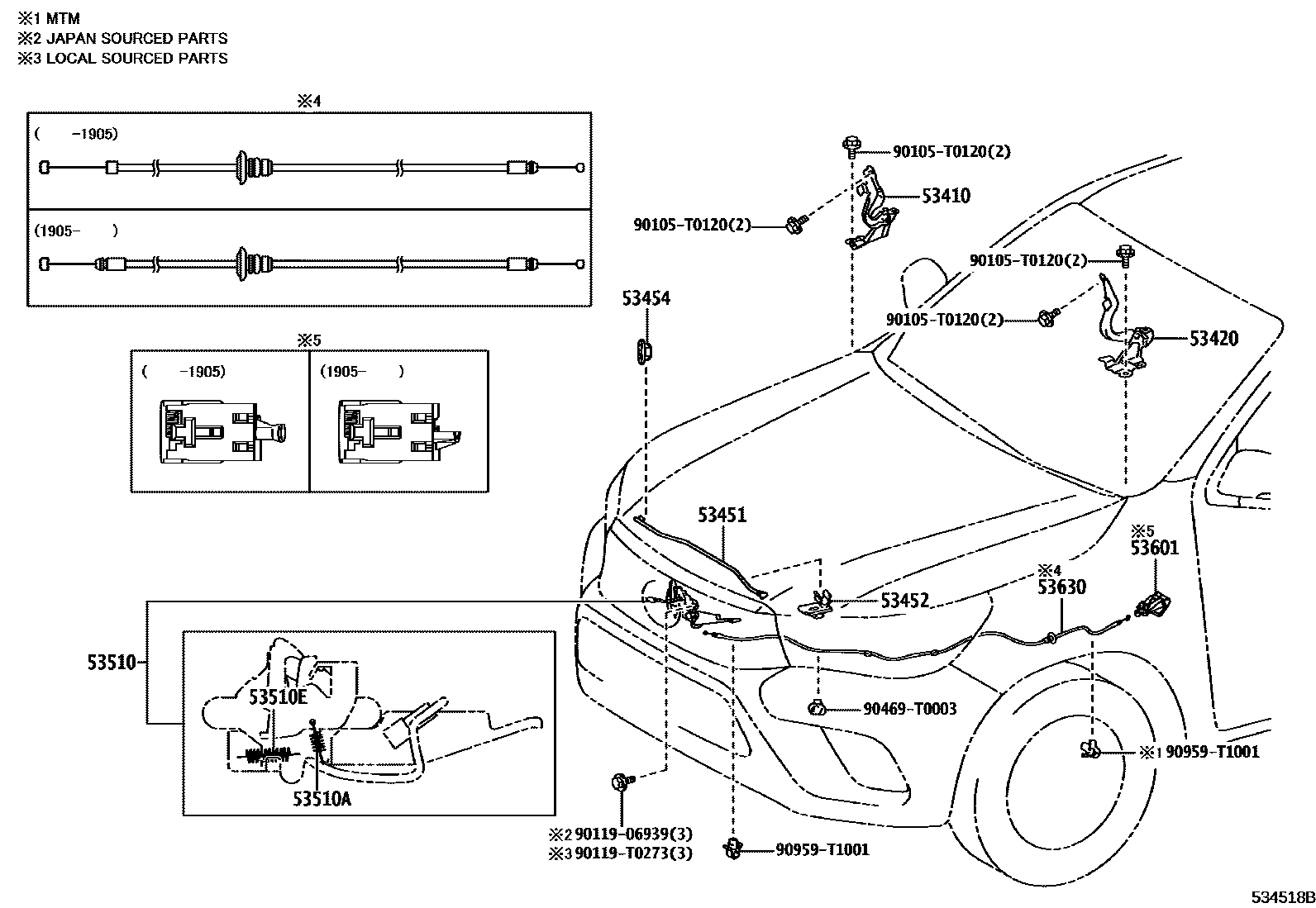

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0K230iTGN136..SDC;GUN136..M..SA;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN135..(KSC,SSC)..X;GUN125..KDC,KSC,SDC,SSC;GGN125,135,GUN122,126,KUN12#,135,LAN125,TGN1201601-202102

main53410-0K240iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

main53410-0K370iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105

53420HINGE ASSY, HOOD, LH

main53420-0K230iTGN136..SSC201601-202102

main53420-0K240iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

main53420-0K370iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105

53451ROD, HOOD SUPPORT

main53440-0K010iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..TDC,TSC,TXT201505-202005

main53440-0K020iTGN136..SSC201601-202102

main53440-0K030iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

main53440-0K040iGUN125,126,135..MA201604-202012

main53440-0K060iGUN122,126,KUN122,126..PKN201610-202105

53452HOLDER, HOOD STAY

main53452-0K020iTGN136..SSC201505-202105

53454CLIP, HOOD SUPPORT ROD

main53454-0D010iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..TDC,TSC,TXT201604-202005

main53454-52020iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,12#,136..TDC,TSC,TXT201505-202105

53510LOCK ASSY, HOOD

main53510-0K380iTGN126..M..GEN201505-202005

main53510-0K470iTGN126..S..GEN201905-202005

main53510-0K650iGUN126..RHD..6F..M..GEN;GUN126..RHD..6FC..(H,M)..GEN;GUN125,KUN126..(MDC,PDC)..(L,X);GUN122,135,TGN121..RHD..(L,X)..(ARL,GEN,PKN,TH);GUN125,KUN12#..RHD..(MSC,PSC,TD201505-202105

main53510-0K660iGUN135..6F..MA;GUN135..6FC..(MA,TH);GUN135..6F..(M,S)..TH;GUN126..RHD..6F..H..GEN;GGN125,GUN126,136..(H,M)..(ARL,MA,PKN,TH);GUN122,125,KUN126,TGN121,136..(H,M,S)..(201505-202105

main53510-0K670iGUN126..LHD..GEN;GUN135..6FC..S..VN;GUN135..TDC..S..(LA,PH);GUN125..TDC..S..(LA,PH,VN);GUN125..LHD..(TSC,TXT)..(GEN,LA);GUN125..LHD..TDC..(L,M,X)..(GEN,LA);GUN126,T201505-202005

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main53510-0K670iTGN126..M..GEN201505-201708

main53510-0K680iGUN126,KUN126..LHD..M..GEN201505-202005

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K680iTGN126..S..GEN201505-201905

main53510-0K680iGUN125..TXT..GEN;KUN126..LHD..H..GEN;KUN126..LHD..5FC..M..GEN;GUN125,TGN126..TDC..S..LA;GUN135..TDC..(H,S)..(GEN,LA);GUN125,KUN125..LHD..TDC..M..GEN;GUN122,126..LHD201505-202005

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-0K690iGUN135..(KSC,SSC)..X;GUN125,KUN122,125..RHD..(KDC,KSC,SDC,SSC)..X201601-202102

main53510-0K700iGUN125..SXT..X;GUN135..RHD..SDC..X201601-202102

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K700iTGN136..SSC201601-202102

main53510-0K710iGUN122,125,135,KUN122,125,LAN125,TGN121,126..LHD..X..SA201601-202009

main53510-0K720iGUN122,125,135,KUN122,125,LAN125,TGN121,126..LHD..X..SA201601-202009

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K730iGUN125..ADC..S..LA;GUN126,135..(L,X)..BZAGT;GUN125,TGN13#..(ADC,ASC)..(L,X);GUN126,135,KUN125,126,135,TGN126..(ADC,ASC)..(S,X)..LA201511-202010

main53510-0K740iGUN126..6F..IART201511-202010

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iTGN136..SSC201505-202105

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iTGN136..SSC201505-202105

WD=0.9,CW=21

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C0iGUN135..TH,VN;GUN126..M..PKN;GUN126..6FC..GEN;GUN126..6F..(M,S)..GEN;GUN126..LHD..6F..H..GEN;GUN125..RHD..TDC..6F..L..GEN;GUN125..RHD..(TDC,TXT)..(H,M,S);GUN125..LH201905-202105

BLACK,TRIM2#

main53601-0D040-C0iGGN125,GUN112,122,125,126,TGN11#,120,121,126..GCC201905-202005

BLACK,TRIM2#,3#

main53601-0D040-C0iGUN126..H..PKN201905-202105

BLACK,TRIM4#

main53601-0D040-C0iGUN126..H..PKN201905-202105

BLACK,TRIM2#,4#

main53601-0K080-C0iGUN122..(TDC,TSC)..X;KUN122..(TSC,TXT)..M;KUN122..(H,L,S,X)..GEN;GUN125..LHD..(L,X)..GEN;GUN126..RHD..6F..H..GEN;KUN125..TXT..(L,M)..GEN;GUN125,126..S..(BZAGT,LA,PH201505-201905

BLACK,TRIM2#

main53601-0K080-C0iTGN121,126..GCC..IV3201505-201905

BLACK,TRIM2#,3#

main53601-0K080-C0iKUN125..TXT..S;TGN121,126..GCC..CBU;GUN125..(MSC,TDC)..(GCC,MA);GUN125..LHD..(TSC,TXT)..(L,S);GGN125,GUN112,122,126,KUN112,12#,TGN11#,120..(PSC,TDC,TSC)..(GCC,PKN)201505-201905

BLACK,TRIM2#,4#

main53601-0K090-C0iTGN136..SDC;GUN136..M..SA;GUN135..SSC..X;GUN125..SXT..S;GUN125..SDC,SSC;GUN135..6F..S..SA;GGN125,135,GUN122,126,KUN12#,135,LAN125,TGN120,121,126..SA201601-201905

BLACK,TRIM2#

main53601-0K120-C0iTGN136..SSC201905-202102

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0K160iGUN135..SSC..X;GUN136..S..ARL;GUN135..6F..S..SA;GUN136..RHD..(H,M);GUN135..RHD..(MDC,TDC,TXT);TGN136..RHD..(SDC,TDC,TXT);GUN125..RHD..(MDC,MSC,SDC,SSC,TDC,TSC,TXT);201505-201905

main53630-0K190iTGN121..GEN..IV3;TGN121,126..LHD..CBU;GUN126,13#,KUN126,135..LHD;GGN125,GUN112,122,125,KUN112,122,125,136,LAN125,TGN11#,120,128,13#..LHD..(L,M,S,X)201505-201905

main53630-0K210iTGN136..SSC201905-202105

main53630-0K260iGGN125,GUN112,122,125,126,13#,LAN125,TGN11#,12#,13#..LHD201905-202010

90105T0120

main90105-T0120

9011906939

main90119-06939

90119T0273

main90119-T0273

90469T0003

main90469-T0003

90959T1001

main90959-T1001

15 parts on this diagram · 2 diagrams in section
