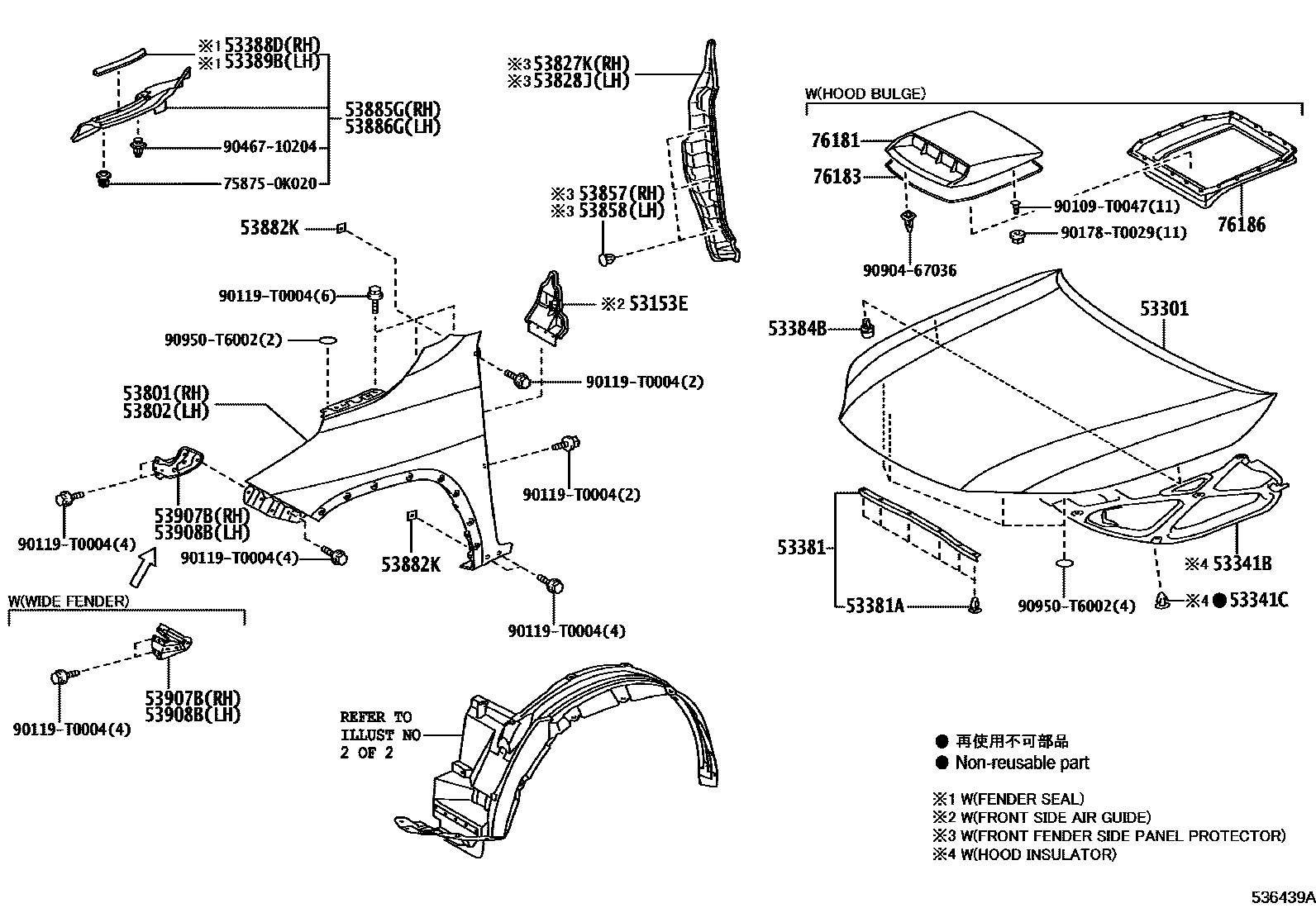

HOOD & FRONT FENDER
53153EGUIDE, FRONT SIDE AIR
main53153-0K010iGUN126..L..BZAGT;GUN125,135..M..(GCC,PH);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,IDN,MA,TH,VN);GUN126,136,KUN125,126,201505-202105
main53153-0K090iKUN126,135..L,X;GUN135..TDC..X..LA;KUN125..RHD..(TSC,TXT);GUN125,136..ASC,MSC,TSC;GUN135..(L,S)..(GEN,PH);GUN135..(ADC,ASC,TSC)..X;GUN125..TDC..S..(GCC,PH);KUN125..201505-202105
53301HOOD SUB-ASSY
main53301-KK010iKUN122..LHD..TSC..S;KUN122..TSC..(L,M,X);KUN125,135..ADC,ASC,SDC,SSC,SXT;GUN126,KUN112..(H,L,X)..(GCC,IDN,VN);KUN122..(PSC,SDC,SSC,TDC,TXT)..(L,M,S,X);GGN12#,135,GU201505-201709
sub53301-KK011
main53301-KK011iGUN125,126,13#;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,122,123,KUN112,122,LAN125,TGN11#,12#,138..5F,6FC201709-202105
sub53301-KK021
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
main53388-0K010iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53388-0K020iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53389BSEAL, HOOD TO FRONT FENDER, LH
main53388-0K010iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53388-0K020iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53801FENDER SUB-ASSY, FRONT RH
main53811-KK020iTGN121..L..TH;TGN126..TSC..S;GUN125,KUN125..TSC..M;GUN122,KUN122..(H,M)..(GCC,GEN);GUN112,122,123..5F..(L,M,S)..TH;GUN122,TGN121..(M,S)..(HDCR,HTWC);GUN112,122,125,201505-202005
TIRE & DISC WHEEL-205R16C STEEL
OUTSIDE REAR VIEW MIRROR-*RCM(*CR)&W(SIDE TURN LAMP)
53802FENDER SUB-ASSY, FRONT LH
main53812-KK020iGUN125,KUN125..TXT..M;GUN125,KUN125..RHD..TDC..M..GEN;KUN125,TGN126..LHD..TDC..S..GEN201505-202005
TIRE & DISC WHEEL-205R16C STEEL
OUTSIDE REAR VIEW MIRROR-*RCM(*CR)&W(SIDE TURN LAMP)
TIRE & DISC WHEEL-265/65R17 STEEL
sub53812-KK050
main53812-KK030iGUN125..TXT;GUN126..H..VN;GUN135..(TDC,TXT)..(L,M,S)..(LA,TH);GUN125,135..(M,X)..(ARL,GCC,PH)..CBU;GUN125,KUN126,135..(PDC,TDC)..(H,M,S)..(GEN,LA,PKN,VN);GGN125,GUN201505-201701
TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)
sub53812-KK050
main53812-KK030iGUN125..TXT;GUN126..H..VN;GUN135..(TDC,TXT)..(L,M,S)..(LA,TH);GUN125,135..(M,X)..(ARL,GCC,PH)..CBU;GUN125,KUN126,135..(PDC,TDC)..(H,M,S)..(GEN,LA,PKN,VN);GGN125,GUN201505-201701
TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(*CR)&W(SIDE TURN LAMP)
sub53812-KK050
main53812-KK030iGUN125..TXT;GUN126..H..VN;GUN135..(TDC,TXT)..(L,M,S)..(LA,TH);GUN125,135..(M,X)..(ARL,GCC,PH)..CBU;GUN125,KUN126,135..(PDC,TDC)..(H,M,S)..(GEN,LA,PKN,VN);GGN125,GUN201505-201701
TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-MANUAL(*CR)&W(SIDE TURNLAMP)
sub53812-KK050
main53812-KK030iGUN125..TXT;GUN126..H..VN;GUN135..(TDC,TXT)..(L,M,S)..(LA,TH);GUN125,135..(M,X)..(ARL,GCC,PH)..CBU;GUN125,KUN126,135..(PDC,TDC)..(H,M,S)..(GEN,LA,PKN,VN);GGN125,GUN201505-201701
TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURNLAMP)
sub53812-KK050
main53812-KK030iGUN125..TXT;GUN126..H..VN;GUN135..(TDC,TXT)..(L,M,S)..(LA,TH);GUN125,135..(M,X)..(ARL,GCC,PH)..CBU;GUN125,KUN126,135..(PDC,TDC)..(H,M,S)..(GEN,LA,PKN,VN);GGN125,GUN201505-201701
TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)
sub53812-KK050
sub53812-KK050
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
main53827-0K010iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53827-0K020iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
main53828-0K010iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53828-0K020iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
main53857-06030iGUN125,135..SXT..S;GGN125,GUN125,126,136,TGN126,128,138..(ADC,KDC,SDC,SXT)..(H,M)201908-202105
(L)
main53857-0K010iGUN125,135..SXT..S;GGN125,GUN125,126,136,TGN126,128,138..(ADC,KDC,SDC,SXT)..(H,M)202001-202102
TIRE & DISC WHEEL-225/70R17C STEEL
main53857-47011iGUN136,KUN125..(SXT,TXT)..S;GUN126..(MDC,PDC,SXT,TXT)..(H,M,S);GUN125,135,TGN136..(SXT,TXT)..(M,S);GUN136,KUN125,126..(ADC,PDC,SDC,SXT,TDC,TXT)..(H,M);GGN125,135,GU201505-201908
TIRE & DISC WHEEL-205R16C STEEL
main53857-47011iGUN125,135..SXT..S;GGN125,GUN125,126,136,TGN126,128,138..(ADC,KDC,SDC,SXT)..(H,M)201908-202105
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
main53857-06030iGUN125,13#..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);GGN125,GUN125,126,13#,TGN126..TDC..(H,M)201908-202105
(L)
main53857-0K010iGUN125,135..SXT..S;GGN125,GUN125,126,136,TGN126,128,138..(ADC,KDC,SDC,SXT)..(H,M)202001-202102
main53857-47011iGUN125..TXT..M;TGN126..M..GCC;KUN125..TXT..(M,S);KUN126..RHD..5FC..M..GEN;GUN125,KUN125..6F..M..GCC;GUN125,KUN125..RHD..TDC..M..GEN201505-201908
TIRE & DISC WHEEL-225/70R17C STEEL
TIRE & DISC WHEEL-205R16C STEEL
main53857-47011iGUN125,135..SXT..S;GGN125,GUN125,126,136,TGN126,128,138..(ADC,KDC,SDC,SXT)..(H,M)201908-202105
(J)
53882KSEAL, FRONT FENDER
53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
main53807-0K100iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53807-0K110iGUN135..TXT..L;GUN125..LHD..TSC;GUN125,KUN125..TDC..(L,S,X);KUN125..LHD..(TSC,TXT)..(L,X);GUN122,KUN122,TGN121..PSC,TDC,TSC,TXT;GUN126,13#,TGN136..(MDC,PDC,PSC,TDC,201505-202105
main53807-0K130iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53886GSEAL, FENDER APRON MUDGUARD, LH
main53808-0K100iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53808-0K110iGUN135..TXT..L;GUN125..LHD..TSC;GUN125,KUN125..TDC..(L,S,X);KUN125..LHD..(TSC,TXT)..(L,X);GUN122,KUN122,TGN121..PSC,TDC,TSC,TXT;GUN126,13#,TGN136..(MDC,PDC,PSC,TDC,201505-202105
main53808-0K130iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH
53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH
main53908-KK020iGUN136..H,M;GUN126,KUN125..(SDC,SSC)..M;GUN136..S..(ARL,BZAGT)..CBU;GGN125,135,KUN136,TGN128,138;TGN126..(M,S)..(BZAGT,GEN,LA);KUN126..(H,M,S)..(GEN,LA,PKN,SA);GUN1201505-202105
76181BULGE, HOOD
76183PROTECTOR, HOOD BULGE, NO.1
758750K020MOULDING, BACK DOOR OUTSIDE, UPPER
main75875-0K020
90109T0047
main90109-T0047
90119T0004
main90119-T0004
90178T0029
main90178-T0029
9046710204
main90467-10204
9090467036
main90904-67036
90950T6002
main90950-T6002
30 parts on this diagram · 4 diagrams in section
