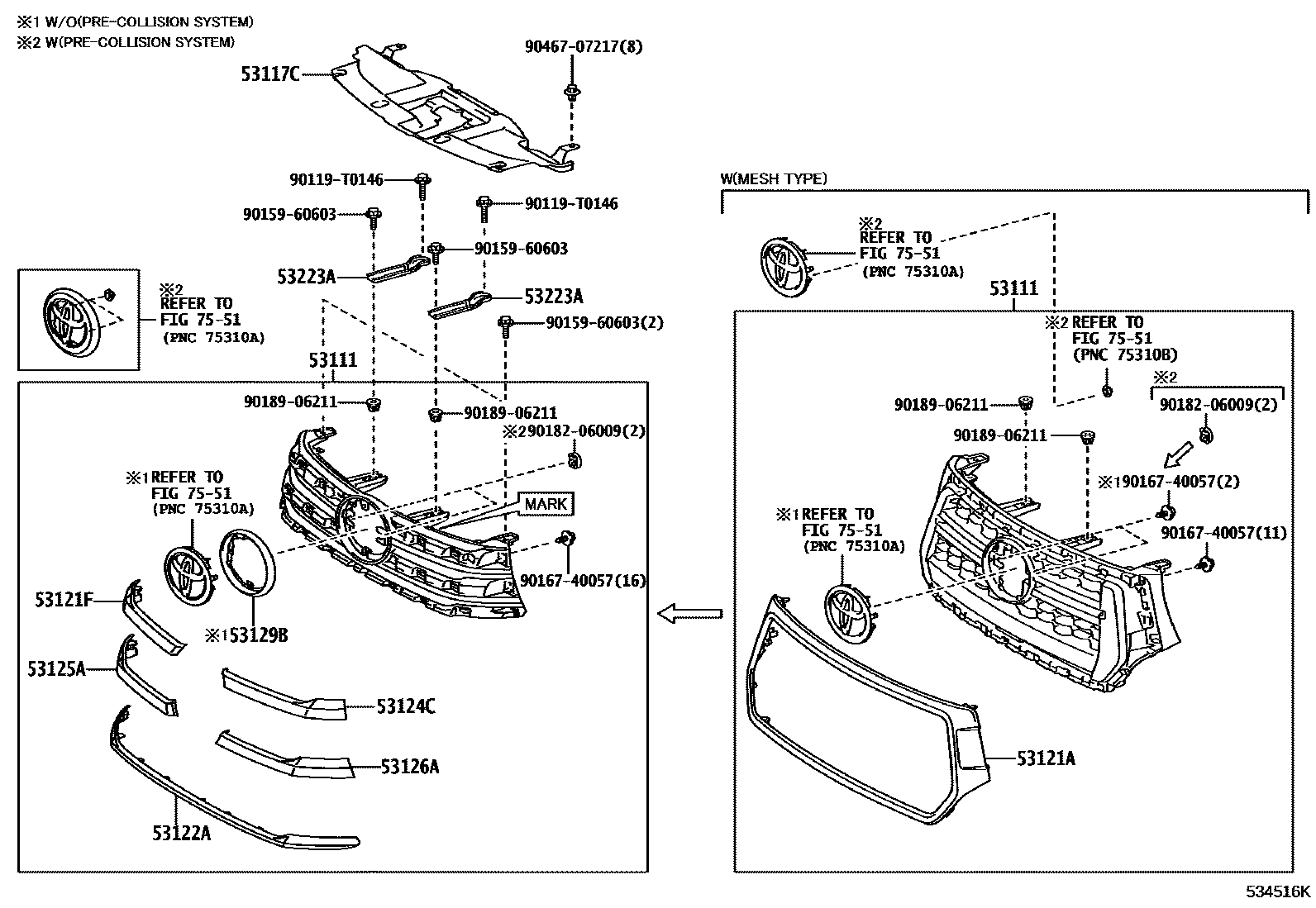

RADIATOR GRILLE
53111GRILLE, RADIATOR
NO PAINT REQ.
main53100-0K490iTGN136..GEN;TGN126..TDC..S..LA;GUN125,KUN125..L..IDN;GUN126..TXT..6F..S..CBU;GUN126..TDC..S..(GEN,LA);GUN125..(TDC,TSC)..6FC..(GEN,LA);GUN135..TDC..(L,S)..(GEN,LA,P201505-202005
NO PAINT REQ.
PLATED
ECUADOR SPEC&CHROME PACKAGE
REAR BUMPER-STEP TYPE(PLATED)
ECUADOR SPEC
REAR BUMPER-PLATED & WITH(*RUPD)
ASIA COLD COUNTRY SPEC&REAR BUMPER-STEP TYPE(PLATED)
ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)
OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)
PLATED
RADIATOR GRILLE(MATERIAL COLOR)
NO PAINT REQ.
NO PAINT REQ.
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP)
ECUADOR SPEC
ECUADOR SPEC&CHROME PACKAGE
53117CRETAINER, RADIATOR GRILLE, NO.1
53121AMOULDING, RADIATOR GRILLE
53121FMOULDING, RADIATOR GRILLE, UPPER RH
main53125-0K010iTGN136..GEN;GUN125,KUN125..L..IDN;GUN125..(TDC,TSC)..6FC..(GEN,LA);GUN135..TDC..(L,S)..(GEN,LA,PH,VN);GUN125..(TDC,TSC,TXT)..6F..S..(GEN,LA,PH,VN);GGN12#,GUN122,123201505-202005
MARK=53100-0K510
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0K510
MARK=53100-0KB40
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0KB40
ECUADOR SPEC&CHROME PACKAGE
main53125-0K060iTGN126..ASC;GUN126..6FC..BZAGT;GUN126..6F..(M,S)..IART;GUN126,KUN126..ADC..M..LA;GUN136,TGN126,136..ADC..(H,M);GUN126..6F..(H,M)..HDCR..BZAGT;GGN125,GUN136,KUN136,T201511-202010
ECUADOR SPEC
53122AMOULDING, RADIATOR GRILLE, LOWER
main53122-0K200iTGN136..GEN;GUN125,KUN125..L..IDN;GUN125..(TDC,TSC)..6FC..(GEN,LA);GUN135..TDC..(L,S)..(GEN,LA,PH,VN);GUN125..(TDC,TSC,TXT)..6F..S..(GEN,LA,PH,VN);GGN12#,GUN122,123201505-202005
main53122-0K230iGUN126..S..GCC;TGN126..TSC..LA;GUN125..RHD..(H,M)..GEN;GUN122,135..M..(GEN,PH,VN);GUN135..(H,M,S)..(GEN,MA,TH);GUN125..LHD..(TSC,TXT)..(L,M);GUN125,TGN126..TDC..M..201505-202012
MARK=53100-0K510
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0K510
MARK=53100-0KB40
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0KB40
ECUADOR SPEC&CHROME PACKAGE
ECUADOR SPEC
53124CMOULDING, RADIATOR GRILLE, UPPER LH
main53126-0K010iTGN136..GEN;GUN125,KUN125..L..IDN;GUN125..(TDC,TSC)..6FC..(GEN,LA);GUN135..TDC..(L,S)..(GEN,LA,PH,VN);GUN125..(TDC,TSC,TXT)..6F..S..(GEN,LA,PH,VN);GGN12#,GUN122,123201505-202005
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0K510
MARK=53100-0K510
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0KB40
MARK=53100-0KB40
ECUADOR SPEC&CHROME PACKAGE
ECUADOR SPEC
53125AMOULDING, RADIATOR GRILLE, CENTER RH
main53123-0K030iTGN136..GEN;GUN125,KUN125..L..IDN;GUN125..(TDC,TSC)..6FC..(GEN,LA);GUN135..TDC..(L,S)..(GEN,LA,PH,VN);GUN125..(TDC,TSC,TXT)..6F..S..(GEN,LA,PH,VN);GGN12#,GUN122,123201505-202005
MARK=53100-0K510
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0K510
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0KB40
MARK=53100-0KB40
ECUADOR SPEC&CHROME PACKAGE
ECUADOR SPEC
53126AMOULDING, RADIATOR GRILLE, CENTER LH
main53124-0K030iTGN136..GEN;GUN125,KUN125..L..IDN;GUN125..(TDC,TSC)..6FC..(GEN,LA);GUN135..TDC..(L,S)..(GEN,LA,PH,VN);GUN125..(TDC,TSC,TXT)..6F..S..(GEN,LA,PH,VN);GGN12#,GUN122,123201505-202005
MARK=53100-0K510
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0K510
MARK=53100-0KB40
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0KB40
ECUADOR SPEC
main53124-0K080iTGN126..ASC;GUN126..6FC..BZAGT;GUN126..6F..(M,S)..IART;GUN126,KUN126..ADC..M..LA;GUN136,TGN126,136..ADC..(H,M);GUN126..6F..(H,M)..HDCR..BZAGT;GGN125,GUN136,KUN136,T201511-202010
ECUADOR SPEC&CHROME PACKAGE
53129BMOULDING, RADIATOR GRILLE, NO.9
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0K510
MARK=53100-0K510
MARK=53100-0KB40
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP),MARK=53100-0KB40
main53127-0K060iTGN126..ASC;GUN126..6FC..BZAGT;GUN126..6F..(M,S)..IART;GUN126,KUN126..ADC..M..LA;GUN136,TGN126,136..ADC..(H,M);GUN126..6F..(H,M)..HDCR..BZAGT;GGN125,GUN136,KUN136,T201511-202010
ECUADOR SPEC&CHROME PACKAGE
ECUADOR SPEC
main53127-0K110iGUN122..TXT..5F..X;GUN125..(MDC,MSC,TXT)..6F..X;GUN125..TDC..6F..(L,X)..(GEN,LA);TGN121..(TDC,TSC)..(L,X)..(GEN,TH);GUN125..TSC..6F..(L,X)..(GEN,IDN,LA);GUN122..TSC201505-202012
53223ABRACKET, RADIATOR GRILLE MOUNTING
main53115-0K090iKUN122,TGN136..SDC;GGN125,135,GUN122,125,126,13#,KUN125,126,135,LAN125,TGN120,121,126..KEN,SA201601-202102
7551
90119T0146
main90119-T0146
9015960603
main90159-60603
9016740057
main90167-40057
9018206009
main90182-06009
9018906211
main90189-06211
9046707217
main90467-07217
17 parts on this diagram · 2 diagrams in section
