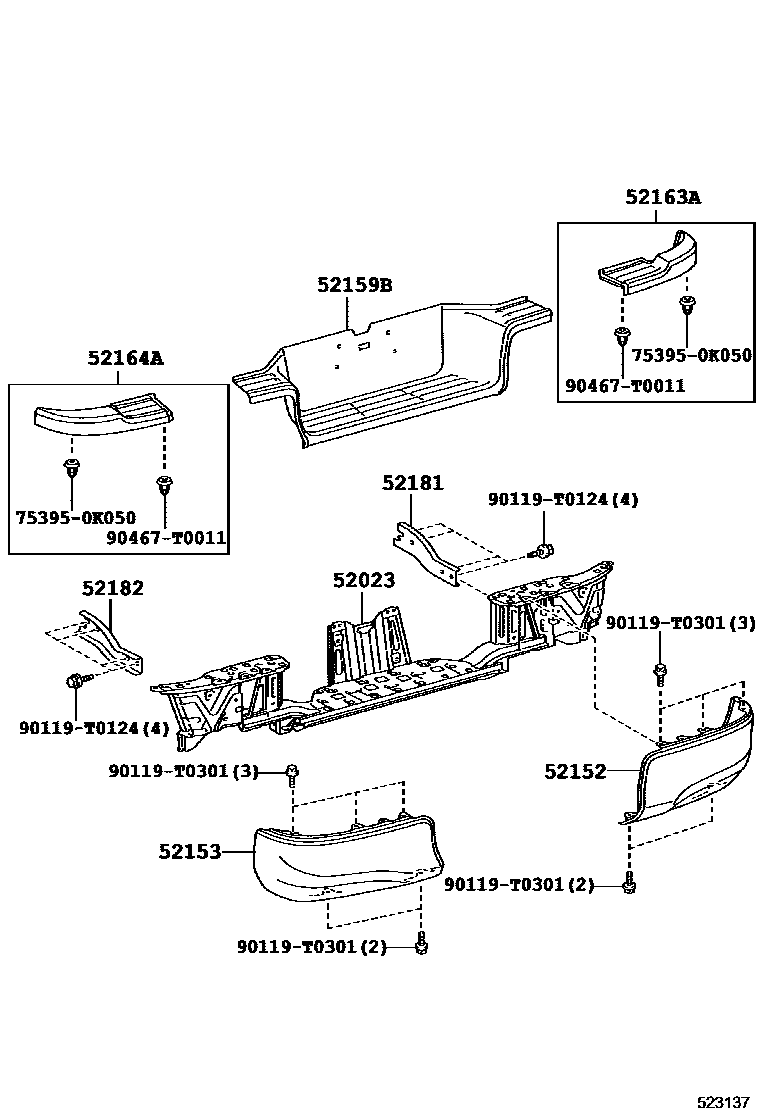

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
"BLACK RALLY EDITION"*(B)&REAR BUMPER-STEP TYPE(PAINTED) & GRILLE(MESH TYPE)
sub52023-0K031
ASIA COLD COUNTRY SPEC&PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)
sub52023-0K031
CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED)
sub52023-0K031
CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PLATED)
sub52023-0K031
AZERBAIJAN SPEC(EURO 4 REGULATION)&REAR BUMPER-STEP TYPE(PAINTED)
sub52023-0K031
AZERBAIJAN SPEC(EURO 4 REGULATION)&REAR BUMPER-STEP TYPE(PLATED)
sub52023-0K031
main52023-0K030iGUN125,135..S..PH;GUN126..6FC..S..GEN;GUN125..TDC..6FC..L..GEN;GUN125..(TSC,TXT)..6F..(L,S)..GEN;GUN125,TGN110..(TDC,TSC)..(L,X)..IDN201505-201905
REAR BUMPER-WITHOUT
sub52023-0K031
main52023-0K030iGUN125,135..S..PH;GUN126..6FC..S..GEN;GUN125..TDC..6FC..L..GEN;GUN125..(TSC,TXT)..6F..(L,S)..GEN;GUN125,TGN110..(TDC,TSC)..(L,X)..IDN201505-201905
RADIATOR GRILLE(MATERIAL COLOR)
sub52023-0K031
main52023-0K030iGUN125,135..S..PH;GUN126..6FC..S..GEN;GUN125..TDC..6FC..L..GEN;GUN125..(TSC,TXT)..6F..(L,S)..GEN;GUN125,TGN110..(TDC,TSC)..(L,X)..IDN201505-201905
RADIATOR GRILLE(MATERIAL COLOR)&REAR BUMPER-WITHOUT
sub52023-0K031
main52023-0K030iGUN125,135..S..PH;GUN126..6FC..S..GEN;GUN125..TDC..6FC..L..GEN;GUN125..(TSC,TXT)..6F..(L,S)..GEN;GUN125,TGN110..(TDC,TSC)..(L,X)..IDN201505-201905
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&REAR BUMPER-WITHOUT
sub52023-0K031
main52023-0K030iGUN125,135..S..PH;GUN126..6FC..S..GEN;GUN125..TDC..6FC..L..GEN;GUN125..(TSC,TXT)..6F..(L,S)..GEN;GUN125,TGN110..(TDC,TSC)..(L,X)..IDN201505-201905
"BLACK RALLY EDITION"*(B)&REAR BUMPER-WITHOUT
sub52023-0K031
sub52023-0K031
ASIA COLD COUNTRY SPEC&REAR BUMPER-STEP TYPE(PLATED)
sub52023-0K031
ASIA COLD COUNTRY SPEC&REAR BUMPER-STEP TYPE(PAINTED)
sub52023-0K031
ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)
sub52023-0K031
ASEAN GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)
sub52023-0K031
OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PAINTED)
sub52023-0K031
OCEANIA GENERAL SPEC&REAR BUMPER-STEP TYPE(PLATED)
sub52023-0K031
main52023-0K031iGUN126..TDC..X;GUN125..TSC..GCC;GUN126..(H,M)..GEN;GUN125..6FC..L..GCC;GUN125..LHD..TDC..M..GEN;GUN125..TDC..6F..L..(GCC,GEN);GUN122,126..RHD..MTM..(S,X)..GEN;TGN12201906-202006
KAZAKHSTAN SPEC(EURO 4 REGULATION)&REAR BUMPER-PLATED & WITH(*RUPD)
sub52023-0K041
KAZAKHSTAN SPEC(EURO 4 REGULATION)&REAR BUMPER-PAINTED & WITH(*RUPD)
sub52023-0K041
main52023-0K040iGUN125,126..MA;GUN135..L..GEN;GUN125..6FC..L..GEN;GUN125..LHD..TDC..(S,X)..GEN201505-201905
KAZAKHSTAN SPEC(EURO 5 REGULATION)&REAR BUMPER-PAINTED & WITH(*RUPD)
sub52023-0K041
main52023-0K040iGUN125,126..MA;GUN135..L..GEN;GUN125..6FC..L..GEN;GUN125..LHD..TDC..(S,X)..GEN201505-201905
KAZAKHSTAN SPEC(EURO 5 REGULATION)&REAR BUMPER-PLATED & WITH(*RUPD)
sub52023-0K041
main52023-0K040iGUN125,126..MA;GUN135..L..GEN;GUN125..6FC..L..GEN;GUN125..LHD..TDC..(S,X)..GEN201505-201905
REAR BUMPER-WITHOUT
sub52023-0K041
main52023-0K040iGUN125,126..MA;GUN135..L..GEN;GUN125..6FC..L..GEN;GUN125..LHD..TDC..(S,X)..GEN201505-201905
ASIA COLD COUNTRY SPEC&REAR BUMPER-WITHOUT
sub52023-0K041
main52023-0K040iGUN125,126..MA;GUN135..L..GEN;GUN125..6FC..L..GEN;GUN125..LHD..TDC..(S,X)..GEN201505-201905
ASEAN GENERAL SPEC&REAR BUMPER-WITHOUT
sub52023-0K041
main52023-0K040iGUN125,126..MA;GUN135..L..GEN;GUN125..6FC..L..GEN;GUN125..LHD..TDC..(S,X)..GEN201505-201905
OCEANIA GENERAL SPEC&REAR BUMPER-WITHOUT
sub52023-0K041
main52023-0K040iGUN125,126..MA;GUN135..L..GEN;GUN125..6FC..L..GEN;GUN125..LHD..TDC..(S,X)..GEN201505-201905
CAMBODIA SPEC&REAR BUMPER-WITHOUT
sub52023-0K041
sub52023-0K041
main52023-0K041iGUN125,126..MA;GUN135..L..GEN;TGN126..(M,S)..GEN;GUN125..6FC..L..GEN;GUN125..LHD..TDC..(S,X)..GEN201906-202012
EXPORT FROM SOUTH AFRICA
sub52023-0K051
main52023-0K051iGUN125..KDC,SXT;GUN126,136..S..SA;GUN125,126..(M,S)..KEN;GUN122,125,126,135,LAN125,TGN121,126..LHD..(SDC,SSC)..CBU201906-202102
EXPORT FROM SOUTH AFRICA&"BLACK RALLY EDITION"*(B)&REAR BUMPER-STEP TYPE(PLATED)
sub52023-0K061
sub52023-0K061
"BLACK RALLY EDITION"*(B)
EXPORT FROM SOUTH AFRICA&"BLACK RALLY EDITION"*(B)&REAR BUMPER-STEP TYPE(PLATED)
main52023-0K070iGUN125,135..(ADC,ASC)..CBU;GGN125,GUN126,136,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201905
sub52023-0K071
52152BAR, REAR BUMPER, RH
main52151-0K040iGUN135..S..VN;KUN125..LHD..L..GEN;KUN125..(TDC,TSC)..X;GUN125..TDC..6F..L..GEN;GUN125..RHD..TDC..S..GEN;KUN122..LHD..TDC..L..GEN;KUN125..RHD..TDC..(L,S)..GEN;GUN125201505-202006
REAR BUMPER-STEP TYPE(PLATED)
"BLACK RALLY EDITION"*(B)
main52151-0K060iGUN125..6FC..L..GEN;GUN135..L..(GEN,MA);GUN125..LHD..TDC..S..GEN;GUN125..(MDC,MSC,TDC)..X..(GEN,MA)201505-202012
KAZAKHSTAN SPEC(EURO 4 REGULATION)&REAR BUMPER-PLATED & WITH(*RUPD)
KAZAKHSTAN SPEC(EURO 2 REGULATION)&REAR BUMPER-PLATED & WITH(*RUPD)
KAZAKHSTAN SPEC(EURO 5 REGULATION)&REAR BUMPER-PLATED & WITH(*RUPD)
REAR BUMPER-STEP TYPE(PAINTED)
main52151-0K080iGUN125..S..KEN;GUN125..KDC,SXT;KUN125..LHD..X..SA;GUN126,KUN125..S..SA;GUN136,KUN122,135,TGN126..SDC..(S,X);GUN122,125,135,LAN125,TGN121..LHD..(SDC,SSC)..(S,X)..CBU201601-202102
REAR BUMPER-PLATED & WITH(*RUPD)
main52151-0K110iTGN126..ADC..X;GUN126..(ADC,ASC)..(L,X);GUN125,135,KUN125,126,135,TGN13#..(ADC,ASC)..(L,X)..CBU201511-202010
REAR BUMPER-STEP TYPE(PAINTED)
main52151-0K120iTGN126..ASC;GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC..(H,M,S)201511-202010
REAR BUMPER-STEP TYPE(PLATED)
NO PAINT REQ.
52153BAR, REAR BUMPER, LH
main52152-0K040iGUN135..S..VN;KUN125..LHD..L..GEN;KUN125..(TDC,TSC)..X;GUN125..TDC..6F..L..GEN;GUN125..RHD..TDC..S..GEN;KUN122..LHD..TDC..L..GEN;KUN125..RHD..TDC..(L,S)..GEN;GUN125201505-202006
REAR BUMPER-STEP TYPE(PLATED)
"BLACK RALLY EDITION"*(B)
main52152-0K060iGUN125..6FC..L..GEN;GUN135..L..(GEN,MA);GUN125..LHD..TDC..S..GEN;GUN125..(MDC,MSC,TDC)..X..(GEN,MA)201505-202012
KAZAKHSTAN SPEC(EURO 5 REGULATION)&REAR BUMPER-PLATED & WITH(*RUPD)
KAZAKHSTAN SPEC(EURO 4 REGULATION)&REAR BUMPER-PLATED & WITH(*RUPD)
KAZAKHSTAN SPEC(EURO 2 REGULATION)&REAR BUMPER-PLATED & WITH(*RUPD)
REAR BUMPER-STEP TYPE(PAINTED)
main52152-0K080iGUN125..S..KEN;GUN125..KDC,SXT;KUN125..LHD..X..SA;GUN126,KUN125..S..SA;GUN136,KUN122,135,TGN126..SDC..(S,X);GUN122,125,135,LAN125,TGN121..LHD..(SDC,SSC)..(S,X)..CBU201601-202102
REAR BUMPER-PLATED & WITH(*RUPD)
REAR BUMPER-STEP TYPE(PAINTED)
REAR BUMPER-STEP TYPE(PLATED)
NO PAINT REQ.
52159BPLATE, REAR BUMPER
AZERBAIJAN SPEC(EURO 4 REGULATION)&REAR BUMPER-STEP TYPE(PAINTED)
sub52159-0K291
sub52159-0K291
main52159-0K290iGUN135..S..VN;KUN125..LHD..L..GEN;KUN125..(TDC,TSC)..X;GUN125..TDC..6F..L..GEN;GUN125..RHD..TDC..S..GEN;KUN122..LHD..TDC..L..GEN;KUN125..RHD..TDC..(L,S)..GEN;GUN125201505-202005
REAR BUMPER-STEP TYPE(PAINTED)
sub52159-0K291
main52159-0K290iGUN135..S..VN;KUN125..LHD..L..GEN;KUN125..(TDC,TSC)..X;GUN125..TDC..6F..L..GEN;GUN125..RHD..TDC..S..GEN;KUN122..LHD..TDC..L..GEN;KUN125..RHD..TDC..(L,S)..GEN;GUN125201505-202005
REAR BUMPER-STEP TYPE(PLATED)
sub52159-0K291
CAMBODIA SPEC&REAR BUMPER-STEP TYPE(PAINTED)
sub52159-0K291
sub52159-0K301
EXPORT FROM SOUTH AFRICA&"BLACK RALLY EDITION"*(B)&REAR BUMPER-STEP TYPE(PLATED)
sub52159-0K301
main52159-0K300iGUN125..SXT;KUN122,TGN136..SDC;GUN135,KUN125..(M,S)..SA;GUN125..(SDC,SSC)..(M,S)..CBU;GUN122,125,KUN125..LHD..X..SA..CBU;GGN125,135,GUN126,136,KUN126,135,LAN125,TGN201601-201905
REAR BUMPER-WITHOUT
sub52159-0K301
main52159-0K301iGUN135..S..SA;GUN125..KDC,SXT;GUN122,125,135..LHD..X..SA..CBU;GUN125..(KSC,SDC,SSC)..(M,S)..CBU;GGN125,GUN126,136,LAN125,TGN121,126,136..(KEN,SA)..CBU201906-202102
main52159-0K310iGUN125,135..(ADC,ASC)..CBU;GGN125,GUN126,136,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201905
sub52159-0K311
52163APLATE, REAR BUMPER, RH
REAR BUMPER-STEP TYPE(PAINTED)
main52163-0K050iGUN125,135..(ADC,ASC)..CBU;GGN125,GUN126,136,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010
52164APLATE, REAR BUMPER, LH
main52164-0K030iKUN125..LHD..L;KUN126..6F..GEN;KUN122..GCC..CBU;GUN135..6F..M..PH;GUN126..(H,L,M)..GEN;GUN135..6F..(M,S)..TH;GUN122,KUN122..5F..(H,M);KUN122..LHD..TDC..L..GEN;KUN12201505-202105
REAR BUMPER-STEP TYPE(PAINTED)
main52164-0K050iGUN125,135..(ADC,ASC)..CBU;GGN125,GUN126,136,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010
52181ARM, REAR BUMPER, RH
main52181-0K060iKUN125..LHD..L;KUN126..6F..GEN;GUN135..6F..M..PH;GUN126..(H,L,M)..GEN;GUN135..6F..(M,S)..TH;GUN122,KUN122..5F..(H,M);KUN122..LHD..TDC..L..GEN;KUN126..5FC..(H,L,M)..201505-202012
main52181-0K070iGUN125..KDC,SXT;KUN122,TGN136..SDC;GUN135,KUN125..(M,S)..SA;GUN125..(KSC,SDC,SSC)..(M,S)..CBU;GUN122,125,135,KUN125..LHD..X..SA..CBU;GGN125,135,GUN126,136,KUN126,13201601-202102
REAR BUMPER-STEP TYPE(PAINTED)
main52181-0K080iGUN125,135..(ADC,ASC)..CBU;GGN125,GUN126,136,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010
52182ARM, REAR BUMPER, LH
REAR BUMPER-STEP TYPE(PAINTED)
main52182-0K080iGUN125,135..(ADC,ASC)..CBU;GGN125,GUN126,136,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010
753950K050CLIP, BACK DOOR MOULDING, NO.1
main75395-0K050
90119T0124
main90119-T0124
90119T0301
main90119-T0301
90467T0011
main90467-T0011
12 parts on this diagram · 1 diagram in section
