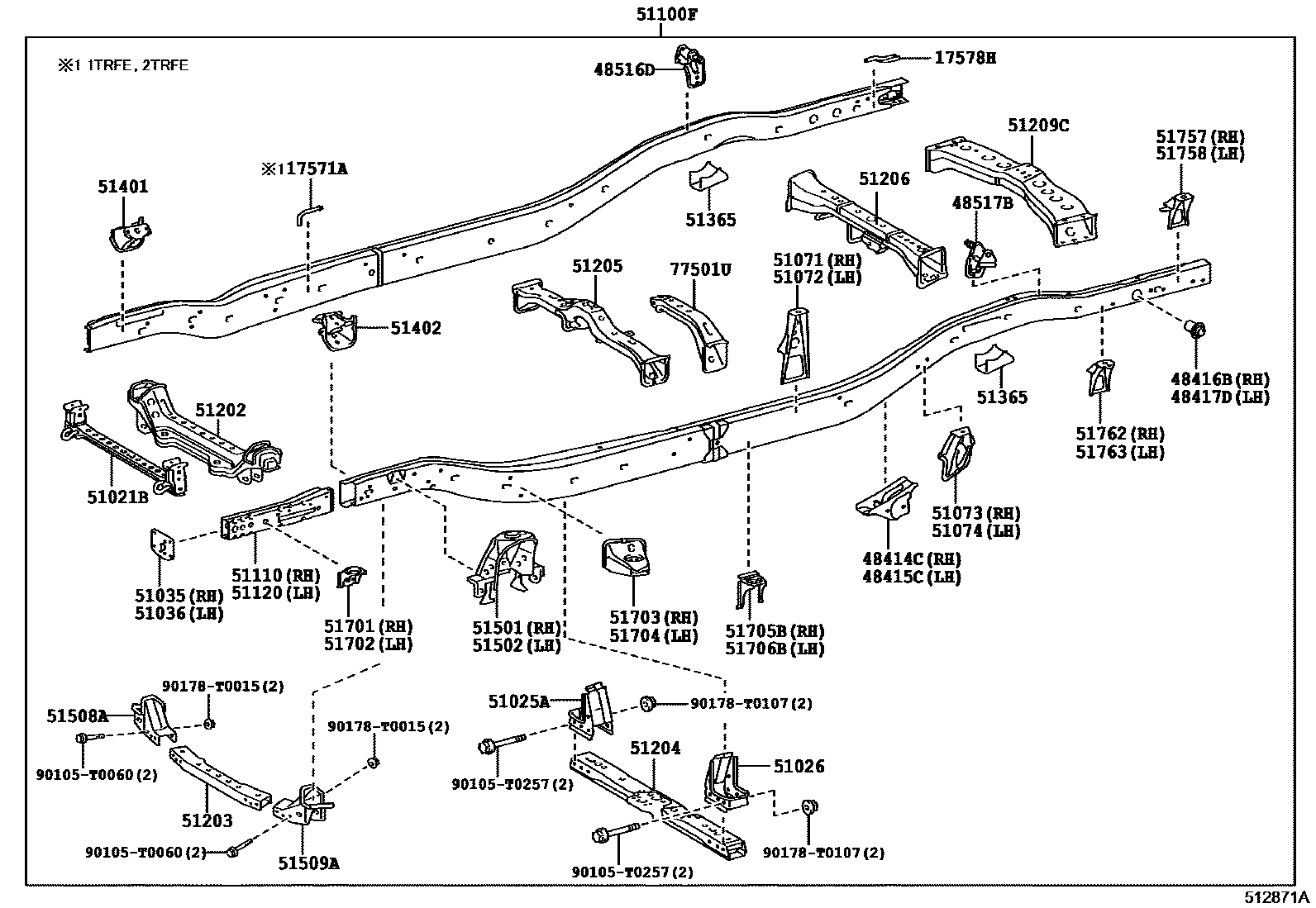

FRAME
17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9
17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10
48414CBRACKET, SPRING, NO.3 RH
48415CBRACKET, SPRING, NO.3 LH
main48407-KK040iGUN136..S..SA;GUN135..6FC..SA;GUN135..RHD..SDC..X;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201505-202105
48416BBRACKET, SPRING, NO.4 RH
main48405-KK010iGUN136..H,M;GUN135..SSC..X;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC201505-202105
48417DBRACKET, SPRING, NO.4 LH
48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
main51036-KK010iGUN136..H,M;GUN135..SSC..X;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC201505-202105
51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
main51071-KK010iGUN136..S..SA;GUN135..RHD..SDC..X;GGN125,GUN135..(ADC,SDC)..6FC..(H,S)..(BZAGT,SA)201505-202105
51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
main51072-KK010iGUN135..LHD..SA;GUN135..SDC..6F..S;GUN135..ADC,MDC,TDC;GUN136..(ADC,TDC)..S;GUN136..(ADC,SDC,TDC)..(H,M);GUN125,126,TGN126,128,13#..ADC,KDC,MDC,PDC,SDC,TDC;GGN12#,1201505-202105
51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
main51073-KK010iGUN125..SXT..S;GUN135..(SSC,SXT)..6F;GUN135,TGN136..ASC,KSC,TSC,TXT;GUN125,KUN122..ASC,KSC,MSC,SSC,TSC,TXT;GUN112,120,122,123,126,136,KUN112,125,126,135,LAN125,TGN1201505-202105
51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51100FFRAME SUB-ASSY
sub51001-KK101
sub51001-KK121
sub51001-KK151
sub51001-KK152
sub51001-KK161
sub51001-KK162
sub51001-KK181
sub51001-KK182
sub51001-KK211
sub51001-KK212
sub51001-KK231
sub51001-KK232
sub51001-KK241
sub51001-KK242
sub51001-KK251
sub51001-KK252
sub51001-KK261
sub51001-KK281
sub51001-KK282
sub51001-KK311
sub51001-KK331
sub51001-KK341
sub51001-KK351
sub51001-KK361
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
sub51001-KK371
ASIA COLD COUNTRY SPEC
sub51001-KK371
sub51001-KK371
sub51001-KK381
sub51001-KK391
sub51001-KK411
sub51001-KK421
sub51001-KK422
sub51001-KK431
sub51001-KK442
sub51001-KK451
sub51001-KK452
sub51001-KK471
sub51001-KK481
sub51001-KK482
sub51001-KK671
sub51001-KK681
sub51001-KK691
sub51001-KK701
sub51001-KK711
sub51001-KK721
sub51001-KK731
sub51001-KK741
sub51001-KK751
sub51001-KK761
sub51001-KK771
sub51001-KK781
sub51001-KK791
sub51001-KK801
sub51001-KK811
sub51001-KK821
sub51001-KKA11
sub51001-KKA21
sub51001-KKA31
sub51001-KKA41
sub51001-KKA51
sub51001-KKA61
sub51001-KKA71
sub51001-KKA81
sub51001-KKA91
sub51001-KKB01
sub51001-KKC01
sub51001-KKC11
sub51001-KKC21
sub51001-KKC31
51110EXTENSION ASSY, SIDE RAIL, RH
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
sub51110-KK907
sub51110-KK907
sub51110-KK906
main51110-KK906iKUN122..GCC,GEN;GGN120,GUN112,120,122,123,KUN112,TGN11#,120,121..PSC,TDC,TSC,TXT201704-202105
AZERBAIJAN SPEC(EURO 4 REGULATION)
MEXICO SPEC
KAZAKHSTAN SPEC(EURO 2 REGULATION)
KAZAKHSTAN SPEC(EURO 4 REGULATION)
KAZAKHSTAN SPEC(EURO 5 REGULATION)
ASIA COLD COUNTRY SPEC
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
OCEANIA GENERAL SPEC
51120EXTENSION ASSY, SIDE RAIL, LH
main51122-KK901iGUN125..M..GEN;TGN126..6FC..L..GEN;GUN136..(SDC,TXT)..6F;TGN126..5F..(BZAGT,GCC,GEN,LA);GUN135,TGN126..TDC..6FC..(GCC,PH,TH);GUN125,126,135,KUN125,126,135..ASC,MSC,201505-201705
KAZAKHSTAN SPEC(EURO 2 REGULATION)
sub51122-KK907
main51122-KK901iGUN125..M..GEN;TGN126..6FC..L..GEN;GUN136..(SDC,TXT)..6F;TGN126..5F..(BZAGT,GCC,GEN,LA);GUN135,TGN126..TDC..6FC..(GCC,PH,TH);GUN125,126,135,KUN125,126,135..ASC,MSC,201505-201705
KAZAKHSTAN SPEC(EURO 4 REGULATION)
sub51122-KK907
main51122-KK901iGUN125..M..GEN;TGN126..6FC..L..GEN;GUN136..(SDC,TXT)..6F;TGN126..5F..(BZAGT,GCC,GEN,LA);GUN135,TGN126..TDC..6FC..(GCC,PH,TH);GUN125,126,135,KUN125,126,135..ASC,MSC,201505-201705
KAZAKHSTAN SPEC(EURO 5 REGULATION)
sub51122-KK907
sub51122-KK907
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
sub51122-KK907
sub51122-KK906
AZERBAIJAN SPEC(EURO 4 REGULATION)
MEXICO SPEC
KAZAKHSTAN SPEC(EURO 2 REGULATION)
KAZAKHSTAN SPEC(EURO 4 REGULATION)
KAZAKHSTAN SPEC(EURO 5 REGULATION)
ASIA COLD COUNTRY SPEC
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
OCEANIA GENERAL SPEC
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
main51202-KK010iGUN136..H,M;GUN135..SSC..X;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC201505-202105
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
main51203-KK010iTGN121,136..6FC;GUN112,122,123,13#,KUN112,122,TGN138..(ADC,PSC,TDC,TSC,TXT)..(5F,6FC)201505-202009
sub51203-KK100
sub51203-KK250
sub51203-KK260
main51203-KK100iTGN121,13#..6FC;GUN112,120,122,123,13#,KUN112,122..(ADC,MDC,PSC,TDC,TSC,TXT)..(5F,6FC)201702-201903
sub51203-KK190
sub51203-KK130
sub51203-KK230
sub51203-KK210
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
main51204-KK050iGUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN136..S..(ARL,BZAGT);GUN135..ADC,ASC,KSC,MDC,TDC,TSC,TXT;GGN135,KUN13#,TGN13#..ADC,ASC,SDC,TDC,TSC,TX201505-202102
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51365STOPPER, REAR BUMPER
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51508ABRACKET SUB-ASSY, LOWER ARM, RH
51509ABRACKET SUB-ASSY, LOWER ARM, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
main51705-KK010iGUN125,135..TXT;GUN125,135..SXT..6F..S;GUN120,122,123,126,136,KUN12#,TGN121,136..SXT,TXT201506-202009
main51705-KK020iGUN135..LHD..SA;GUN135..SDC..6F..S;GUN135..ADC,MDC,TDC;GUN136..(ADC,TDC)..S;GUN136..(ADC,SDC,TDC)..(H,M);GUN125,126,TGN126,128,13#..ADC,KDC,MDC,PDC,SDC,TDC;GGN12#,1201505-202105
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
main51706-KK020iGUN136..S..SA;GUN135..RHD..SDC..X;GGN125,GUN135..(ADC,SDC)..6FC..(H,S)..(BZAGT,SA)201505-202105
51757BRACKET, BODY SUPPORT, NO.4 RH
51758BRACKET, BODY SUPPORT, NO.4 LH
main51078-KK010iGUN136..S..SA;GUN135..6FC..SA;GUN135..RHD..SDC..X;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201505-202105
51762BRACKET, BODY SUPPORT, NO.5 RH
51763BRACKET, BODY SUPPORT, NO.5 LH
main51076-KK010iGUN136..S..SA;GUN135..6FC..SA;GUN135..RHD..SDC..X;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201505-202105
77501UBRACKET SUB-ASSY, FUEL TANK
90105T0060
main90105-T0060
90105T0257
main90105-T0257
90178T0015
main90178-T0015
90178T0107
main90178-T0107
48 parts on this diagram · 8 diagrams in section
