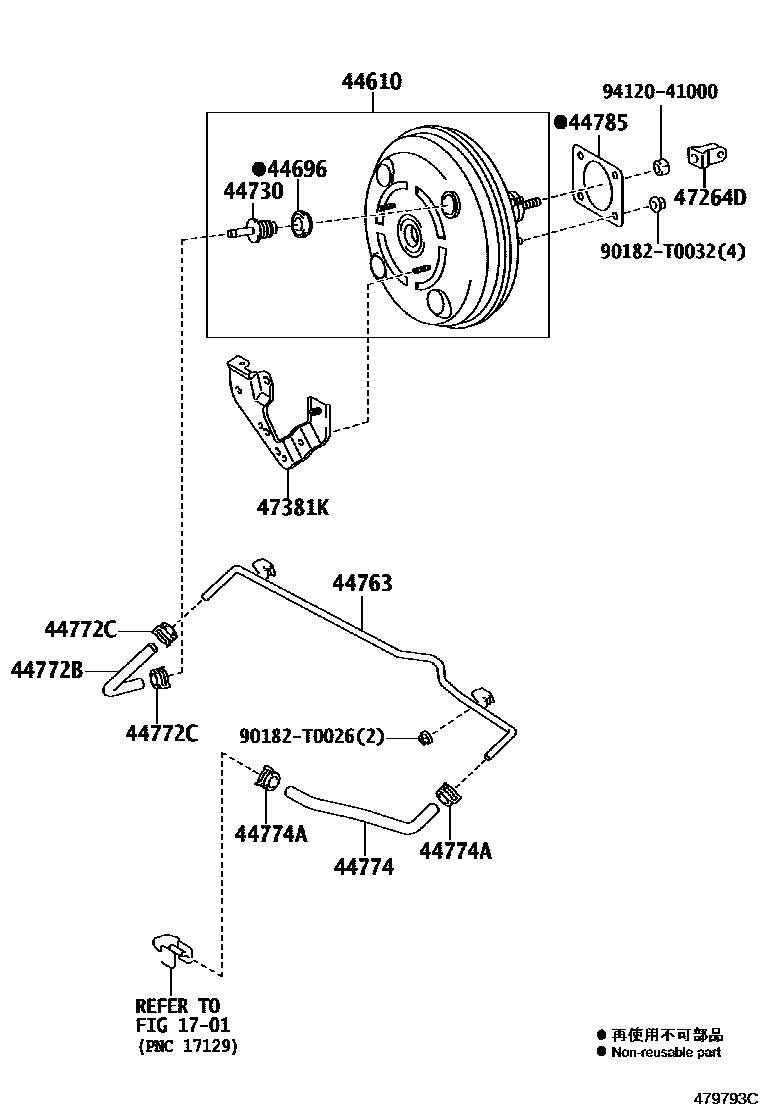

BRAKE BOOSTER & VACUUM TUBE
1701
44610BOOSTER ASSY, BRAKE
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-265/65R17 ALUMINUM
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-225/70R17C STEEL
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-225/70R17C STEEL
main44610-0K560iTGN126..IV3;TGN126..TSC..LA;TGN126..5F..L..GEN;TGN126..TDC..(M,S,X);TGN11#,120,121,136..SDC,SSC,TDC,TSC,TXT201505-202009
TIRE & DISC WHEEL-265/65R17 STEEL
main44610-0K580iGUN126..6F..H..TH;GUN126..RHD..TDC..(ARL,GEN);GUN112,120,122,123,125,13#,KUN112,12#,13#..RHD;GUN126..RHD..(KDC,MDC,PDC,PSC,SDC,SSC,SXT,TSC,TXT)201505-202105
TOYOTA STOP & START SYSTEM-WITH&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
main44610-0K600iGUN112,122,125,126,13#,KUN112,12#,13#,LAN125..LHD..(SDC,SSC,SXT,TDC,TSC,TXT)201505-202009
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITHOUT
TIRE & DISC WHEEL-205R16C STEEL
VEHICLE STABILITY CONTROL-WITHOUT&TIRE & DISC WHEEL-205R16C STEEL
OCEANIA GENERAL SPEC&VEHICLE STABILITY CONTROL-WITHOUT&TIRE & DISC WHEEL-205R16C STEEL
44696GROMMET, CHECK VALVE
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-225/70R17C STEEL
TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-265/65R17 ALUMINUM
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-225/70R17C STEEL
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-265/65R17 STEEL
OCEANIA GENERAL SPEC
VEHICLE STABILITY CONTROL-WITHOUT
OCEANIA GENERAL SPEC&VEHICLE STABILITY CONTROL-WITHOUT
OCEANIA GENERAL SPEC&VEHICLE STABILITY CONTROL-WITHOUT&TIRE & DISC WHEEL-205R16C STEEL
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44763TUBE, BOOSTER VACUUM
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772BHOSE, CHECK VALVE TO BRAKE BOOSTER
NO.1
NO.2
44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
main47264-04010iGGN12#..M,S;GGN135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KDC,KSC,MDC,MSC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT201505-202105
47381KBRACKET, BRAKE BOOSTER TUBE CLAMP
90182T0026
main90182-T0026
90182T0032
main90182-T0032
9412041000
main94120-41000
16 parts on this diagram · 9 diagrams in section
