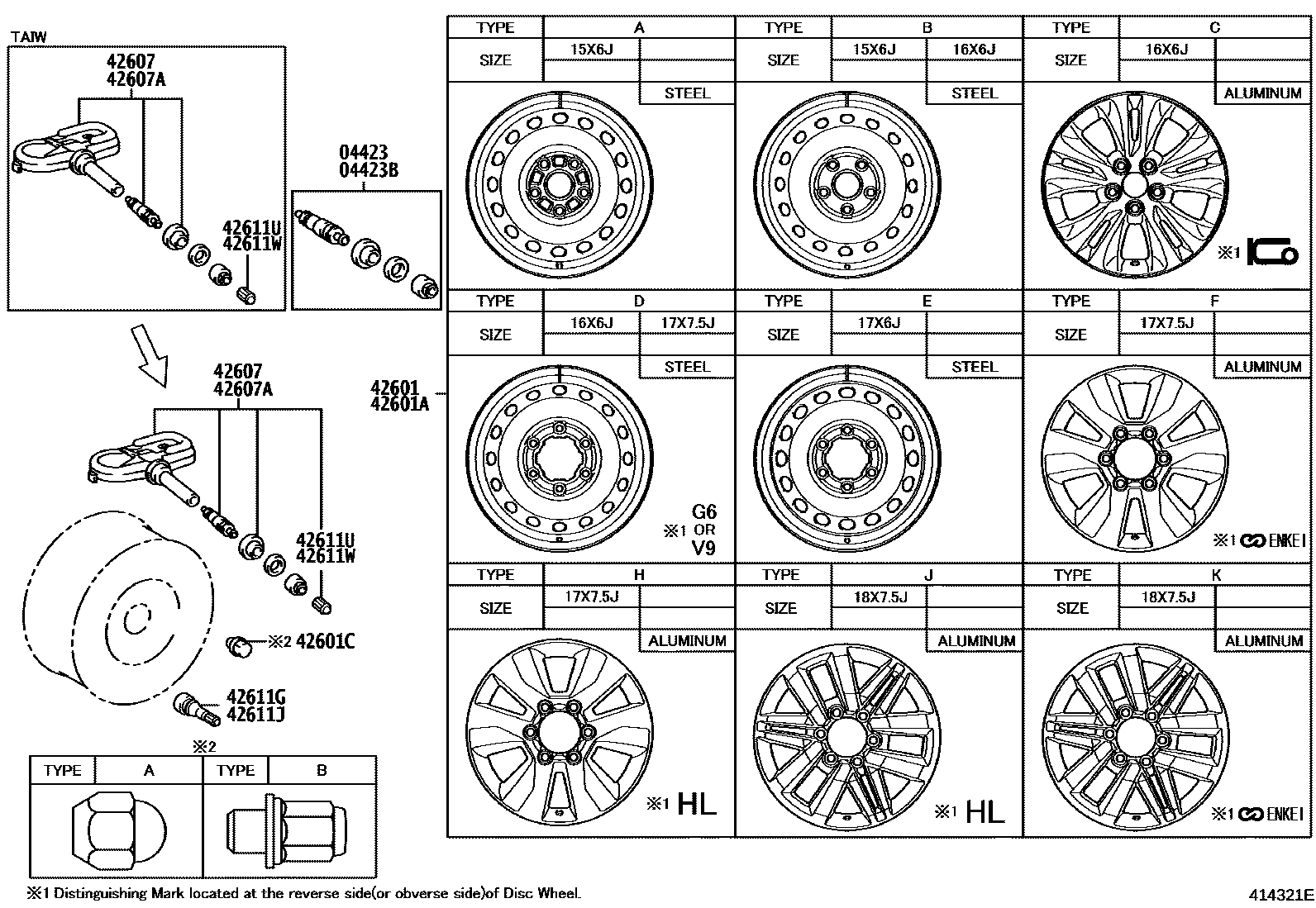

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
main42611-0KG40iGUN126..X..TH;GUN125..LHD..L..GEN;KUN125..TDC..L..DCR;GUN125,KUN125..TSC..(L,M,S)..GEN;GUN125,TGN126..RHD..(MSC,TDC)..(L,X)..(GEN,MA)201505-202012
16X6J, #,TYPE D:REFER ILLUST.
main42611-0KG50iGUN126..X..TH;KUN125..TXT..M;KUN125..TSC..(L,M,S);KUN125..LHD..TDC..S..GEN;GUN125,KUN125,TGN126..(L,S)..GCC;GUN135,KUN125..RHD..TDC..(L,M)..GEN201505-201607
17X6J, #,TYPE E:REFER ILLUST.
sub42611-0KG51
17X6J, #,TIRE & DISC WHEEL-225/70R17C STEEL,TYPE E:REFER ILLUST.
sub42611-0KG51
main42611-0KG50iGUN135..S..PH;KUN125..X..GEN;KUN125..TXT..L..GEN;GUN125,135..LHD..TDC..X;GUN125,126..TSC..(ARL,LA);KUN125,135..(TDC,TSC,TXT)..(L,X)..(IDN,LA);KUN126,TGN126,136..(TD201505-201607
17X6J, #,TIRE & DISC WHEEL-225/70R17C STEEL&TIRE INFLATION PRESSURE WARNING-WITH,TYPE E:REFER ILLUST.
sub42611-0KG51
main42611-0KG51iTGN126..IV3;KUN125..X..GEN;GUN125..TSC..X;KUN125..TXT..L..GEN;GUN125,135..LHD..TDC..X;GUN125,135..TDC..6F..S..(GCC,PH);KUN125..(TDC,TSC,TXT)..(L,X)..(IDN,LA);GUN126201608-202105
17X6J, #,TYPE E:REFER ILLUST.
sub42611-0KG52
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,TYPE D:REFER ILLUST.
main42611-0KG60iTGN138..5F..S;GUN125..TDC..L..IDN;GUN126,KUN125..M..GCC;GUN125,126..ADC..6FC..S..LA;GUN125,TGN126..LHD..TDC..M..(GCC,GEN);GUN125,135..(MDC,TXT)..(L,X)..(ARL,IDN,MA)201505-202012
17X7.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
main42611-0KG70iKUN112..S,X;GUN122..L..(GEN,PH);KUN122..RHD..(H,L,M,S)..GEN;KUN122..LHD..(TSC,TXT)..GEN;GUN122..(TSC,TXT)..(M,S)..GEN;TGN121..(TDC,TSC)..(L,X)..(GEN,TH);GUN112,120,201505-202005
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE A:REFER ILLUST.
main42611-0KG80iKUN122..GCC;KUN122..LHD..M;GUN122..X..(PH,TH);KUN122..RHD..(L,S);TGN121..5F..S..GCC;KUN122..LHD..(TSC,TXT)..(L,S,X)..GEN;TGN121..(TDC,TSC)..(L,M,X)..(GCC,GEN,TH);GU201505-201607
16X6J, #,TIRE & DISC WHEEL-215/65R16C STEEL&TIRE INFLATION PRESSURE WARNING-WITH,TYPE B:REFER ILLUST.
sub42611-0KG81
main42611-0KG80iTGN121..6FC..S;GUN122,TGN121..ARL;GUN122,TGN121..L..TH;GGN120,GUN112,123..RHD;KUN122..TDC..(S,X)..GEN;KUN122..LHD..TDC..L..GEN201505-201609
16X6J, #,TYPE B:REFER ILLUST.
sub42611-0KG81
main42611-0KG80iTGN121..6FC..S;GUN122,TGN121..ARL;GUN122,TGN121..L..TH;GGN120,GUN112,123..RHD;KUN122..TDC..(S,X)..GEN;KUN122..LHD..TDC..L..GEN201505-201609
16X6J, #,TIRE & DISC WHEEL-215/65R16C STEEL,TYPE B:REFER ILLUST.
sub42611-0KG81
main42611-0KG81iTGN121..6FC..S;TGN121..GCC..IV3;GUN122,TGN121..L..TH;KUN122..TDC..(S,X)..GEN;KUN122..LHD..TDC..L..GEN;GUN122..LHD..TDC..(S,X)..GEN;GUN122,TGN121..RHD..X..(ARL,GEN);201608-202009
16X6J, #,TYPE B:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C STEEL,TYPE B:REFER ILLUST.
main42611-0KG90iKUN125..X..SA;LAN125,TGN126..SA;GUN125..LHD..SSC..X;GUN125..LHD..SDC..S;KUN125..LHD..(SDC,SSC)..S;GUN125,135..RHD..(KDC,KSC,SDC,SSC)..X201601-202102
16X6J, #,T/P AA:REFER ILLUST.
main42611-0KJ00iGUN125..LHD..SSC..S;GUN125,135,TGN136..SDC..S;KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S201601-201912
17X7.5J, #,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,T/P AA:REFER ILLUST.
17X7.5J, #,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,T/P AA:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE B:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
main42611-0KJ40iTGN136..ADC..X..BZAGT;GUN125,126,13#,KUN125,126,135,TGN126,13#..ADC..(L,S)201511-201705
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,TYPE Y:REFER ILLUST.
main42611-0KJ40iTGN136..ADC..X..BZAGT;GUN125,126,13#,KUN125,126,135,TGN126,13#..ADC..(L,S)201511-201705
17X7.5J, #,TYPE Y:REFER ILLUST.
17X7.5J, #,TYPE F:REFER ILLUST.
18X7.5J, #,TYPE K:REFER ILLUST.
main42611-0KK30iKUN122..RHD..M;KUN122..TXT..M;KUN122..LHD..TDC..L..GEN;GGN120,GUN123,KUN122..(H,S)..(ARL,GEN);KUN122,TGN121..(TSC,TXT)..(L,X)..GEN..CBU201505-201704
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE C:REFER ILLUST.
sub42611-0KK31
main42611-0KK30iKUN122..RHD..M;KUN122..TXT..M;KUN122..LHD..TDC..L..GEN;GGN120,GUN123,KUN122..(H,S)..(ARL,GEN);KUN122,TGN121..(TSC,TXT)..(L,X)..GEN..CBU201505-201704
16X6J, #,TYPE C:REFER ILLUST.
sub42611-0KK31
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE C:REFER ILLUST.
main42611-0KK31iKUN122..RHD..M;KUN122..TXT..M;GUN122..TDC..S..GEN;KUN122..LHD..TDC..L..GEN;KUN122..(TSC,TXT)..(L,X)..GEN;GGN120,GUN123,KUN122..(H,S)..(ARL,GEN);GUN122,TGN121..(TSC,201705-202005
16X6J, #,TYPE C:REFER ILLUST.
17X7.5J, #,TYPE H:REFER ILLUST.
17X7.5J, #,TYPE U:REFER ILLUST.
18X7.5J, #,TYPE T:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE T:REFER ILLUST.
17X7.5J, #,TYPE H:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE H:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE H:REFER ILLUST.
17X7.5J, #,EGYPT SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE H:REFER ILLUST.
17X7.5J, #,SUDAN SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE H:REFER ILLUST.
17X7.5J, #,IRAN SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE H:REFER ILLUST.
17X7.5J, #,AFRICA SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE H:REFER ILLUST.
17X7.5J, #,SYRIA SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE H:REFER ILLUST.
17X7.5J, #,EGYPT SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE H:REFER ILLUST.
17X7.5J, #,SUDAN SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE H:REFER ILLUST.
17X7.5J, #,IRAN SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE H:REFER ILLUST.
17X7.5J, #,AFRICA SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE H:REFER ILLUST.
17X7.5J, #,SYRIA SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE H:REFER ILLUST.
17X7.5J, #,OCEANIA GENERAL SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FORALUMINUM WHEEL,TYPE H:REFER ILLUST.
17X7.5J, #,SUDAN SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE L:REFER ILLUST.
main42611-0KL90iGUN125..TXT..M;GUN135..6FC..PH;GUN125..TDC..IV3;GGN125,GUN125..RHD..TDC..(H,M)..(ARL,GEN);GUN135,TGN126..TDC..MTM..(L,M)..(LA,PH,VN);GUN135,KUN135..(H,M,S,X)..(ARL,201505-202005
17X7.5J, #,TYPE L:REFER ILLUST.
main42611-0KL90iGUN125..TXT..M;GUN135..6FC..PH;GUN125..TDC..IV3;GGN125,GUN125..RHD..TDC..(H,M)..(ARL,GEN);GUN135,TGN126..TDC..MTM..(L,M)..(LA,PH,VN);GUN135,KUN135..(H,M,S,X)..(ARL,201505-202005
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE L:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE L:REFER ILLUST.
17X7.5J, #,EGYPT SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE L:REFER ILLUST.
17X7.5J, #,IRAN SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE L:REFER ILLUST.
17X7.5J, #,AFRICA SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE L:REFER ILLUST.
17X7.5J, #,SYRIA SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE L:REFER ILLUST.
17X7.5J, #,EGYPT SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE L:REFER ILLUST.
17X7.5J, #,SUDAN SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE L:REFER ILLUST.
17X7.5J, #,IRAN SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE L:REFER ILLUST.
17X7.5J, #,AFRICA SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE L:REFER ILLUST.
17X7.5J, #,SYRIA SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE L:REFER ILLUST.
17X7.5J, #,OCEANIA GENERAL SPEC&TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FORALUMINUM WHEEL,TYPE L:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE H:REFER ILLUST.
sub42611-0KL80
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM),TYPE H:REFER ILLUST.
sub42611-0KL80
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&TIRE INFLATION PRESSURE WARNING-WITH,TYPE H:REFER ILLUST.
sub42611-0KL80
16X6J, #,TYPE P:REFER ILLUST.
sub42611-0KM41
main42611-0KM40iKUN122..RHD..M;KUN122..TXT..M;KUN122..LHD..TDC..L..GEN;GGN120,GUN123,KUN122..(H,S)..(ARL,GEN);KUN122,TGN121..(TSC,TXT)..(L,X)..GEN..CBU201505-201704
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE P:REFER ILLUST.
sub42611-0KM41
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE P:REFER ILLUST.
16X6J, #,TYPE P:REFER ILLUST.
17X7.5J, #,TYPE F:REFER ILLUST.
main42611-0KQ40iTGN136..ADC..X..BZAGT;GUN125,126,13#,KUN125,126,135,TGN126,13#..ADC..(L,S)201705-202010
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,T/P AC:REFER ILLUST.
main42611-0KQ40iTGN136..ADC..X..BZAGT;GUN125,126,13#,KUN125,126,135,TGN126,13#..ADC..(L,S)201705-202010
17X7.5J, #,T/P AC:REFER ILLUST.
18X7.5J, #,TYPE K:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
17X6J, #,TIRE & DISC WHEEL-225/70R17C STEEL,TYPE E:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
17X7.5J, #,TYPE H:REFER ILLUST.
18X7.5J, #,TYPE J:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE J:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM),TYPE O:REFER ILLUST.
17X7.5J, #,TYPE O:REFER ILLUST.
18X7.5J, #,TYPE S:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE S:REFER ILLUST.
17X6J, #,TYPE E:REFER ILLUST.
17X7.5J, #,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,T/P AA:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X6J, #,TYPE D:REFER ILLUST.
17X6J, #,TIRE & DISC WHEEL-225/70R17C STEEL&TIRE INFLATION PRESSURE WARNING-WITH,TYPE E:REFER ILLUST.
sub42611-0KG51
main42611-0KG50iGUN135..S..PH;KUN125..X..GEN;KUN125..TXT..L..GEN;GUN125,135..LHD..TDC..X;GUN125,126..TSC..(ARL,LA);KUN125,135..(TDC,TSC,TXT)..(L,X)..(IDN,LA);KUN126,TGN126,136..(TD201505-201607
17X6J, #,TYPE E:REFER ILLUST.
sub42611-0KG51
main42611-0KG50iGUN135..S..PH;KUN125..X..GEN;KUN125..TXT..L..GEN;GUN125,135..LHD..TDC..X;GUN125,126..TSC..(ARL,LA);KUN125,135..(TDC,TSC,TXT)..(L,X)..(IDN,LA);KUN126,TGN126,136..(TD201505-201607
17X6J, #,TIRE & DISC WHEEL-225/70R17C STEEL,TYPE E:REFER ILLUST.
sub42611-0KG51
main42611-0KG51iTGN126..IV3;KUN125..X..GEN;GUN125..TSC..X;KUN125..TXT..L..GEN;GUN125,135..LHD..TDC..X;GUN125,135..TDC..6F..S..(GCC,PH);KUN125..(TDC,TSC,TXT)..(L,X)..(IDN,LA);GUN126201608-202105
17X6J, #,TYPE E:REFER ILLUST.
sub42611-0KG52
main42611-0KG60iTGN138..5F;GGN125..ADC,TDC;GUN125,TGN126..M..GCC;GUN136..6FC..M..BZAGT;GUN136..(ARL,LA,TH)..CBU;GUN125,126..ADC..6FC..S..LA;GUN125,135..(MDC,TDC,TXT)..(ARL,IDN,MA,T201505-202012
17X7.5J, #,TYPE D:REFER ILLUST.
main42611-0KG70iKUN122..RHD..X..GEN;KUN122..LHD..TDC..(M,X);GUN122..TDC..(M,X)..DCR..GEN201505-202005
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE A:REFER ILLUST.
main42611-0KG70iKUN122..RHD..X..GEN;KUN122..LHD..TDC..(M,X);GUN122..TDC..(M,X)..DCR..GEN201505-202005
15X6J, #,TYPE A:REFER ILLUST.
16X6J, #,TYPE B:REFER ILLUST.
sub42611-0KG81
16X6J, #,TIRE & DISC WHEEL-215/65R16C ALUMINUM,TYPE B:REFER ILLUST.
sub42611-0KG81
16X6J, #,TIRE & DISC WHEEL-215/65R16C STEEL,TYPE B:REFER ILLUST.
sub42611-0KG81
16X6J, #,TIRE & DISC WHEEL-215/65R16C STEEL&TIRE INFLATION PRESSURE WARNING-WITH,TYPE B:REFER ILLUST.
sub42611-0KG81
main42611-0KG81iKUN112..S,X;GUN122..L..(GEN,PH);GUN112,120,TGN110..X;GUN122,TGN120..SA..IV3;KUN122..RHD..(L,S)..GEN;KUN122..LHD..(TSC,TXT)..GEN;GUN122..(TSC,TXT)..(M,S)..DCR..GEN;T201608-202009
16X6J, #,TYPE B:REFER ILLUST.
main42611-0KG81iKUN112..S,X;GUN122..L..(GEN,PH);GUN112,120,TGN110..X;GUN122,TGN120..SA..IV3;KUN122..RHD..(L,S)..GEN;KUN122..LHD..(TSC,TXT)..GEN;GUN122..(TSC,TXT)..(M,S)..DCR..GEN;T201608-202009
16X6J, #,TIRE & DISC WHEEL-215/65R16C STEEL,TYPE B:REFER ILLUST.
main42611-0KG90iKUN125..X..SA;LAN125,TGN126..SA;GUN125..LHD..SSC..X;GUN125..LHD..SDC..S;KUN125..LHD..(SDC,SSC)..S;GUN125,135..RHD..(KDC,KSC,SDC,SSC)..X201601-202102
16X6J, #,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),T/P AA:REFER ILLUST.
17X7.5J, #,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,T/P AA:REFER ILLUST.
17X7.5J, #,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER),T/P AA:REFER ILLUST.
17X7.5J, #, PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM),T/P AA:REFER ILLUST.
17X7.5J, #,RALLY BASIC PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & W(WIDE FENDER & SKID),FOR(MLM),T/P AA:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-205/70R15C STEEL,TYPE B:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM),TYPE Y:REFER ILLUST.
main42611-0KJ40iTGN136..ADC..X..BZAGT;GUN125,126,13#,KUN125,126,135,TGN126,13#..ADC..(L,S)201511-201705
17X7.5J, #,TYPE Y:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,TYPE Y:REFER ILLUST.
main42611-0KK00iGUN126..M..(PH,PKN,VN);GUN135..LHD..TDC..(L,M);GUN126,135,KUN126..(H,S)..VN;GUN125,KUN126,135..(M,S)..(PKN,VN)201505-202105
17X7.5J, #,TYPE F:REFER ILLUST.
18X7.5J, #,TYPE K:REFER ILLUST.
17X7.5J, #,TYPE H:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE T:REFER ILLUST.
18X7.5J, #,TYPE T:REFER ILLUST.
17X7.5J, #,TYPE H:REFER ILLUST.
17X7.5J, #,TYPE L:REFER ILLUST.
17X7.5J, #,TYPE H:REFER ILLUST.
sub42611-0KL80
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,T/P AC:REFER ILLUST.
main42611-0KQ40iGUN136..ADC..(M,S);TGN136..ADC..X..BZAGT;GGN125,GUN125,126,135,KUN125,126,13#,TGN126,128,13#..ADC..(H,L,M,S)201705-202010
17X7.5J, #,T/P AC:REFER ILLUST.
18X7.5J, #,TYPE K:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
main42611-0KR80iTGN136..ASC;TGN136..ADC..X..LA;GUN125,126,135,KUN125,126,135,TGN126..(ADC,ASC)..X201511-202010
17X6J, #,TYPE E:REFER ILLUST.
main42611-0KR80iTGN136..ASC;TGN136..ADC..X..LA;GUN125,126,135,KUN125,126,135,TGN126..(ADC,ASC)..X201511-202010
17X6J, #,TIRE & DISC WHEEL-225/70R17C STEEL,TYPE E:REFER ILLUST.
18X7.5J, #,TYPE J:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE J:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM&SPARE TIRE-GROUND TIRE(FOR ALUMINUM WHEEL),TYPE S:REFER ILLUST.
18X7.5J, #,TYPE S:REFER ILLUST.
main42611-0KT40iGUN125..LHD..SSC..S;GUN125,135..LHD..SDC..X;GUN136,KUN135,TGN136..SDC..S;GUN125,126,135,KUN125..RHD..(KSC,SDC,SSC)..S201601-202102
17X6J, #,TYPE E:REFER ILLUST.
17X7.5J, #,T/P AA:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 STEEL,T/P AA:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
main90942-01109iKUN122..LHD..TDC..L..GEN;GUN122,KUN122,TGN121..LHD..(TSC,TXT)..(L,X)..(DCR,HTWC)..GEN..CBU201505-202005
TIRE & DISC WHEEL-215/65R16C ALUMINUM,(J),TYPE B:REF ILL.
(J),TYPE B:REF ILL.
TIRE & DISC WHEEL-215/65R16C ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(J),TYPE B:REFILL.
main90942-01109iGUN125..TXT..M;GUN135..6FC..PH;GUN125..TDC..IV3;GUN125..(M,S)..(MA,VN);GUN135..LHD..TDC..6F..(L,M);KUN125..(TDC,TXT)..(H,M)..(GEN,IDN);GUN135,KUN135..(H,M,S,X)..(AR201505-202105
(J),T/P B:REF.ILLUST
main90942-T1005iKUN122..LHD..TDC..L..GEN;GUN122,KUN122,TGN121..LHD..(TSC,TXT)..(L,X)..(DCR,HTWC)..GEN..CBU201505-202105
(L),T/P B:REF.ILLUST
main90942-T1005iKUN122..RHD..M;KUN122..TXT..M;KUN122..TSC..L..GEN;GUN122..TDC..S..GEN;GUN122..(TSC,TXT)..(L,M,S)..DCR..GEN;GGN120,GUN123,KUN122..(H,S)..(ARL,GEN)201505-202005
TIRE & DISC WHEEL-215/65R16C ALUMINUM,(L),T/P B:REF.ILLUST
TIRE & DISC WHEEL-215/65R16C ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,(L),T/P B:REF.ILLUST
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)
sub90942-05009
TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&WHEEL CAP-WITH(FOR RUGGED MLM)
sub90942-05009
42611JVALVE (FOR TUBELESS TIRE SPARE)
TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&WHEEL CAP-WITH(FOR RUGGED MLM)
sub90942-05009
TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)
sub90942-05009
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
11 parts on this diagram · 3 diagrams in section
