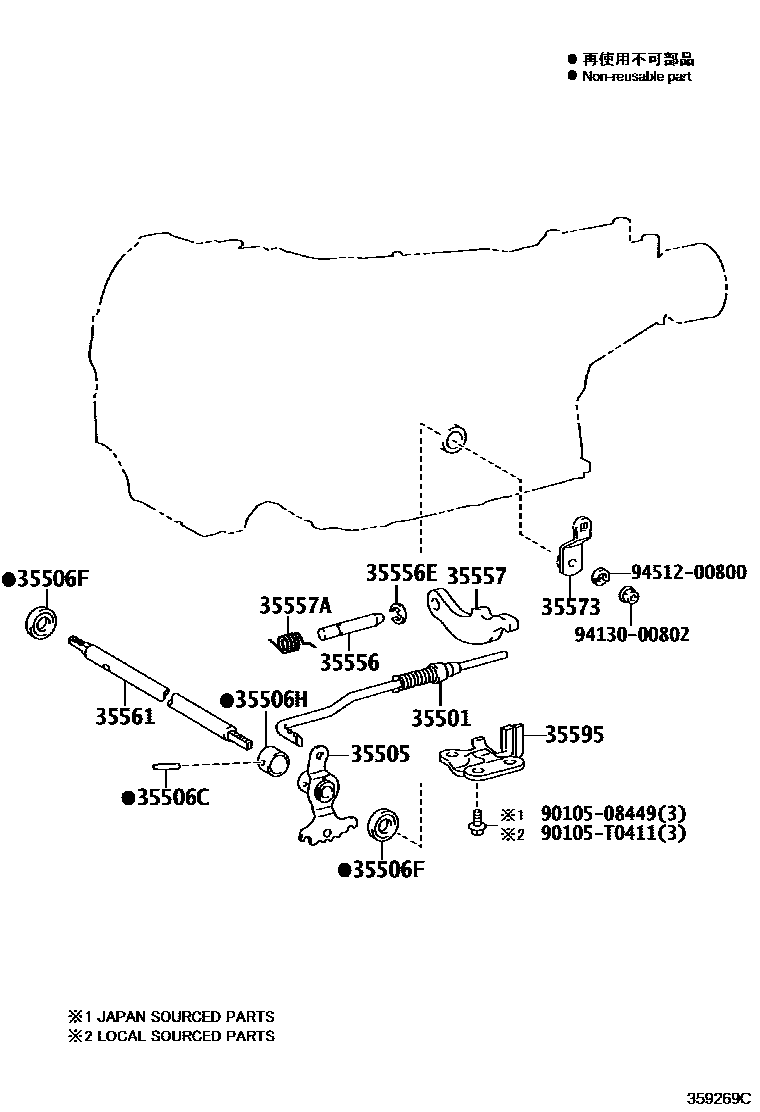

THROTTLE LINK & VALVE LEVER (ATM)

0001 1AC60E,AC60F 0002 1A750F

35501ROD SUB-ASSY, PARKING LOCK

main35501-60030iKUN125,126..5FC201505-201801

main35501-71020iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-71020iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105

main35505-71030iKUN125,126..5FC201505-201801

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGUN126..6FC..KEN201505-202105

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGUN135..6FC..(MA,SA);GUN125,126,136,TGN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GGN12#,135,KUN125,126,TGN128,138..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,VN)201505-202105

main90311-12002iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J)

main90311-T0093iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202012

(L)

main90311-T0093iGGN125..GCC201912-202012

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGGN12#,135,GUN120,125,126,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM201505-202105

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGGN12#,135,GUN120,125,126,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM201505-202105

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGUN126..6FC..KEN201505-202105

35557PAWL, PARKING LOCK

main35557-60040iKUN125,126..5FC201505-201801

main35557-71010iGUN126..6FC..KEN201505-202105

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGUN126..6FC..KEN201505-202105

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGUN126..6FC..KEN201505-202105

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-0K010iGGN125,GUN120,125,126,13#,TGN121,126..(TDC,TSC,TXT)..6FC201912-202012

(L)

main35573-60020iKUN125,126..5FC201505-201801

main35573-71010iGGN125,GUN120..GCC,TH;TGN126..LHD..TDC..6FC;GUN125..(TDC,TXT)..6FC..IV3;GUN125..(TDC,TSC)..6FC..CBU;GUN126,13#,TGN121..(TDC,TSC,TXT)..6FC..(H,M,S,X)201505-202105

main35573-71010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202012

(J)

35595BRACKET, PARKING LOCK PAWL

main35595-60030iKUN125,126..5FC201505-201801

main35595-71010iGUN126..6FC..KEN201505-202105

9010508449

main90105-08449

90105T0411

main90105-T0411

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
