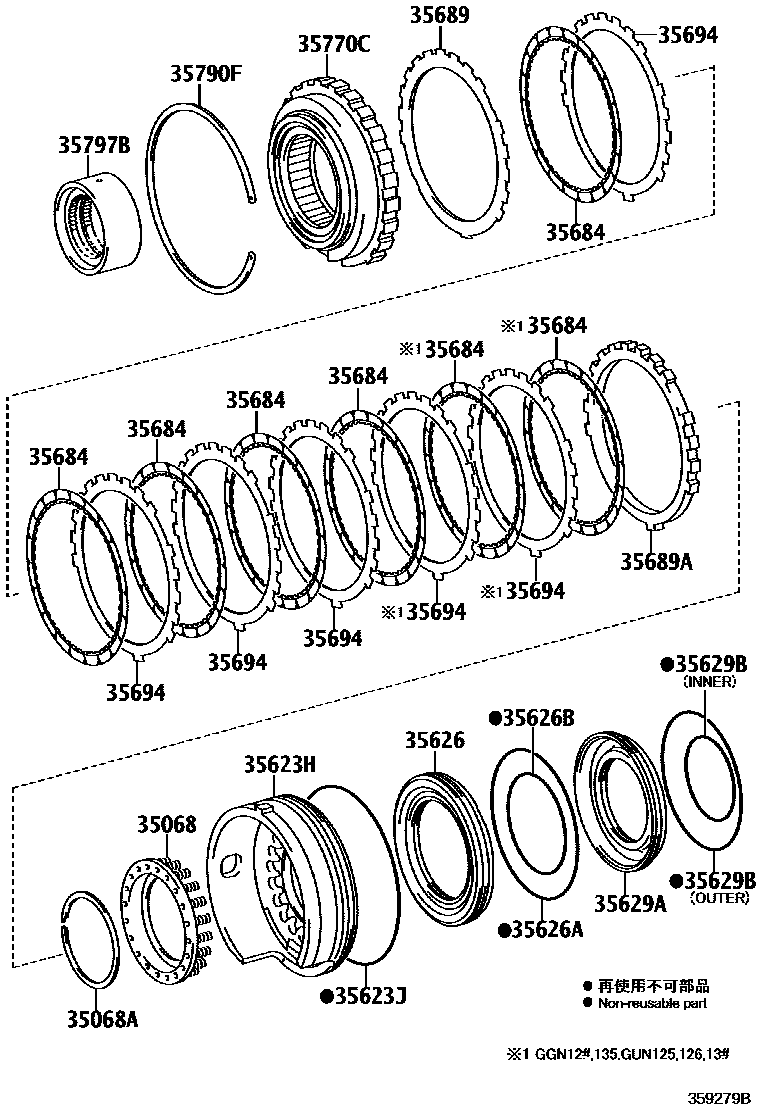

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1AC60E,AC60F 0002 1A750F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-0K010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201912-202005

TOYOTA STOP & START SYSTEM-WITH

main35068-0K010iGUN126..6FC..TH;GGN125,GUN125,136,TGN121,126..(TDC,TSC,TXT)..6FC201912-202012

main35068-0K010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201912-202005

(L)

main35068-60010iGUN125,126..6FC..MA201505-202105

main35068-60010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J)

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGUN126..6FC..KEN201505-202105

35623HPISTON, 1ST & REVERSE BRAKE

main35623-0K010iGUN126..6FC..TH;GUN125,136..(TDC,TSC,TXT)..6FC201708-202012

main35623-0K010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(L)

main35623-0K010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

TOYOTA STOP & START SYSTEM-WITH

main35623-0K020iTGN121,126,136..(TDC,TSC)..6FC201708-202005

main35623-60060iKUN125,126..5FC201505-201801

main35623-71010iGUN125,126..6FC..MA201505-202105

main35623-71010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J)

main35623-71020iTGN121,126,136..(TDC,TSC)..6FC201505-202010

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGUN125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC201505-202105

main90301-99087iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J)

main90301-T0072iGUN125,126..6FC..MA201708-202012

main90301-T0072iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(L)

main90301-T0072iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

TOYOTA STOP & START SYSTEM-WITH

35626SLEEVE, BRAKE REACTION

main35626-50010iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105

main35626-60010iKUN125,126..5FC201505-201801

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99143iKUN125,126..5FC201505-201801

main90301-99144iGUN125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC201505-202105

main90301-99144iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J)

main90301-T0073iGUN135..TDC..6FC..M..TH201708-202005

TOYOTA STOP & START SYSTEM-WITH

main90301-T0073iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(L)

main90301-T0073iGUN126..6FC..TH;GUN125,136,TGN121,126,136..(TDC,TSC,TXT)..6FC201708-202012

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iGUN135..6FC..(MA,SA);GUN125,126,136,TGN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GGN12#,135,KUN125,126,TGN128,138..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,VN)201505-202105

main90301-79003iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J)

main90301-T0074iGUN135..TDC..6FC..M..TH201708-202005

(L)

main90301-T0074iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

TOYOTA STOP & START SYSTEM-WITH

main90301-T0074iGUN126..6FC..TH;GUN125,136,TGN121,126,136..(TDC,TSC,TXT)..6FC201708-202012

35629APISTON, BRAKE, NO.4

main35629-50020iGUN126..6FC..KEN201505-202105

main35629-60010iKUN125,126..5FC201505-201801

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iGUN126..6FC..KEN201505-202105

INNER

main90301-67006iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J),INNER

main90301-99084iGUN125,126..6FC..MA201505-202105

OUTER

main90301-99084iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J),OUTER

main90301-99151iKUN125,126..5FC201505-201801

OUTER

main90301-T0075iGUN135..TDC..6FC..M..TH201708-202005

(L),OUTER

main90301-T0075iGUN135..TDC..6FC..M..TH201708-202005

TOYOTA STOP & START SYSTEM-WITH,OUTER

main90301-T0075iGUN125,126..6FC..MA201708-202012

OUTER

main90301-T0076iGGN125..GCC201708-202012

INNER

main90301-T0076iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(L),INNER

main90301-T0076iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

TOYOTA STOP & START SYSTEM-WITH,INNER

35684DISC, BRAKE, NO.4

main35684-0K010iGGN125..GCC201708-202005

(L)

main35684-0K010iGUN126..6FC..TH;GUN125,136..(TDC,TSC,TXT)..6FC201708-202012

main35684-0K010iGUN135..TDC..6FC..M..TH201708-202005

TOYOTA STOP & START SYSTEM-WITH

main35684-50010iKUN125,126..5FC201505-201801

main35684-60030iGUN126..6FC..KEN201505-202105

main35684-60030iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J)

35689FLANGE, BRAKE, NO.4

main35689-60270iGUN126..6FC..KEN201505-202105

T=1.8,MARK 0

main35689-60280iGGN12#,135,GUN120,125,126,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM201505-202105

T=1.97,MARK 1

main35689-60290iGGN12#,135,GUN120,125,126,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM201505-202105

T=2.11,MARK 3

main35689-60300iGUN126..6FC..KEN201505-202105

T=2.25,MARK 4

main35689-60310iGUN126..6FC..KEN201505-202105

T=2.39,MARK 5

main35689-60320iGUN126..6FC..KEN201505-202105

T=2.53,MARK 7

main35689-60330iGGN12#,135,GUN120,125,126,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM201505-202105

T=2.67,MARK 8

main35689-60340iGUN126..6FC..KEN201505-202105

T=2.81,MARK10

main35689-60350iGGN12#,135,GUN120,125,126,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM201505-202105

T=2.95,MARK 11

main35689-60360iGUN126..6FC..KEN201505-202105

T=3.09,MARK 12

main35689-60370iGUN126..6FC..KEN201505-202105

T=3.23,MARK 14

35689AFLANGE, BRAKE, NO.4

main35689-60090iKUN125,126..5FC201505-201801

main35689-71010iGUN126..6FC..KEN201505-202105

35694PLATE, BRAKE, NO.4

main35694-0K010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

TOYOTA STOP & START SYSTEM-WITH

main35694-0K010iTGN121,126,136..(TDC,TSC)..6FC201708-202005

(L)

main35694-0K010iGUN126..6FC..TH;GUN125,136..(TDC,TSC,TXT)..6FC201708-202012

main35694-60011iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J)

main35694-60011iTGN121,126,136..(TDC,TSC)..6FC201505-202105

35770CCLUTCH ASSY, 1WAY NO.3

main35770-0K010iGUN135..TDC..6FC..M..TH201708-201911

(L)

sub35770-0K020

main35770-0K010iGUN135..TDC..6FC..M..TH201708-201911

TOYOTA STOP & START SYSTEM-WITH

sub35770-0K020

main35770-0K020iGGN125,GUN120,125,126,13#,TGN121,126..(TDC,TSC,TXT)..6FC201912-202012

(L)

main35770-60030iGUN125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC201505-202105

main35770-60030iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J)

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90521-99131iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105

35797BRACE, 1 WAY CLUTCH, INNER

main35797-50031iKUN125,126..5FC201505-201801

main35797-60020iGUN126..6FC..KEN201505-202105
