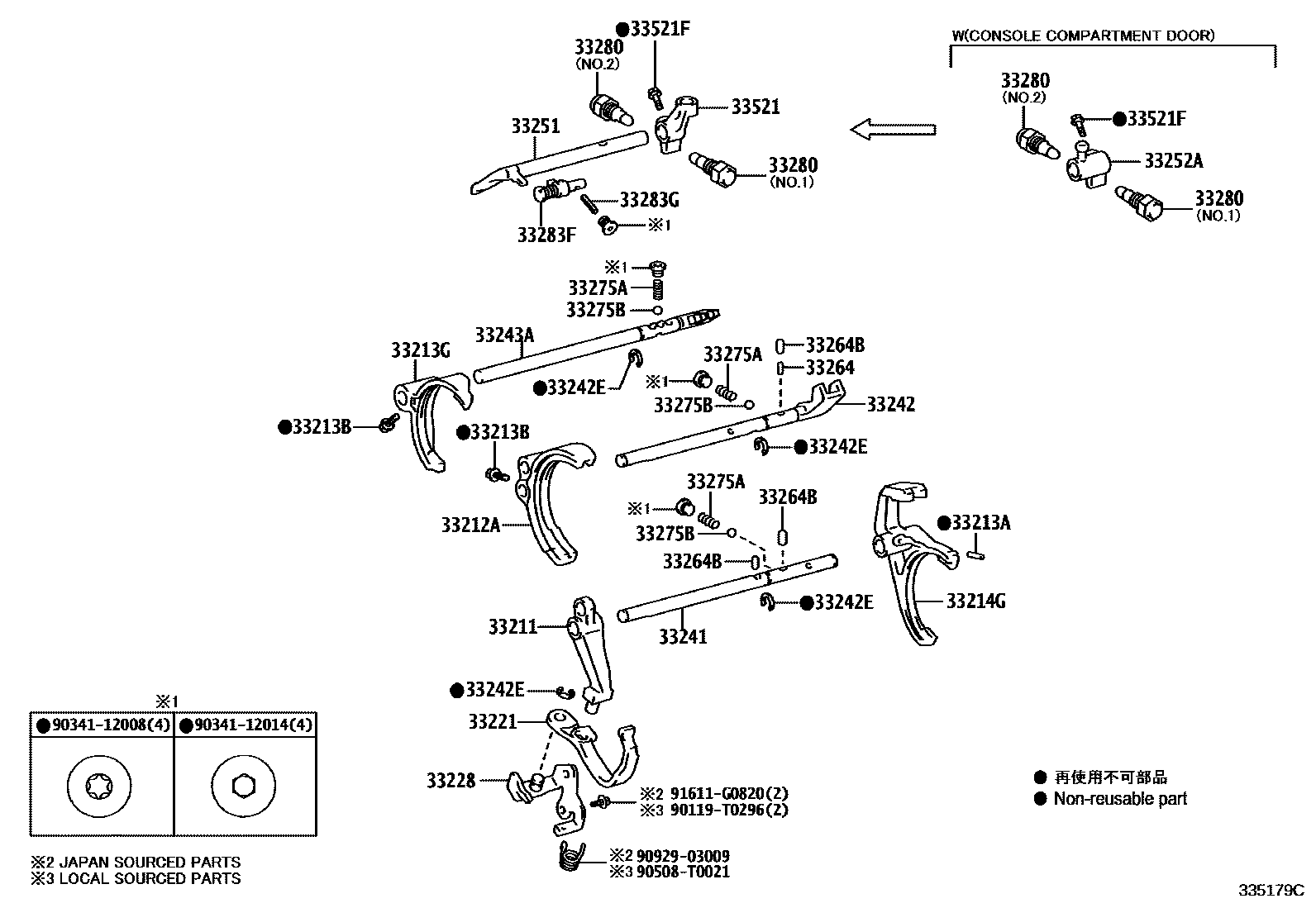

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
main33211-0K070iTGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH);GUN112,122,123,KUN112,122,LAN125,TGN11#..5F201505-202012
TYPE C:REFER 33-01
TYPE C:REFER 33-01
33212AFORK, GEAR SHIFT, NO.1
TYPE B:REFER 33-01
sub33212-0K060
TYPE A:REFER 33-01
TYPE B:REFER 33-01
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE A:REFER 33-01
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
TYPE A:REFER 33-01
TYPE B:SEE 33-01,(J),TYPE A:REFER 33-01,TYPE C:REFER 33-01
main90254-05016iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202101
TYPE B:SEE 33-01,(J)
main90254-05016iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202105
TYPE C:REFER 33-01
main90254-T0004iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202101
TYPE B:SEE 33-01,(L)
33213BBOLT(FOR SHIFT FORK SET)
TYPE C:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01
main90105-06077iTGN136..ADC..(S,X)..LA;TGN13#..(ADC,ASC,SDC)..5F..(S,X)..(BZAGT,SA);TGN120,121,126..(ADC,ASC,SDC,SSC)..5F..(LA,SA)201505-202105
TYPE A:REFER 33-01
main90105-06077iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202101
TYPE B:REFER 33-01
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33213GFORK, GEAR SHIFT, NO.2
TYPE B:REFER 33-01
main33213-0K040iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202105
TYPE C:REFER 33-01
main33213-0K040iTGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH)201505-202105
TYPE A:REFER 33-01
TYPE A:REFER 33-01,TYPE C:REFER 33-01
33214GFORK, GEAR SHIFT, NO.3
TYPE A:REFER 33-01,TYPE C:REFER 33-01
TYPE C:REFER 33-01
TYPE A:REFER 33-01,TYPE C:REFER 33-01
main33230-35012iTGN136..SDC;TGN120,121,138..5F..(BZAGT,SA);GUN122,TGN121..5F..(GCC,SA,TH)..IV3;GUN122..(SDC,SSC,TDC)..(GEN,SA)..CBU201505-202008
TYPE A:REFER 33-01
TYPE B:REFER 33-01
main33230-35012iTGN121..5F;KUN122..L,X;KUN122..S..GCC;GUN122..TXT..5F..X;GUN122..TSC..S..DCR;GUN122..TDC..(L,S)..GCC;GUN122..(TDC,TXT)..(GEN,PH);GUN122..(PSC,SDC,SSC,TSC)..5F..(L,X201505-202101
33221ARM, REVERSE SHIFT
TYPE B:REFER 33-01
TYPE C:REFER 33-01
TYPE A:REFER 33-01
33228BRACKET, REVERSE SHIFT ARM
main33228-0K050iTGN136..ADC..(S,X)..LA;TGN13#..(ADC,ASC,SDC)..5F..(S,X)..(BZAGT,SA);TGN120,121,126..(ADC,ASC,SDC,SSC)..5F..(LA,SA)201711-202105
TYPE A:REFER 33-01
main33228-0K060iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201704-202105
TYPE C:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE C:REFER 33-01
TYPE B:REFER 33-01
33241SHAFT, REVERSE SHIFT FORK
TYPE B:SEE 33-01,(L)
main33244-0K060iGUN122..HDCR;TGN136..ADC..M;TGN121..(L,S)..TH;GUN122,TGN126..5F..(ARL,BZAGT,TH);GUN122,TGN138..5F..M..(BZAGT,GCC);TGN136..(ASC,TDC,TSC,TXT)..5F..(LA,TH);GUN123,KUN1201505-202006
TYPE A:REFER 33-01
TYPE A:REFER 33-01
sub33244-0K062
main33244-0K070iTGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH);GUN112,122,123,KUN112,122,LAN125,TGN11#..5F201505-202012
TYPE C:REFER 33-01
TYPE B:SEE 33-01,(J)
33242SHAFT, GEAR SHIFT FORK, NO.1
TYPE B:SEE 33-01,(L)
TYPE A:REFER 33-01
sub33242-0K110
TYPE C:REFER 33-01
TYPE C:REFER 33-01
TYPE A:REFER 33-01
main33242-0K092iGUN122,125,126,KUN125,126,13#..6F;GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN)201505-202105
TYPE B:REFER 33-01
sub33242-0K083
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01
sub33242-0K083
TYPE A:REFER 33-01
TYPE A:REFER 33-01
TYPE B:SEE 33-01,(J)
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
TYPE C:REFER 33-01
main90520-12003iTGN136..ADC..M;TGN126,138..5F..M..BZAGT;TGN120,121,126..(TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#..5F;TGN136..(ASC,TDC,TSC,TXT)..5F..(GEN,LA,TH)201505-202105
TYPE A:REFER 33-01
TYPE A:REFER 33-01,TYPE C:REFER 33-01
main90520-T0135iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202101
TYPE B:REFER 33-01
33243ASHAFT, GEAR SHIFT FORK, NO.2
TYPE A:REFER 33-01
sub33243-0K070
TYPE B:SEE 33-01,(L)
TYPE C:REFER 33-01
TYPE A:REFER 33-01
main33243-0K061iGUN122,125,126,KUN125,126,13#..6F;GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN)201505-202105
TYPE B:REFER 33-01
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:SEE 33-01,(J)
33251LEVER, SHIFT & SELECT
TYPE A:REFER 33-01
sub33251-0K130
TYPE C:REFER 33-01
TYPE C:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
33252ALEVER, SHIFT, INNER NO.2
main33252-0K010iTGN121..5F..M;TGN121..RHD..(TDC,TXT)..5F;GUN122,KUN122..(H,M,S)..GEN;GUN122..(M,X)..(ARL,GCC)..CBU;GUN112,122,123,TGN13#..(ADC,SDC,TDC,TSC,TXT)..5F..(L,M,S)..(ARL,B201505-202008
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE C:REFER 33-01
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
main90250-05029iTGN136..ADC..(S,X)..LA;TGN13#..(ADC,ASC,SDC)..5F..(S,X)..(BZAGT,SA);TGN120,121,126..(ADC,ASC,SDC,SSC)..5F..(LA,SA)201505-202105
L=11.5,OD=4.8,TYPE A:REFER 33-01
L=11.5,OD=4.8
main90250-05029iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202105
L=11.5,OD=4.8,TYPE C:REFER 33-01
L=11.5,OD=4.8,TYPE A:REFER 33-01,TYPE C:REFER 33-01
main90250-T0022iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202101
L=11.5,OD=4.8,TYPE B:REFER 33-01
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13.7,OD=6,TYPE C:REFER 33-01
L=13.7,OD=6
L=13.6,OD=9.5,TYPE A:REFER 33-01
L=13.6,OD=9.5
L=13.6,OD=9.5,TYPE C:REFER 33-01
main90361-T0003iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202101
L=13.6,PIN,TYPE B:REFER 33-01
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=35.09,TYPE C:REFER 33-01
L=35.09
L=35.09,TYPE C:SEE 33-01,(J)
L=35.09,(J)
L=35.09,TYPE B:REFER 33-01
L=15.35,TYPE A:REFER 33-01
L=15.35,TYPE B:REFER 33-01
L=15.35,VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90501-T0052iTGN136..ADC..(S,X)..LA;TGN13#..(ADC,ASC,SDC)..5F..(S,X)..(BZAGT,SA);TGN120,121,126..(ADC,ASC,SDC,SSC)..5F..(LA,SA)201505-202105
L=35.09,TYPE A:REFER 33-01
L=35.09,TYPE C:SEE 33-01,(L)
L=35.09,(L)
33275BBALL, SHAFT DETENT
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 33-01
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE A:REFER 33-01
OCEANIA GENERAL SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE A:REFER 33-01
TYPE A:REFER 33-01
TYPE B:SEE 33-01,(J),TYPE A:REFER 33-01
TYPE C:SEE 33-01,(J)
TYPE A:SEE 33-01,(J)
TYPE B:SEE 33-01,(J)
(J)
TYPE C:REFER 33-01
main90360-T0008iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202101
TYPE B:SEE 33-01,(L)
TYPE B:REFER 33-01
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01
TYPE A:SEE 33-01,(L)
TYPE C:SEE 33-01,(L)
(L)
33280PIN ASSY, REVERSE RESTRICT
main33280-0K050iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201505-202101
T/P B:SEE 33-01,NO.1
T/P B:SEE 33-01,NO.2
T/P B:SEE 33-01,NO.1
T/P B:SEE 33-01,NO.2
T/P B:SEE 33-01,NO.1
T/P B:SEE 33-01,NO.2
T/P A:SEE 33-01,NO.1
T/P C:SEE 33-01,NO.1
T/P A:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1
NO.1:REFER ILLUST.
T/P C:SEE 33-01,NO.1
T/P A:SEE 33-01,NO.1
T/P A:SEE 33-01,NO.2
T/P C:SEE 33-01,NO.2,T/P A:SEE 33-01,NO.2
main33280-35130iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201505-202105
T/P C:SEE 33-01,NO.2
T/P A:SEE 33-01,NO.2
NO.2:REFER ILLUST.
T/P C:SEE 33-01,NO.2
T/P C:SEE 33-01,NO.1
NO.1:REFER ILLUST.
T/P A:SEE 33-01,NO.1
NO.2:REFER ILLUST.
T/P A:SEE 33-01,NO.2
T/P C:SEE 33-01,NO.2
33283FPIN, REVERSE RESTRICT
main33280-0K090iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201601-202101
TYPE B:REFER 33-01
TYPE A:REFER 33-01
main33280-35100iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202105
TYPE C:REFER 33-01
TYPE A:REFER 33-01,TYPE C:REFER 33-01
TYPE B:REFER 33-01
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
TYPE C:REFER 33-01
TYPE B:SEE 33-01,(J),TYPE A:REFER 33-01,TYPE C:REFER 33-01
main90254-05001iTGN136..ADC..(S,X)..LA;TGN13#..(ADC,ASC,SDC)..5F..(S,X)..(BZAGT,SA);TGN120,121,126..(ADC,ASC,SDC,SSC)..5F..(LA,SA)201505-202105
TYPE A:REFER 33-01
main90254-05001iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202101
TYPE B:SEE 33-01,(J)
main90254-T0003iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202101
TYPE B:SEE 33-01,(L)
33521HOUSING, SHIFT LEVER
main33521-0K080iKUN122,TGN136..L,X;GUN122..TXT..5F..X;GUN122,KUN122..S..GCC;TGN121..(SDC,SSC,TSC)..5F;TGN121..LHD..TDC..5F..(L,S);GUN122..TDC..(L,X)..(GCC,GEN,PH);GUN122..(PSC,SDC,201505-202101
TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE C:REFER 33-01
TYPE C:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01
TYPE C:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
main90109-08305iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202105
TYPE C:SEE 33-01,(J)
TYPE A:SEE 33-01,(J),TYPE B:REFER 33-01,TYPE C:SEE 33-01,(J)
main90109-08305iTGN136..ADC..(S,X)..LA;TGN13#..(ADC,ASC,SDC)..5F..(S,X)..(BZAGT,SA);TGN120,121,126..(ADC,ASC,SDC,SSC)..5F..(LA,SA)201505-202105
TYPE A:SEE 33-01,(J)
(J)
main90109-08305iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202101
TYPE B:REFER 33-01
main90109-T0039iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,126,138..5F201505-202105
TYPE C:SEE 33-01,(L)
main90109-T0039iTGN136..ADC..(S,X)..LA;TGN13#..(ADC,ASC,SDC)..5F..(S,X)..(BZAGT,SA);TGN120,121,126..(ADC,ASC,SDC,SSC)..5F..(LA,SA)201505-202105
TYPE A:SEE 33-01,(L)
TYPE A:SEE 33-01,(L),TYPE C:SEE 33-01,(L)
(L)
90119T0296
main90119-T0296
9034112008
main90341-12008
9034112014
main90341-12014
90508T0021
main90508-T0021
9092903009
main90929-03009
91611G0820
main91611-G0820
29 parts on this diagram · 4 diagrams in section
