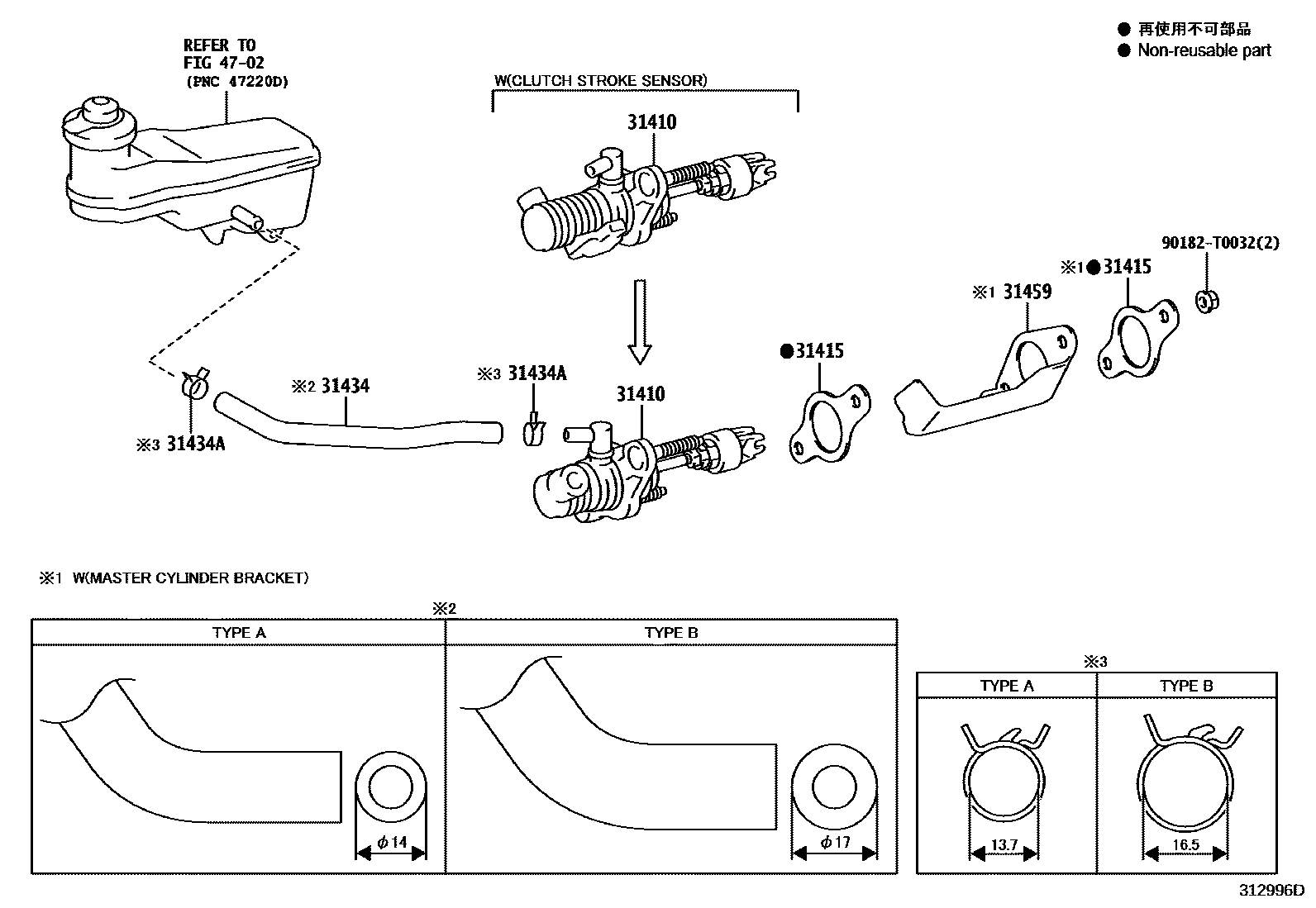

CLUTCH MASTER CYLINDER
31410CYLINDER ASSY, CLUTCH MASTER
main31420-0K013iKUN112,122;TGN13#..ADC..5F..M;TGN136..(ASC,TDC,TSC,TXT)..5F..(LA,TH);LAN125,TGN121,126..(ADC,SSC,TDC,TXT)..(L,M,S)..(BZAGT,SA,TH)201505-202006
sub31420-0K014
sub31420-0K061
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
main31420-0K070iGUN126,136..6F..(L,S,X);GUN126,136..6F..M..(GEN,LA,PKN);GUN112,122,123,125,135,KUN125,126,13#..MTM201505-201904
sub31420-0K071
OCEANIA GENERAL SPEC
31415GASKET, CLUTCH MASTER CYLINDER
main31415-0K010iLAN125..SDC;LAN125..SSC..X;TGN120,121,126,136..5F..SA;GUN122,125,135..LHD..MTM..SA201505-202105
31434TUBE, CLUTCH RESERVOIR
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
OCEANIA GENERAL SPEC,TYPE B:REFER ILLUST.
main31434-0K090iGUN126,136..RHD..6F..(L,S,X);GUN126..RHD..6F..M..(GEN,PKN);GUN112,122,123,125,135,KUN112,12#,13#,TGN110,120,121,136..RHD..MTM..(ARL,GEN,IDN,PKN,SA,TH)201505-201905
TYPE B:REFER ILLUST.
OCEANIA GENERAL SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
main31434-0K110iGUN125..6F..(L,M)..GCC;GUN125..TDC..6F..S..GCC;GUN135..TDC..S..(LA,PH);TGN121,126..LHD..(SDC,SSC,TDC,TSC)..5F;GUN135,LAN125..LHD..(SSC,TDC,TSC)..MTM..(H,L,M,X);GUN1201505-202010
TYPE B:REFER ILLUST.
main31434-0K111iGUN126..LHD..(TDC,TSC)..6F..(S,X);GUN126..LHD..TDC..6F..M..(GEN,LA);GUN112,122,125,13#,LAN125,TGN11#,120,121,126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT)..MTM201905-202007
TYPE A:REFER ILLUST.
31434ACLIP(FOR CLUTCH RESERVOIR TUBE)
main90466-T0015iGUN112,122,123,125,126,13#,KUN122,TGN11#,120,121,126,136..(KDC,KSC,PDC,PSC,TDC,TSC,TXT)..MTM201905-202105
TYPE A:REFER ILLUST.
main90466-T0052iGUN122..M..GCC;TGN121..(L,S)..TH;GUN126..BZAGT..IV3;GUN125..TSC..S..GCC;GUN135..(ADC,ASC,MDC)..6F;GUN122,125..6F..M..(TH,VN);GUN122,TGN136..5F..(ARL,BZAGT,LA,TH);GU201505-202010
TYPE B:REFER ILLUST.
31459BRACKET, CLUTCH MASTER CYLINDER
4702
90182T0032
main90182-T0032
7 parts on this diagram · 2 diagrams in section
