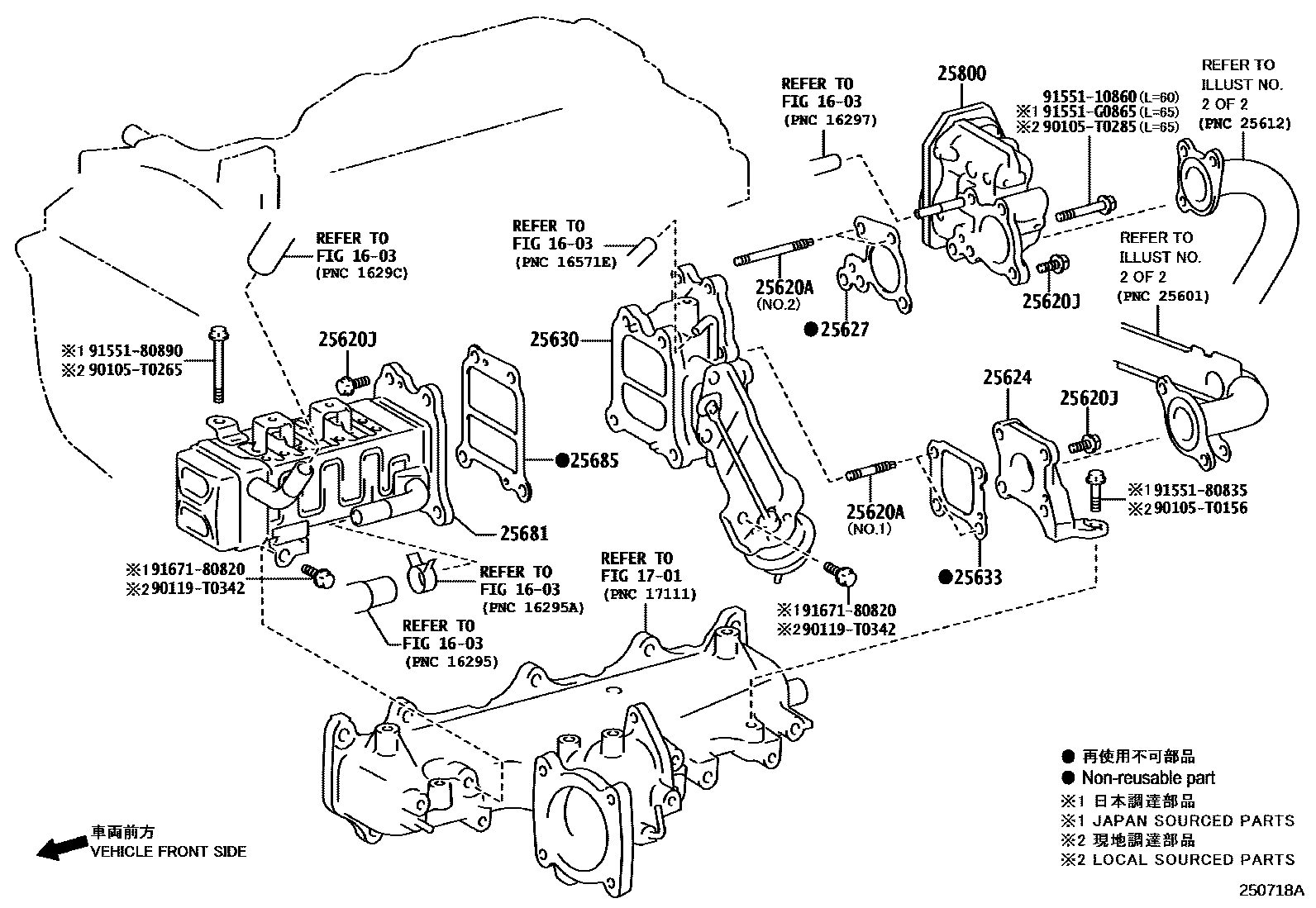

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0009 1EURO 2 0014 1 0022 1EURO 2 0027 1EURO 0 0033 1 0034 1 0035 1

1603

1701

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i2GDFTV..GUN122..RHD..SA;1GDFTV,2GDFTV..GUN125,126,13#..SA201505-202010

NO.1

main90126-08052i2GDFTV..GUN125..IDN;2GDFTV..GUN125..S..IV3;2GDFTV..GUN122..SA..IV3;1GDFTV..GUN126..6F..PKN;2GDFTV..GUN135..LHD..SA;2GDFTV..GUN122..LHD..SSC;2GDFTV..GUN135..6F..S..M201601-202105

NO.1

main90126-08052i2GDFTV..GUN125,135..TDC..LA201708-201806

ECUADOR SPEC,NO.1

main90126-08064i1GDFTV,2GDFTV..GUN125,126,13#..RHD..6F..SA201505-202010

PERU SPEC,(J),NO.1

main90126-08064i1GDFTV,2GDFTV..GUN125,126,13#..RHD..6F..SA201505-201710

CHILE SPEC,(J),NO.2

main90126-08064i2GDFTV..GUN125..ASC..LA201505-201809

(J),NO.2

main90126-08064i2GDFTV..GUN125..ASC..LA201505-202010

(J),NO.1

main90126-08064i2GDFTV..GUN125..RHD..TDC..6F..L..GEN201505-201809

COLOMBIA SPEC,(J),NO.1

main90126-08064i2GDFTV..GUN125..LHD..TDC..M..GEN;2GDFTV..GUN125..(TDC,TSC)..6F..ARL201708-201809

BOLIVIA URUGUAY SPEC,(J),NO.1

main90126-08064i2GDFTV..GUN125..LHD..TDC..M..GEN;2GDFTV..GUN125..(TDC,TSC)..6F..ARL201708-201809

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J),NO.1

main90126-T0018i1GDFTV..GUN126..M..LA;1GDFTV..GUN126..6F..S..LA;1GDFTV..GUN126..TDC..6F..X;2GDFTV..GUN122..TSC..X..GEN;2GDFTV..GUN125..RHD..6F..S..SA;1GDFTV..GUN136..S..(ARL,BZAGT)201505-202105

(L),NO.2

25620JBOLT(FOR EGR VALVE)

main90119-T0238i2GDFTV..GUN125..TDC..6F..(L,M)..GCC201708-201806

IRAQ SPEC,(L)

main90119-T0238i2GDFTV..GUN112,122,125..GCC201505-202105

(L)

main90119-T0238i2GDFTV..GUN125,135..TDC..LA;1GDFTV..GUN126..TDC..6FC..M..LA201708-201806

CS AMERICA SPEC,(L)

main90119-T0238i2GDFTV..GUN125,135..TDC..LA;1GDFTV..GUN126..TDC..6FC..M..LA201708-201806

ECUADOR SPEC,(L)

main90119-T0238i2GDFTV..GUN125,135..TDC..LA;1GDFTV..GUN126..TDC..6FC..M..LA201708-201806

QATAR SPEC(EURO 4 REGULATION),(L)

main90119-T0238i2GDFTV..GUN125,135..TDC..LA;1GDFTV..GUN126..TDC..6FC..M..LA201708-201806

SAUDI ARABIA SPEC(EURO4 REGULATION),(L)

main90119-T0238i2GDFTV..GUN125,135..TDC..LA;1GDFTV..GUN126..TDC..6FC..M..LA201708-201806

JORDAN SPEC,(L)

main90119-T0238i2GDFTV..GUN125,135..TDC..LA;1GDFTV..GUN126..TDC..6FC..M..LA201708-201806

GCC SPEC(EURO 4 REGULATION),(L)

main90119-T0238i2GDFTV..GUN125..TDC..6FC..L..GEN201807-201905

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main90119-T0238i2GDFTV..GUN125..TSC..6FC;2GDFTV..GUN122,125,135..ARL201807-202005

main90119-T0238i2GDFTV..GUN125..6FC..LA;2GDFTV..GUN125,135..TDC..6F..LA;1GDFTV..GUN126..TDC..6FC..M..LA;2GDFTV..GUN122..TSC..X..DCR..GEN201806-202010

CS AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)

main90119-T0238i2GDFTV..GUN125..6FC..LA;2GDFTV..GUN125,135..TDC..6F..LA;1GDFTV..GUN126..TDC..6FC..M..LA;2GDFTV..GUN122..TSC..X..DCR..GEN201806-202010

ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(L)

main91671-80825i2GDFTV..GUN135..GEN201505-202010

(J)

main91671-80825i2GDFTV..GUN125..LHD..TDC..M..GEN201708-201809

BOLIVIA URUGUAY SPEC,(J)

main91671-80825i1GDFTV..GUN136..LA;1GDFTV..GUN126..6F..X..LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..TDC..6F..(M,S)..LA201708-201809

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)

main91671-80825i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010

PERU SPEC,(J)

main91671-80825i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN135..BZAGT..CBU;2GDFTV..GUN125..RHD..TDC..6F..L..GEN;2GDFTV..GUN125..(ADC,TDC,TSC)..6F..(ARL,BZAGT)201505-201809

COLOMBIA SPEC,(J)

25624ADAPTER, EGR VALVE

main25607-0E010i2GDFTV..GUN125..LHD..SSC..S;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN125,135..RHD..S..SA;2GDFTV..GUN125..LHD..SDC..(M,X)201710-201809

(L)

main25607-0E020i2GDFTV..GUN125..TDC..6FC..L..GEN201708-202102

main25607-11010i2GDFTV..GUN125..TSC..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC;2GDFTV..GUN112,122,125..(5F,6FC)..GCC201601-202105

(J)

main25607-11010i2GDFTV..GUN125,135..TDC..LA201708-201806

ECUADOR SPEC,(J)

main25611-0L020i2KDFTV..KUN125,135..HDCR201505-201707

main25624-0E010i1GDFTV,2GDFTV..GUN125,126,135..MA201505-202010

THA SOURCED PARTS

main25624-0E020i2GDFTV..GUN125..TDC..X..GEN201807-201905

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS

main25624-0E020i2GDFTV..GUN125..TDC..6FC..L..GEN201807-202005

IND SOURCED PARTS

main25624-0E020i2GDFTV..GUN125..TDC..6FC..L..GEN201807-201905

EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS

main25624-11010i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN135..BZAGT..CBU;2GDFTV..GUN125..RHD..TDC..6F..L..GEN;2GDFTV..GUN125..(ADC,TDC,TSC)..6F..(ARL,BZAGT)201505-202010

(J)

main25624-11010i1GDFTV..GUN136..LA;1GDFTV..GUN126..6F..X..LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..TDC..6F..(M,S)..LA201708-201809

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)

main25624-11010i1GDFTV..GUN136..LA;1GDFTV..GUN126..6F..X..LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..TDC..6F..(M,S)..LA201708-201809

BOLIVIA URUGUAY SPEC,(J)

main25624-11010i1GDFTV..GUN126..6F..M..LA;1GDFTV..GUN126..TDC..6F..X201505-201809

COLOMBIA SPEC,(J)

main25624-11010i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010

PERU SPEC,(J)

25627GASKET, EGR VALVE

main25627-0E010i2GDFTV..GUN125..IDN;2GDFTV..GUN125..S..IV3;2GDFTV..GUN122..SA..IV3;1GDFTV..GUN126..6F..PKN;2GDFTV..GUN135..LHD..SA;2GDFTV..GUN122..LHD..SSC;2GDFTV..GUN135..6F..S..M201601-202105

(L)

main25627-0E010i2GDFTV..GUN112,122,125..GCC201505-202010

THA SOURCED PARTS

main25627-0E010i2GDFTV..GUN125..TSC..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC;2GDFTV..GUN112,122,125..(5F,6FC)..GCC201708-201806

QATAR SPEC(EURO 4 REGULATION),THA SOURCED PARTS

main25627-0E010i2GDFTV..GUN125..TSC..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC;2GDFTV..GUN112,122,125..(5F,6FC)..GCC201708-201806

SAUDI ARABIA SPEC(EURO4 REGULATION),THA SOURCED PARTS

main25627-0E010i2GDFTV..GUN125..TSC..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC;2GDFTV..GUN112,122,125..(5F,6FC)..GCC201708-201806

JORDAN SPEC,THA SOURCED PARTS

main25627-0E010i2GDFTV..GUN125..TSC..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC;2GDFTV..GUN112,122,125..(5F,6FC)..GCC201708-201806

GCC SPEC(EURO 4 REGULATION),THA SOURCED PARTS

main25627-0E010i2GDFTV..GUN125..TSC..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC;2GDFTV..GUN112,122,125..(5F,6FC)..GCC201708-201806

ECUADOR SPEC,(L)

main25627-0E010i2GDFTV..GUN125..TSC..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC;2GDFTV..GUN112,122,125..(5F,6FC)..GCC201708-201806

IRAQ SPEC,THA SOURCED PARTS

main25627-0E010i1GDFTV..GUN126..M..GCC;2GDFTV..GUN112,122,125..GCC201806-202010

ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(L)

main25627-0E020i2GDFTV..GUN125..TDC..6FC..L..GEN201807-202005

IND SOURCED PARTS

main25627-0E020i2GDFTV..GUN125..TDC..6FC..L..GEN201807-201905

EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS

main25627-0E020i2GDFTV..GUN125..TDC..6FC..L..GEN201807-201905

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS

main25627-0L010i1KDFTV,2KDFTV..KUN112,122,126..IDN,PKN,VN201505-202006

main25627-0L010i2KDFTV..KUN125,135..HDCR201505-201707

NO.1:REFER ILLUST.

main25627-11050i1GDFTV..GUN136..LA;1GDFTV..GUN126..6F..X..LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..TDC..6F..(M,S)..LA201505-202010

(J)

main25627-11050i1GDFTV..GUN136..LA;1GDFTV..GUN126..6F..X..LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..TDC..6F..(M,S)..LA201708-201809

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)

main25627-11050i2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..(H,M)..GEN201708-201809

BOLIVIA URUGUAY SPEC,(J)

main25627-11050i1GDFTV..GUN126..6F..M..LA;1GDFTV..GUN126..TDC..6F..X201505-201809

COLOMBIA SPEC,(J)

main25627-11050i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010

PERU SPEC,(J)

main25627-30060i2KDFTV..KUN125,135..HDCR201505-201707

NO.2:REFER ILLUST.

25630VALVE ASSY, EGR, NO.2

main25630-0E010i2GDFTV..GUN125..RHD..TDC..6F..S..GEN201505-202004

IDN SOURCED PARTS

sub25630-0E030

main25630-0E010i1GDFTV..GUN126..M..GCC;2GDFTV..GUN112,122,125..GCC201806-202004

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS

sub25630-0E030

main25630-0E020i2GDFTV..GUN125..TDC..X..GEN201807-202005

IND SOURCED PARTS

sub25630-0E040

main25630-0E020i2GDFTV..GUN125..TDC..X..GEN201807-201905

EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS

sub25630-0E040

main25630-0E020i2GDFTV..GUN125..TDC..X..GEN201807-201905

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS

sub25630-0E040

main25630-0E030i1GDFTV..GUN126..6F..X..LA202005-202010

IDN SOURCED PARTS

sub25630-0E031

main25630-0E030i1GDFTV..GUN126..6F..X..LA202005-202010

MEXICO SPEC,IDN SOURCED PARTS

sub25630-0E031

main25630-0E030i1GDFTV..GUN126..6F..X..LA202005-202010

PERU SPEC,IDN SOURCED PARTS

sub25630-0E031

main25630-0E030i1GDFTV..GUN126..6F..X..LA202005-202010

BOLIVIA URUGUAY SPEC,IDN SOURCED PARTS

sub25630-0E031

main25630-11010i2GDFTV..GUN125..ASC..LA201809-202005

PERU SPEC,(J)

sub25630-11011

main25630-11010i2GDFTV..GUN125..LHD..TDC..M..GEN201505-202005

(J)

sub25630-11011

main25630-11010i2GDFTV..GUN125..LHD..TDC..M..GEN201708-201809

BOLIVIA URUGUAY SPEC,(J)

sub25630-11011

main25630-11010i2GDFTV..GUN125..LHD..TDC..M..GEN201708-201809

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)

sub25630-11011

main25630-11010i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN135..BZAGT..CBU;2GDFTV..GUN125..RHD..TDC..6F..L..GEN;2GDFTV..GUN125..(ADC,TDC,TSC)..6F..(ARL,BZAGT)201505-201809

COLOMBIA SPEC,(J)

sub25630-11011

main25630-11011i2GDFTV..GUN125..ASC..LA202006-202010

PERU SPEC,(J)

sub25630-11012

main25630-11011i2GDFTV..GUN125,135..ADC..LA202006-202010

(J)

sub25630-11012

25633GASKET, EGR VALVE

main25633-0E010i2GDFTV..GUN125..TDC..6FC..L..GEN201505-202010

THA SOURCED PARTS

main25633-0E020i2GDFTV..GUN125..TDC..6FC..L..GEN201807-201905

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS

main25633-0E020i2GDFTV..GUN125..TDC..6FC..L..GEN201807-201905

EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS

main25633-0E020i2GDFTV..GUN125..TDC..6FC..L..GEN201807-202005

IND SOURCED PARTS

main25633-11010i2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..(H,M)..GEN201708-201809

BOLIVIA URUGUAY SPEC,(J)

main25633-11010i2GDFTV..GUN135..GEN201505-202010

(J)

main25633-11010i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN135..BZAGT..CBU;2GDFTV..GUN125..RHD..TDC..6F..L..GEN;2GDFTV..GUN125..(ADC,TDC,TSC)..6F..(ARL,BZAGT)201505-201809

COLOMBIA SPEC,(J)

main25633-11010i2GDFTV..GUN125..LHD..TDC..M..GEN201708-201809

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)

main25633-11010i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010

PERU SPEC,(J)

25681COOLER, EGR, NO.1

main25681-0E010i1GDFTV,2GDFTV..GUN125,126,135..MA201505-201709

main25681-0E010i1GDFTV,2GDFTV..GUN125,126,13#..RHD..6F..SA201505-202010

THA SOURCED PARTS

main25681-0E010i2GDFTV..GUN125..RHD..TDC..6F..L..GEN201505-201809

COLOMBIA SPEC,THA SOURCED PARTS

main25681-0E010i2GDFTV..GUN125..LHD..TDC..M..GEN201708-201809

BOLIVIA URUGUAY SPEC,THA SOURCED PARTS

main25681-0E010i2GDFTV..GUN125..LHD..TDC..M..GEN201708-201809

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS

main25681-0E010i2GDFTV..GUN122..PH,TH;1GDFTV..GUN126..M..LA;1GDFTV..GUN126..6F..S..LA;1GDFTV..GUN126..TDC..6F..X;2GDFTV..GUN122..TSC..X..GEN;1GDFTV..GUN126..RHD..6F..H..GEN;2GDFTV.201505-202010

PERU SPEC

main25681-0E010i1GDFTV..GUN126..BZAGT;1GDFTV..GUN136..6F..(M,S)..BZAGT201710-202010

MEXICO SPEC

main25681-0E010i1GDFTV..GUN126..BZAGT;1GDFTV..GUN136..6F..(M,S)..BZAGT201710-202010

PERU SPEC,THA SOURCED PARTS

main25681-0E010i1GDFTV..GUN126..BZAGT;1GDFTV..GUN136..6F..(M,S)..BZAGT201710-202010

BOLIVIA URUGUAY SPEC

main25681-0E010i1GDFTV..GUN126..ADC..6FC..M..LA201810-202010

MEXICO SPEC,THA SOURCED PARTS

25685GASKET, EGR COOLER, NO.1

main25685-0E010i2GDFTV..GUN122..RHD..SA;1GDFTV,2GDFTV..GUN125,126,13#..SA201505-202010

THA SOURCED PARTS

main25685-0E020i2GDFTV..GUN125..TDC..6FC..L..GEN201807-201905

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS

main25685-0E020i2GDFTV..GUN125..TDC..X..GEN201807-202005

IND SOURCED PARTS

main25685-0E020i2GDFTV..GUN125..TDC..X..GEN201807-201905

EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS

main25685-11010i2GDFTV..GUN135..GEN201505-202010

(J)

main25685-11010i2GDFTV..GUN125..LHD..TDC..M..GEN201708-201809

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)

main25685-11010i1GDFTV..GUN136..LA;1GDFTV..GUN126..6F..X..LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..TDC..6F..(M,S)..LA201708-201809

BOLIVIA URUGUAY SPEC,(J)

main25685-11010i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN135..BZAGT..CBU;2GDFTV..GUN125..RHD..TDC..6F..L..GEN;2GDFTV..GUN125..(ADC,TDC,TSC)..6F..(ARL,BZAGT)201505-201809

COLOMBIA SPEC,(J)

main25685-11010i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010

PERU SPEC,(J)

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0E010i1GDFTV..GUN126..M..LA;1GDFTV..GUN126..6F..S..LA;1GDFTV..GUN126..TDC..6F..X;2GDFTV..GUN122..TSC..X..GEN;2GDFTV..GUN125..RHD..6F..S..SA;1GDFTV..GUN136..S..(ARL,BZAGT)201505-202105

(L)

main25800-0L010i1KDFTV..KUN126..PKN,VN201505-201801

main25800-0L020i2KDFTV..KUN112,122..IDN,PKN201505-202006

sub25800-0L050

main25800-0L080i2KDFTV..KUN125,135..HDCR201505-201707

main25800-11010i1GDFTV..GUN126..ADC..6F..(M,S)..LA201708-201809

BOLIVIA URUGUAY SPEC,(J)

main25800-11010i2GDFTV..GUN125..ASC..LA201809-202010

PERU SPEC,(J)

main25800-11010i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201505-202010

(J)

main25800-11010i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN125..RHD..S..SA;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN135..X..BZAGT..CBU;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RH201505-201809

COLOMBIA SPEC,(J)

main25800-11010i2GDFTV..GUN125..LHD..TDC..M..GEN201708-201809

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)

90105T0156

main90105-T0156

90105T0265

main90105-T0265

90105T0285

main90105-T0285

90119T0342

main90119-T0342

9155110860

main91551-10860

9155180835

main91551-80835

9155180890

main91551-80890

91551G0865

main91551-G0865

9167180820

main91671-80820

20 parts on this diagram · 8 diagrams in section
