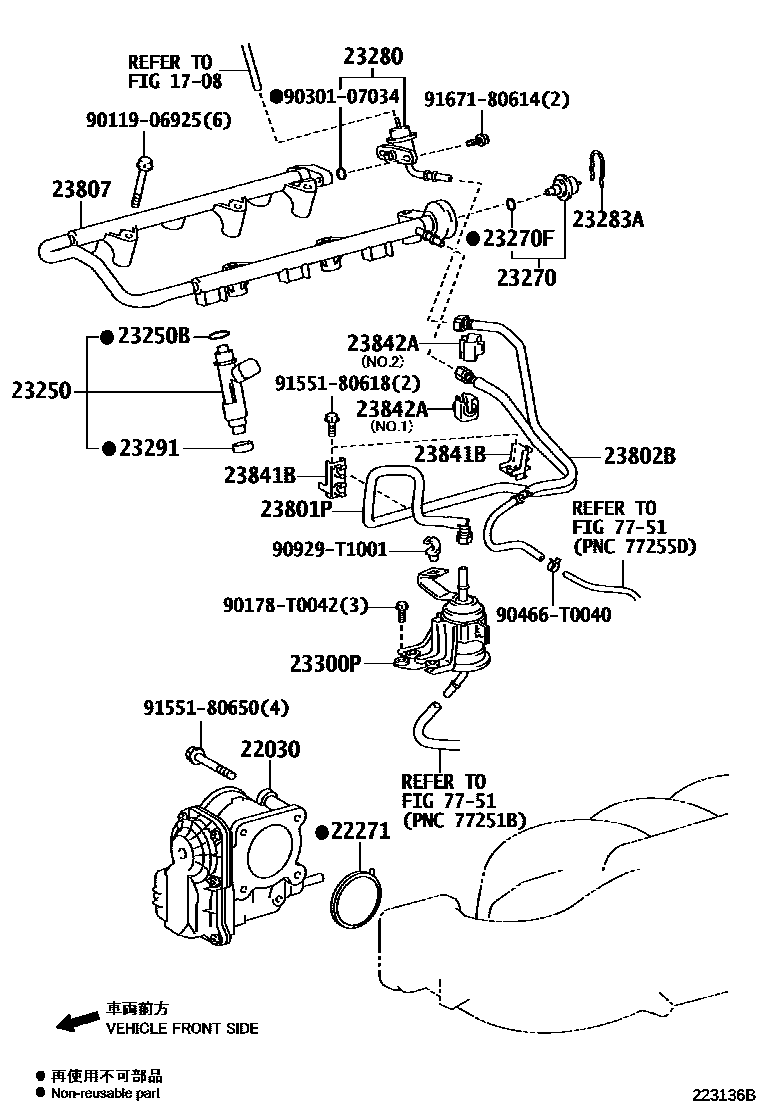

FUEL INJECTION SYSTEM
1708
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
(L)
(L)
(J)
(J)
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23280REGULATOR ASSY, FUEL PRESSURE
23283AHOLDER, FUEL PRESSURE REGULATOR
23291INSULATOR, INJECTOR VIBRATION
main23291-0C010i2TRFE..TGN126..S..SA;2TRFE..TGN126..ADC,ASC;2TRFE..TGN126..(M,X)..(GEN,SA);1TRFE,2TRFE..TGN120,121,128,13#..(ADC,ASC,SDC,SSC)..CBU201505-202010
THA SOURCED PARTS
main23291-0C010i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,1201505-201808
main23291-0C020i2TRFE..TGN126..6FC..(GEN,SA);2TRFE..TGN121,126..5F..(GCC,GEN,LA,SA,TH);1TRFE,2TRFE..TGN11#,120,128,13#..BZAGT,GCC,LA,SA201808-202010
IDN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
23300PFILTER, FUEL(FOR EFI)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
NO.1
NO.2
7751
9011906925
main90119-06925
90178T0042
main90178-T0042
9030107034
main90301-07034
90466T0040
main90466-T0040
90929T1001
main90929-T1001
9155180618
main91551-80618
9155180650
main91551-80650
9167180614
main91671-80614
25 parts on this diagram · 3 diagrams in section
