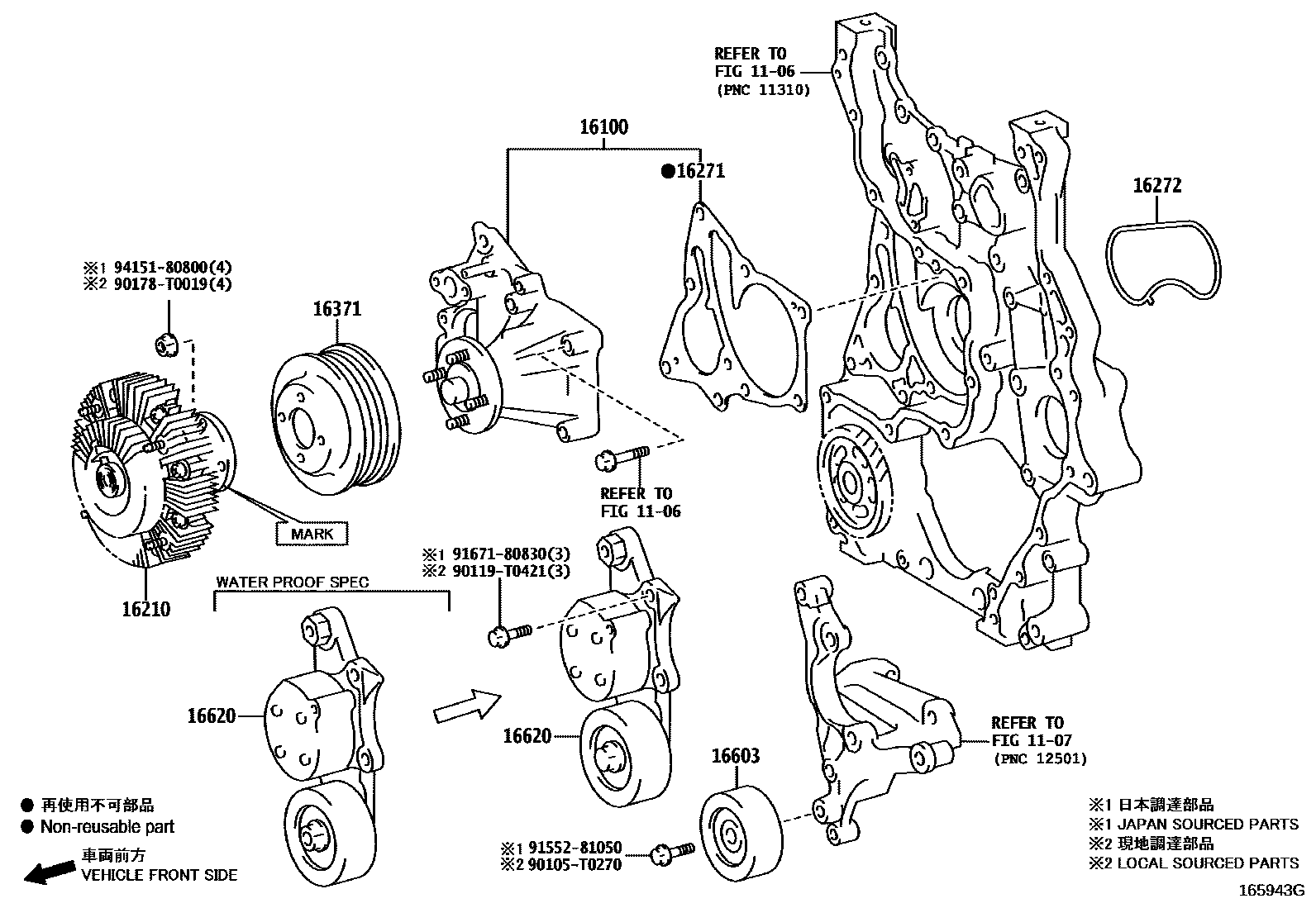

WATER PUMP
1106
1107
16100PUMP ASSY, ENGINE WATER
sub16100-09711
GCC SPEC(EURO 4 REGULATION),(J)
SAUDI ARABIA SPEC(EURO4 REGULATION),(J)
QATAR SPEC(EURO 4 REGULATION),(J)
AZERBAIJAN SPEC(EURO 4 REGULATION),(J)
JORDAN SPEC,(J)
IRAQ SPEC,(J)
ARGENTINA SPEC(EURO 4 REGULATION),(J)
main16100-19365i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN125..RHD..S..SA;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN135..X..BZAGT..CBU;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RH201505-202010
(J)
main16100-19365i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN125..RHD..S..SA;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN135..X..BZAGT..CBU;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RH201505-201809
COLOMBIA SPEC,(J)
BOLIVIA URUGUAY SPEC,(J)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
main16100-19365i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010
PERU SPEC,(J)
16210COUPLING ASSY, FLUID
LIGHT GRAY
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),LIGHT GRAY
EXPORT FROM SOUTH AFRICA&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
main16210-0E010i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),LIGHT GRAY
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
SUDAN SPEC,LIGHT GRAY
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
SYRIA SPEC,LIGHT GRAY
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
EXPORT FROM SOUTH AFRICA,LIGHT GRAY
CHILE SPEC,LIGHT GRAY
CS AMERICA SPEC,LIGHT GRAY
CS AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),LIGHT GRAY
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT GRAY
PAKISTAN SPEC,LIGHT GRAY
EXHAUST EMISSION CONTROL-WITHOUT
EGYPT SPEC,LIGHT GRAY
AFRICA SPEC,LIGHT GRAY
GREEN
MEXICO SPEC,GREEN
main16210-0E020i1GDFTV..GUN136..LA;1GDFTV..GUN126..ADC..X;1GDFTV..GUN126..6FC..S..LA;1GDFTV..GUN126..TDC..6FC..X;2GDFTV..GUN135..(ASC,TSC)..LA201708-202010
BOLIVIA URUGUAY SPEC,GREEN
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),GREEN
PERU SPEC,GREEN
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),GREEN
ARGENTINA SPEC(EURO 4 REGULATION),GREEN
CAMBODIA SPEC,GREEN
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,LIGHT PURPLE
LIGHT PURPLE
ASIA COLD COUNTRY SPEC,LIGHT PURPLE
sub16210-31021
16271GASKET, WATER PUMP
MADE IN THAILAND
EXHAUST EMISSION CONTROL-WITHOUT,MADE IN INDIA
MADE IN INDIA
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN INDIA
JORDAN SPEC,MADE IN JAPAN
PERU SPEC,MADE IN JAPAN
MADE IN JAPAN
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN
BOLIVIA URUGUAY SPEC,MADE IN JAPAN
IRAQ SPEC,MADE IN JAPAN
QATAR SPEC(EURO 4 REGULATION),MADE IN JAPAN
GCC SPEC(EURO 4 REGULATION),MADE IN JAPAN
COLOMBIA SPEC,MADE IN JAPAN
ARGENTINA SPEC(EURO 4 REGULATION),MADE IN JAPAN
AZERBAIJAN SPEC(EURO 4 REGULATION),MADE IN JAPAN
SAUDI ARABIA SPEC(EURO4 REGULATION),MADE IN JAPAN
16272GASKET, WATER PUMP, NO.2
MADE IN THAILAND
EXHAUST EMISSION CONTROL-WITHOUT,MADE IN INDIA
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN INDIA
MADE IN INDIA
AZERBAIJAN SPEC(EURO 4 REGULATION),MADE IN JAPAN
MADE IN JAPAN
QATAR SPEC(EURO 4 REGULATION),MADE IN JAPAN
SAUDI ARABIA SPEC(EURO4 REGULATION),MADE IN JAPAN
GCC SPEC(EURO 4 REGULATION),MADE IN JAPAN
JORDAN SPEC,MADE IN JAPAN
IRAQ SPEC,MADE IN JAPAN
ARGENTINA SPEC(EURO 4 REGULATION),MADE IN JAPAN
main16272-11010i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN125..RHD..S..SA;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN135..X..BZAGT..CBU;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RH201505-201809
COLOMBIA SPEC,MADE IN JAPAN
BOLIVIA URUGUAY SPEC,MADE IN JAPAN
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN
main16272-11010i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010
PERU SPEC,MADE IN JAPAN
16371PULLEY, FAN
(L)
MADE IN THAILAND
MADE IN INDIA
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN INDIA
EXHAUST EMISSION CONTROL-WITHOUT,MADE IN INDIA
COLOMBIA SPEC,MADE IN JAPAN
main16371-11010i1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN125,135..RHD..S..SA;2GDFTV..GUN125..RHD..TDC..6F..L..GEN201505-201809
*272
main16371-11010i1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN125,135..RHD..S..SA;2GDFTV..GUN125..RHD..TDC..6F..L..GEN201505-202010
MADE IN JAPAN
BOLIVIA URUGUAY SPEC,MADE IN JAPAN
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN
PERU SPEC,MADE IN JAPAN
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),*272
AZERBAIJAN SPEC(EURO 4 REGULATION),MADE IN JAPAN
QATAR SPEC(EURO 4 REGULATION),MADE IN JAPAN
SAUDI ARABIA SPEC(EURO4 REGULATION),MADE IN JAPAN
GCC SPEC(EURO 4 REGULATION),MADE IN JAPAN
CHILE SPEC,*272
JORDAN SPEC,MADE IN JAPAN
IRAQ SPEC,MADE IN JAPAN
ARGENTINA SPEC(EURO 4 REGULATION),MADE IN JAPAN
(J)
16603PULLEY SUB-ASSY, IDLER, NO.1
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
CAMBODIA SPEC,MADE IN THAILAND
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
main16603-0C013i2GDFTV..GUN125..LHD..SSC..X;1GDFTV..GUN126,136..6F..S..SA;2GDFTV..GUN125,135..RHD..X..SA;2GDFTV..GUN125..LHD..(SDC,SXT)..6F..S201505-202105
MADE IN THAILAND
PERU SPEC,MADE IN THAILAND
ARGENTINA SPEC(EURO 4 REGULATION),MADE IN THAILAND
main16603-0C013i1GDFTV..GUN136..LA;1GDFTV..GUN126..ADC..X;1GDFTV..GUN126..6FC..S..LA;1GDFTV..GUN126..TDC..6FC..X;2GDFTV..GUN135..(ASC,TSC)..LA201708-202010
BOLIVIA URUGUAY SPEC,MADE IN THAILAND
MEXICO SPEC,MADE IN THAILAND
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
WATER PROOF SPEC,(L)
BRAZIL 2017- DIESEL OBD,MADE IN THAILAND
CHILE SPEC,WATER PROOF SPEC
CHILE SPEC,(L)
CS AMERICA SPEC,WATER PROOF SPEC
(L)
EXPORT FROM SOUTH AFRICA,WATER PROOF SPEC
AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),WATER PROOF SPEC
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(L)
PAKISTAN SPEC,WATER PROOF SPEC
EGYPT SPEC,WATER PROOF SPEC
SUDAN SPEC,WATER PROOF SPEC
AFRICA SPEC,WATER PROOF SPEC
SYRIA SPEC,WATER PROOF SPEC
MADE IN THAILAND
EXHAUST EMISSION CONTROL-WITHOUT,MADE IN THAILAND
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
EXPORT FROM SOUTH AFRICA&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),WATER PROOF SPEC
EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
main16603-0E010i2GDFTV..GUN122..TSC..GCC;2GDFTV..GUN122..TDC..S..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC201905-202005
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
main16603-0E010i2GDFTV..GUN122..TSC..GCC;2GDFTV..GUN122..TDC..S..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC201505-202102
WATER PROOF SPEC
main16603-0E010i2GDFTV..GUN122..TSC..GCC;2GDFTV..GUN122..TDC..S..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC201905-202005
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
main16603-0E010i2GDFTV..GUN122..TSC..GCC;2GDFTV..GUN122..TDC..S..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC201905-202005
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
main16603-0E010i2GDFTV..GUN122..TSC..GCC;2GDFTV..GUN122..TDC..S..GCC;2GDFTV..GUN125..TDC..6F..(L,M)..GCC201905-202005
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
CS AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),WATER PROOF SPEC
BOLIVIA URUGUAY SPEC,MADE IN JAPAN
QATAR SPEC(EURO 4 REGULATION),MADE IN JAPAN
IRAQ SPEC,MADE IN JAPAN
GCC SPEC(EURO 4 REGULATION),MADE IN JAPAN
JORDAN SPEC,MADE IN JAPAN
SAUDI ARABIA SPEC(EURO4 REGULATION),MADE IN JAPAN
main16603-31040i2GDFTV..GUN120;2GDFTV..GUN135..6F..VN;2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN135..(ADC,TDC,TXT)..(LA,TH);2GDFTV..GUN125..(ADC,TDC,TXT)..6F..(LA,TH,VN)201505-202010
MADE IN JAPAN
main16603-31040i2GDFTV..GUN120;2GDFTV..GUN135..6F..VN;2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN135..(ADC,TDC,TXT)..(LA,TH);2GDFTV..GUN125..(ADC,TDC,TXT)..6F..(LA,TH,VN)201505-202010
PERU SPEC,MADE IN JAPAN
AZERBAIJAN SPEC(EURO 4 REGULATION),MADE IN JAPAN
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN
COLOMBIA SPEC,MADE IN JAPAN
ARGENTINA SPEC(EURO 4 REGULATION),MADE IN JAPAN
(J)
16620TENSIONER ASSY, V-RIBBED BELT
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
main16620-0E010i2GDFTV..GUN125..LHD..SSC..X;1GDFTV..GUN126,136..6F..S..SA;2GDFTV..GUN125,135..RHD..X..SA;2GDFTV..GUN125..LHD..(SDC,SXT)..6F..S201505-202105
MADE IN THAILAND
AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
CAMBODIA SPEC,MADE IN THAILAND
PERU SPEC,MADE IN THAILAND
ARGENTINA SPEC(EURO 4 REGULATION),MADE IN THAILAND
MEXICO SPEC,MADE IN THAILAND
main16620-0E010i1GDFTV..GUN136..LA;1GDFTV..GUN126..ADC..X;1GDFTV..GUN126..6FC..S..LA;1GDFTV..GUN126..TDC..6FC..X;2GDFTV..GUN135..(ASC,TSC)..LA201708-202010
BOLIVIA URUGUAY SPEC,MADE IN THAILAND
main16620-0E020i2GDFTV..GUN125..ASC..LA;2GDFTV..GUN135..L..BZAGT;1GDFTV..GUN136..ARL,BZAGT,LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..ADC..6F..(H,X);2GDFTV..GUN122..(M,S)..DC201505-202102
WATER PROOF SPEC
CHILE SPEC,WATER PROOF SPEC
CS AMERICA SPEC,WATER PROOF SPEC
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
AFRICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
SYRIA SPEC,WATER PROOF SPEC
EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),WATER PROOF SPEC
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
AZERBAIJAN SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),WATER PROOF SPEC
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
SUDAN SPEC,WATER PROOF SPEC
EXPORT FROM SOUTH AFRICA,WATER PROOF SPEC
CS AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),WATER PROOF SPEC
PAKISTAN SPEC,WATER PROOF SPEC
EGYPT SPEC,WATER PROOF SPEC
AFRICA SPEC,WATER PROOF SPEC
EXPORT FROM SOUTH AFRICA&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
OCEANIA GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC
BOLIVIA URUGUAY SPEC,MADE IN JAPAN
QATAR SPEC(EURO 4 REGULATION),MADE IN JAPAN
JORDAN SPEC,MADE IN JAPAN
GCC SPEC(EURO 4 REGULATION),MADE IN JAPAN
IRAQ SPEC,MADE IN JAPAN
MADE IN JAPAN
PERU SPEC,MADE IN JAPAN
ARGENTINA SPEC(EURO 4 REGULATION),MADE IN JAPAN
main16620-11010i1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN125,135..RHD..S..SA;2GDFTV..GUN125..RHD..TDC..6F..L..GEN201505-201809
COLOMBIA SPEC,MADE IN JAPAN
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN
SAUDI ARABIA SPEC(EURO4 REGULATION),MADE IN JAPAN
AZERBAIJAN SPEC(EURO 4 REGULATION),MADE IN JAPAN
sub16620-31013
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
main91552-81050
9167180830
main91671-80830
9415180800
main94151-80800
15 parts on this diagram · 5 diagrams in section
