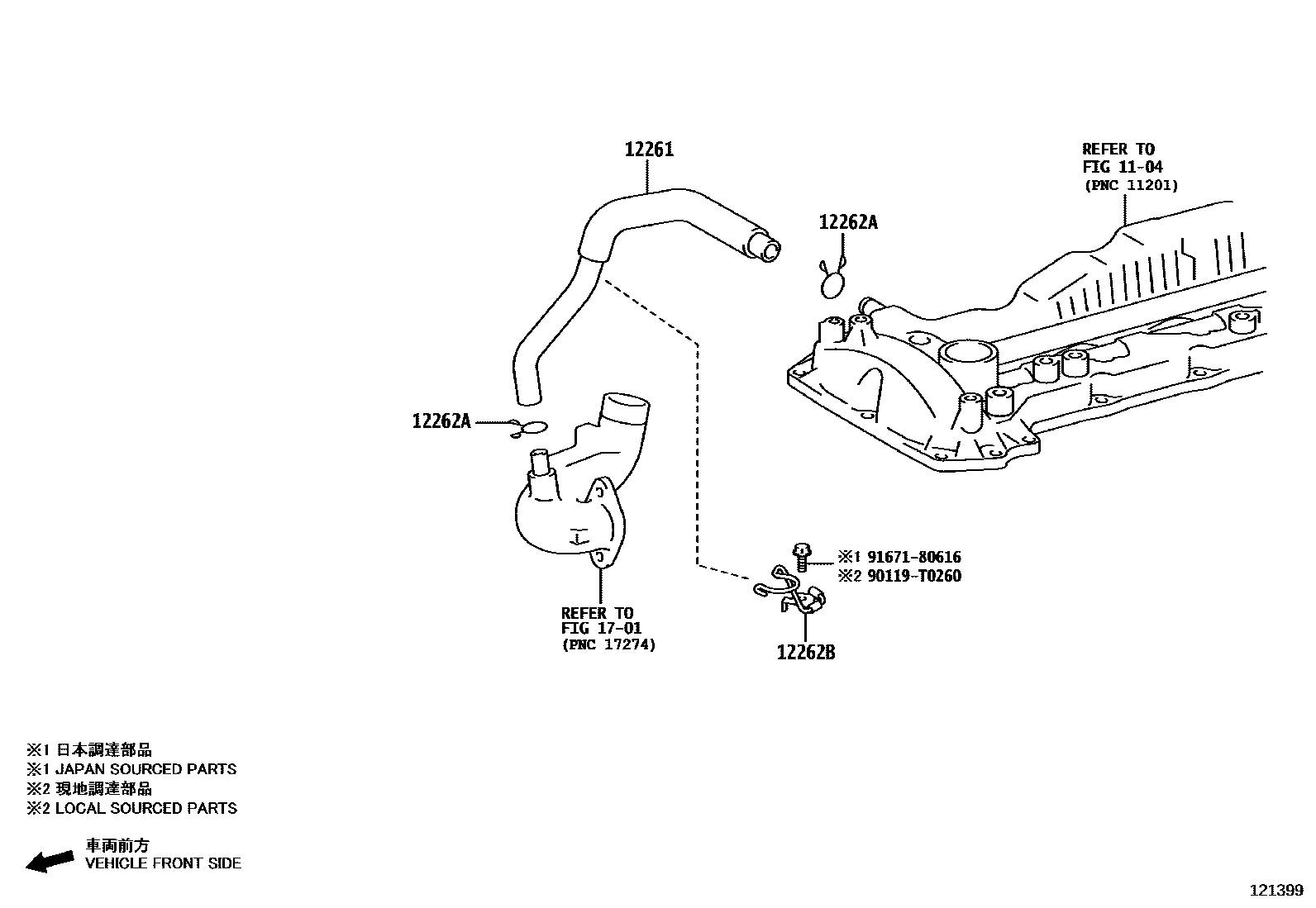

VENTILATION HOSE
1104
12261HOSE, VENTILATION
main12261-0C030i2TRFE..TGN126..6FC..SA;2TRFE..TGN126..5F..L..GEN;2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;2TRFE..TGN126..5F..(BZAGT,GCC,LA,SA);1TRFE,2TR201505-202010
*447
*163
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS
PERU SPEC,(J)
(J)
main12261-11240i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN125..RHD..S..SA;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN135..X..BZAGT..CBU;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RH201505-201809
COLOMBIA SPEC,(J)
BOLIVIA URUGUAY SPEC,(J)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
ASIA COLD COUNTRY SPEC
12262HOSE, VENTILATION, NO.2
main12262-0C060i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201505-202005
KAZAKHSTAN SPEC(EURO 2 REGULATION)
KAZAKHSTAN SPEC(EURO 4 REGULATION)
main12262-0E010i2GDFTV..GUN125..(TDC,TXT)..6FC..IV3;2GDFTV..GUN125..RHD..6FC..(L,X)..CBU201505-202005
ASIA COLD COUNTRY SPEC
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
ASIA COLD COUNTRY SPEC
12262ACLIP(FOR VENTILATION HOSE NO.2)
(L),NO.1
(L),NO.2
(J),NO.1
NO.2
(J),NO.2
12262BCLAMP(FOR VENTILATION HOSE)
1701
90119T0260
main90119-T0260
9167180616
main91671-80616
8 parts on this diagram · 8 diagrams in section
