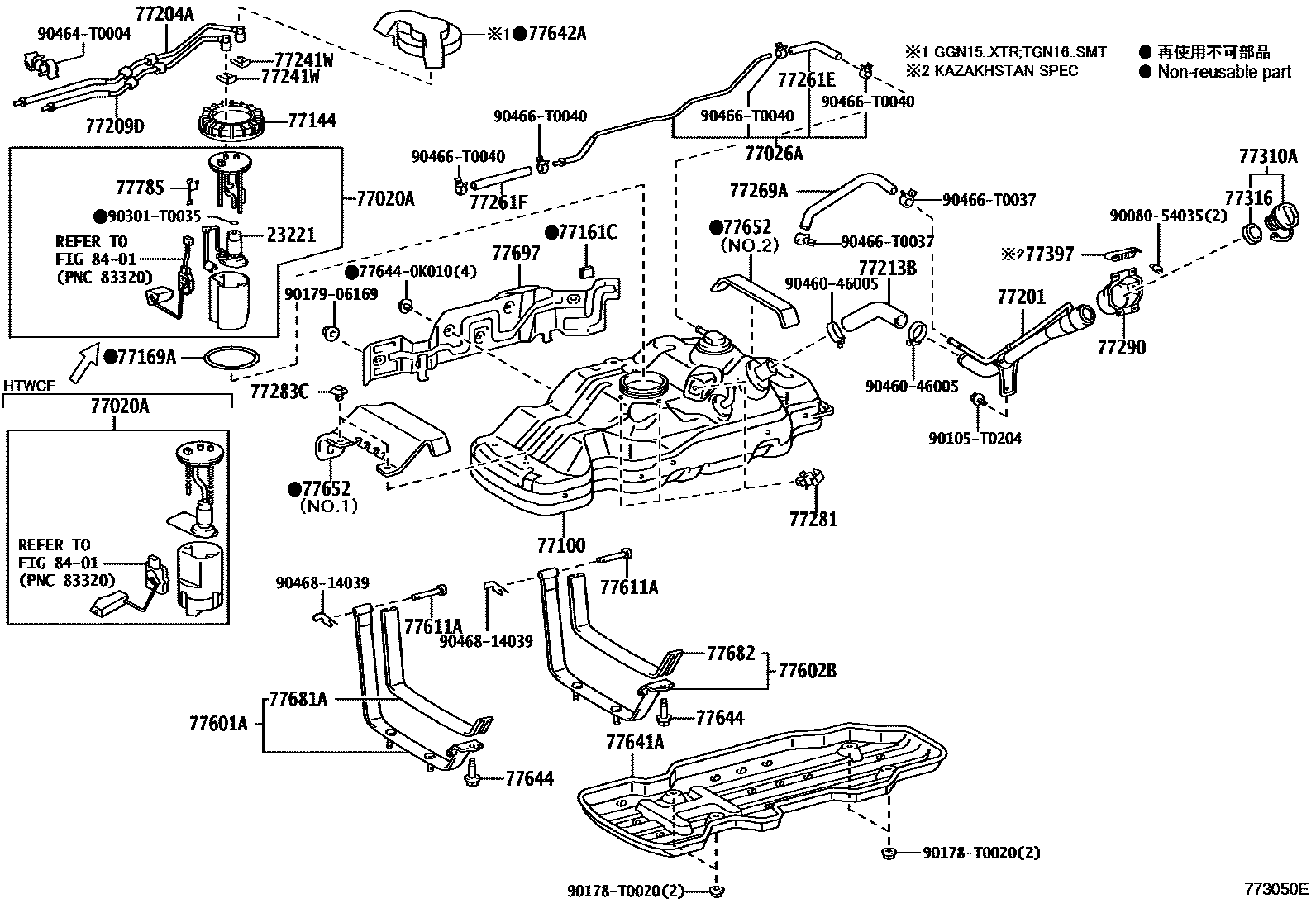

FUEL TANK & TUBE

0001 1FUEL TANK(UNLEADED GASOLINE) 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK(LEADED GASOLINE) 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TANK 0009 1FUEL SUB TANK 0010 1FUEL TUBE(UNLEADED GASOLINE) 0011 1FUEL TUBE 0012 1FUEL TUBE(LEADED GASOLINE) 0014 1FUEL TUBE 0015 1FUEL TUBE 0017 1FUEL TUBE(W/FUEL COOLER) 0020 1FUEL TUBE 0021 1FUEL LID OPENER 0022 1FUEL TANK(CNG) 0023 1FUEL TUBE(CNG)

23221PUMP, FUEL

main23220-0C050i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,SA,TH201107-201207

sub23220-0C051

main23220-0C051i1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC201208

main23220-0C130i1TRFE..TGN10..IDN201107-201207

sub23220-0C051

main23220-0C140i2TRFE..TGN26,36..HTWC..(ANCOM,CO,LA)201110-201207

sub23220-0C051

main23220-0P010i1GRFE..GGN15,25,35..RHD201107-201512

main23220-0P160i1GRFE..GGN25..ANCOM201204

main23221-0D030i2TRFE..TGN26,36..HTWCF201303-201510

main23221-0D221i2TRFE..TGN26,36..HTWCF201110-201302

sub23221-0D030

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0K010iTGN16,26..SA;TGN26..THDCB;TGN16..SCB..GEN;TGN15,36..GEN,SA201107-201512

main77020-0K020iTGN10,11..GCC201107-201504

main77020-0K060iGGN25,35..SA201108-201512

main77020-0K080iTGN15,16..ARL,GCC,TH;TGN16..(DCB,XTR)..GEN;TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

main77020-0K090iGGN15,25..ARL201107-201504

main77020-0K160iTGN10..IDN201107-201504

main77020-0K180iTGN26,36..HTWC..(ANCOM,CO,LA)201110

main77020-0K190iGGN25..ANCOM201204

main77020-0K220iTGN26,36..HTWCF201110-201510

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-0K010iTGN26..4FC..GEN;TGN16..DCB,SCB,SMT;GGN15,25,35,TGN15,36;TGN26..(SCB,THDCB)..GEN;TGN26..ANCOM,CO,GCC,LA,SA201107

main77026-0K020iTGN10,11201107-201504

main77027-0K010iTGN16..XTR;KUN26..LA..IV3;TGN26..DCB..5F..GEN;KUN15,16,2#,3#,LAN15,25,35..DCR,DEFI,HDCR201107-201609

main77027-0K020iKUN10201107-201504

main77027-71010iKUN26..IART..CBU201204-201510

77100TANK ASSY, FUEL

main77001-0K011iTGN16..(DCB,XTR)..GEN;TGN26..(DCB,SCB)..(GCC,GEN);GGN15,25,TGN15,16..ARL,GCC,TH201107-201504

main77001-0K021iKUN15,16,2#,3#..(DCB,SCB,SMT,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main77001-0K030iTGN10,11201107-201504

main77001-0K040iKUN10201107-201504

main77001-0K071iGGN25,35,TGN15,16,26,36..SA201108-201512

main77001-0K081iKUN26..SADCB;KUN15,2#,3#,LAN15,25,35..SA201108-201512

main77001-0K091iGGN25,TGN26,36..ANCOM,CO,LA201110

main77001-0K101iKUN2#,3#..CO,LA201110-201510

main77001-0K220iKUN2#,35..THDCB,THSCB201107-201504

main77001-0K240iTGN26,36..THDCB;TGN16..SCB..GEN201107-201504

77144RETAINER, FUEL PUMP GAUGE

main77144-0K010iKUN15,25..PKN201107-201609

77161CPROTECTOR, FUEL TANK, LOWER

main77671-0K010iKUN15,25..PKN201107-201609

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K010iKUN15,25..PKN201107-201609

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0K010iTGN10,11..CBU201107-201504

main77201-0K020iKUN10201107-201504

main77201-0K070iTGN26..SR..GEN;TGN26..4FC..GEN;TGN26..SCB..GEN;TGN16..DCB..GEN;GGN15,25,35,TGN15,16,26,36..(ANCOM,ARL,GCC,SA,TH)..CBU201107

main77201-0K080iGGN15,TGN16,36..(ANCOM,ARL,GCC)..IV3201107-201509

main77201-0K090iTGN36..GEN,LA;TGN26..THDCB..DLX;TGN16..(SCB,XTR)..GEN..CBU;TGN26..LHD..DCB..(CO,GEN,LA);KUN15,16,2#,3#,LAN15,25,35..(DCR,DEFI,HDCR)..CBU201107-201609

main77201-0K110iTGN16..GEN..IV3;KUN15,16,2#,35..IV3201107-201609

main77201-0K210iKUN26..IART..CBU201204-201510

main77201-0K220iTGN10..IV3201107-201504

77204ATUBE, FUEL TANK RETURN

main77204-0K010iGGN15,25,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,TH201107-201303

main77204-0K020iKUN26..SADCB;KUN15,2#,3#,LAN15,25,35..SA201107-201609

main77204-0K030iTGN10,11201107-201504

main77204-0K040iKUN10201107-201504

main77204-0K190iGGN25,35,TGN15,16,26,36..SA201304-201512

main77204-0K200iKUN26..SADCB;KUN15,2#,3#,LAN15,25,35..SA201304-201512

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K010iGGN25,35,TGN15,16,26,36..SA201107-201303

main77209-0K020iKUN15,16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,TH)201107-201609

main77209-0K030iTGN10,11201107-201504

main77209-0K040iKUN10201107-201504

main77209-0K250iGGN25,35,TGN15,16,26,36..SA201304-201512

main77209-0K260iKUN26..SADCB;KUN15,2#,3#,LAN15,25,35..SA201304-201512

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0K010iKUN10201107-201504

main77213-0K020iTGN26,36..ANCOM,GCC,GEN,SA;GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16201107-201502

IRAQ SPEC

sub77213-0K021

main77213-0K020iTGN26..THDCB..DLX201107-201502

COLOMBIA SPEC

sub77213-0K021

main77213-0K021iTGN26,36..ANCOM,GCC,GEN,SA;GGN15,25,35,KUN15,16,2#,3#,LAN15,25,TGN15,16..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201503-201609

main77213-0K050iTGN10,11201107-201504

main77213-0K060iTGN26,36..CO,LA201110-201510

77241WCLIP, TUBE JOINT

main77241-33011iKUN1#,2#,3#,LAN15,25,35201107-201609

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main95333-06020iTGN10,11201107-201504

*H,L=140

sub95337-06020

main95333-06030iTGN26..4FC..GEN;TGN16..DCB,SCB,SMT;GGN15,25,35,TGN15,36;TGN26..(SCB,THDCB)..GEN;TGN26..ANCOM,CO,GCC,LA,SA201107

*H,L=300

sub95338-06030

77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

main95333-06020iTGN10,11201107-201504

*H,L=160

sub95337-06020

main95333-06030iTGN26..4FC..GEN;TGN16..DCB,SCB,SMT;GGN15,25,35,TGN15,36;TGN26..(SCB,THDCB)..GEN;TGN26..ANCOM,CO,GCC,LA,SA201107

*H,L=220

sub95338-06030

77269AHOSE, FUEL TANK BREATHER

main77269-0K010iKUN10,TGN10,11201107-201504

main77269-0K020iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-0K070iKUN10,TGN10,11201107-201609

77283CBRACKET, FUEL TANK PROTECTOR

main77283-0K010iKUN15,25..PKN201107-201609

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-0K010iKUN26..5FC..ARL..CBU201107-201609

main77290-0K020iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA201108-201512

main77290-0K030iGGN25,KUN2#,3#,TGN26,36..(ANCOM,CO,LA)..CBU201110

77310ACAP ASSY, FUEL TANK

main77300-52030iKUN15,25..PKN..CBU201107-201609

77316GASKET, FUEL TANK CAP

main77316-52040iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)..CBU201107-201609

77397PLATE, FUEL INLET PIPE SEAL

main77397-0K010

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0K010iGGN15,KUN15,16,TGN16..ARL,GEN,PHL,PKN,TH201107-201609

main77601-0K020iKUN10,TGN10,11201107-201504

main77601-0K040iTGN16..GCC;GGN25,KUN15,TGN15..ARL,GCC;KUN2#,3#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main77601-0K080iKUN15,LAN15,TGN15,16..SA201108-201512

main77601-0K090iKUN26..SADCB;GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

main77601-0K100iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0K010iGGN15,KUN15,16,TGN16..ARL,GEN,PHL,PKN,TH201107-201609

main77602-0K020iKUN10,TGN10,11201107-201504

main77602-0K040iTGN16..GCC;GGN25,KUN15,TGN15..ARL,GCC;KUN2#,3#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main77602-0K070iKUN15,LAN15,TGN15,16..SA201108-201512

main77602-0K080iKUN26..SADCB;GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

main77602-0K090iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

77611APIN (FOR FUEL TANK BAND)

main77653-0K041iKUN10,TGN10,11..GCC201107-201609

77641APROTECTOR, FUEL TANK, NO.1

main77641-0K050iTGN16..GCC;GGN25,KUN15,TGN15..ARL,GCC;KUN2#,3#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main77641-0K090iKUN26..SADCB;GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

main77641-0K150iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

77642APROTECTOR, FUEL TANK, NO.2

main77641-0K100iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

77644BOLT, FUEL TANK

main77644-35030iKUN15,25,TGN15,16,26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH;GGN15,25,35,KUN10,16,26,3#,LAN15,25,35,TGN10,36..ANCOM,ARL,CO,GEN,IDN,LA,MA,PHL,SA,TH201107-201609

77652CUSHION, FUEL TANK, NO.1

main77652-0K010iKUN15,25..PKN201107-201609

NO.1:REFER ILLUST.

main77652-0K020iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609

NO.2:REFER ILLUST.

main77652-0K030iKUN10,TGN10,11201107-201504

77681SEAT, FUEL TANK BAND, RH

main77681-0K050iKUN10,TGN10,11201107-201504

77681ASEAT, FUEL TANK BAND

main77681-0K040iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main77681-0K070iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

77682SEAT, FUEL TANK BAND, LH

main77682-0K010iKUN10,TGN10,11201107-201504

main77682-0K020iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201609

main77682-0K040iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0K010iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609

main77697-0K020iKUN10,TGN10,11201107-201504

77785HARNESS, FUEL PUMP

main77785-0K010iGGN25,TGN26,36..DCB..ANCOM201107-201512

sub77785-0K011

main77785-0K011iGGN25,TGN26,36201512

8401

776440K010BOLT, FUEL TANK

main77644-0K010

9008054035

main90080-54035

90105T0204

main90105-T0204

90178T0020

main90178-T0020

9017906169

main90179-06169

90301T0035

main90301-T0035

9046046005

main90460-46005

90464T0004

main90464-T0004

90466T0037

main90466-T0037

90466T0040

main90466-T0040

9046814039

main90468-14039

45 parts on this diagram · 18 diagrams in section
