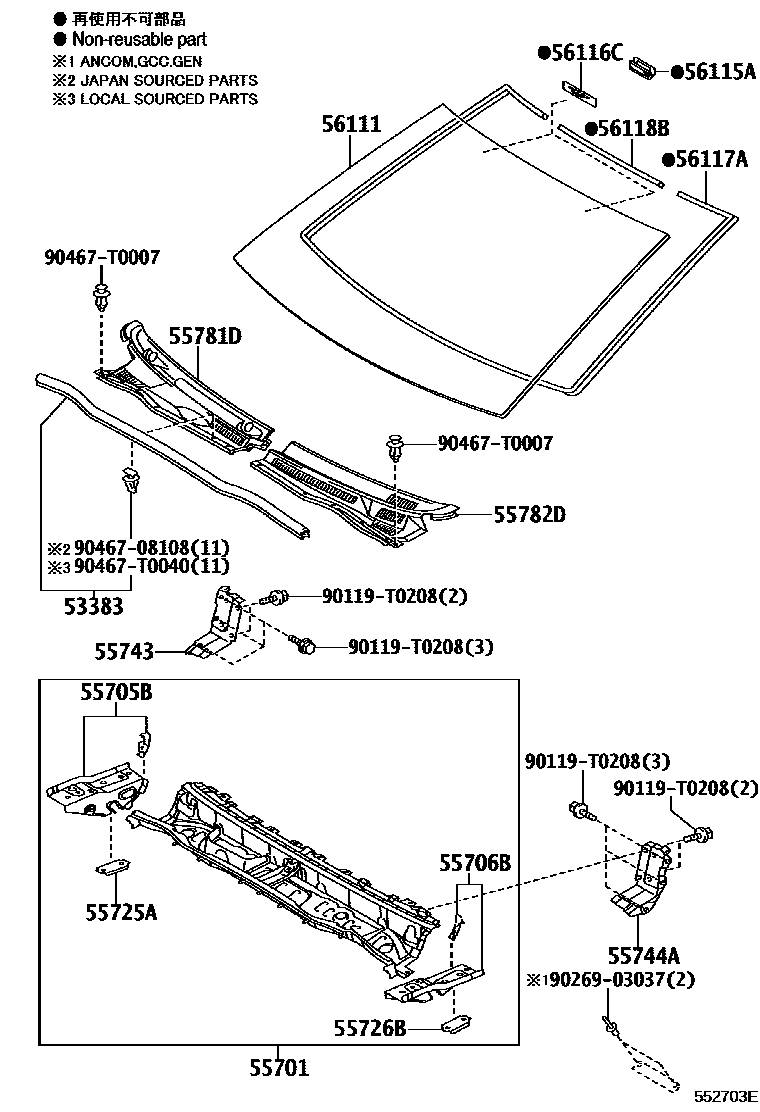

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-0K010iKUN26..5FC..IV3;KUN26..5FC..(GEN,TH);KUN16,26..(4FC,5F)..(ARL,GEN,MA,PHL,SA,TH);GGN15,25,35,KUN10,15,25,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107-201504

main53383-0K020iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-201803

sub53383-0K010

55701PANEL SUB-ASSY, COWL

main55700-0K010iKUN2#..DCB..MA201107-201609

main55700-0K020iKUN2#,35..5F..CO201107-201512

main55700-0K030iGGN25,TGN26,36..ANCOM201107

main55700-0K090iKUN15..DCB..TH;KUN15..SMT..SR;KUN2#,3#..5F..TH201107-201504

main55700-0K100iKUN26..5FC..(CO,GEN);KUN15..SCB..HDCR..GEN;KUN2#,3#..(5F,5FC)..LA201110-201510

main55700-0K150iTGN26,36..HTWCF201110-201510

main55700-0K160iTGN16..CNG201205-201504

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0K050iKUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107-201609

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0K050iKUN15,25..PKN201107-201609

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-0K010iKUN2#..DCB..MA201107-201609

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-0K010iKUN2#..DCB..MA201107-201609

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-0K010iKUN25..SCB..MA;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107-201609

55744AREINFORCEMENT, PEDAL BRACKET MOUNTING

main55744-0K010iKUN2#..DCB..MA201107-201609

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0K010iGGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL201107-201609

sub55708-0K290

main55708-0K020iKUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL)201107-201302

sub55708-0K021

main55708-0K021iKUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL)201303-201504

main55708-0K040iKUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA201108-201512

main55708-0K050iKUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA201108-201512

main55708-0K070iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

main55708-0K290iTGN16..ARL..IV3;KUN26..DCB..5FC..IV3;GGN15,KUN10,16,26,TGN10..(SCB,XTR)..(5F,5FC)..(ARL,IDN);KUN15,16,2#,3#,TGN16,26..RHD..(DCB,SCB,SMT)..(GEN,IDN,TH)201303-201504

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0K010iTGN16..ARL..IV3;KUN15,16..RHD..GEN;KUN36..(5F,5FC)..(GEN,TH);KUN26..RHD..(DCB,SMT)..(GEN,TH);GGN15,KUN10,16,26,TGN10..(SCB,XTR)..(5F,5FC)..(ARL,IDN);KUN15,25,35,TGN201107-201609

main55709-0K020iKUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL)201107-201302

sub55709-0K021

main55709-0K021iKUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL)201303-201504

main55709-0K040iKUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA201108-201512

main55709-0K050iKUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA201108-201512

main55709-0K070iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110

main55709-0K140iKUN26..5FC..ARL..CBU201303-201504

56111GLASS, WINDSHIELD

main56101-0K010iKUN25..SCB..MA201109-201601

*LAM,T=4.76,GREEN

sub56101-0K190

main56101-0K020iKUN2#..DCB..MA201109-201601

*LAM,T=4.76,GREEN

sub56101-0K200

main56101-0K031iKUN10,15,25,TGN10,11,15..GCC201107-201504

*LAM,T=4.76,GREEN

sub56101-0K041

main56101-0K041iTGN16,26..GCC;TGN16,36..(SCB,THDCB)..GEN201107

*LAM,T=4.76,GREEN

sub56101-0K043

main56101-0K060iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

*LAM,T=4.96,GREEN

main56101-0K070iGGN25,TGN26,36..ANCOM201110-201304

*LAM,T=4.96,GREEN

sub56101-0K071

main56101-0K071iKUN2#,3#,TGN26,36..CO,LA201206-201510

*LAM,T=4.96,GREEN

main56101-0K190iTGN16..XTR;TGN26..SR..GEN;KUN26..5FC..IV3;KUN26..(4FC,5F)..DLX..ARL;KUN25,35..(DCB,SCB)..DLX..(GEN,PHL,PKN);GGN15,25,KUN10,16,TGN10,16..RHD..(DLX,STD);KUN15,TGN26..201107-201609

*LAM,T=4.76,GREEN

sub56101-0K192

main56101-0K200iKUN15..DLX..HDCR201107-201504

*LAM,T=4.76,GREEN

sub56101-0K201

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-02020iKUN26..4FC,5F;KUN26..5FC..SR;KUN26..5FC..IV3;KUN26..5FC..DLX..LA;GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020iKUN26..5FC..DLX..ARL..CBU201107-201609

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0K010iKUN26..5FC..DLX..ARL..CBU201107-201609

L=3089

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-0K010iKUN26..5FC..DLX..ARL..CBU201107-201609

L=706

90119T0208

main90119-T0208

9026903037

main90269-03037

9046708108

main90467-08108

90467T0007

main90467-T0007

90467T0040

main90467-T0040

20 parts on this diagram · 2 diagrams in section
