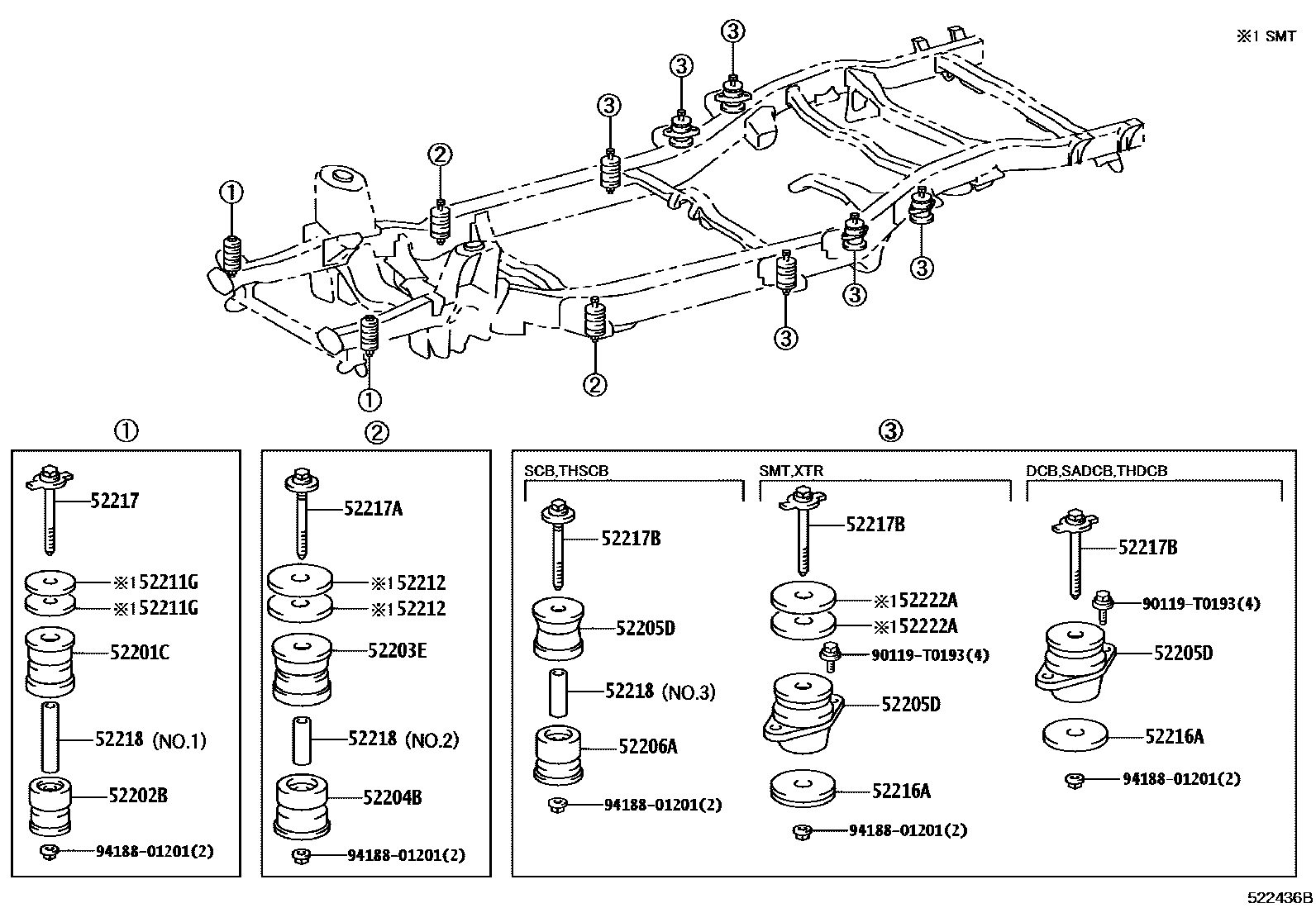

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107

main52201-0K020iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-201803

sub52201-0K010

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH201107

main52202-0K020iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-201803

sub52202-0K010

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K010iGGN25,TGN26,36201107

main52203-0K020iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-201803

sub52203-0K010

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K010iGGN25,TGN26,36201107

main52204-0K020iGGN25,KUN2#,3#,TGN26,36..ANCOM,CO,LA201110-201803

sub52204-0K010

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K010iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

main52205-0K020iKUN2#,35,TGN26,36..SCB..(ANCOM,LA)201110-201510

sub52205-0K010

main52205-0K030iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

main52205-0K040iGGN25,TGN26,36201107

main52205-0K050iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110-201803

sub52205-0K040

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K010iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

main52206-0K020iKUN2#,35,TGN26,36..SCB..(ANCOM,LA)201110-201510

sub52206-0K010

52211GSPACER, CAB FRONT MOUNTING

main522A1-0K010iKUN15,16,2#,3#,TGN16..SMT201107-201504

T=2.0

main522A2-0K010iKUN15,16,2#,3#,TGN16..SMT201107-201504

T=4.0

52212SPACER, BODY MOUNTING

main522A3-0K010iKUN15,16,2#,3#,TGN16..SMT201107-201504

T=2.0

main522A4-0K010iKUN15,16,2#,3#,TGN16..SMT201107-201504

T=4.0

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010iKUN25..DCB..PKN201107-201609

main52216-0K030iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

52217BOLT, BODY MOUNTING

main52217-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609

52217ABOLT, BODY MOUNTING

main52217-0K020iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609

52217BBOLT, BODY MOUNTING

main52217-0K020iKUN15,25..PKN201107-201609

main52217-0K031iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010iKUN15,25..PKN201107-201609

NO.1

main52219-0K010iKUN15,25..PKN201107-201609

NO.2

main52219-0K010iKUN15,25..PKN201107-201609

NO.3

52222ASPACER, CAB REAR MOUNTING, UPPER

main522A3-0K010iKUN15,16,2#,3#,TGN16..SMT201107-201504

OD=76,T=2.0

main522A4-0K010iKUN15,16,2#,3#,TGN16..SMT201107-201504

OD=76,T=4.0

90119T0193

main90119-T0193

9418801201

main94188-01201

16 parts on this diagram · 1 diagram in section
