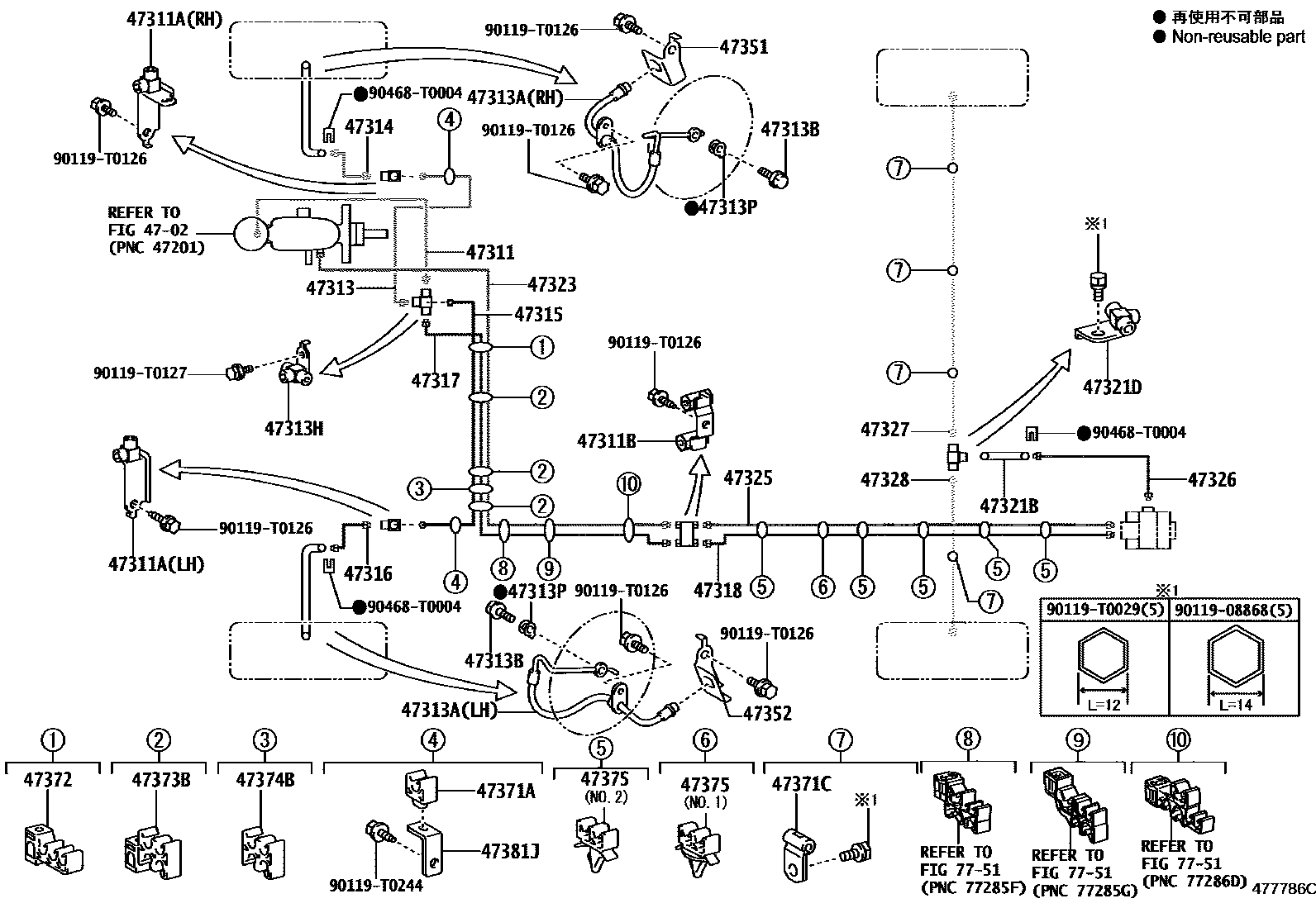

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0011 1 0012 1W(ABS) 0016 1W(ABS) 0019 1W(ABS) 0020 1W(ABS) 0021 1W(ABS) 0023 1W(ABS) 0025 1W(ABS) 0026 1W(ABS) 0030 1W(VSC) 0033 1W(VSC) 0035 1W(ABS) 0043 1W(VSC) 0044 1W(VSC) 0046 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0K010iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201609

main47311-0K020iKUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA201108-201310

main47311-0K030iKUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..DLX..SA201107

main47311-0K041iKUN26,36..5F..SR..DCR..LA201210-201510

EXPORT FROM ARGENTINA&VSC-WITHOUT

main47311-0K041iKUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA201108-201510

main47311-0K041iKUN26..4FC..LA201210-201510

HIGH ALTITUDE COUNTRY SPEC&VSC-WITHOUT

main47311-0K041iKUN26..4FC..LA201210-201510

PERU SPEC(HIGH ALTITUDE SPEC)&VSC-WITHOUT

main47311-0K041iKUN26..4FC..LA201210-201510

PERU SPEC&VSC-WITHOUT

main47311-0K070iGGN25,TGN26,36..ANCOM201204-201609

main47311-0K150iKUN26..4FC..TH201107-201512

main47311-0K150iKUN26..SCB..5FC;KUN26..5FC..ARL..CBU201107-201512

VSC-WITH

main47311-0K160iKUN26..4FC..LA201110-201510

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10251iKUN15,25..PKN201107-201609

RH

main90412-10252iKUN15,25..PKN201107-201609

LH

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10253iKUN15,25..PKN201107-201609

47313TUBE, FRONT BRAKE, NO.3

main47313-0K010iKUN26..4FC..TH201107-201208

VSC-WITHOUT

main47313-0K010iGGN25..5FC..DLX;KUN35..SMT..5FC;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;GGN15,KUN36,TGN36..RHD;KUN16,35..RHD..(ARL,GEN);GGN25,KUN16..SR..(SA,TH);KUN25,35..RHD..SR.201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47313-0K010iKUN25..DLX..MA201107-201609

main47313-0K020iKUN25..DLX..MA201107-201609

main47313-0K030iKUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47313-0K040iKUN26..4FC..LA201107

main47313-0K050iTGN16..4FC..SR;TGN16..DCB..DLX..(GCC,GEN);KUN15..LHD..(DCB,XTR)..DLX..(GCC,GEN);KUN15,TGN16..LHD..SCB..(DCR,HTWC)..(GCC,GEN);KUN10,2#,35,TGN10,11,15,26..LHD..(DCB,S201107-201308

main47313-0K060iKUN35..IV3;KUN25,35..CO;TGN26..DLX..HTWC..LA;TGN36..SCB..HTWC..LA201108-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47313-0K100iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM201204-201609

main47313-0K110iTGN26,36..5F..DLX..ANCOM201204-201609

main47313-0K130iKUN26..SCB..5FC;KUN26..5FC..ARL..CBU201107-201512

VSC-WITH

main47313-0K130iKUN26..4FC..TH201107-201512

main47313-0K140iKUN26,36..(5F,5FC)..SR..DCR..LA201110-201510

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94029iGGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609

main90947-T2004iGGN15,KUN1#,LAN15,TGN1#201107-201609

RH

main90947-T2005iGGN15,KUN1#,LAN15,TGN1#201107-201609

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iKUN15..PKN..IV3;KUN15,16..DCR..TH201107-201212

main90401-10058iGGN15,KUN1#,LAN15,TGN1#201212-201609

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90413-10309iGGN35201107-201609

main90413-10309iKUN26..4FC..TH201107-201208

VSC-WITHOUT

main90413-10309iGGN25..5FC..DLX;KUN35..SMT..5FC;KUN25..RHD..DCB..SA;KUN35..(SCB,XTR)..SA;GGN15,KUN36,TGN36..RHD;KUN16,35..RHD..(ARL,GEN);GGN25,KUN16..SR..(SA,TH);KUN25,35..RHD..SR.201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main90413-10312iKUN15..PHL..IV3201107

main90414-10055iKUN15,25..5F..PKN201107-201609

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iGGN15,KUN1#,LAN15,TGN1#201107-201609

47314TUBE, FRONT BRAKE, NO.4

main47314-0K020iGGN15,KUN1#,LAN15,TGN1#201107-201609

main47314-0K030iGGN25,TGN26,36201107-201609

main47314-0K050iGGN25,TGN26,36..ANCOM201204-201609

sub47314-0K030

47315TUBE, FRONT BRAKE, NO.5

main47315-0K010iKUN25..DLX..MA201107-201609

main47315-0K010iKUN25..RHD..GEN;KUN15..SCB..DCR..TH;KUN25..DCB..5F..PKN;KUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..(GEN,SA)201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47315-0K010iKUN35..SR..TH201107-201208

VSC-WITHOUT

main47315-0K020iKUN25..4FC..PKN201107-201609

main47315-0K030iKUN25..RHD..DCB..SA201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47315-0K040iTGN16..SA;TGN16..XTR;TGN26..SR..(CO,GEN,LA);TGN16..DCB..5F..SR..GCC;KUN15,2#..LHD..SR..(CO,GEN,PHL,SA);KUN15,TGN26..DLX..(DCR,HTWCF)..(LA,PHL);KUN15,35..LHD..(DCB,S201107

main47315-0K050iTGN26..DLX201107-201308

main47315-0K060iKUN35..IV3;KUN25,35..CO;TGN26..DLX..HTWC..LA;TGN36..SCB..HTWC..LA201108-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47315-0K100iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM201204-201609

main47315-0K110iTGN26,36..5F..DLX..ANCOM201204-201609

sub47315-0K050

main47315-0K140iKUN26,36..(5F,5FC)..SR..DCR..LA201110-201510

main47315-0K150iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201512

main47315-0K150iKUN26..SCB..5FC;KUN26..5FC..ARL..CBU201107-201512

VSC-WITH

47316TUBE, FRONT BRAKE, NO.6

main47316-0K020iGGN15,KUN1#,LAN15,TGN1#201107-201609

main47316-0K030iKUN26..CBU;KUN26..SCB..5FC;KUN26..(4FC,5F)..IV3;GGN25,35,KUN25,3#,LAN25,35,TGN26,36..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201609

main47316-0K050iGGN25,TGN26,36..ANCOM201204-201609

sub47316-0K030

47317TUBE, FRONT BRAKE, NO.7

main47317-0K010iKUN26..RHD..SADCB;KUN25,35..RHD..(DCB,SCB)..SA;GGN25,KUN15,26,36,TGN15,36..RHD..(DCR,HTWC)..SA201107-201609

main47317-0K020iGGN25,TGN26,36201107

main47317-0K030iKUN26,36..5F..SR..DCR..LA201210-201510

PERU SPEC(HIGH ALTITUDE SPEC)&VSC-WITHOUT

main47317-0K030iKUN26,36..5F..SR..DCR..LA201210-201510

PERU SPEC&VSC-WITHOUT

main47317-0K030iKUN26..LHD..SADCB;KUN15,25,LAN15,25,TGN16,26..LHD..SA201108-201510

main47317-0K030iKUN26..4FC..LA201210-201510

EXPORT FROM ARGENTINA&VSC-WITHOUT

main47317-0K030iKUN26..4FC..LA201210-201510

HIGH ALTITUDE COUNTRY SPEC&VSC-WITHOUT

main47317-0K050iKUN26..RHD..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..SA201108-201310

main47317-0K060iGGN25,TGN26,36..ANCOM201204-201609

47318TUBE, FRONT BRAKE, NO.8

main47318-0K010iKUN10,TGN10,11201107-201504

main47318-0K020iGGN25..5F;GGN25..5FC..DLX;KUN26..4FC..(ARL,GEN,PHL,SA);GGN25,KUN26..(5F,5FC)..(GEN,PHL,SA,TH);GGN15,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..ARL,GCC,GEN,IDN,PHL,S201107-201512

main47318-0K040iGGN25,TGN26,36..ANCOM201204-201609

sub47318-0K070

main47318-0K070iGGN25,TGN26,36201109-201609

47321TUBE, REAR BRAKE, NO.1

main47321-0K010iKUN35..SR..TH201107-201208

VSC-WITHOUT

main47321-0K010iKUN15,25..RHD..GEN;KUN15..SCB..DCR..TH;KUN25..DCB..5F..PKN201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47321-0K010iKUN25..4FC..PKN201208-201609

main47321-0K020iKUN35..SCB..SA;KUN26..RHD..SADCB;KUN25..RHD..DCB..SA;GGN25,35,KUN15,26,3#,TGN36..SR..SA201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47321-0K030iTGN36;GGN25,TGN26..SR201107

main47321-0K040iKUN26..5F..SR..DCR..LA201210-201510

PERU SPEC(HIGH ALTITUDE SPEC)&VSC-WITHOUT

main47321-0K040iTGN16..SA;KUN26..LHD..SADCB..SR201108-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47321-0K040iKUN26..4FC..LA201210-201510

EXPORT FROM ARGENTINA&VSC-WITHOUT

main47321-0K040iKUN26..4FC..LA201210-201510

HIGH ALTITUDE COUNTRY SPEC&VSC-WITHOUT

main47321-0K040iKUN26..4FC..LA201210-201510

PERU SPEC&VSC-WITHOUT

main47321-0K040iKUN35..LA..CBU;KUN2#,36..DLX..(DCR,HDCR)..LA;KUN26,TGN36..SCB..(HTWCF,IART)201310-201510

main47321-0K060iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM201204-201609

main47321-0K110iKUN26..DCB..5FC..IV3201107-201512

main47321-0K110iKUN26..4FC..SA;KUN36..DCB..SA;GGN25,KUN26..DCB..(5F,5FC)..(SA,TH)201107-201512

VSC-WITH

main47321-0K120iKUN26..4FC..LA201110-201510

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2011iGGN15,KUN1#,LAN15,TGN1#201107-201609

main90947-T2015iKUN26..4FC..LA201107-201609

main90947-T2057iKUN26..5FC..DCR..(ARL,LA);KUN26,36..5F..SR..DCR..LA201107-201512

VSC-WITH,NO.1

main90947-T2057iKUN26..4FC..SA;KUN36..DCB..SA;KUN26..SR..IART;GGN25,KUN26..DCB..(5F,5FC)..(SA,TH)201107-201512

NO.1

main90947-T2058iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201512

NO.2

main90947-T2058iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201512

VSC-WITH,NO.2

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10308iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201609

main90413-10311iGGN15,KUN1#,LAN15,TGN1#201107-201609

47323TUBE, REAR BRAKE, NO.3

main47323-0K010iKUN35..5FC;KUN25..IDN,TH;TGN16..SR..TH;KUN15..SMT..SR;KUN35..DLX..TH;KUN15,TGN26..RHD..(DCB,SCB)..(HDCR,HTWC)201107-201609

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main47323-0K010iKUN26..4FC..TH201107-201208

VSC-WITHOUT

main47323-0K010iKUN25..4FC..PKN201107-201609

main47323-0K020iKUN35..5FC;KUN35..DLX..TH;KUN10,25,TGN10,16..IDN,TH;KUN15,TGN26..RHD..(HDCR,HTWC)..(GEN,TH)201107-201609

main47323-0K030iKUN25..RHD..SCB..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA201108-201310

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47323-0K040iKUN15..PHL..IV3201107

main47323-0K050iTGN16..4FC..SR;TGN16..DCB..DLX..(GCC,GEN);KUN15..LHD..(DCB,XTR)..DLX..(GCC,GEN);KUN15,TGN16..LHD..SCB..(DCR,HTWC)..(GCC,GEN);KUN10,2#,35,TGN10,11,15,26..LHD..(DCB,S201107-201308

main47323-0K060iTGN36..DCB..DLX..HTWC..LA201108-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main47323-0K100iTGN36..4FC..ANCOM;GGN25,TGN26..SR..ANCOM201204-201609

sub47323-0K040

main47323-0K110iTGN26,36..5F..DLX..ANCOM201204-201609

main47323-0K130iKUN26..4FC..TH201107-201512

main47323-0K130iKUN26..4FC..SA;KUN36..DCB..SA;GGN25,KUN26..DCB..(5F,5FC)..(SA,TH)201107-201512

VSC-WITH

main47323-0K140iKUN26,36..(5F,5FC)..SR..DCR..LA201110-201510

47325TUBE, REAR BRAKE, NO.5

main47325-0K010iKUN10,TGN10,11201107-201504

main47325-0K020iKUN26..4FC..TH201107-201512

main47325-0K050iGGN25,TGN26,36..ANCOM201204-201609

sub47325-0K090

main47325-0K090iGGN25,TGN26,36201109-201609

main47325-0K120iKUN26..LHD..DCB..4FC..GEN201107-201512

VSC-WITH

main47325-0K120iGGN35201107-201512

47326TUBE, REAR BRAKE, NO.6

main47326-0K010iKUN26..LHD..DCB..4FC..GEN201107-201512

VSC-WITH

main47326-0K010iKUN26..4FC..TH201107-201512

main47329-0K011iGGN15,KUN1#,LAN15,TGN1#201107-201609

main47329-0K021iKUN26..5F..ARL201107-201609

47327TUBE, REAR BRAKE, NO.7

main47327-0K011iGGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH201107-201512

main47327-0K021iKUN26..5F..SR..DCR..LA201210

PERU SPEC&VSC-WITHOUT

main47327-0K021iGGN25,TGN26,36201107-201308

main47327-0K021iGGN35201107-201310

*317 TYPE A:REF ILL.

main47327-0K021iKUN26,36..5F..SR..DCR..LA201210

HIGH ALTITUDE COUNTRY SPEC&VSC-WITHOUT

main47327-0K021iKUN26,36..5F..SR..DCR..LA201210

PERU SPEC(HIGH ALTITUDE SPEC)&VSC-WITHOUT

main47327-0K021iKUN26,36..5F..SR..DCR..LA201210

EXPORT FROM ARGENTINA&VSC-WITHOUT

main47327-0K031iGGN25,TGN26,36..ANCOM201204-201609

main47327-0K091iKUN26..4FC..SA;KUN36..DCB..SA;KUN26..SR..IART;GGN25,KUN26..DCB..(5F,5FC)..(SA,TH)201107-201512

VSC-WITH

main47327-0K091iGGN35201107-201512

main47327-0K101iKUN15..PKN201202-201609

main47327-0K121iKUN2#..MA201109-201601

main47327-0K140iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

47328TUBE, REAR BRAKE, NO.8

main47328-0K011iGGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH201107-201512

main47328-0K021iKUN26,36..5F..SR..DCR..LA201210

PERU SPEC&VSC-WITHOUT

main47328-0K021iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201308

main47328-0K021iGGN35201107-201310

*317 TYPE A:REF ILL.

main47328-0K021iKUN26..4FC..(LA,TH)201210

EXPORT FROM ARGENTINA&VSC-WITHOUT

main47328-0K021iKUN26..4FC..(LA,TH)201210

HIGH ALTITUDE COUNTRY SPEC&VSC-WITHOUT

main47328-0K021iKUN26..4FC..(LA,TH)201210

PERU SPEC(HIGH ALTITUDE SPEC)&VSC-WITHOUT

main47328-0K031iGGN25,TGN26,36..ANCOM201204-201609

main47328-0K091iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201512

VSC-WITH

main47328-0K091iGGN35201107-201512

main47328-0K101iKUN15..PKN201202-201609

main47328-0K120iGGN25,KUN2#,3#,LAN25,35,TGN26,36..SA201108-201512

*317 TYPE B:REF ILL.

main47328-0K141iKUN2#..MA201109-201601

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-0K010iKUN25..PKN201107-201609

main47353-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201410

main47353-0K011iGGN15,KUN1#,LAN15,TGN1#201411-201609

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-0K030iKUN25..PKN201107-201609

main47354-0K010iGGN15,KUN1#,LAN15,TGN1#201107-201609

47371ACLAMP, BRAKE TUBE, NO.1

main90949-T1011iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD201107

47371CCLAMP, BRAKE TUBE, NO.7

main90461-T0001iKUN25..PKN201107-201609

main90461-T0002iKUN25..MA;GGN25,KUN15,26,TGN26,36..ANCOM,MA,PKN201109-201609

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1014iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD201107-201609

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1008iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD201107-201609

main90949-T1012iGGN25,KUN10,15,2#,3#,LAN15,25,TGN1#,26,36..LHD201107

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1009iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD201107-201609

47375CLAMP, BRAKE TUBE, NO.5

main90469-T0006iKUN15,25..PKN201109-201609

NO.1

main90469-T0007iKUN36..SR;KUN26..(5F,5FC)..SR..DCR..LA;GGN15,25,35,KUN1#,2#,35,LAN15,25,35,TGN1#,26,36..(DCR,DEFI,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,SA,TH)201107-201512

NO.1

main90949-T1004iKUN15,25..PKN201109-201609

NO.2

main90949-T1006iTGN16..SCB..CNG201107-201512

NO.2

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main90949-T2001iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,15,16,26,36..RHD201107

7751

9011908868

main90119-08868

90119T0029

main90119-T0029

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0244

main90119-T0244

90468T0004

main90468-T0004

38 parts on this diagram · 23 diagrams in section
